Victor UX-QX1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-10

Manufacturer
Victor
Model / source grouping
UX-QX1
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor UX-QX1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name UX-QX1
Manufacturer Victor
Released 2006/06
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes

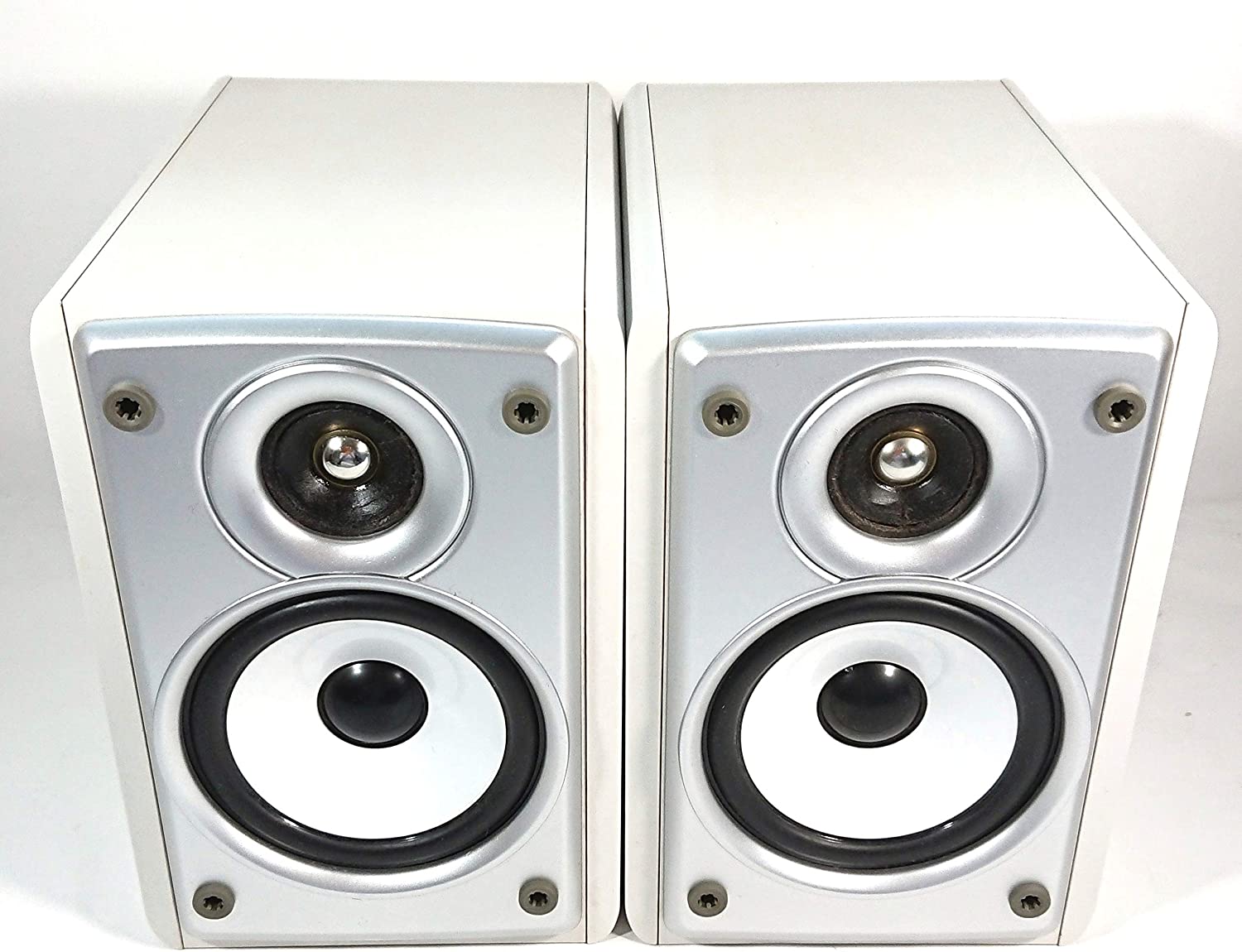

Dimensions 165 x 204 x 328.5mm main unit, 135 x 200.5 x 215mm Speaker
Weight 4.9kg main unit, 1.9kg speaker
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥40 000
-

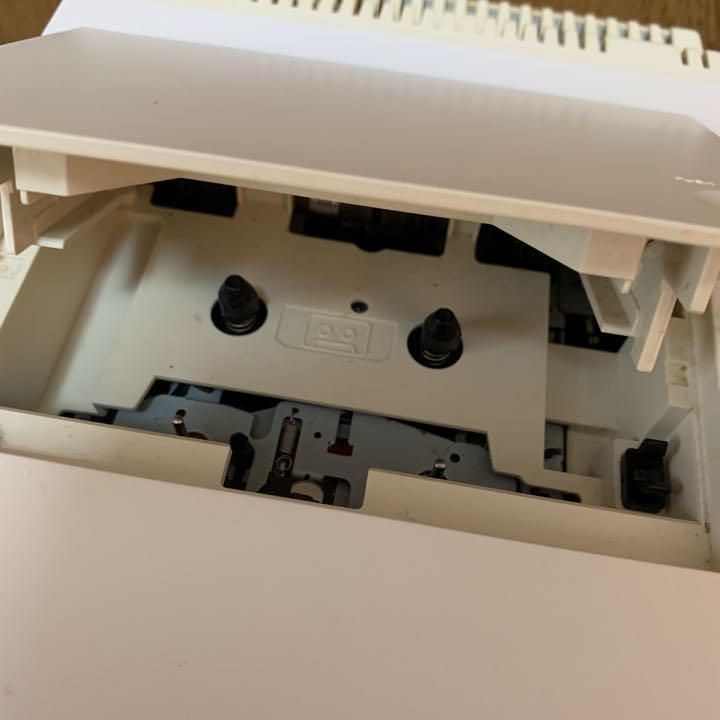

Inputs 3.5mm line in (analog-only), CD, Radio recording, Tape deck

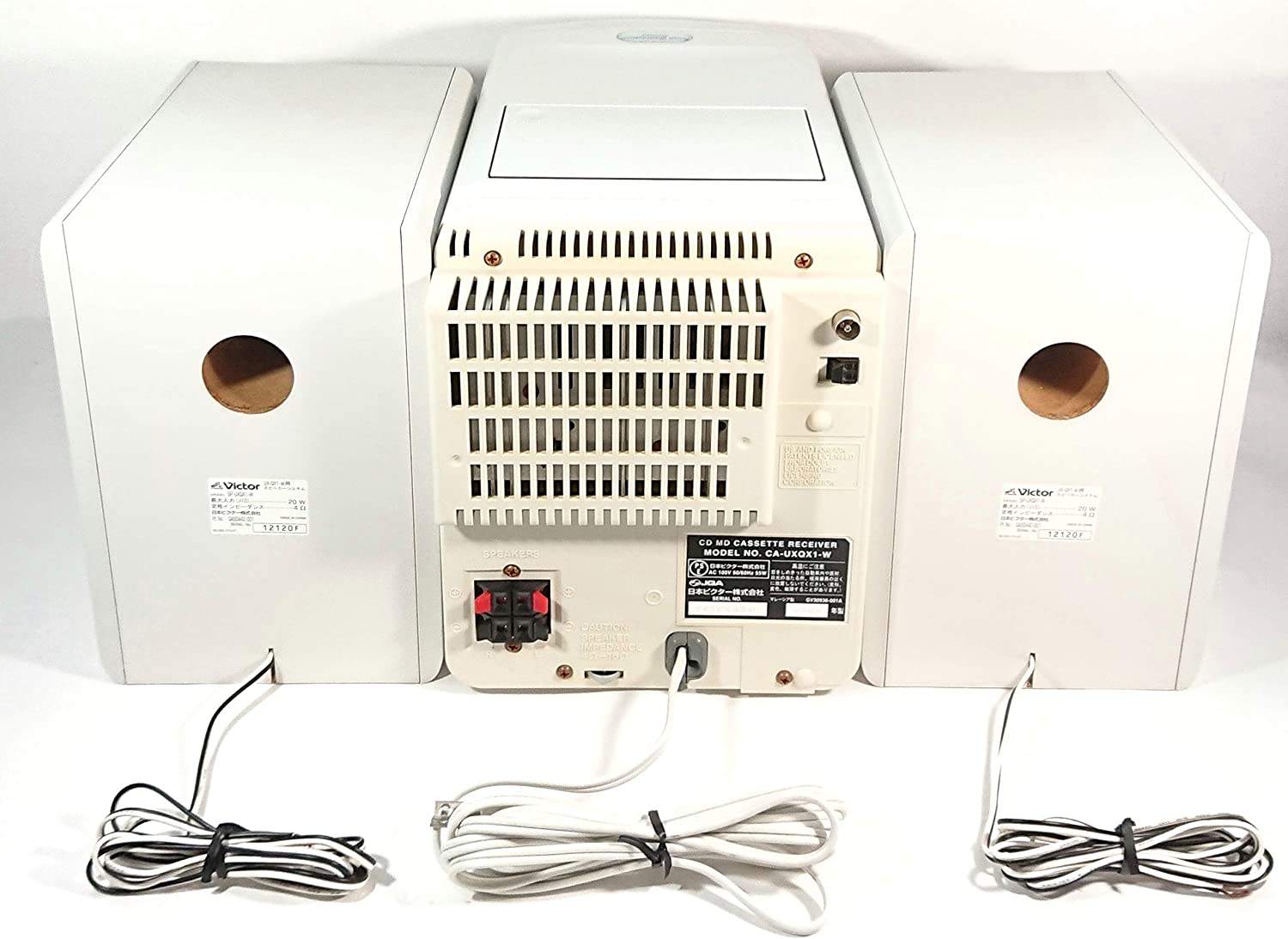

Outputs 3.5mm line out (analog-only), 3.5mm headphone
Control Not recorded

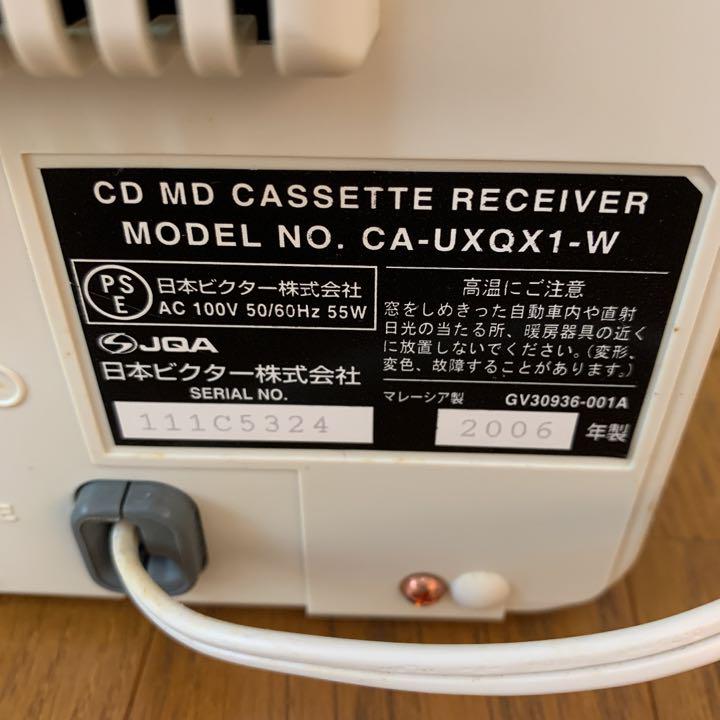

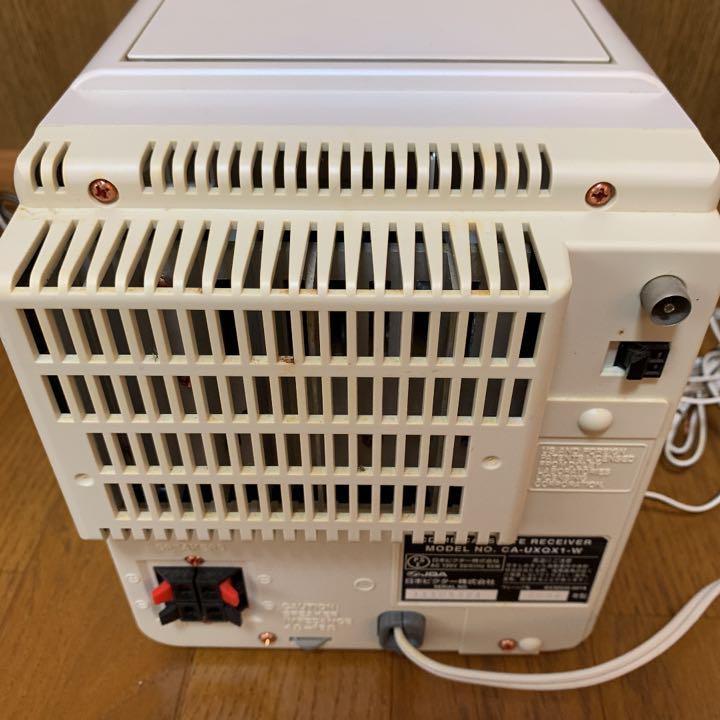

CA-UXQX1-W / UX-QX1. Seemingly a refresh of the UX-Q1, almost identical except for some more outputs on the front and different styling.

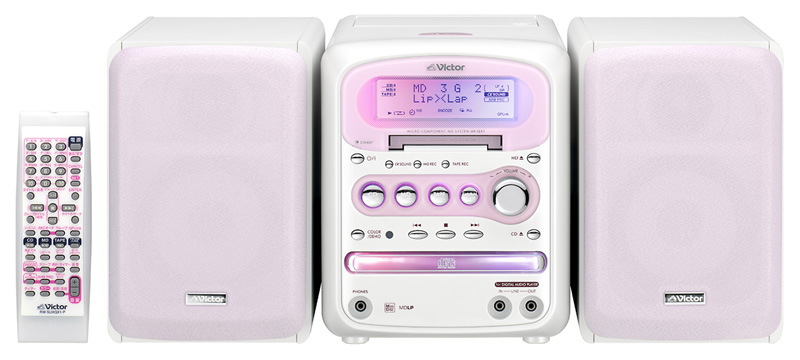

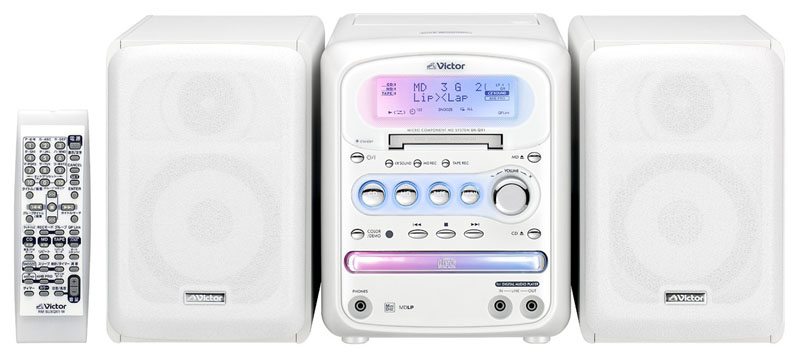

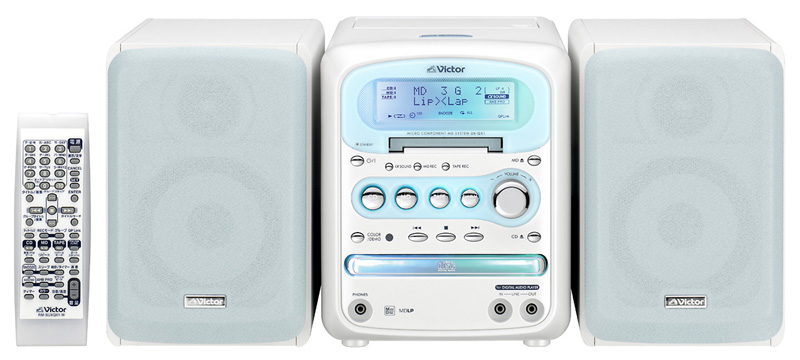

Offered in UX-QX1-W: pearl white, UX-QX1-P: tourmaline pink, UX-QX1-A: peppermint blue.

The biggest feature is that it is equipped with a "QP (Quick Portable) Link" that automatically turns on the component power and starts playback when a portable audio player is connected and played.

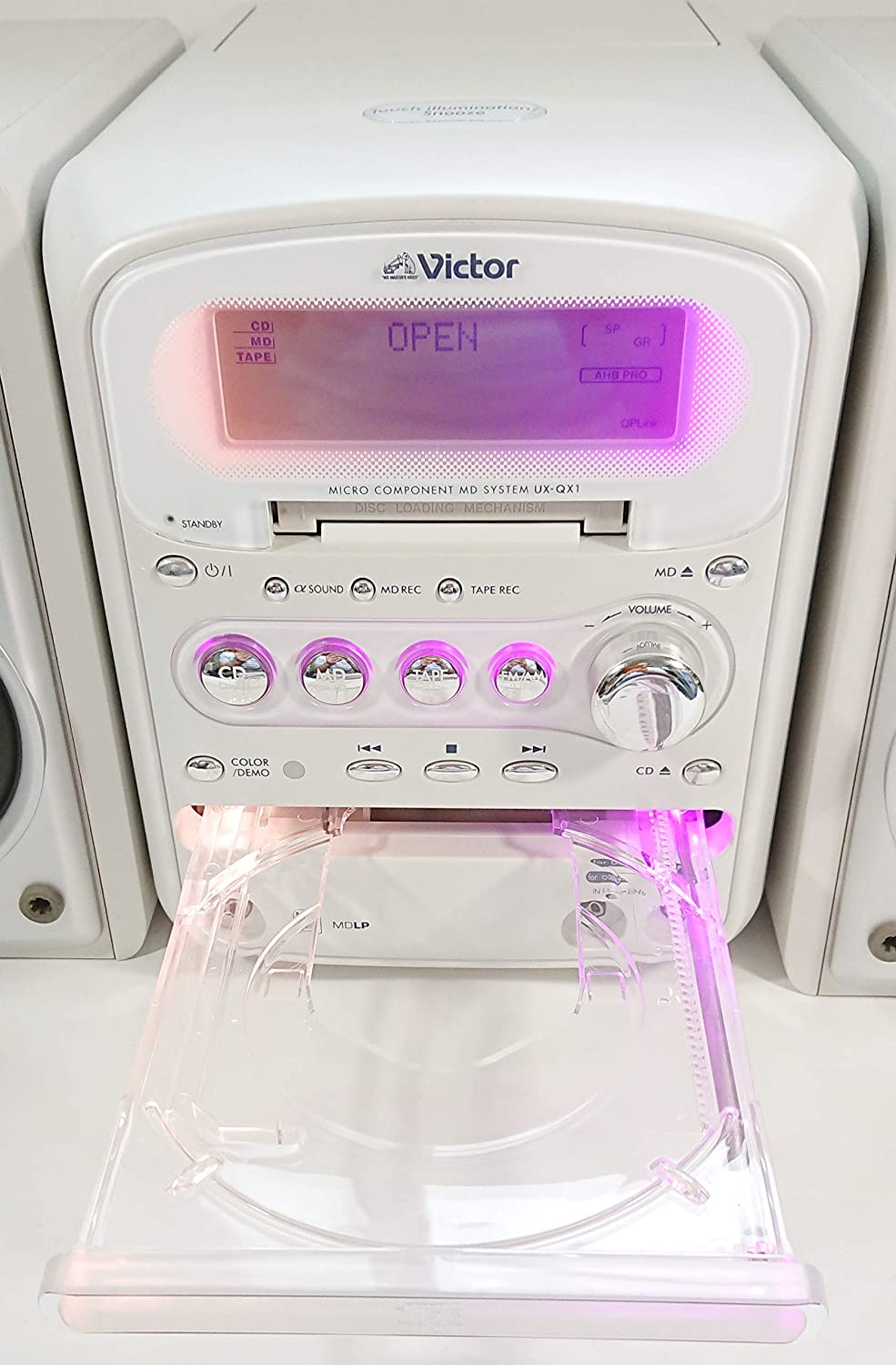

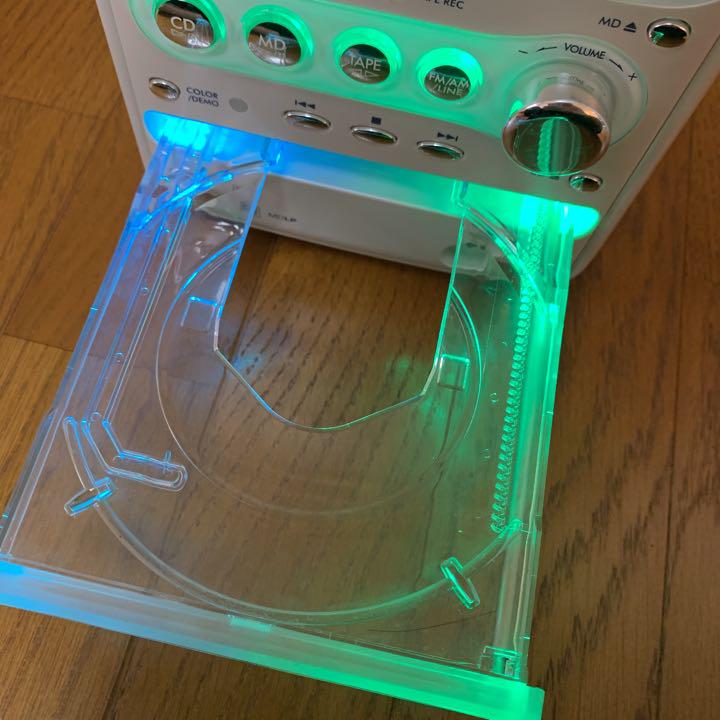

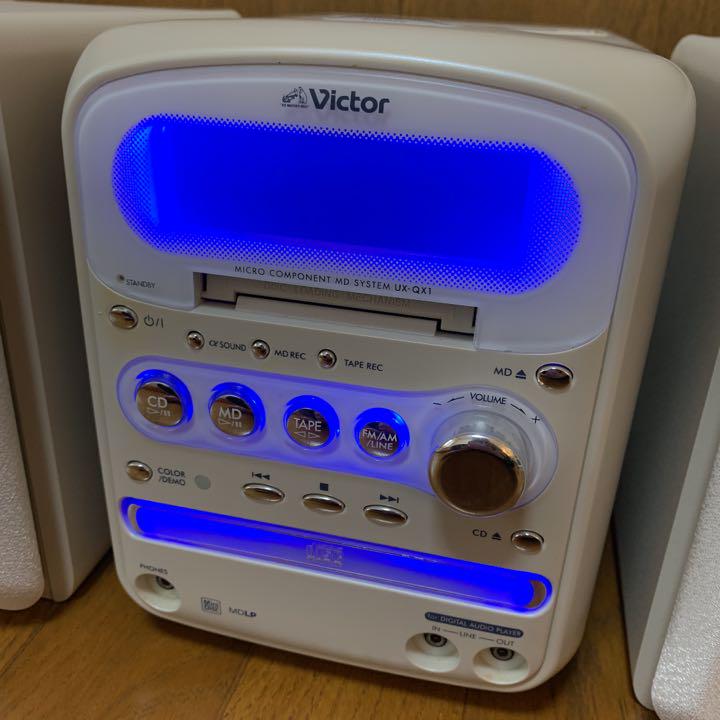

In terms of design, it is equipped with 20 patterns of "new touch illumination" that change the light of the display when you lightly touch the top of the main unit. It also has an "illumination guide" that lights up red when the volume is turned up and blue when it is turned down.

FM 76.00MHz - 108.00MHz

Content adapted from: Victor Press Release Victor Press Release (MiniDisc Wiki mirror) UX-QX1 Product Page av.watch Kakaku Page

Manuals

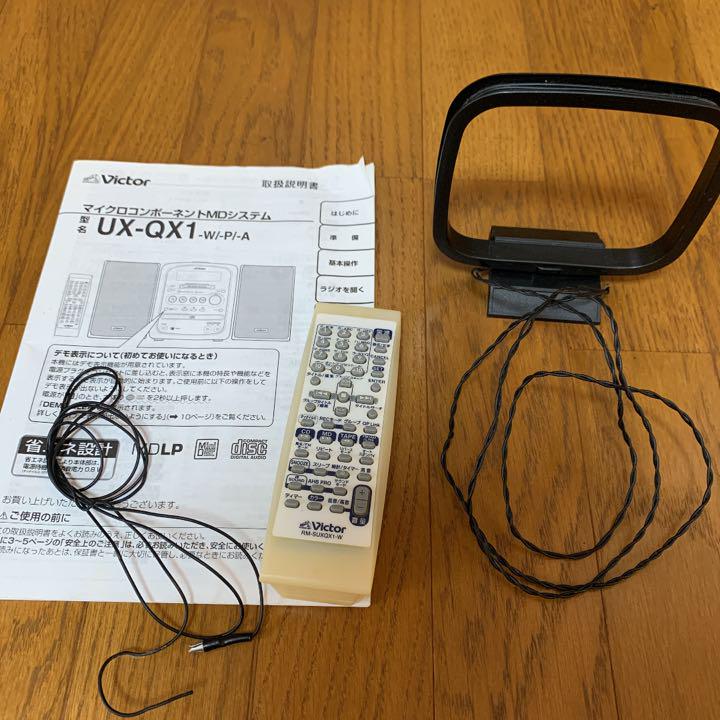

Victor UX-QX1 User Manual

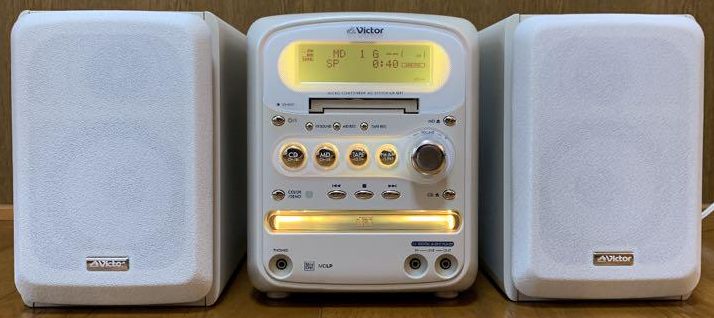

Photos

Referenced image — image unavailable in this snapshot

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
