Victor UX-Z11WMD

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor UX-Z11WMD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	UX-Z11WMD
Manufacturer	Victor
Released	2002/09
Device type	bookshelf
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Yes
Dimensions	(Width) 185 mm x (Height) 265 mm x (Depth) 316 mm
Weight	6500
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	100
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥55 000
-

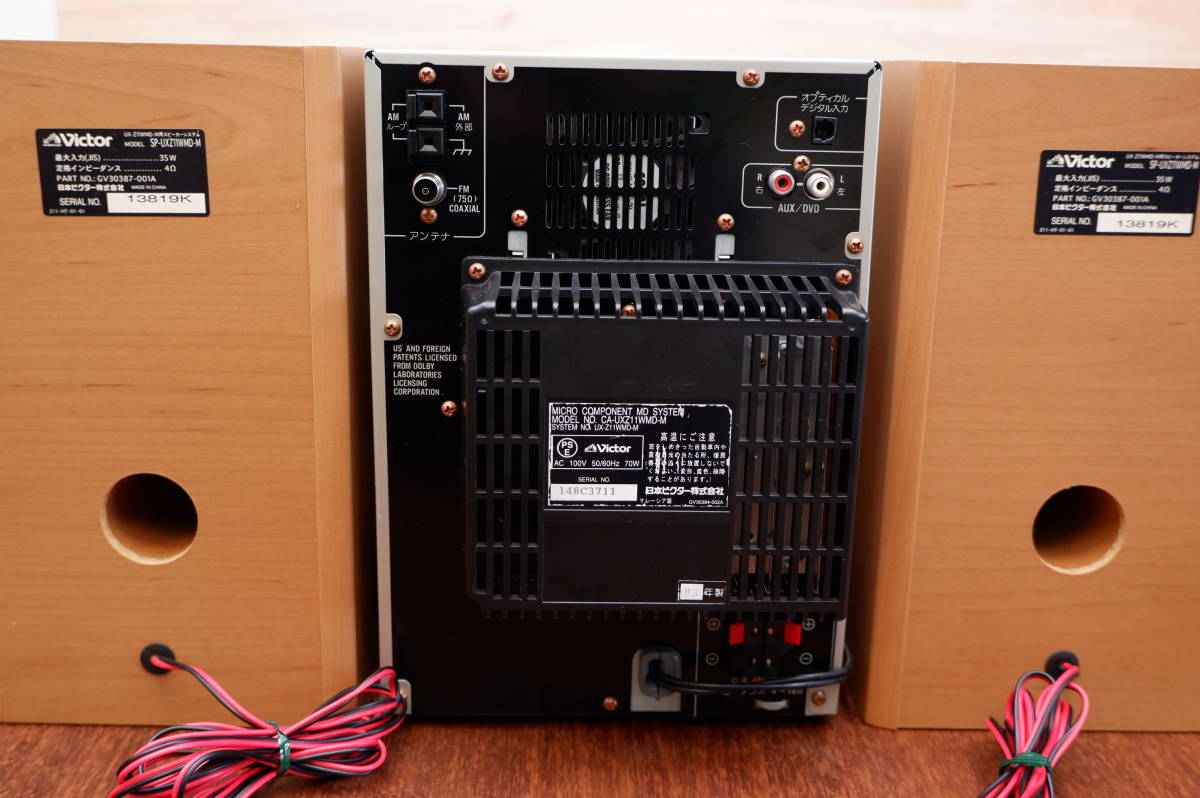

Inputs	Digital optical (TOSLINK), CD, Radio recording, Tape deck
Outputs	Not recorded
Control	Not recorded

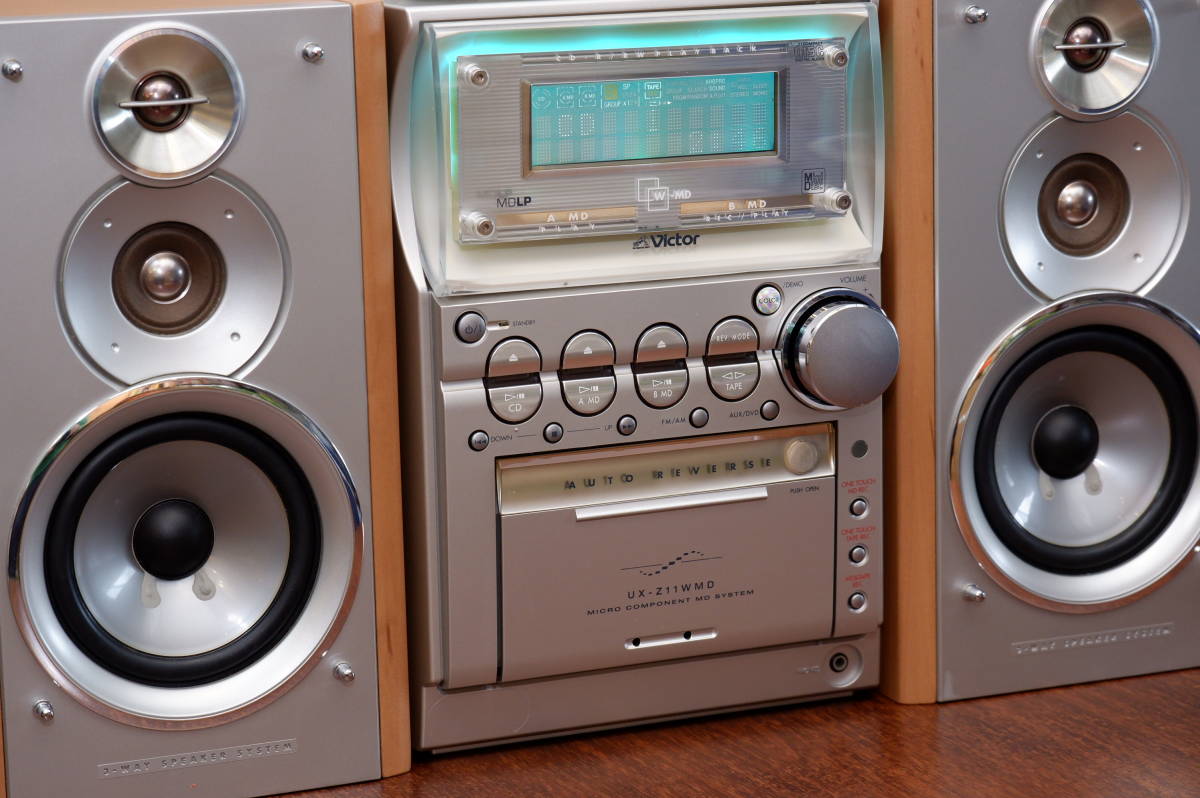

UX-Z11WMD-S Silver Finish / UX-Z11WMD-M Wood Grain Finish

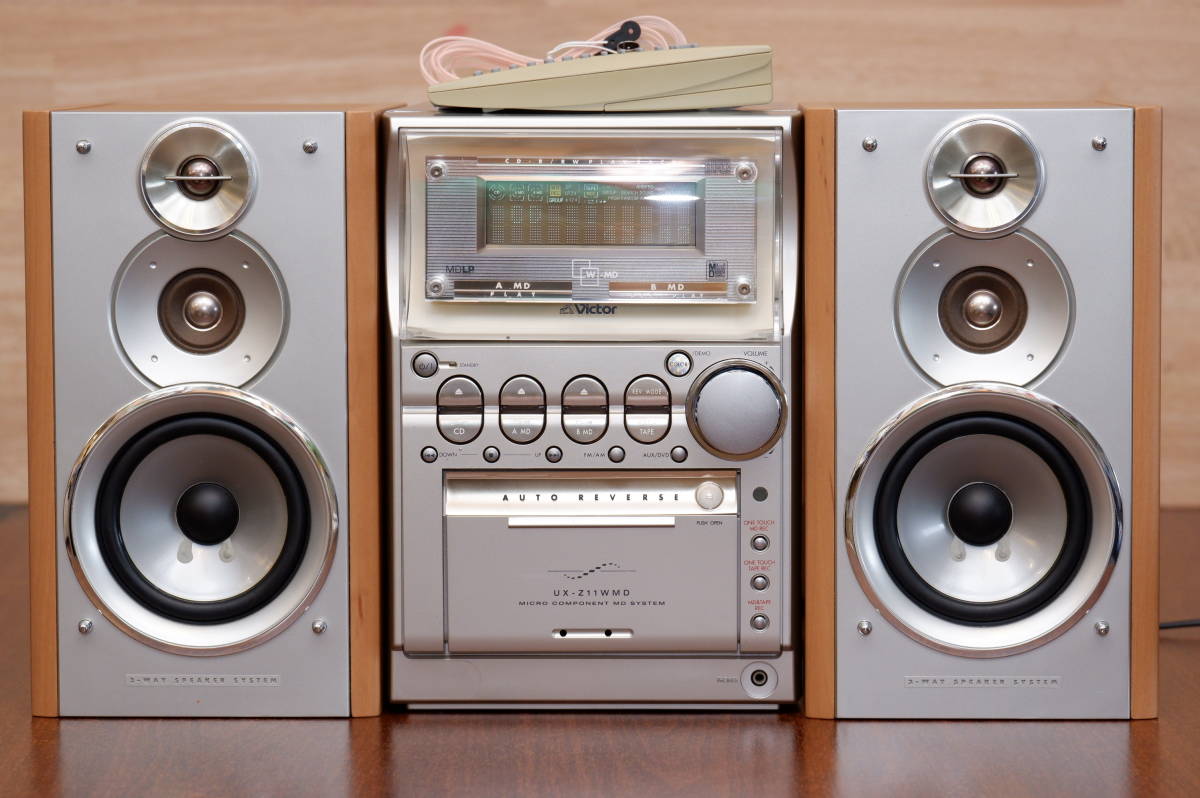

micro-component MD system "UX-Z11WMD" equipped with a double MD as an all-in-one type with a cassette. This unit is equipped with an MDLP-compatible double MD that allows you to easily record from MD to MD, and a CD-R / RW playback-compatible CD, cassette, and tuner, allowing you to enjoy a variety of recording and editing. In addition, the "Rainbow Illuminations" that allows you to select a changing light pattern and the "Transmissive FL Display" that makes the characters easy to see make it both visually pleasing and easy to use.

1. The industry's first * 1 double MD-equipped all-in-one micro component system , "CD → MD", "MD → MD", "CD → cassette", "MD → cassette", etc. can be recorded in various ways. ・ "CD → MD 4x speed recording function" * 2 : You can record from CD to MD in a quarter of the normal time. ・ "MD group search function" * 3 … You can group multiple songs recorded on MD and immediately access the song you want to listen to, and you can also edit such as moving or deleting in group units.

・ "Ichi push twin REC function": Simultaneous recording from CD to MD and cassette, and simultaneous recording from MD to MD and cassette can be easily performed.

* 2: SP mode only. In LP2 and LP4 mode, double speed recording is performed. Also, due to copyright protection, songs that have been double-speed recorded cannot be re-recorded for 74 minutes from the start of recording. * 3: When the MD recorded by this unit is played back on a device that does not support the MD group search function, only the normal playback function operates.

2. Equipped with "Rainboy Lumination" that allows you to select a changing light pattern The multi-color backlight that illuminates the entire display, "Rainboy Lumination" mode that allows you to select 8 types of light changes and color combinations, and your favorite color from 64 colors Equipped with two color modes, "manual color" mode that allows you to preset up to two colors. Combined with the "electric seesaw panel" that allows you to insert and remove CD / MD discs with unique movements, it creates a fun appearance.

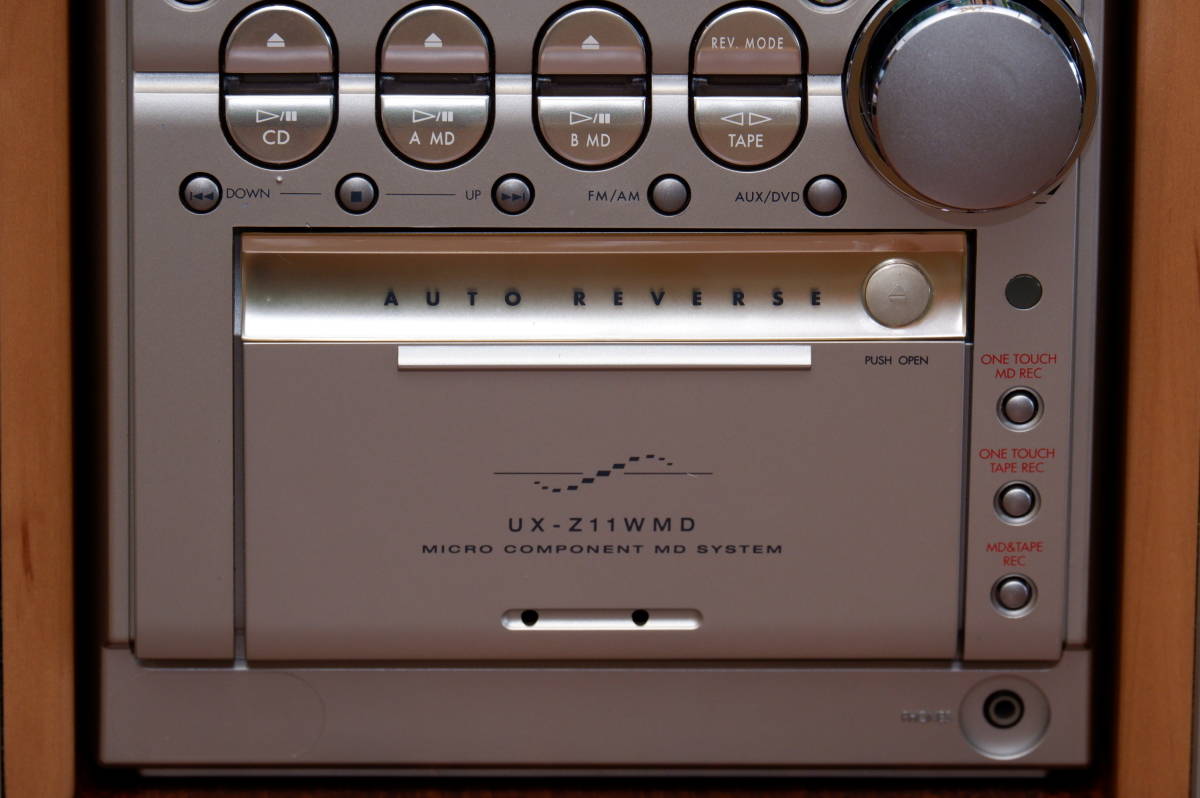

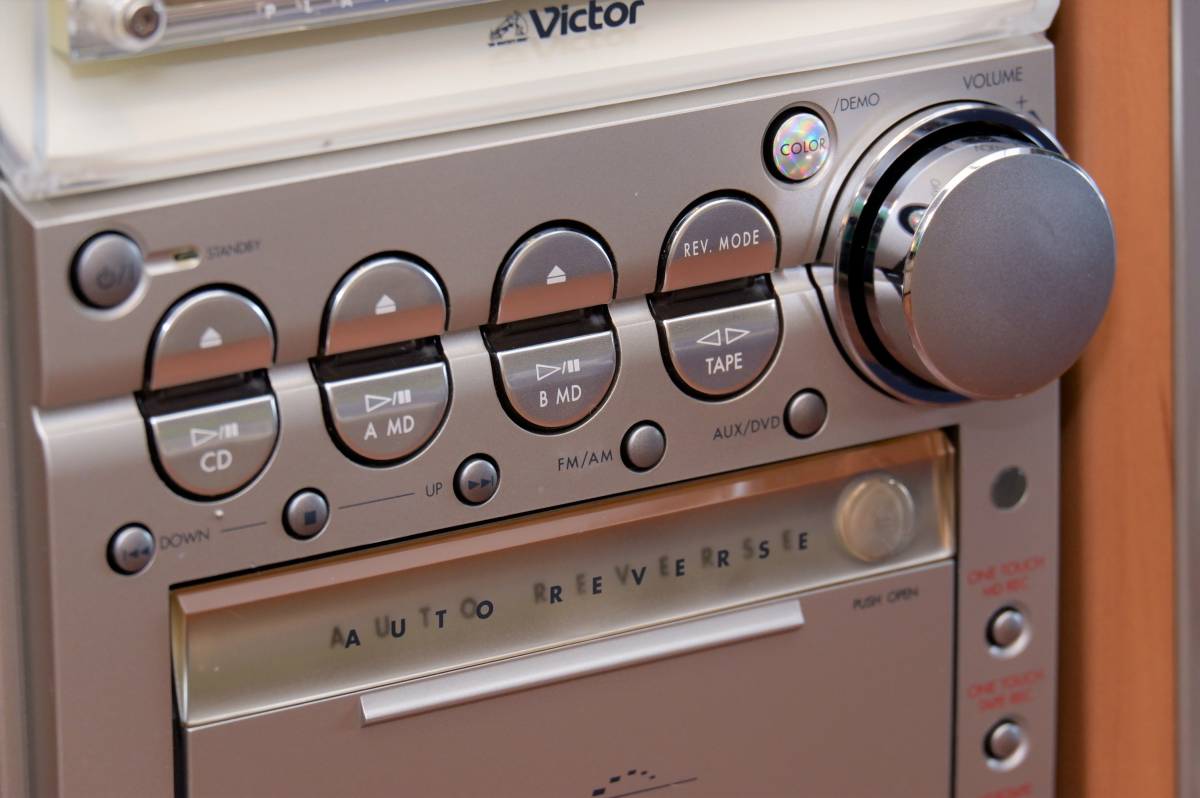

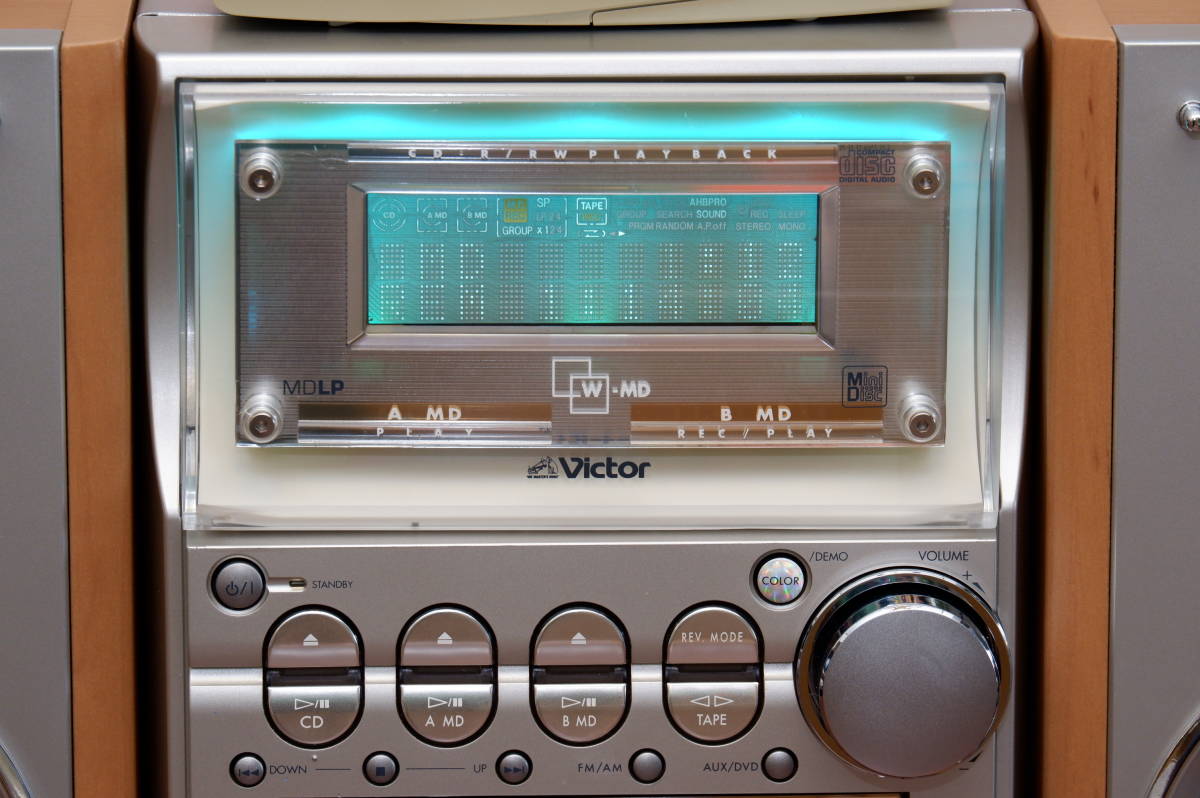

3. "Transparent FL display" is used for easy-to-read and beautiful characters. " Transparent FL display" is used for the character display. The color of the backlight looks beautiful, and the characters themselves emit light to make them stand out three-dimensionally, which is both easy to see and beautiful. 4. Barrier-free design for ease of use・ All sources and operation keys for CDs, MDs, and cassettes are laid out on the front. In addition to improving usability, it has become easier to install on bookshelves with no height. In addition, the large function buttons, rotary volume, and press recording button are designed to give the impression of ease of use. -It is a kind design that considers usability, such as a "beep function" that informs you of the operation status and time, and an "auto power off function" that automatically turns off the power after 3 minutes even if you forget to turn off the power.

Content adapted from: JVC-Victor Press Release JVC-Victor Press Release (MiniDisc Wiki mirror) av.watch
