Victor RC-X5MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-08

Manufacturer
Victor
Model / source grouping
RC-X5MD
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor RC-X5MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name RC-X5MD
Manufacturer Victor
Released 2000/09
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 426 x 177 x 262mm
Weight 5.6kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

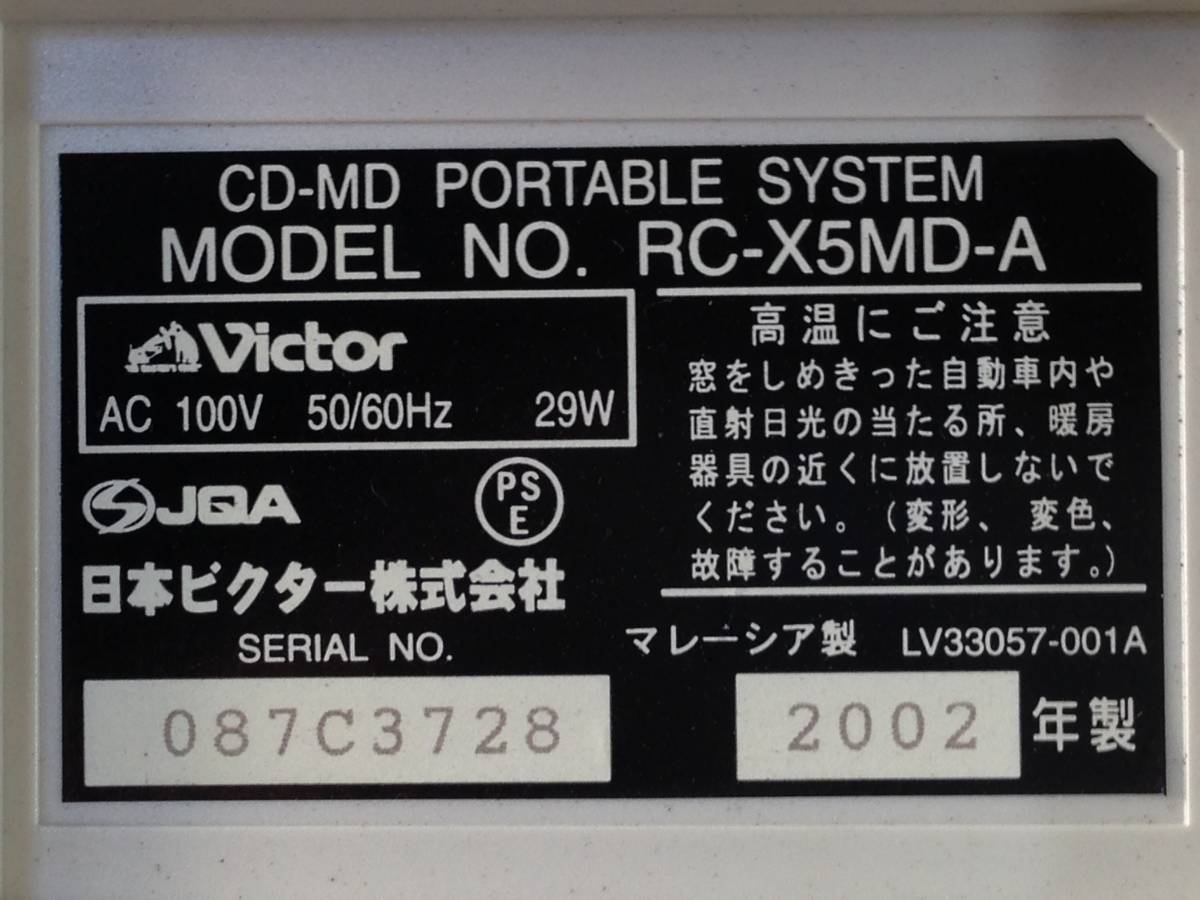

Voltage 100
Power cable AC
Price (launch) Not recorded
¥35 000
-
Inputs 3.5mm line in (analog-only), CD, Radio recording, Tape deck
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

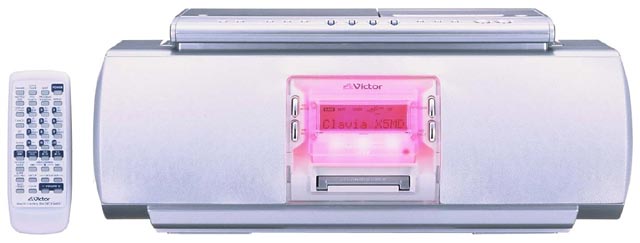

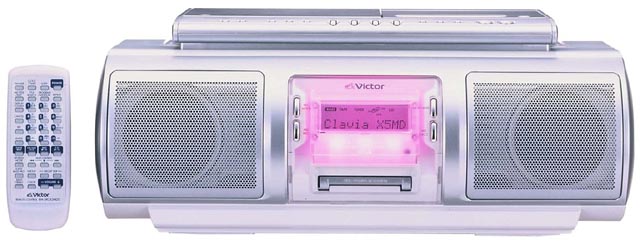

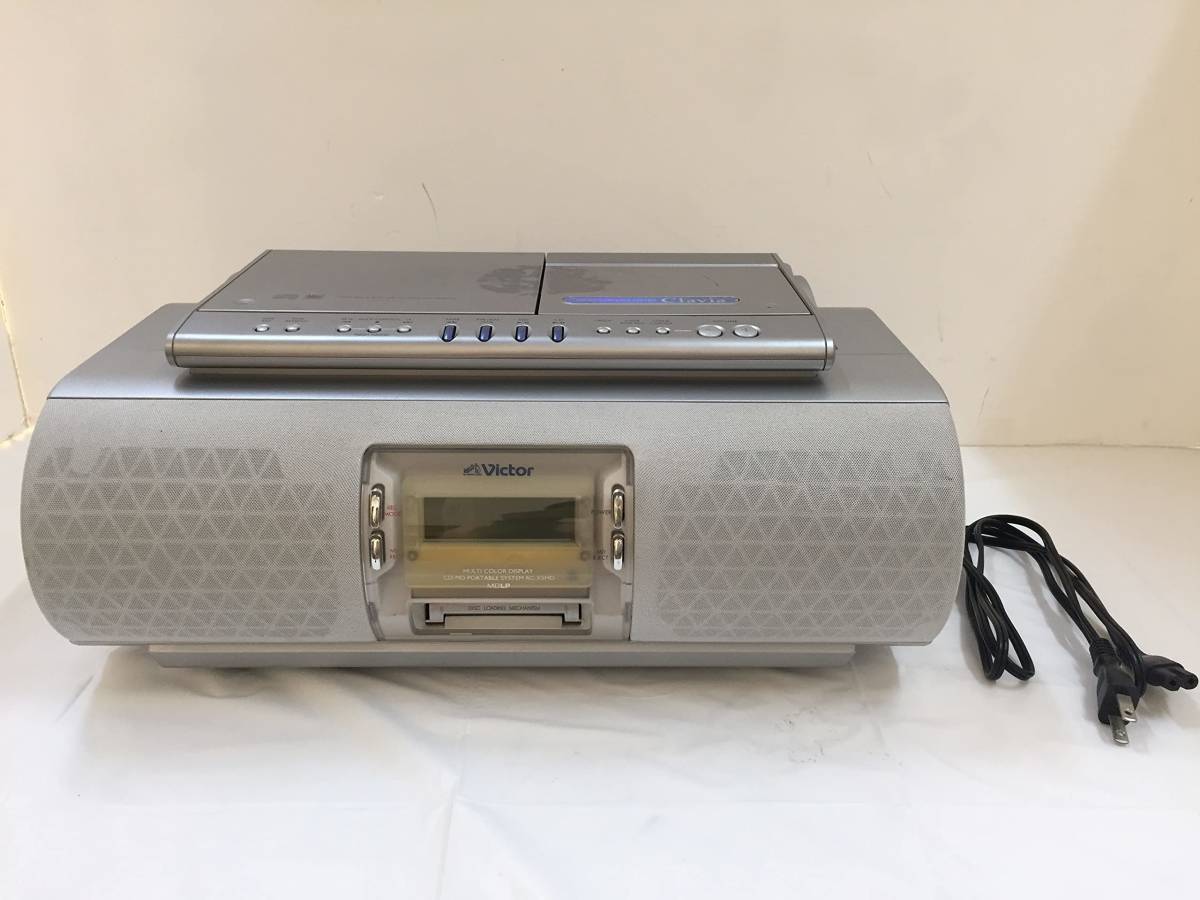

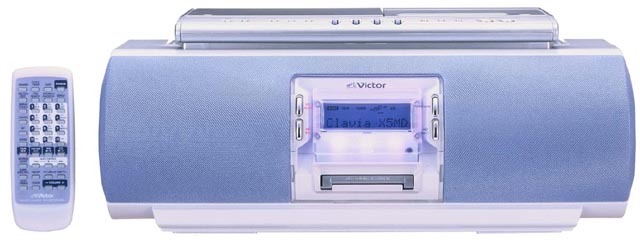

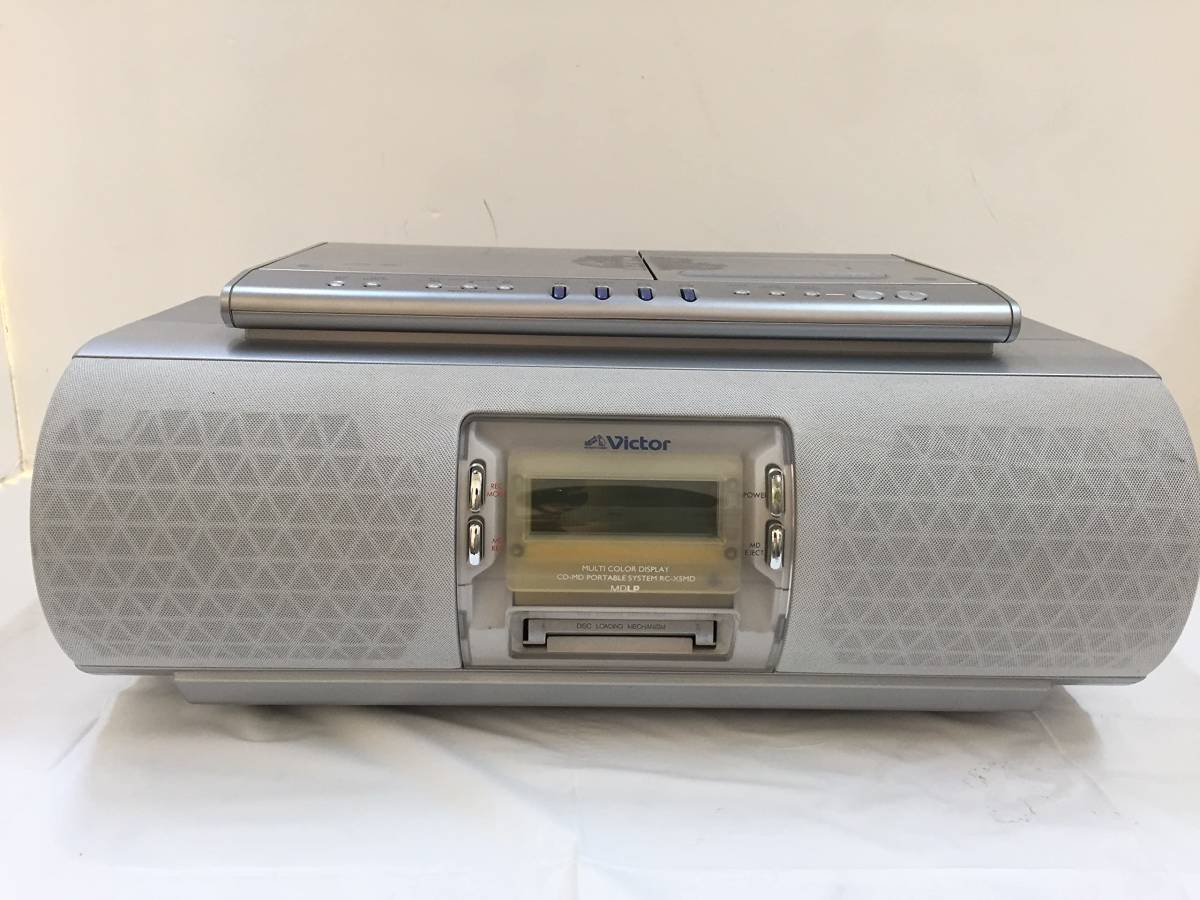

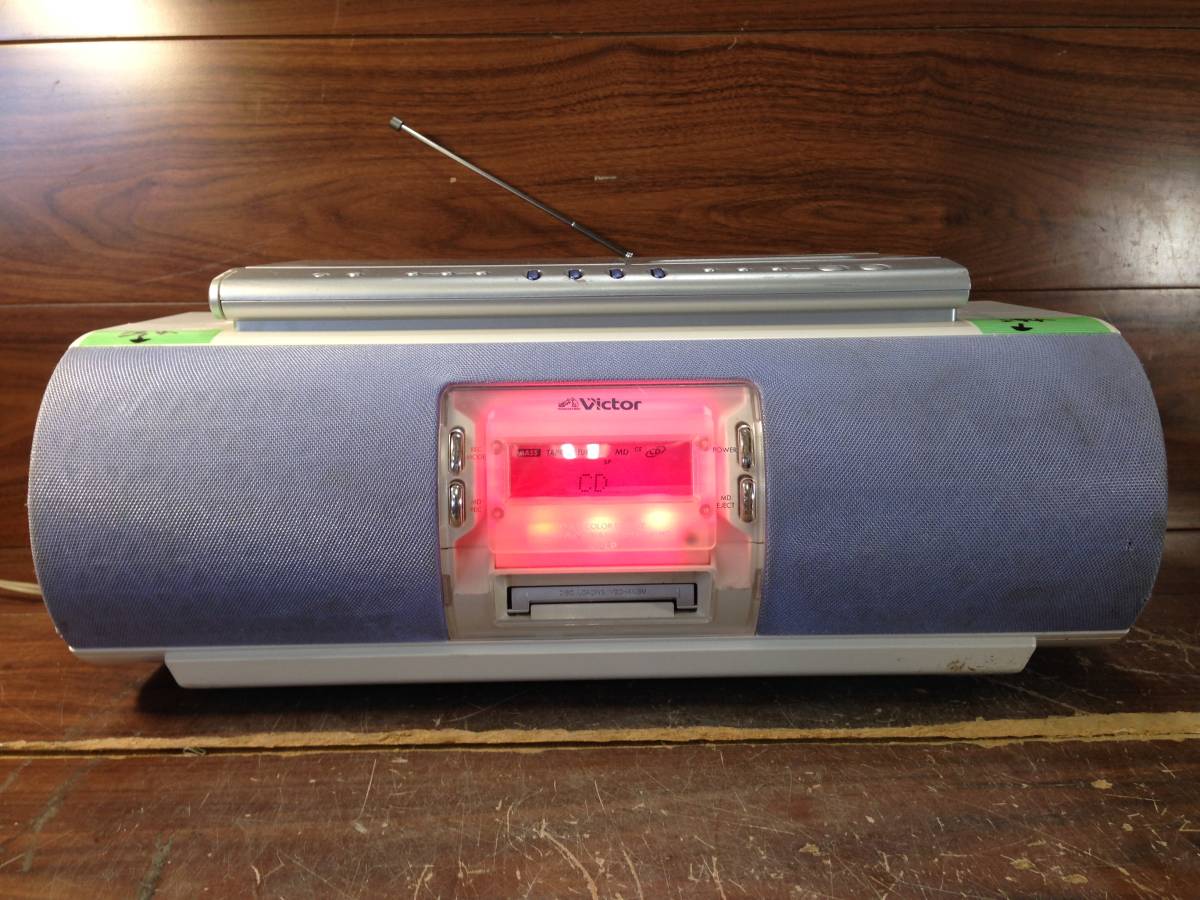

Offered in 4 colors: RC-X5MD-A (blue saran net, white body), RC-X5MD-S (white saran net, silver body), RC-X5MD-B (metal gray punching, black body), RC-X5MD-W (silver punching, white body)

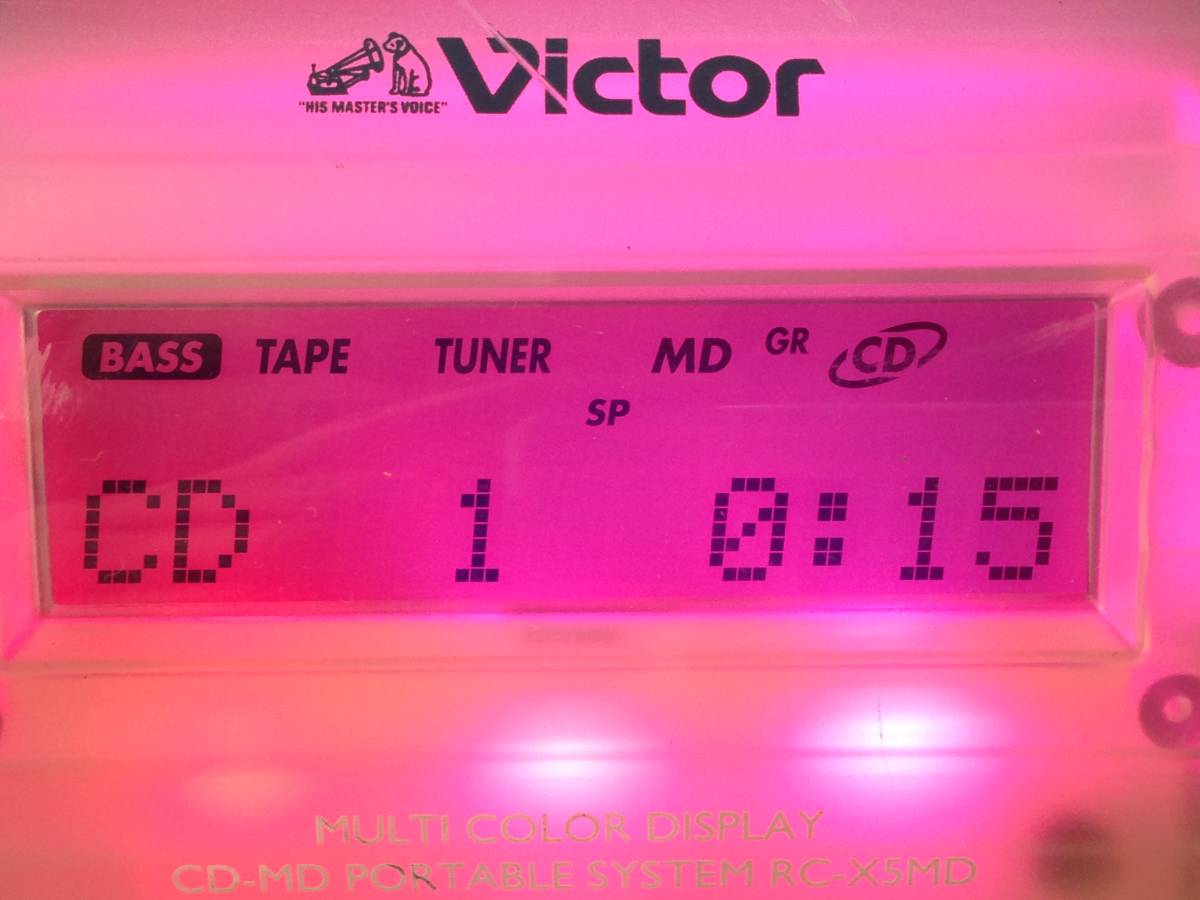

JVC-Victor Clavia RC-X5MD is a 1 CD, 1 MD, and 1 Tape boombox with MDLP, group function, and 2X CD-MD dubbing. Choose 16 different colors for LCD display, 6 Bass/Treble level adjustments. 2 step adjustable recording levels "Tape Refreshment Function" for Tape-MD dubbing to amplify old tape sound reproduction.

  • MDLP and 2X CD-MD dubbing
  • Group function
  • "10 Key" cellphone equivalent title operation
  • One touch CD-MD, CD-Tape, MD-Tape, Tape-MD, and Tuner-MD recording
  • 6 step Bass/Treble
  • 2 step adjustable Tape-MD recording levels

Content adapted from: Minidisc.org page Victor Press Release Victor Press Release (MiniDisc Wiki mirror) av.watch

Manuals

Victor RC-X5MD Manual JP

Repair

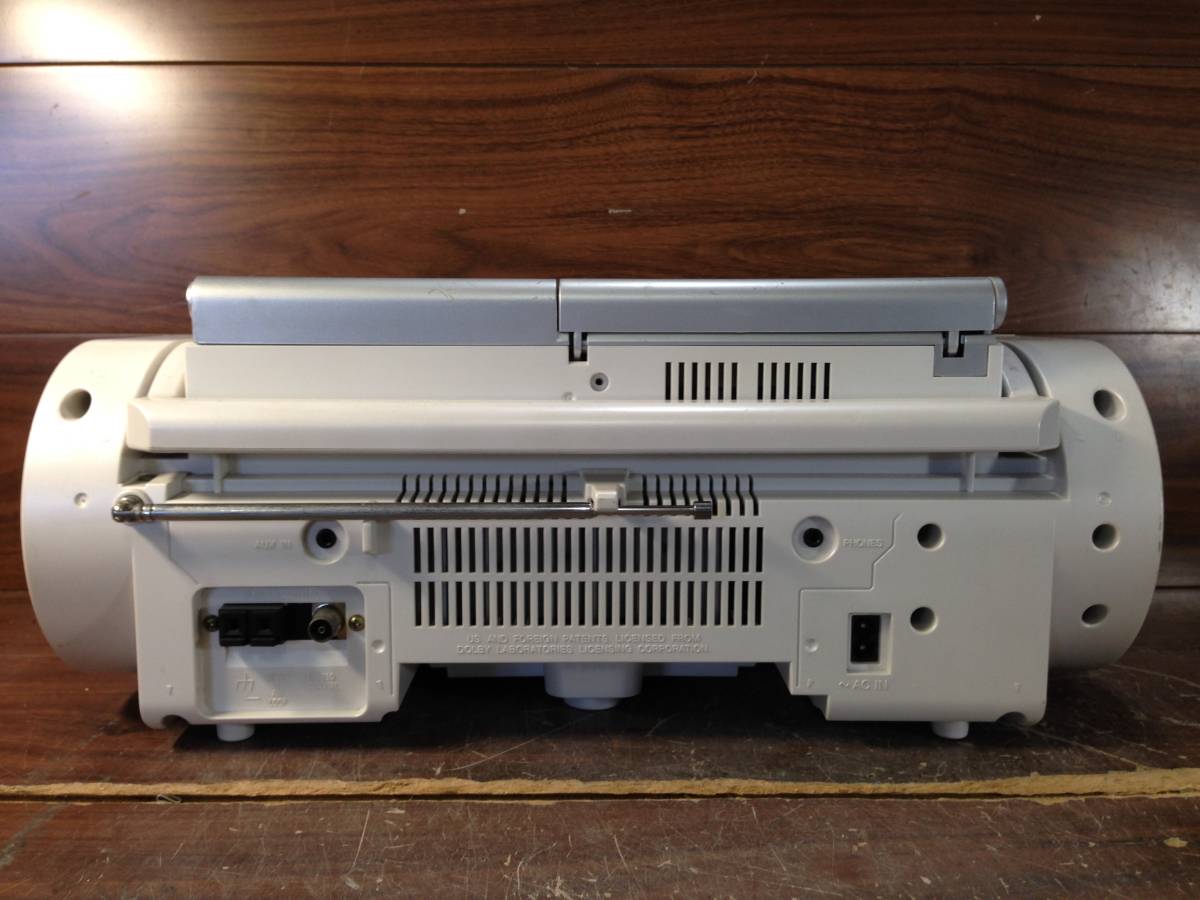

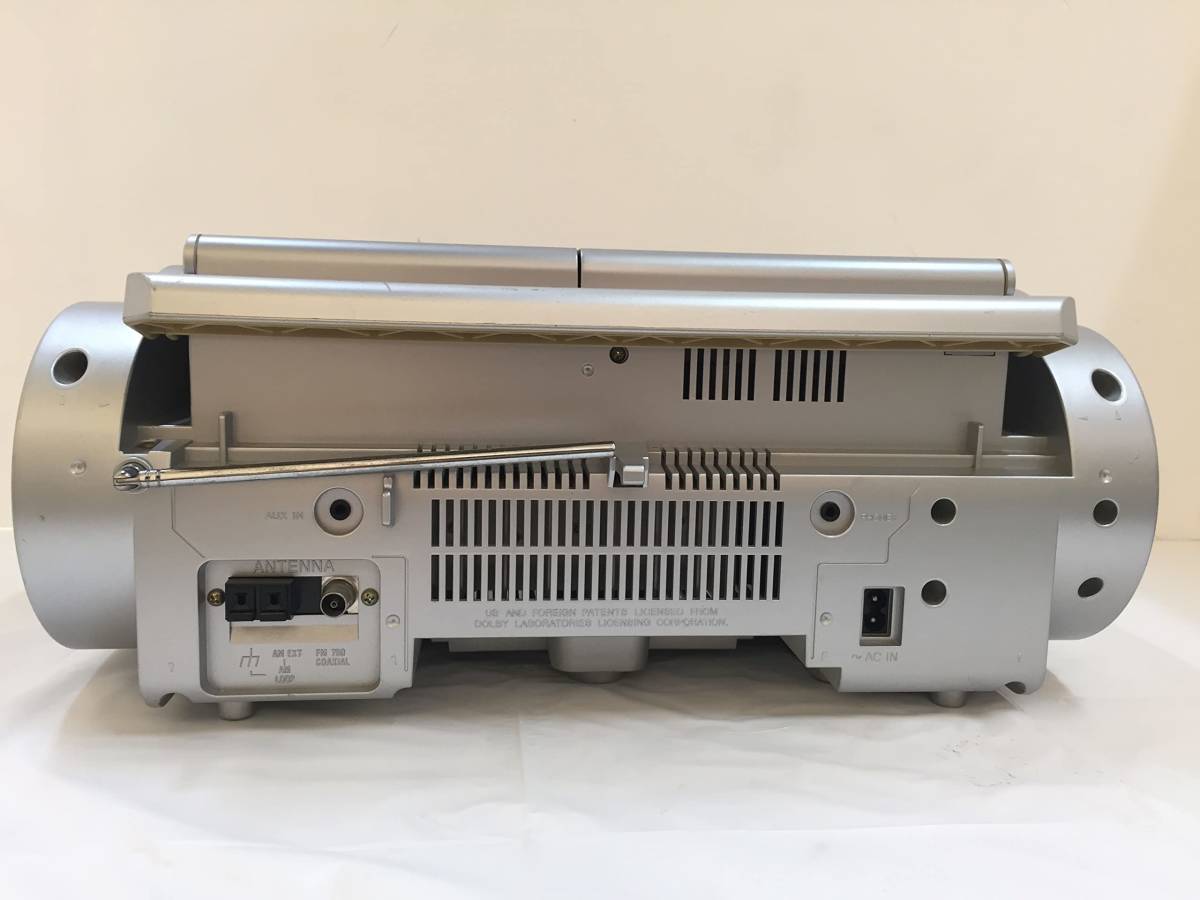

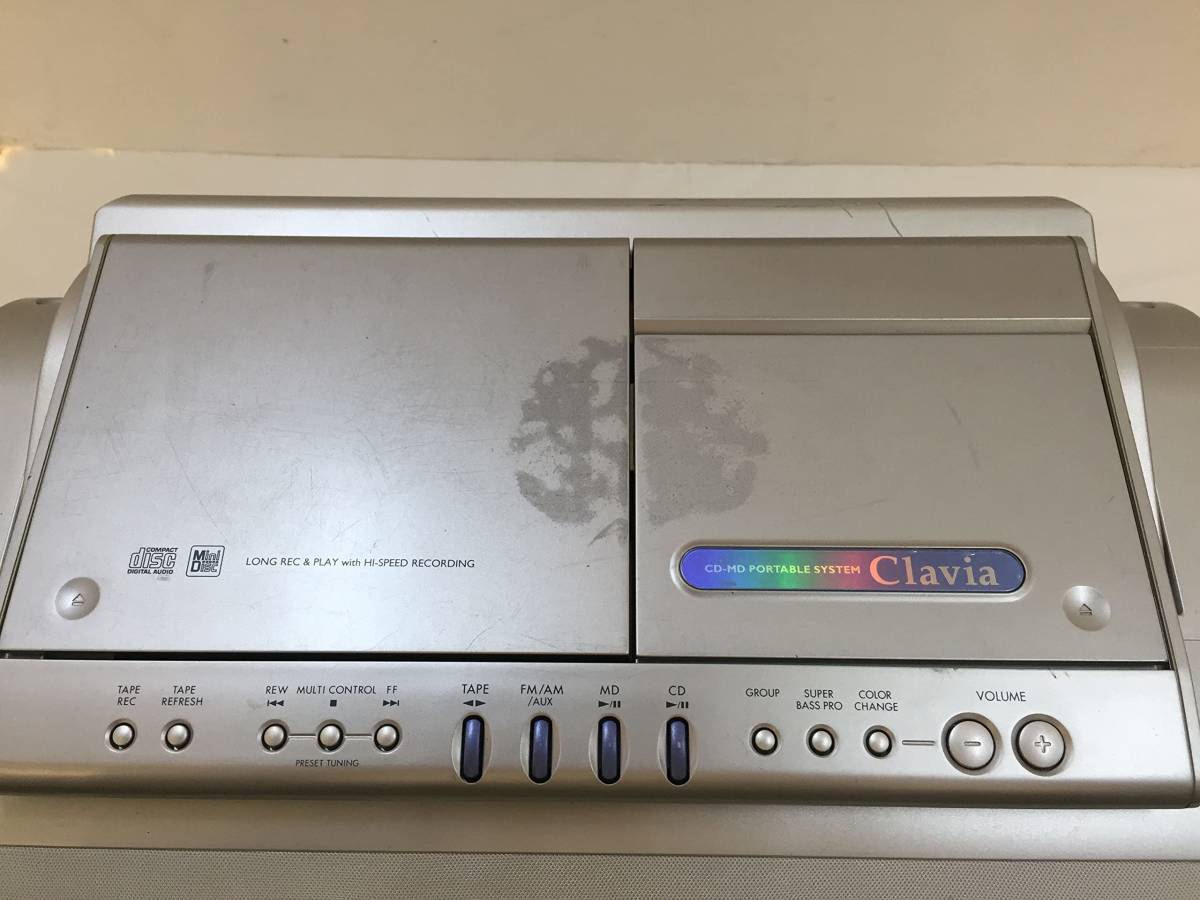

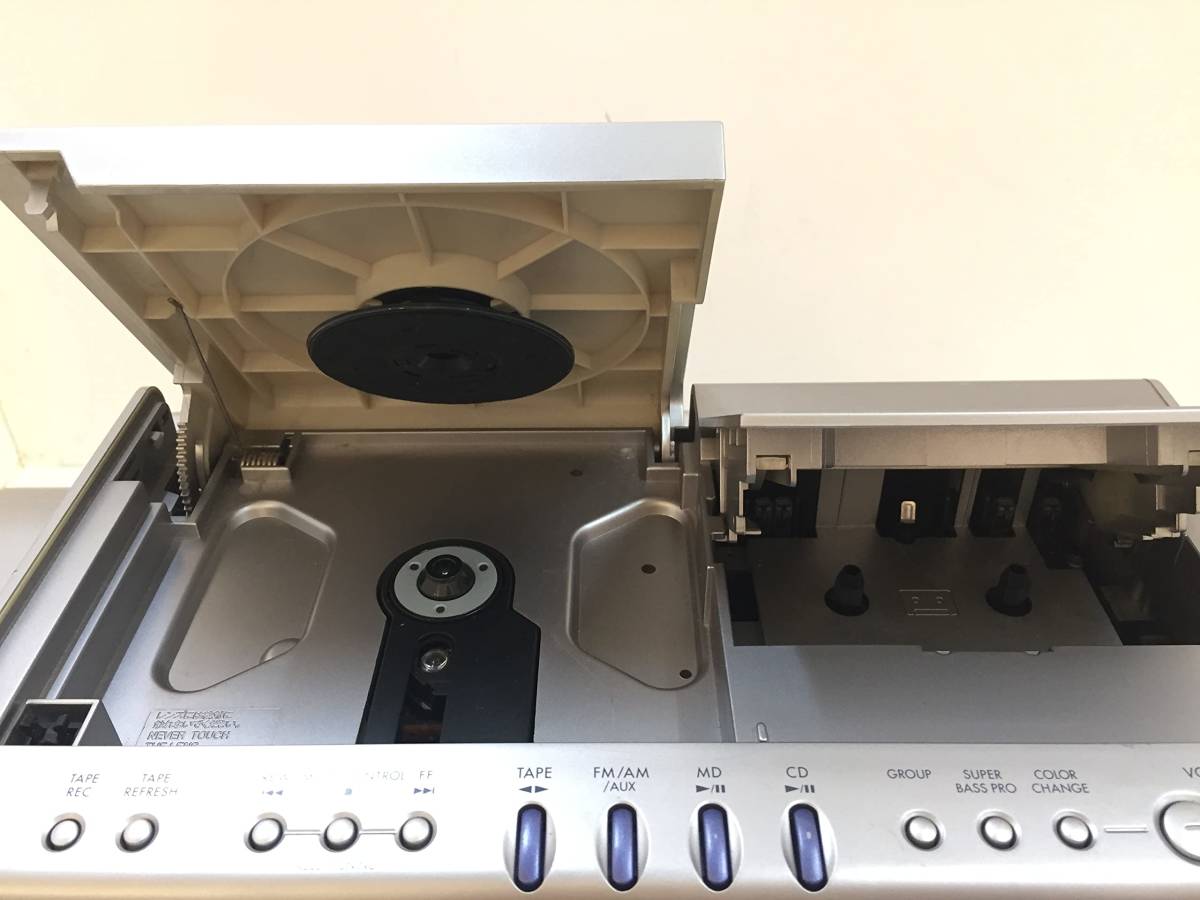

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
