JVC XM-D88

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC XM-D88”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	XM-D88
Manufacturer	JVC
Released	1997/01
Device type	deck
Recorder	Recorder
MDLP	No
NetMD	No
Hi-MD	No
Radio	No
Dimensions	141 x 129 x 260 mm
Weight	2700
ATRAC ver	3
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No
Voltage	100
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	Not recorded
-
Inputs	Not recorded
Outputs	Not recorded
Control	Not recorded

JVC XM-D88 / XM-D88GD

Type: Minidisc Player/Recorder
Track System: 2-channel stereo
Sampling Frequency: 44.1kHz
Optical Pickup:
Frequency Response: 20Hz to 20kHz
D/A Converter:
A/D Converter:
Signal to Noise Ratio:
Dynamic Range:
Channel Separation:
Distortion:
Analogue Inputs: 500mV (line)
Analogue Outputs: 0.5V (line)
Digital Inputs: optical
Digital Outputs:

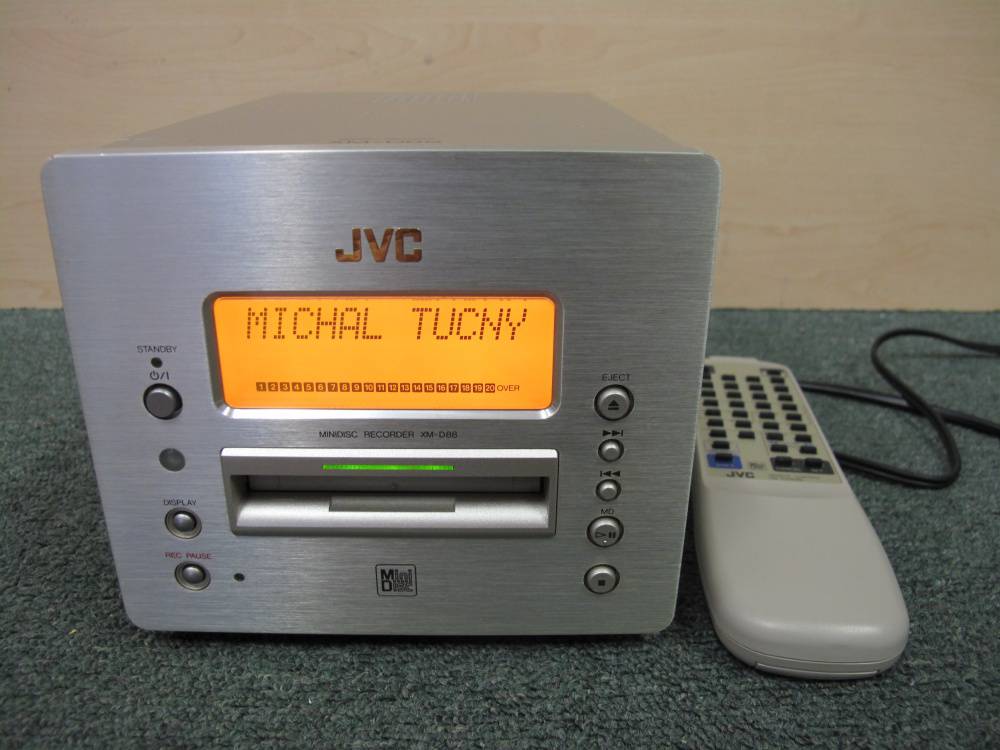

Accessories: RM-RXMD88 remote control
Dimensions: 141 x 129 x 260 mm
Weight: 2.7 kg
Year: 1997

When controlling volume via remote the amplifiers (JVC UX7000R) volume knob will turn by itself to reflect the volume change. See video below for demonstration.

Optical Pick-up: KMS-194 / KMS-260A (the service manuals lists both p.60 & p.89)
ATRAC IC: CXD2536CR

Content adapted from: hifi engine
