JVC XM-F1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-13

Manufacturer
JVC
Model / source grouping
XM-F1
Device type
deck
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC XM-F1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name XM-F1
Manufacturer JVC
Released 1995/08
Device type deck
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions Not recorded
Weight Not recorded
ATRAC ver 2
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm microphone, RCA in, Digital optical (TOSLINK)
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

JVC XM-F1

ATRAC Chipset: CXD2531BR \ CXD2526AR
Optical pickup: KMS-190A

Content adapted from: minidisc.org ATRAC version table

Manuals

JVC XMF-1-GD Service Manual

Repair

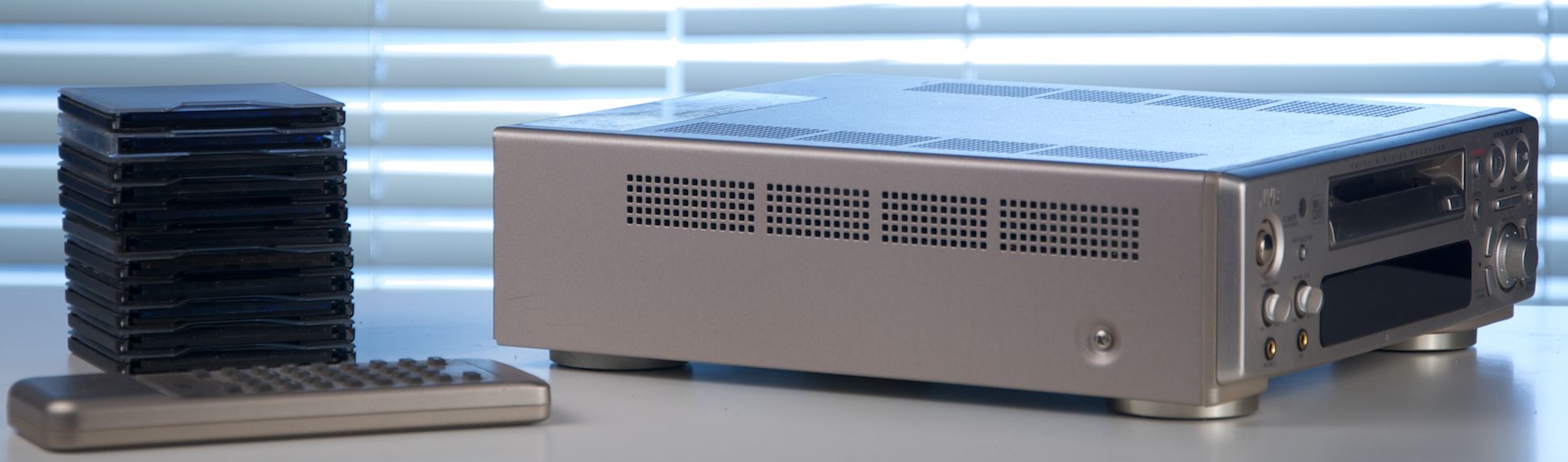

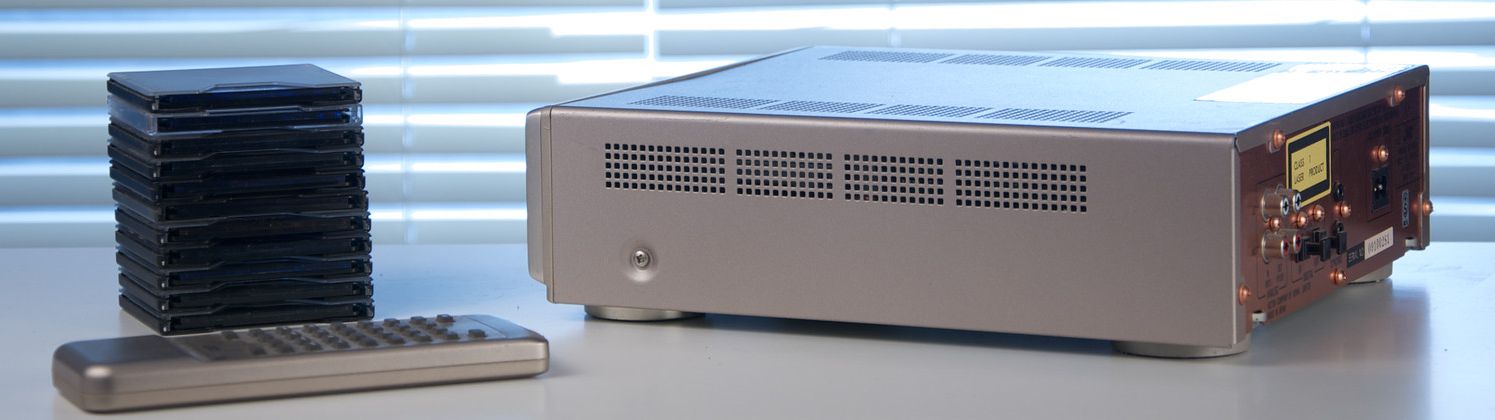

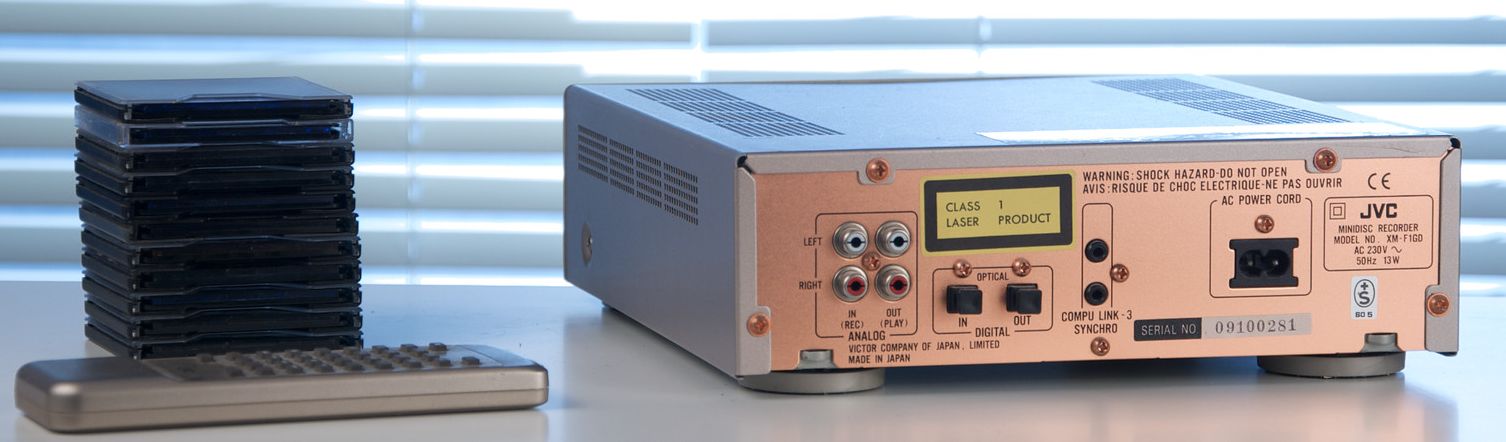

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualService manual
RegionJapan
