JVC XU-301

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
JVC
Model / source grouping
XU-301
Device type
deck
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC XU-301”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name XU-301
Manufacturer JVC
Released 1998/05
Device type deck
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 435 x 127 x 316 mm
Weight 6.0 Kg
ATRAC ver 4
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

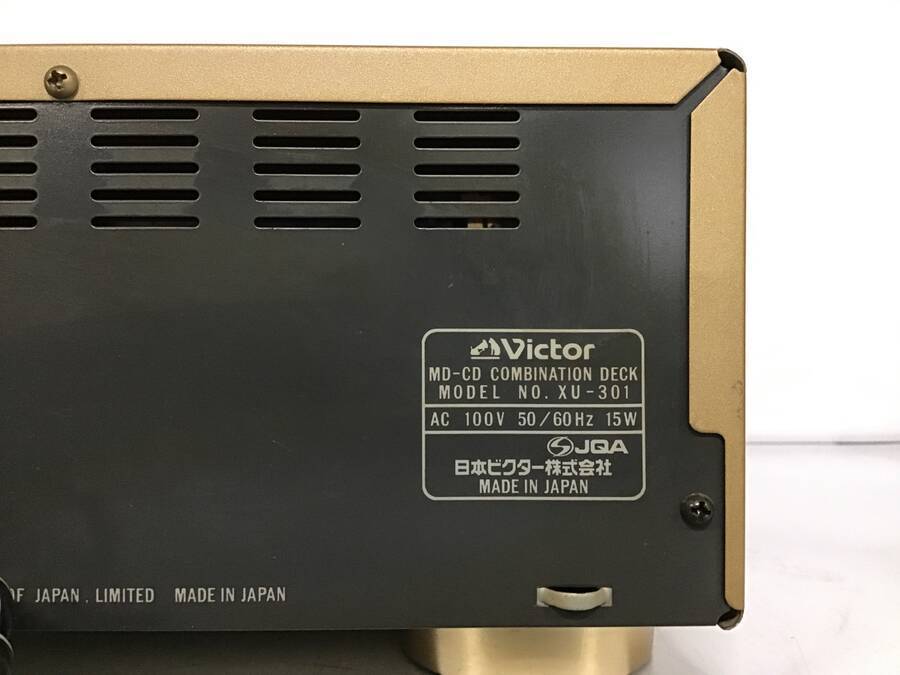

Voltage 120
Power cable AC
Price (launch) $550
Not recorded
-

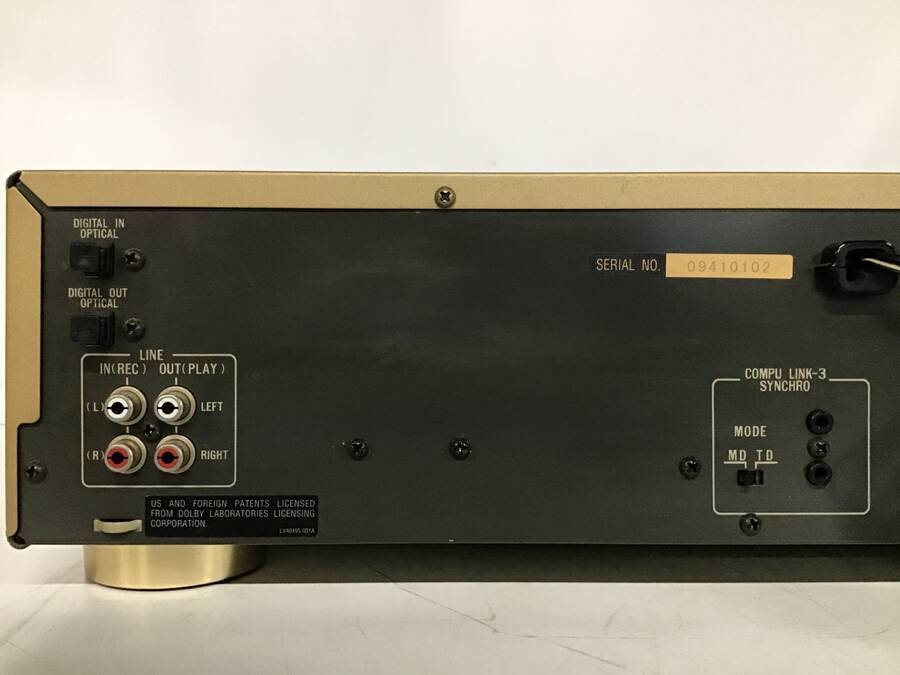

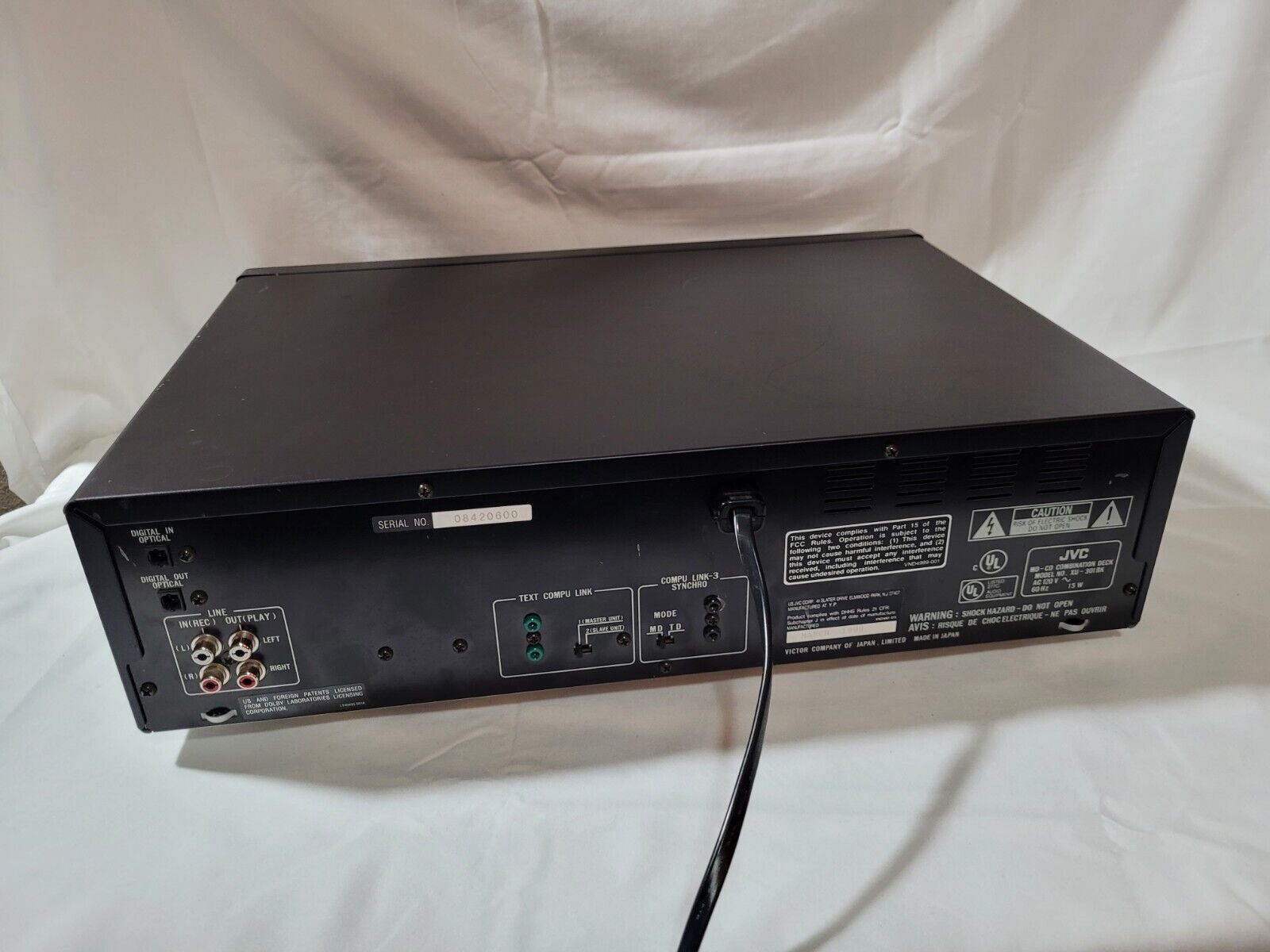

Inputs 1/4 inch microphone, RCA in, Digital optical (TOSLINK), CD
Outputs 3.5mm headphone, 1/4 inch headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

Features:

  • Independent drawer 3CD changer allows CDs to be changed while one is playing.
  • 1 bit D/A.
  • CD-TEXT compatible.
  • Title memory for up to 200 CDs.
  • 27 Genre categories.
  • Pitch control +/-12% in 25 steps.
  • MD recording mixing: CD/Line, Line/Mic, Mic/CD.
  • CD to MD synchro rec: one touch and 1st track record modes.
  • Listening edit ("rec-it" function?).
  • Timer (Daily play/rec and "once" play/rec).
  • Compulink control system for connecting with other JVC components.

Optical Block: KMS-260A
ATRAC IC: CXD2652AR

Content adapted from: Minidisc.org page, JVC website (Internet Archive) Victor Press Release Victor Press Release (MiniDisc Wiki mirror)

User comments

– Mike Blossom, 1999-06-04. Original MiniDisc.org page, part review part how-to use

Manuals

JVC XU-301 User Manual

JVC XU-301BK Service Manual

Repair

(repair links go here)

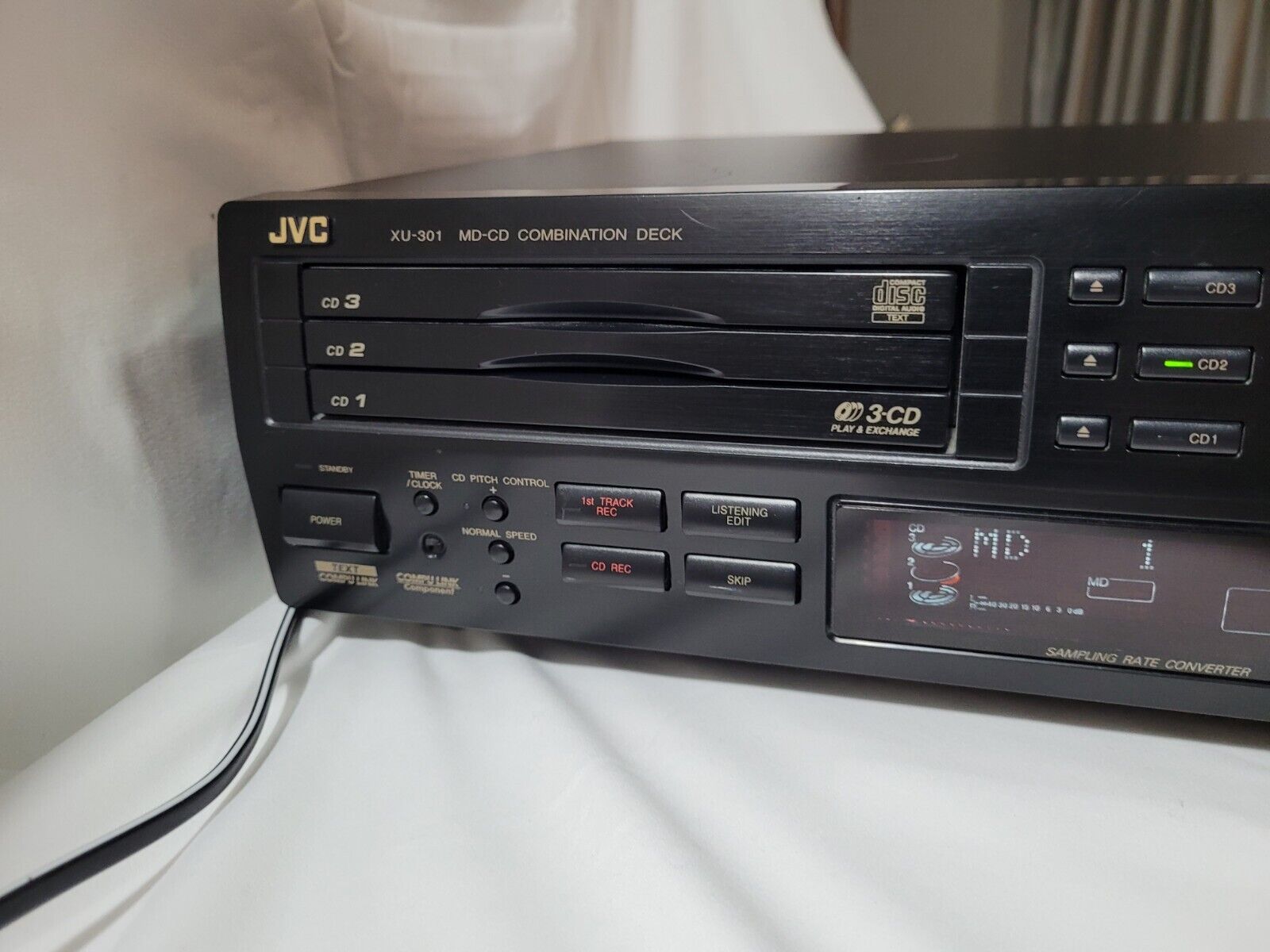

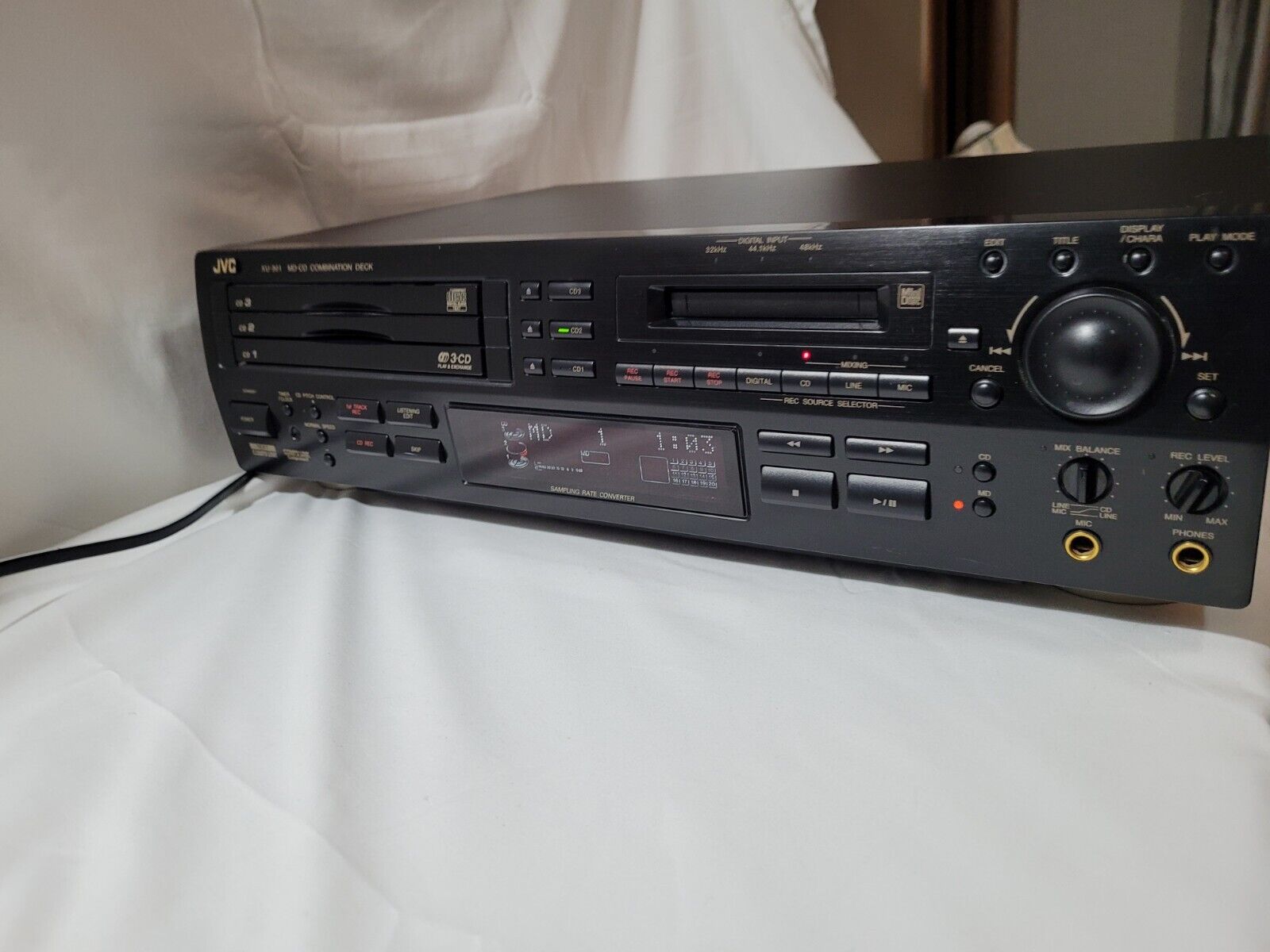

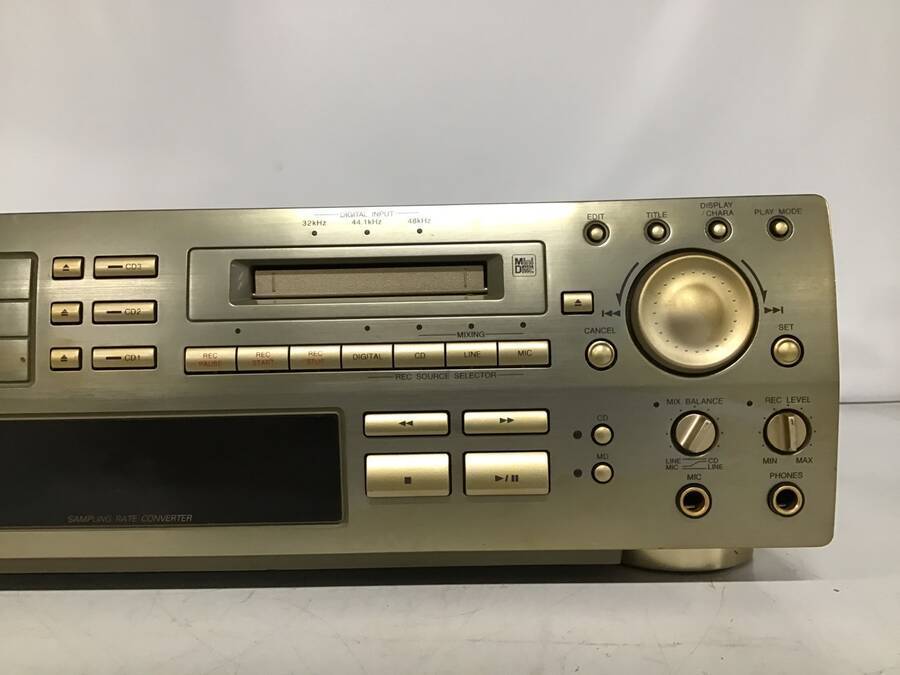

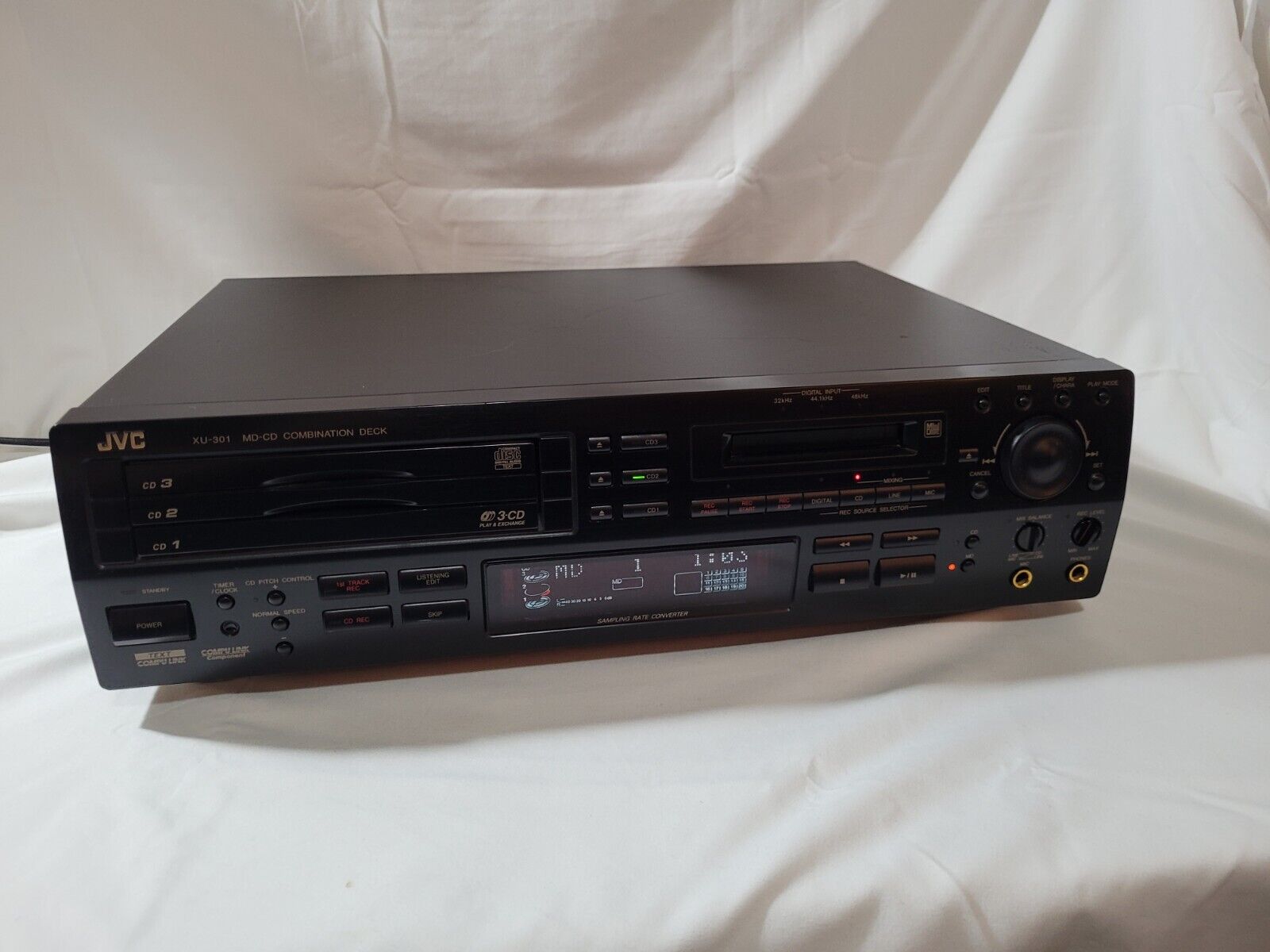

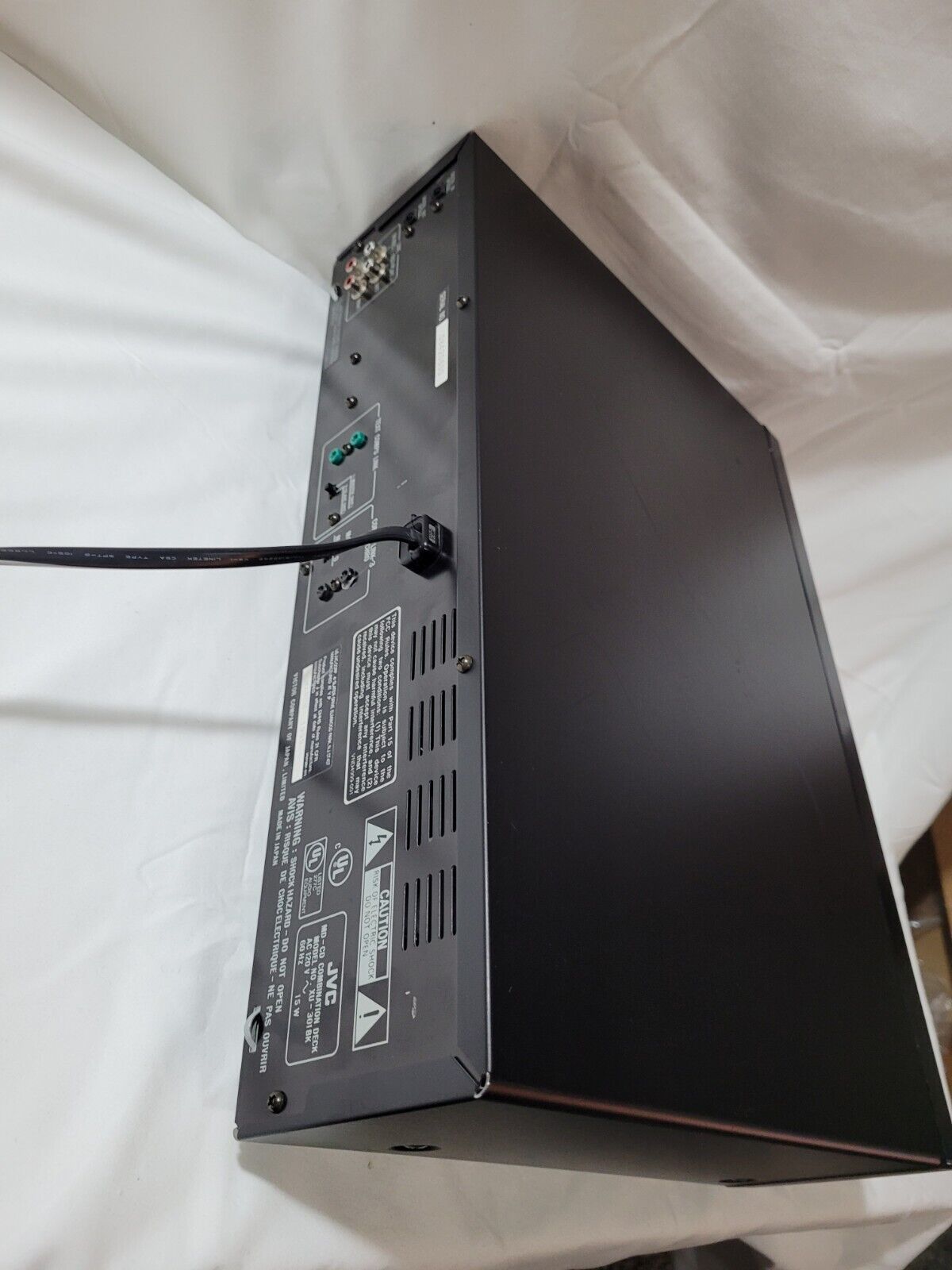

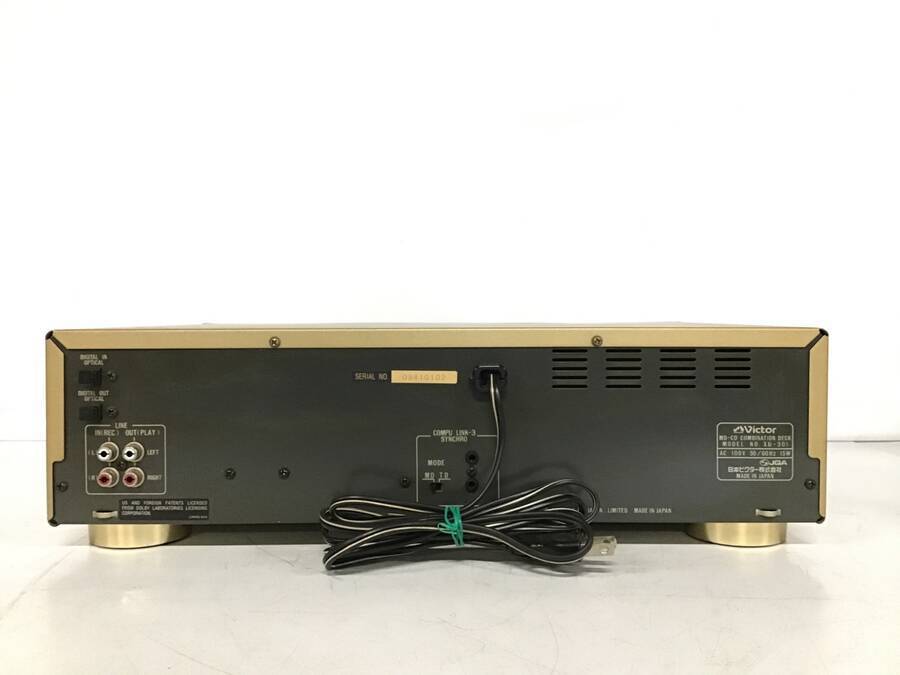

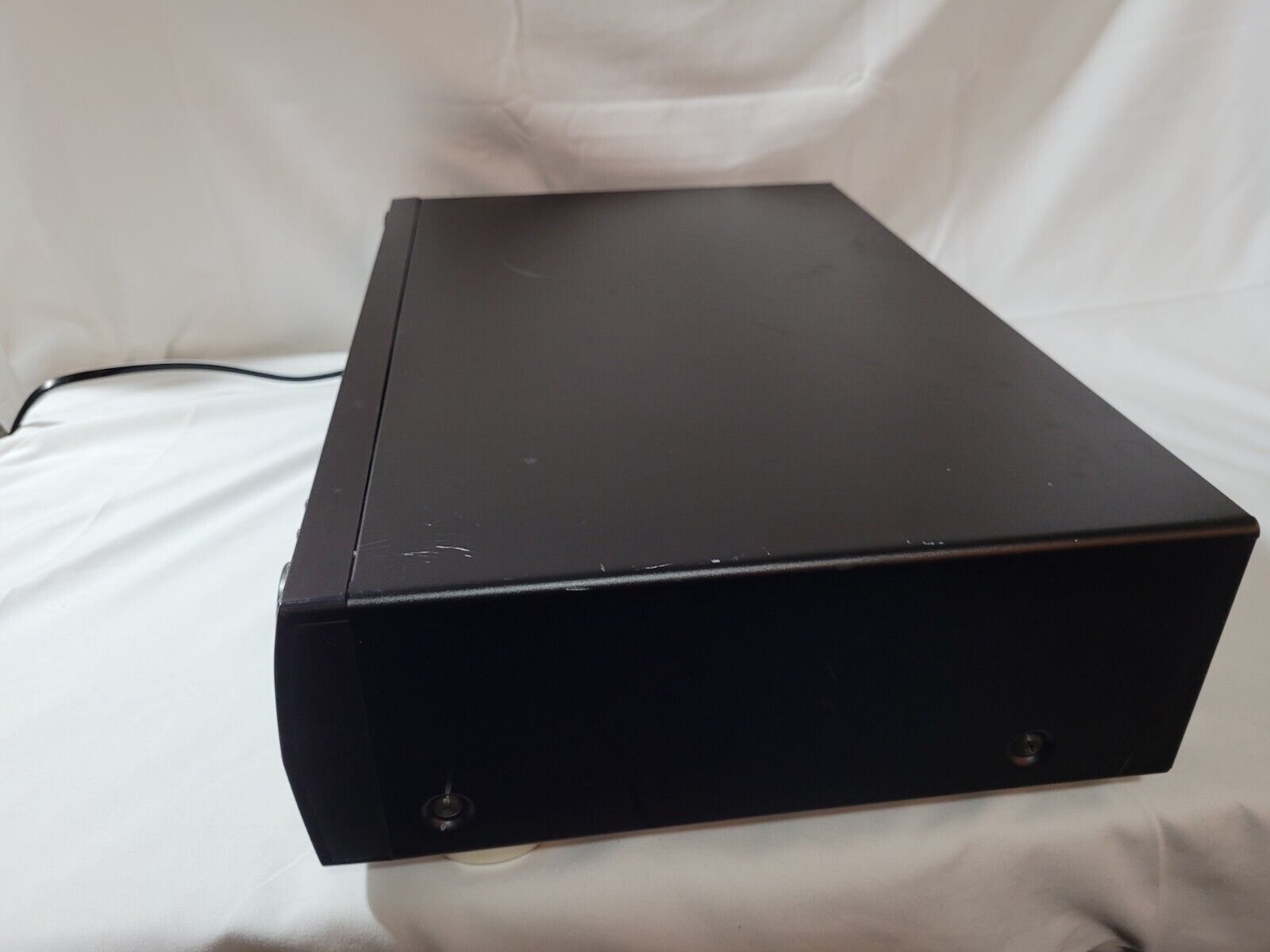

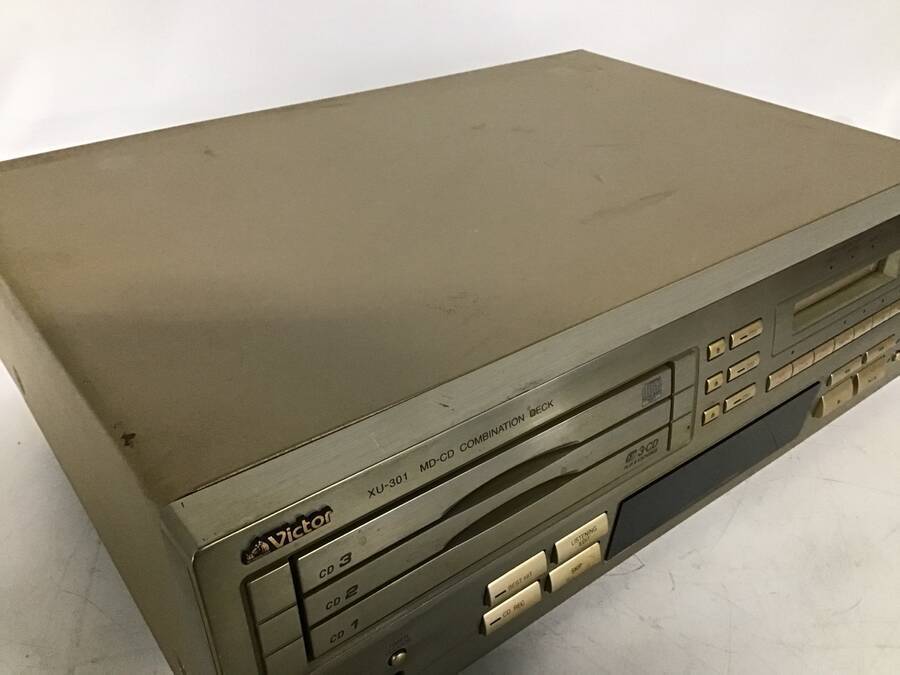

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references

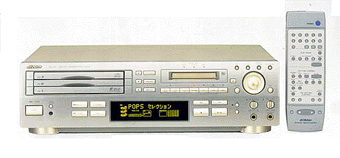

Remote Page
Atrac IcCXD2650R / CXD2652/R/AR
ManualUser manual, Service manual
RegionJapan
