Victor XM-PX3

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-04-16

Manufacturer
Victor
Model / source grouping
XM-PX3
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor XM-PX3”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name XM-PX3
Manufacturer Victor
Released 1999/11
Device type portable
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 84 × 75 ×19.5mm
Weight 74g(with batt.)
ATRAC ver Not recorded

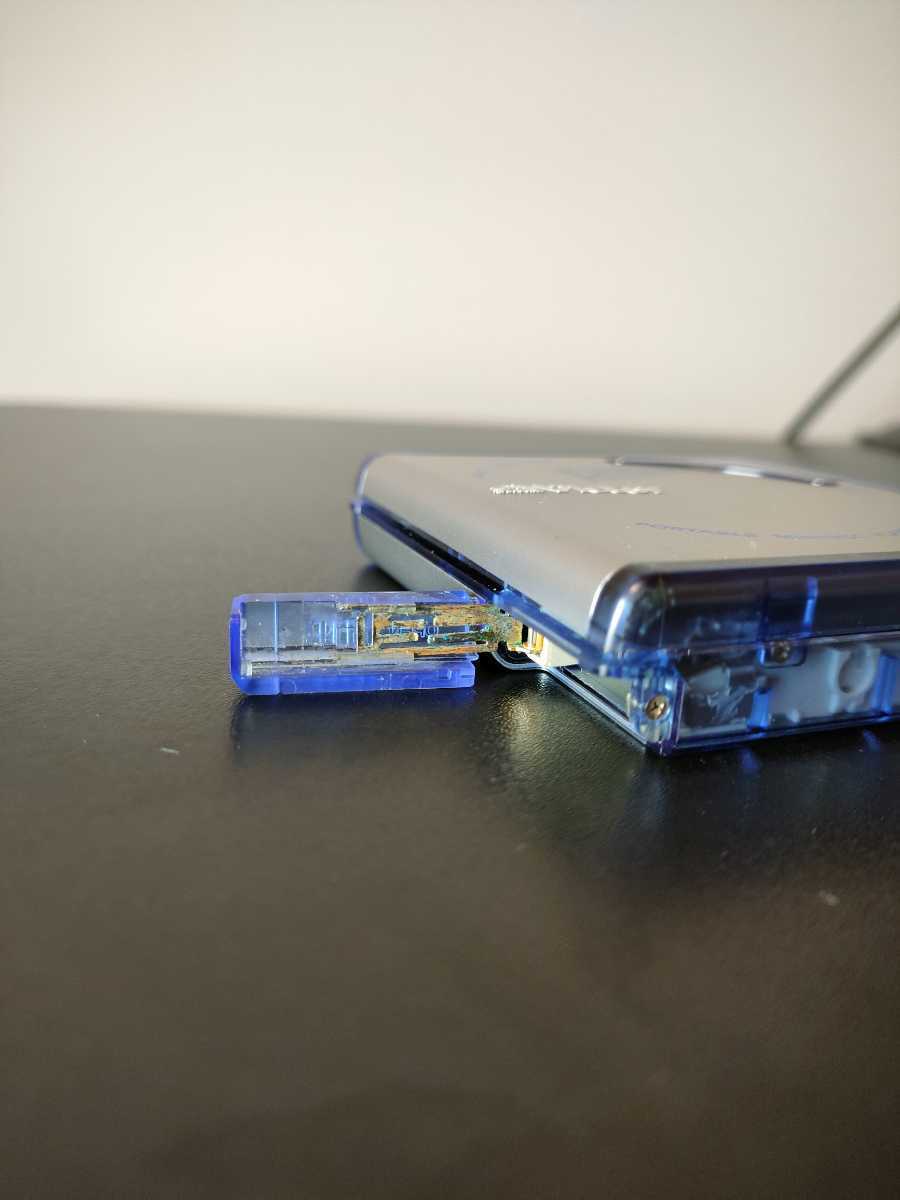

Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) No
Voltage 1.2
Power cable Not recorded
Price (launch) Not recorded
¥28 000
-
Inputs Not recorded

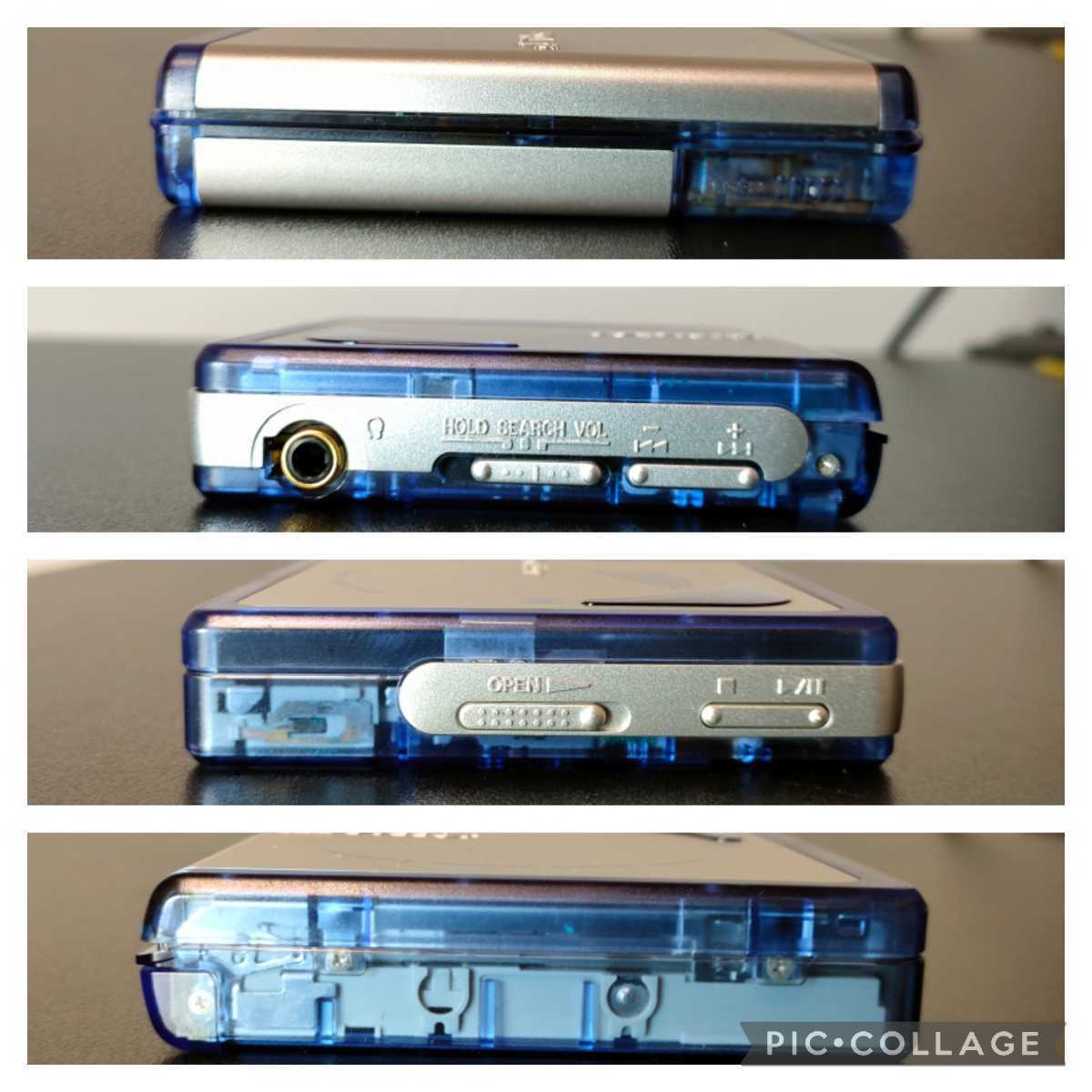

Outputs 3.5mm headphone
Control Not recorded

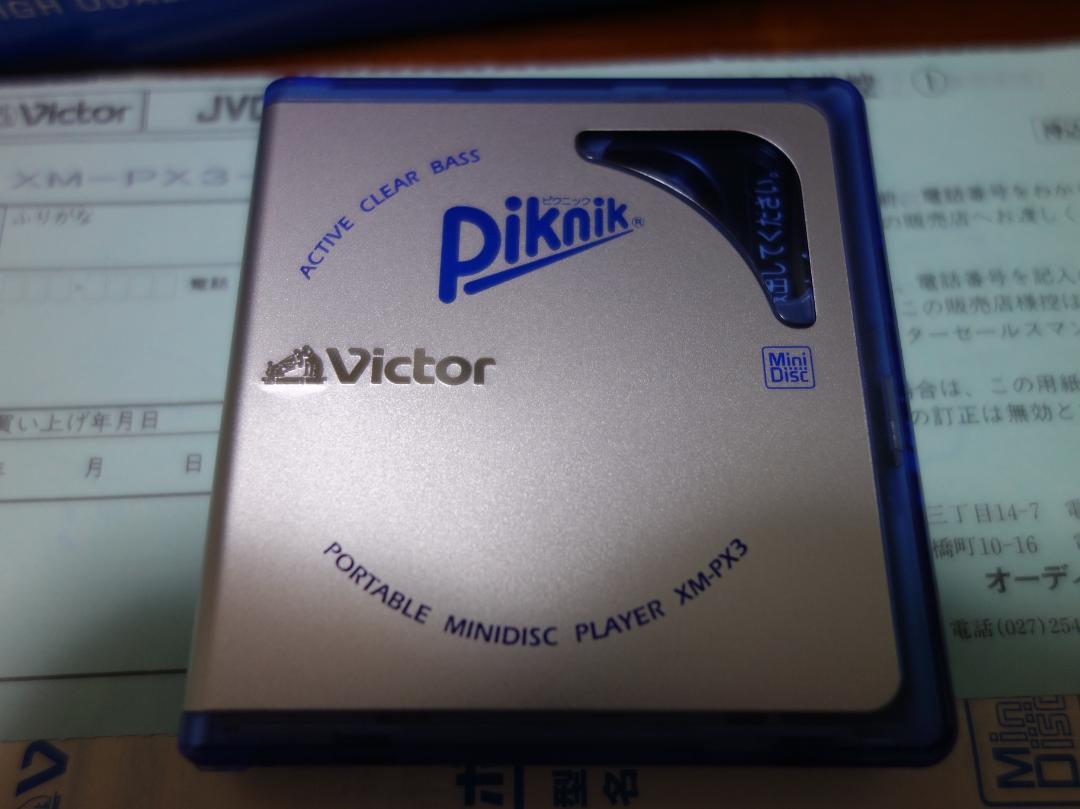

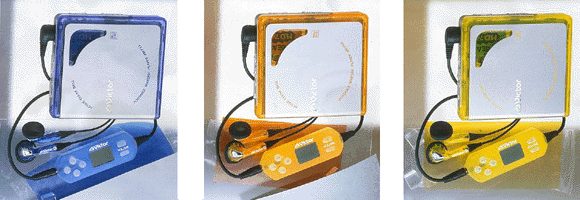

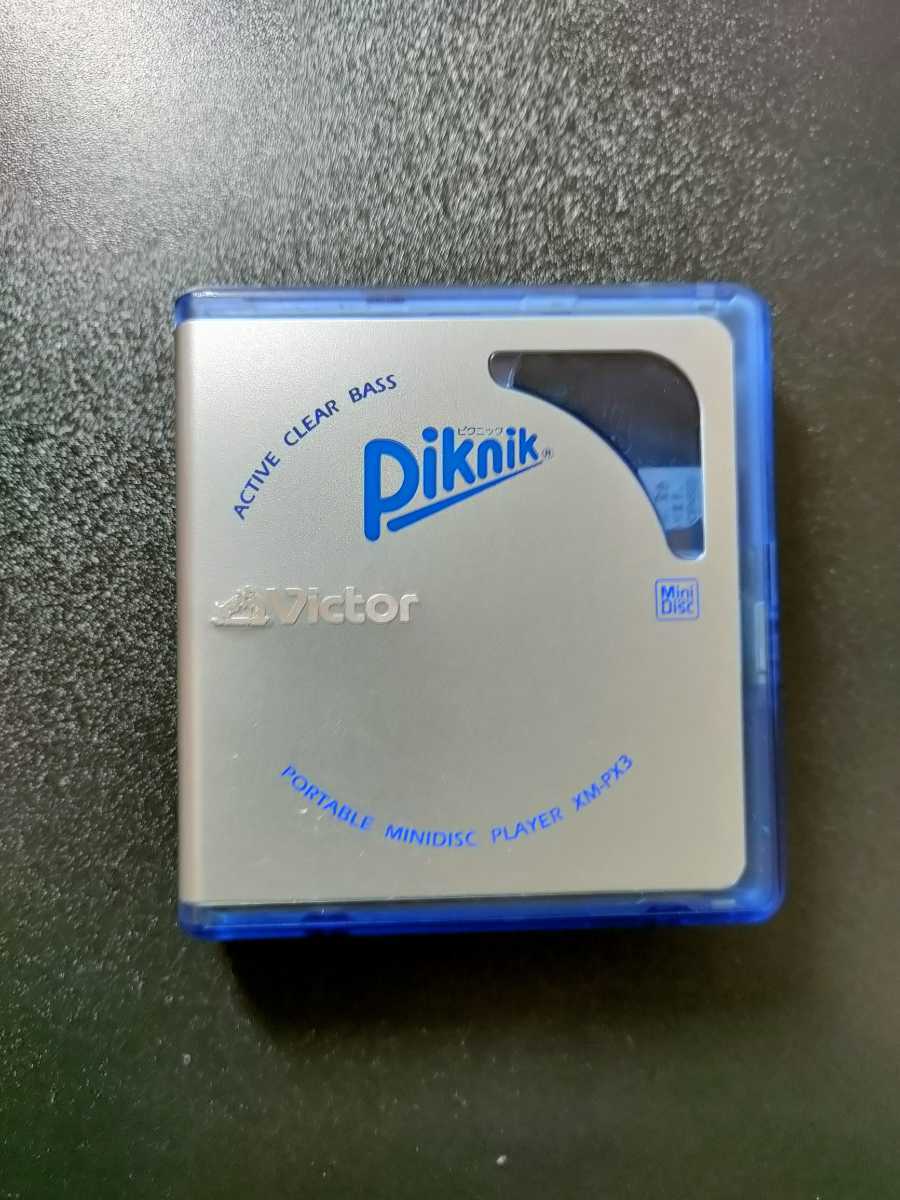

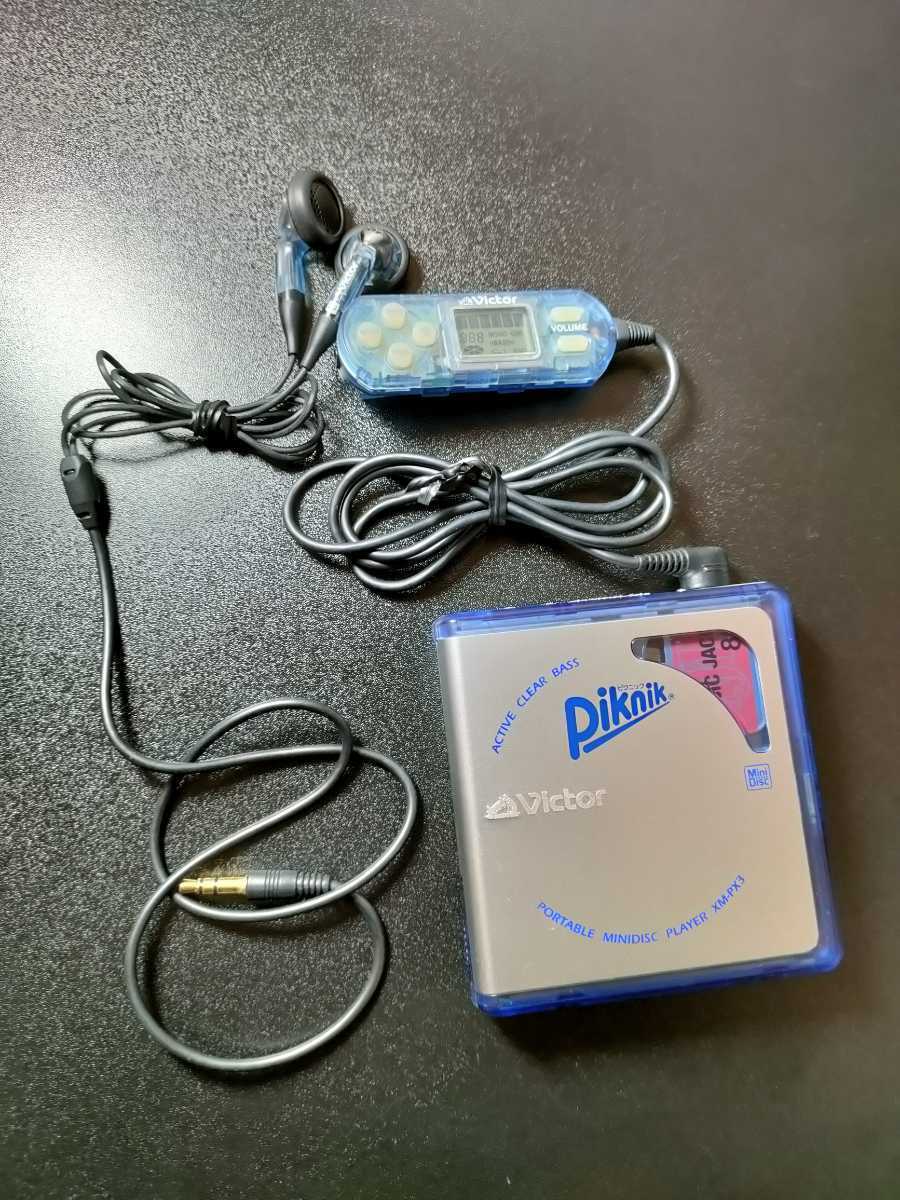

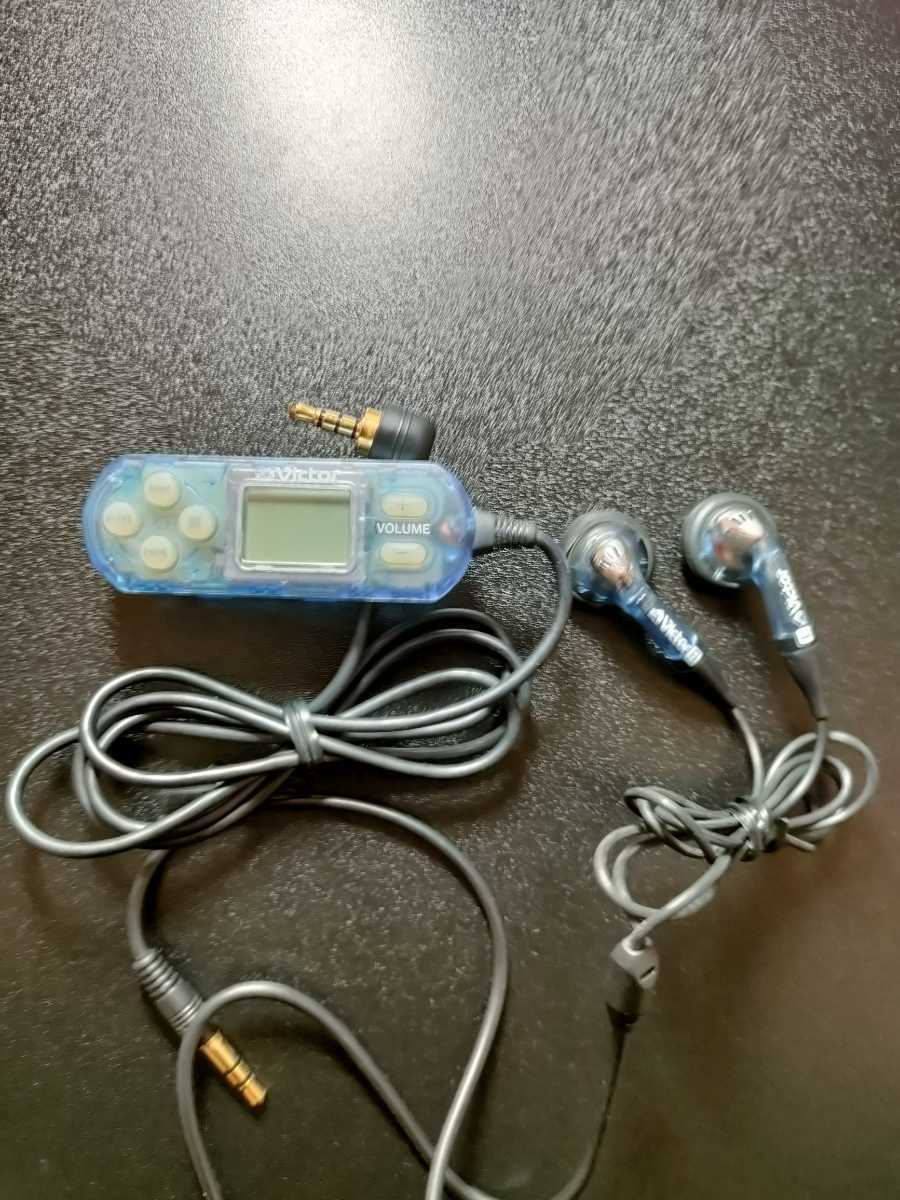

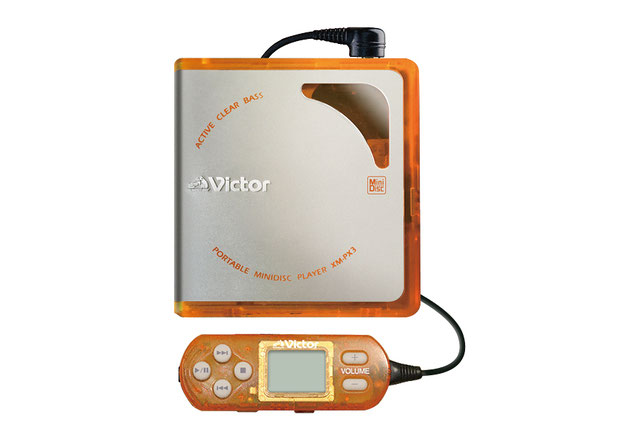

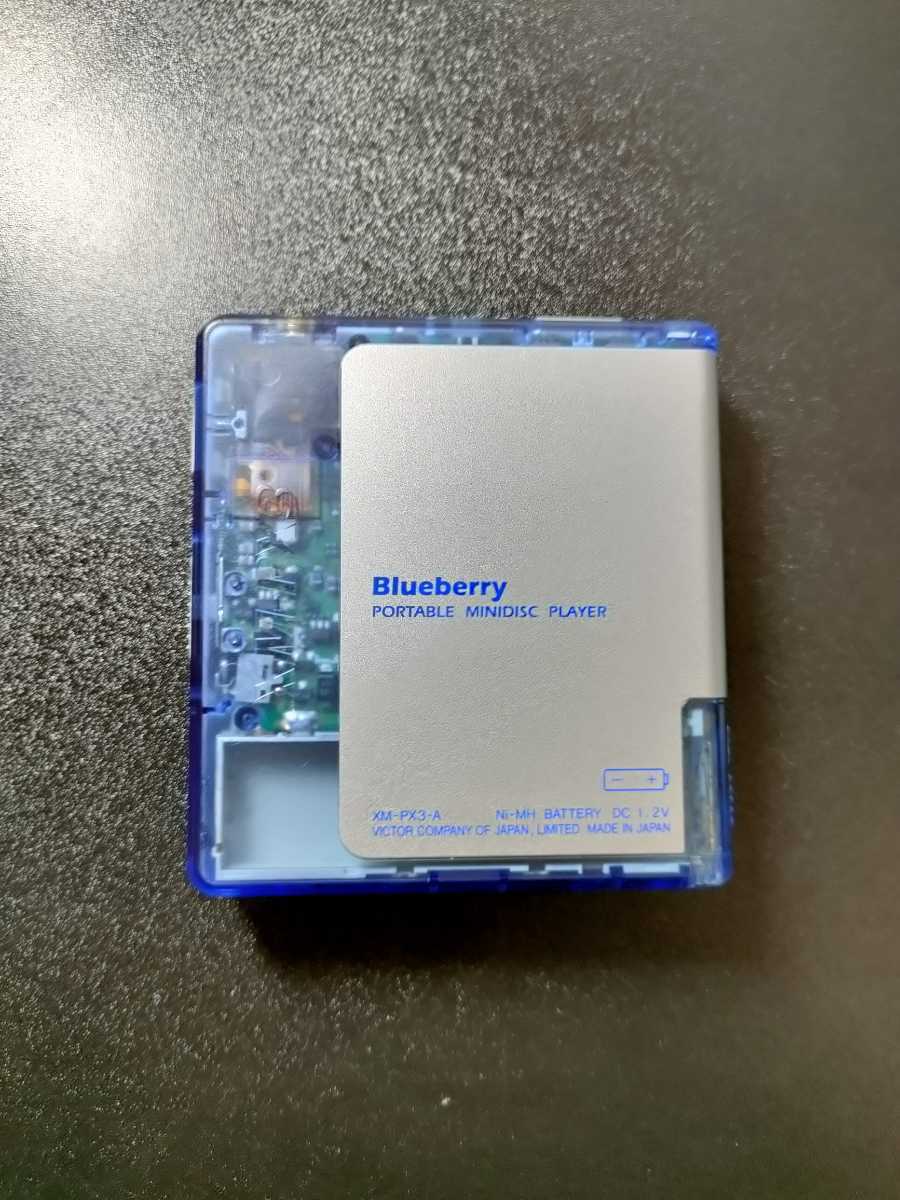

The colorful XM-PX3 has a body and remote control with translucent icing color. It uses plastic and metal composite materials with lively and bright colors of (-D) Navel Orange, (-A) Blueberry, (-Y) Lemon Yellow. Later on Febuary 1st 2000 the XM-PX3LTD-R" (Dragon Red) and "XM-PX3LTD-A" (Angel Blue) XM-PX3LTD-R" (Dragon Red) and "XM-PX3LTD-A" (Angel Blue) (MiniDisc Wiki mirror) were released with an MSRP of 30,000 yen.

According to the press releases the XM-PX3's are rated for 5mW + 5mW output while the XM-PX3LTD's are rated for: 3mW + 3mW.

Digital AC bass sound to dynamically control the music signal to obtain undistorted and sharp bass and slender mid-treble. It only supports rechargeable batteries and cannot be connected to the battery box.

A Coca-Cola and Hello Kitty version of this player also exists.

Uses CXD2661GA-1 for ATRAC

Content adapted from: MD543 XM-PX3 Page Minidisc.org translated Press Release Victor Press Release Victor Press Release (MiniDisc Wiki mirror)

Manuals

Victor XM-PX3 Service Manual

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualService manual
RegionJapan
