| Name | XM-R2 |
|---|---|
| Manufacturer | Victor |
| Released | 1997/02 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 83.6x34.5x119mm |
| Weight | 330g w/Ni-MH bat. |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |

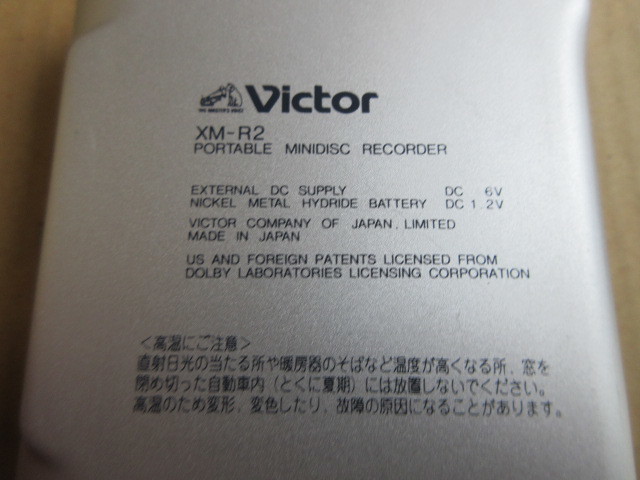

| Voltage | 6 |

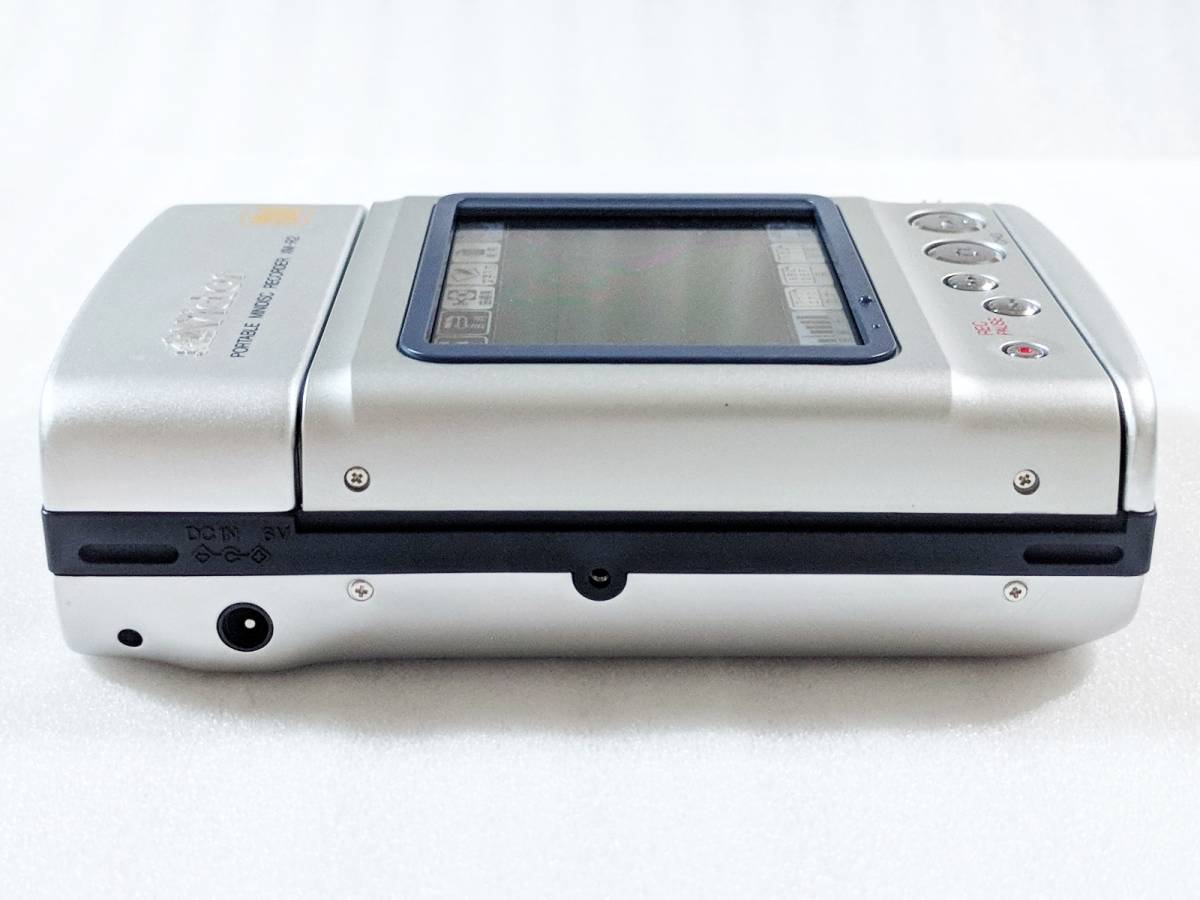

| Power cable | Center positive |
| Price (launch) | Not recorded |
| ¥53 000 | |
| - | |

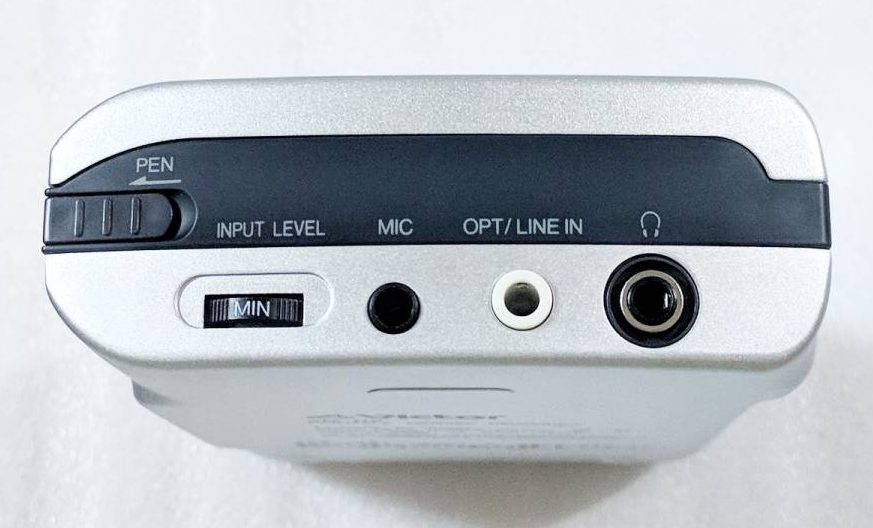

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

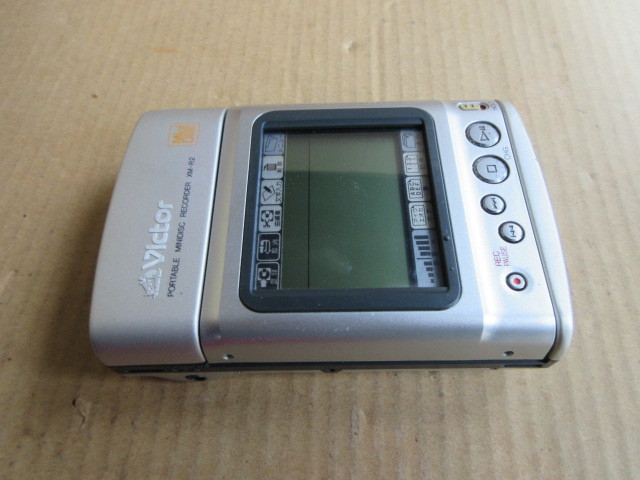

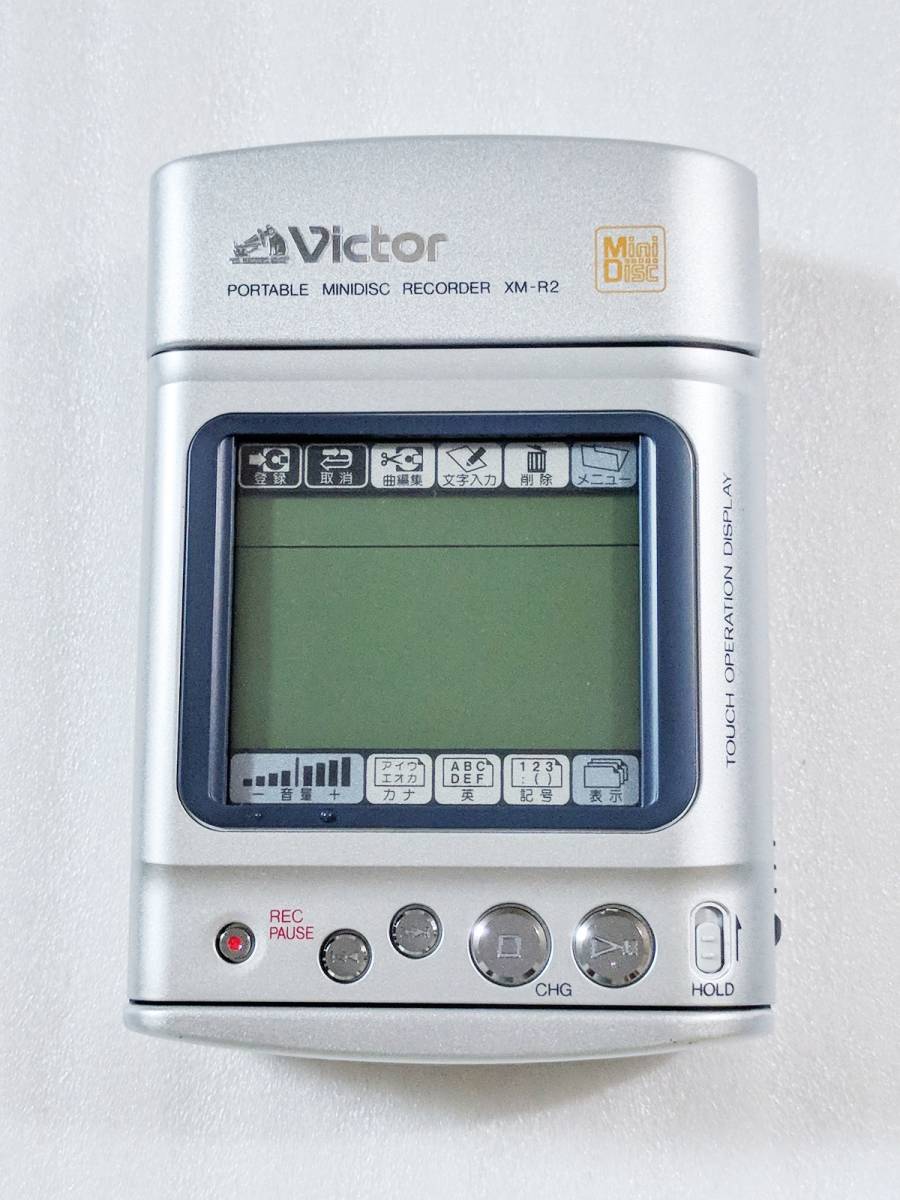

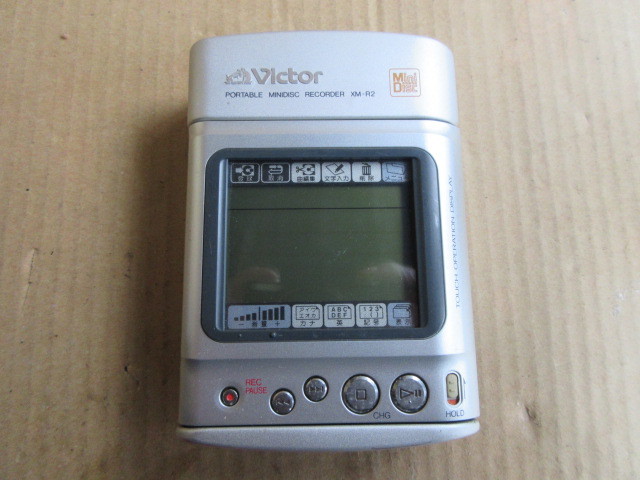

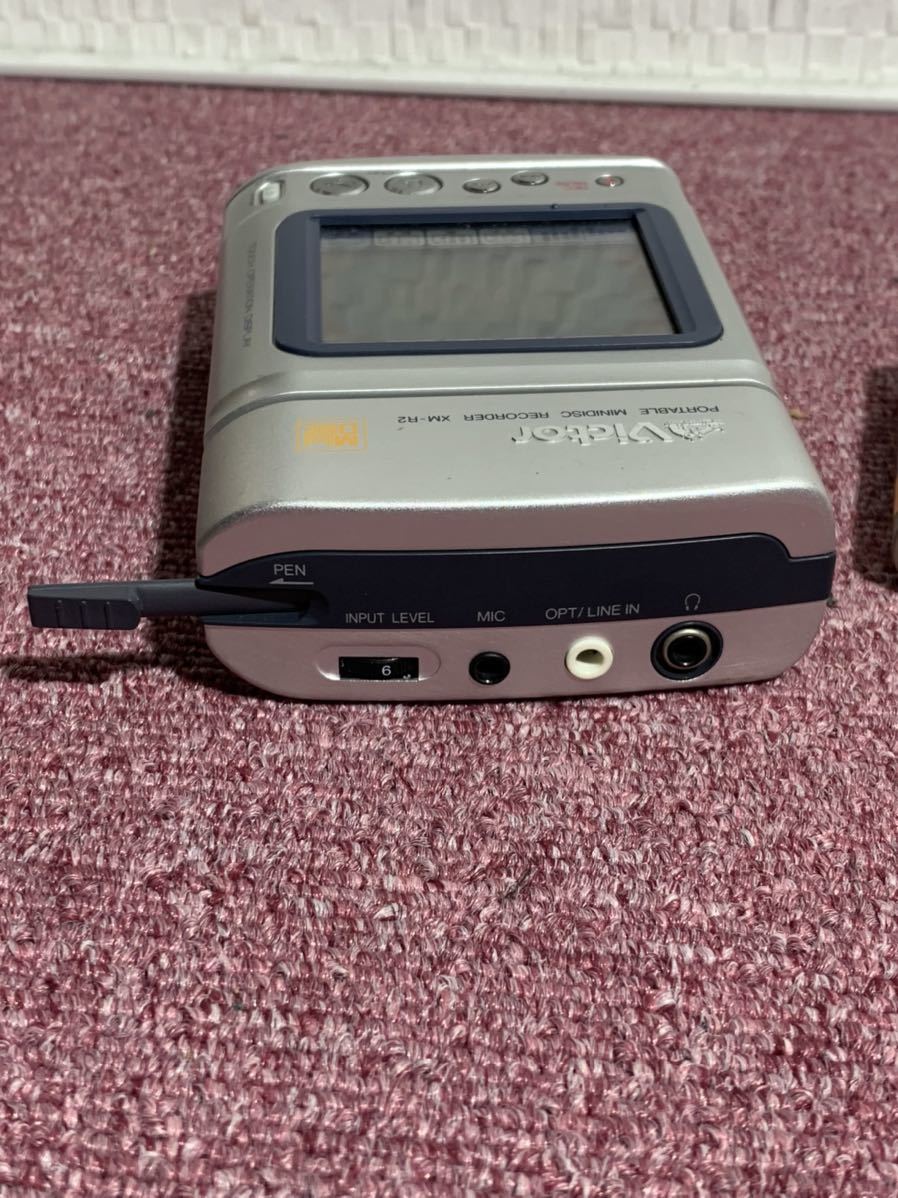

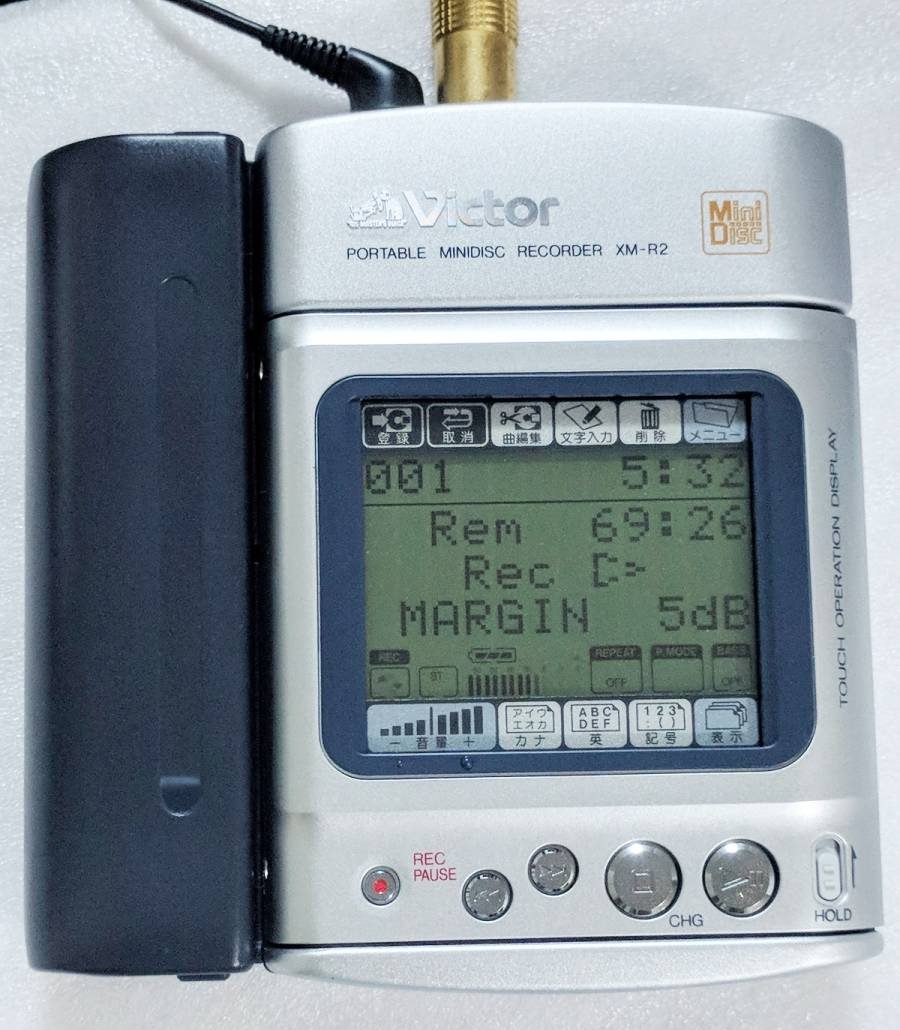

Features: Titling and editing functions are performed with a stylus and touch sensitive screen. 50ms divide point resolution. PDA like display shows full title of current track or partial titles of current track and next 3 tracks. Touching the name of the desired track starts that track playing. Wired remote uses normal 1/8" minijack. Button labels in English, but silk screened icons on display panel are Japanese.
Misfeatures: Stopping in mid-track followed by play resumes at head of track.

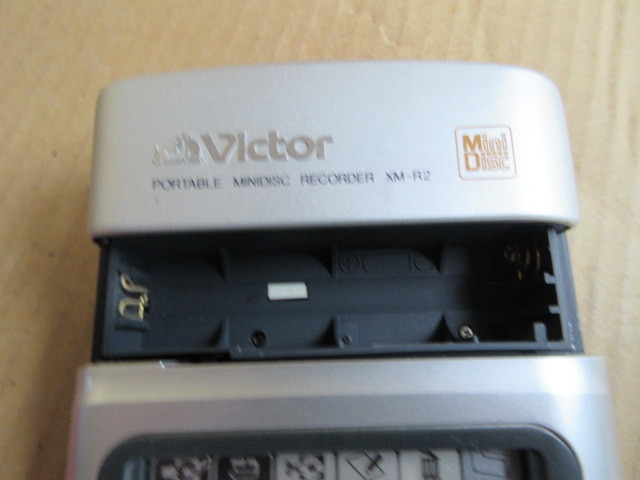

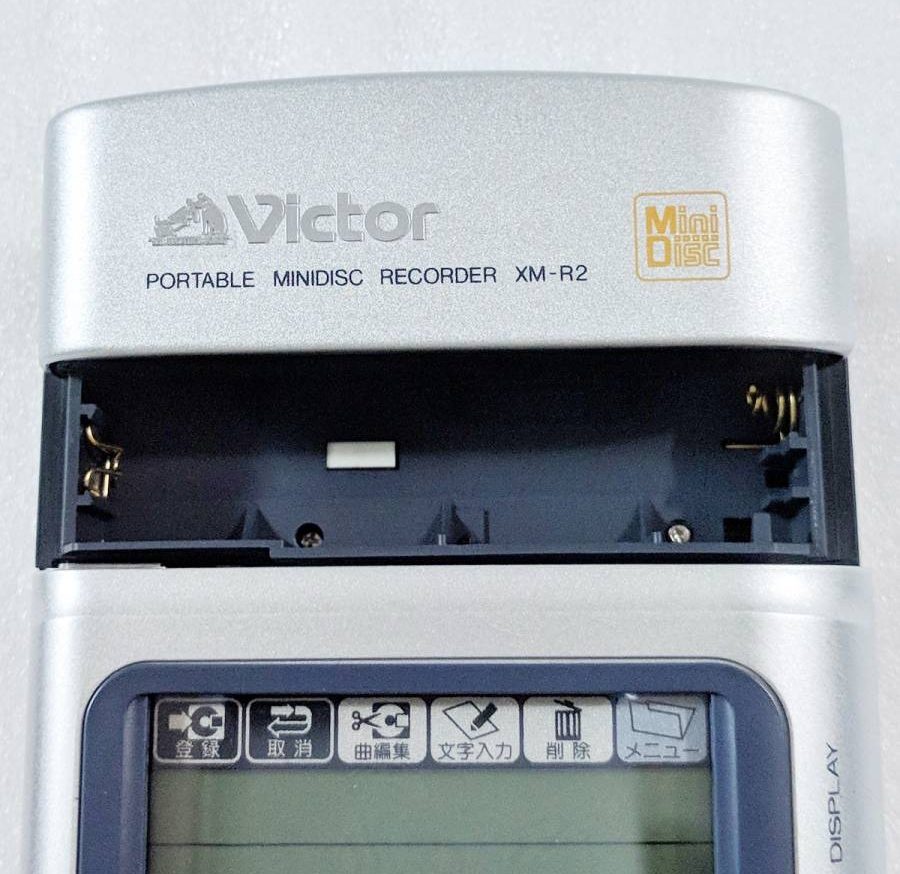

Battery: BN-R123 1.2v 3000mAh
Content adapted from: Minidisc.org page
Victor Press Release Victor Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Videos

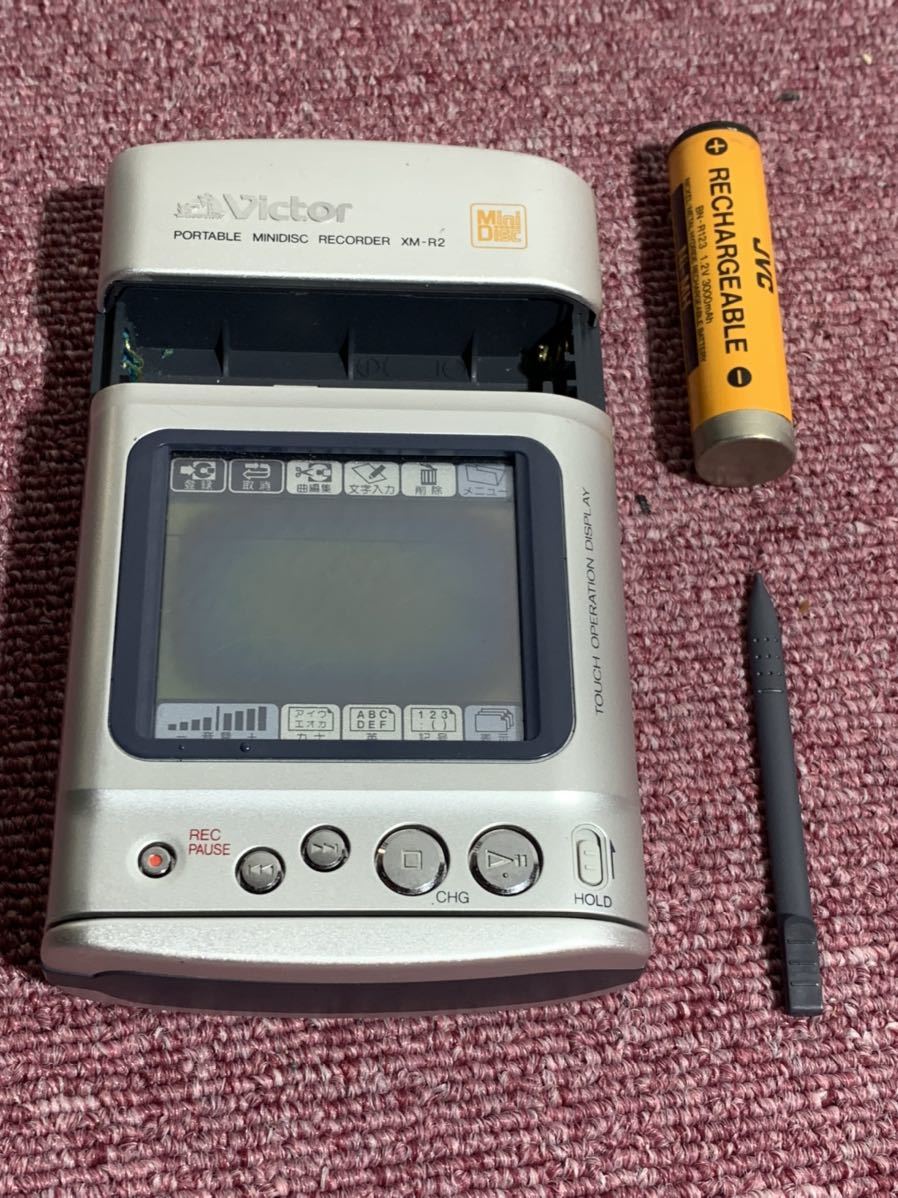

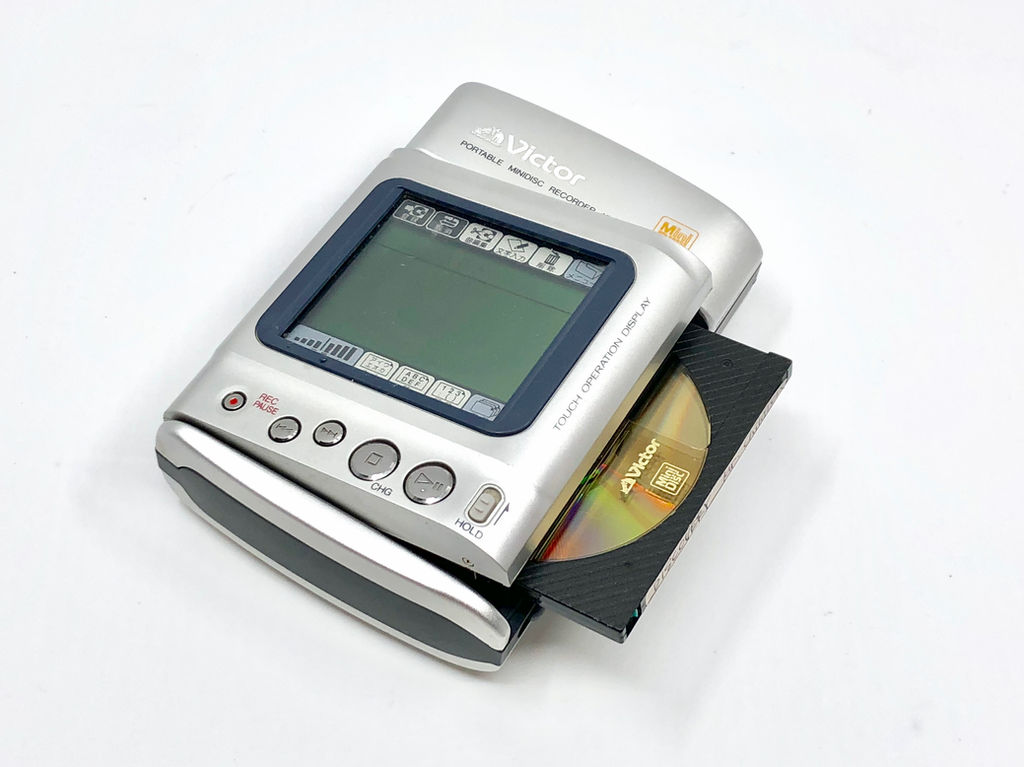

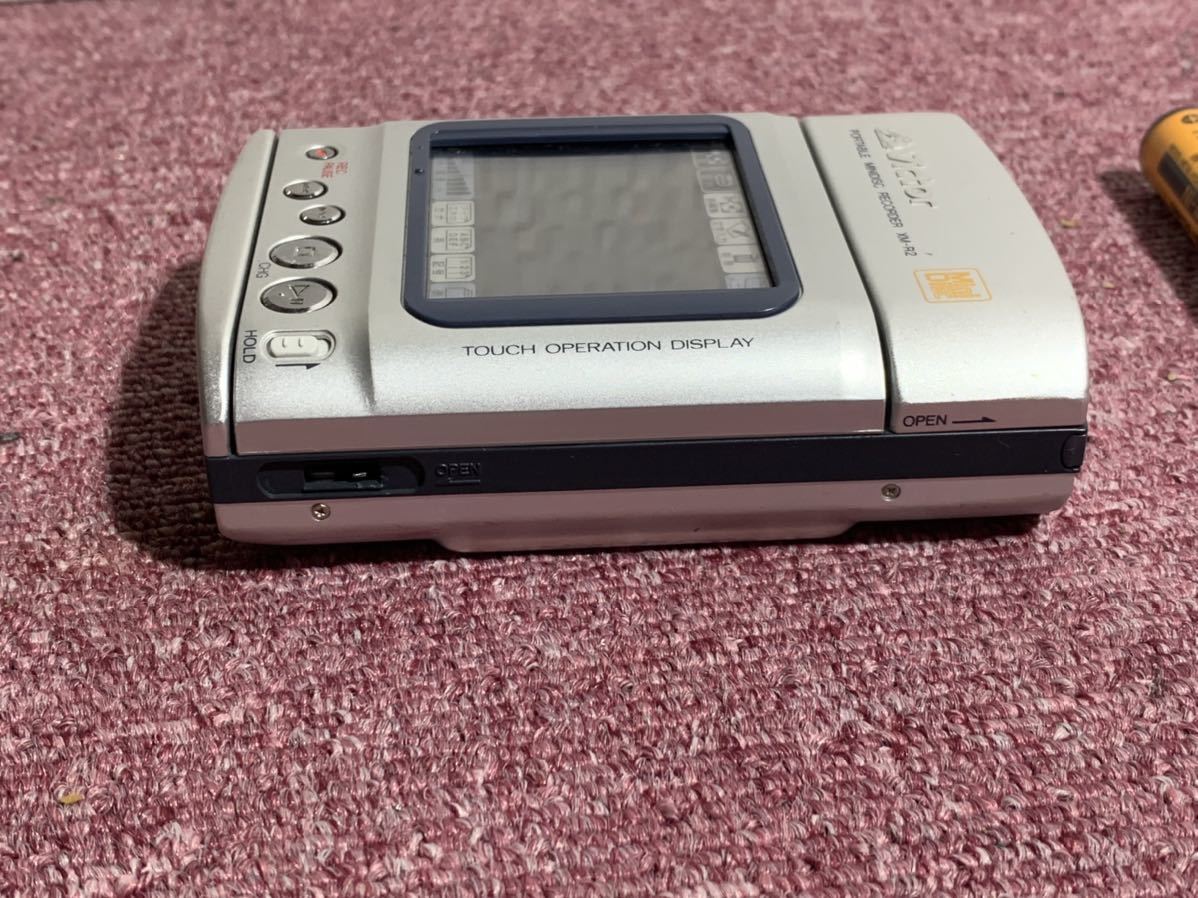

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
