Victor XU-D400

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-08

Manufacturer
Victor
Model / source grouping
XU-D400
Device type
pro
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor XU-D400”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name XU-D400
Manufacturer Victor
Released 1998/05
Device type pro
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions (W) 435 x (H) 127 x (D) 316 mm
Weight 6.0kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

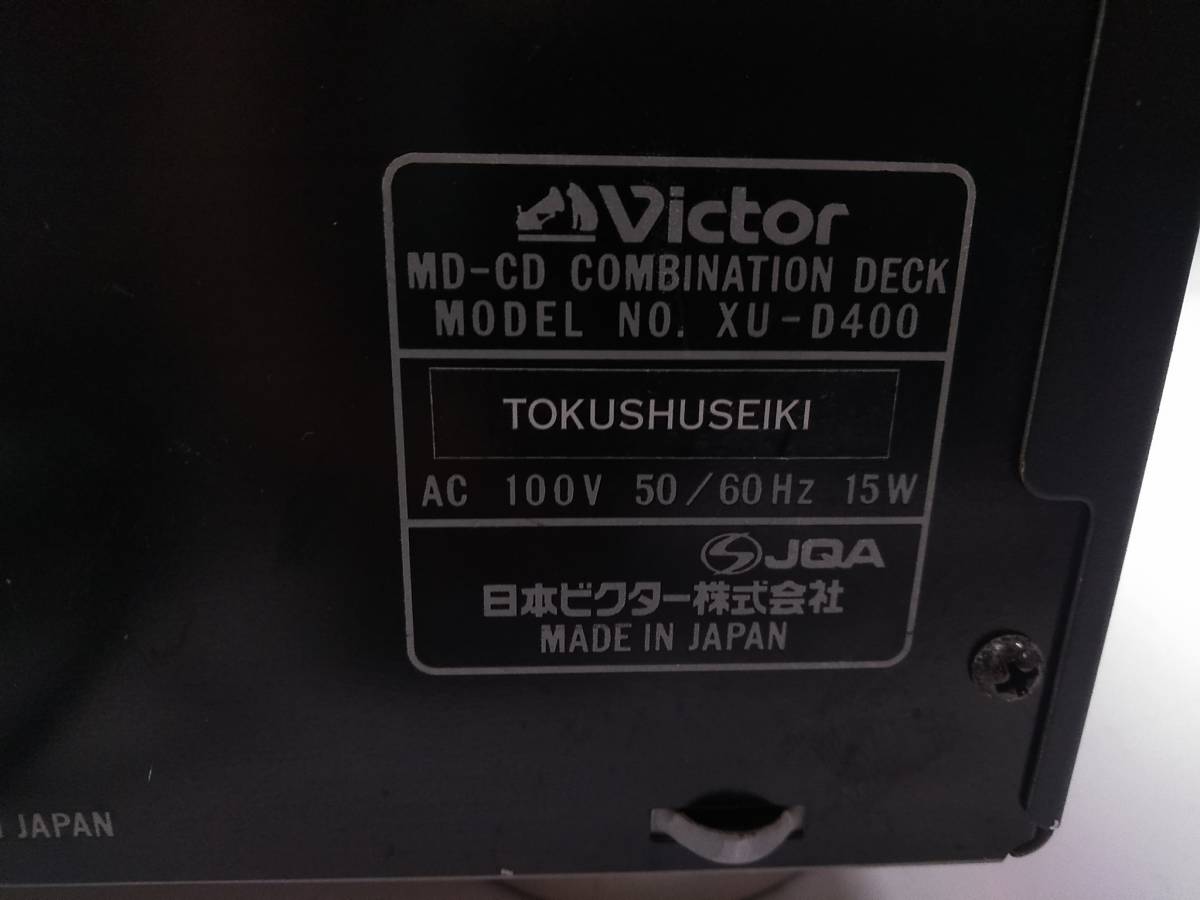

Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥100 000
-

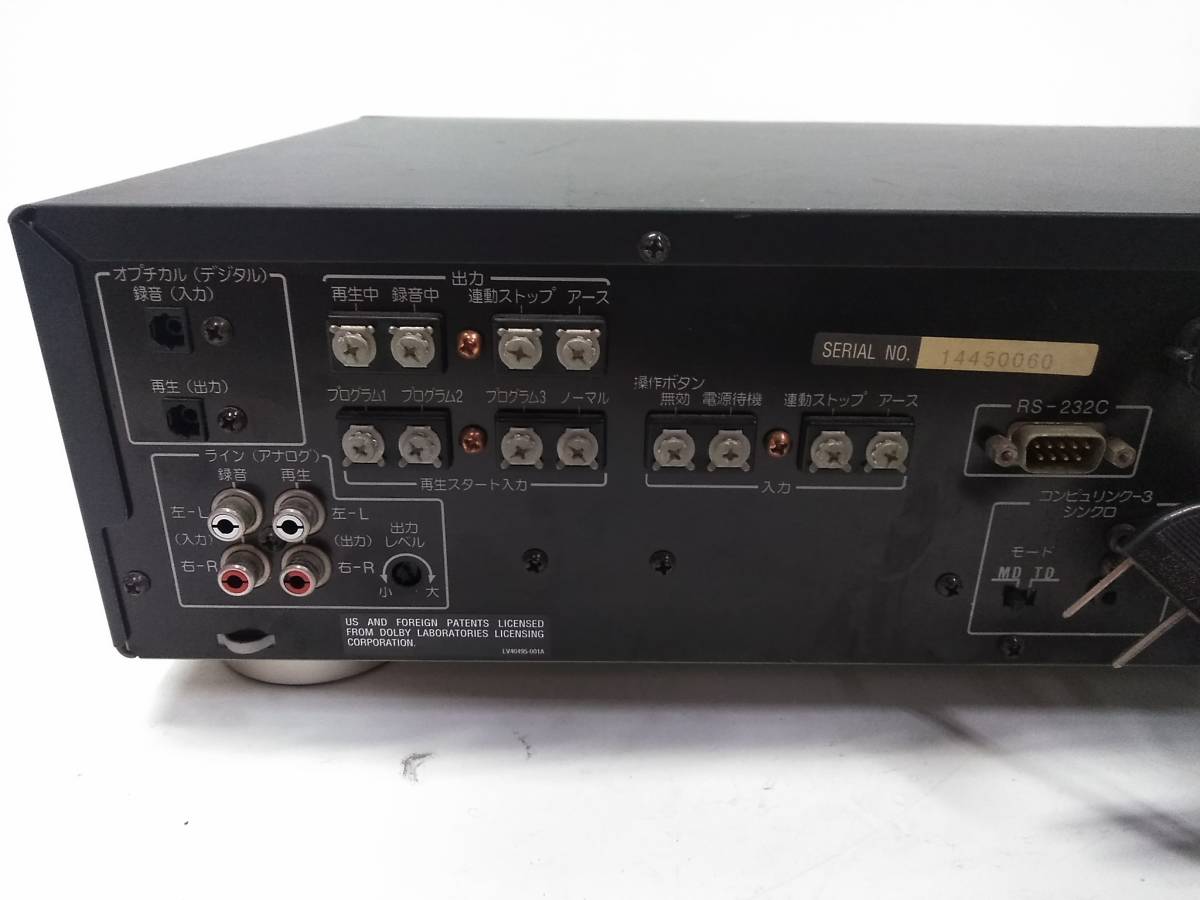

Inputs 1/4 inch microphone, RCA in, Digital optical (TOSLINK), CD
Outputs 1/4 inch headphone, RCA out, Digital optical (TOSLINK)
Control RS-232 serial

1. Equipped with a control terminal that considers the potential for external control

  • Equipped with an "RS-232C" terminal that enables external control by a personal computer.
  • Equipped with a "make contact terminal" that allows automatic regeneration by a program timer, allowing relay regeneration with multiple units.
  • Equipped with audio output level volume, flexible support for system upgrades with peripheral devices.

2. Convenient recording/editing/playback functions by linking a 3-disc CD changer compatible with CD-TEXT and an MD.

  • The character information of the CD-TEXT is automatically recorded on the MD along with the music signal, so there is no need to input characters to the MD.
  • "One-touch recording" to start recording from CD to MD with one touch
  • "Best Hit Recording" allows you to easily create a collection of hit songs by recording only the first track from 3 CDs to MD.
  • "Listening Edit Recording" allows you to select songs from 3 CDs while listening to them.
  • "MIX PROGRAM playback" that allows you to freely select and play songs from 3 CDs and MDs

<Other features>

  1. Equipped with a pitch control function that can vary the CD playback speed by ±12% pitch.
  2. "Large display" with a 13-digit character display that displays CD-TEXT and MD character information, track elapsed time, MD remaining time, etc., and a level meter that is indispensable when recording from an analog source to an MD.

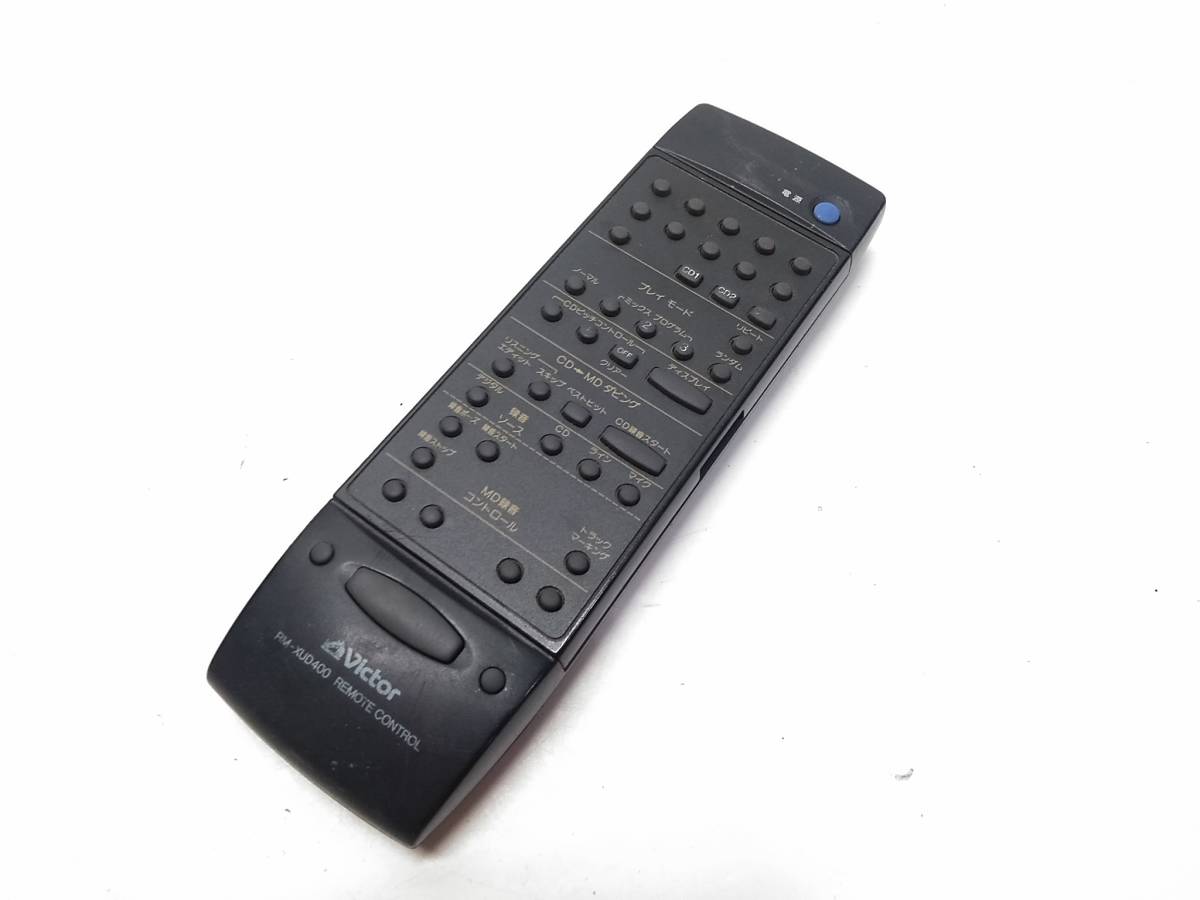

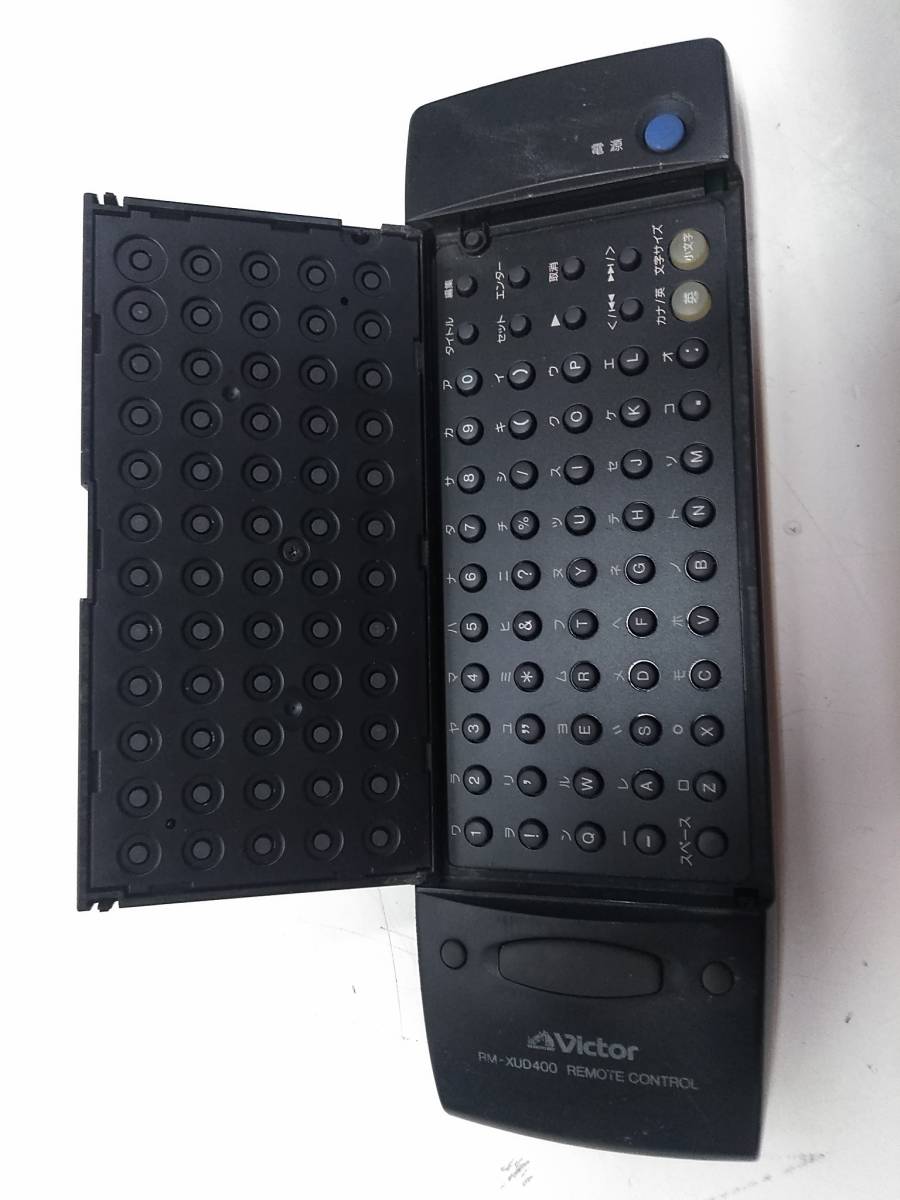

  3. Comes with a direct key input remote control that allows speedy title input like a word processor.
  4. Equipped with two timer functions, daily and once, that allow you to choose between recording and playback.

Content adapted from: Victor Press Release Victor Press Release (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
Manual
RegionJapan
