| Name | MDX-10 |
|---|---|
| Manufacturer | Yamaha |
| Released | 1995/10 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | Width 280x Height 82.5x Depth 346.5 mm |
| Weight | 3500 |
| ATRAC ver | 3 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥89 000 | |
| - | |

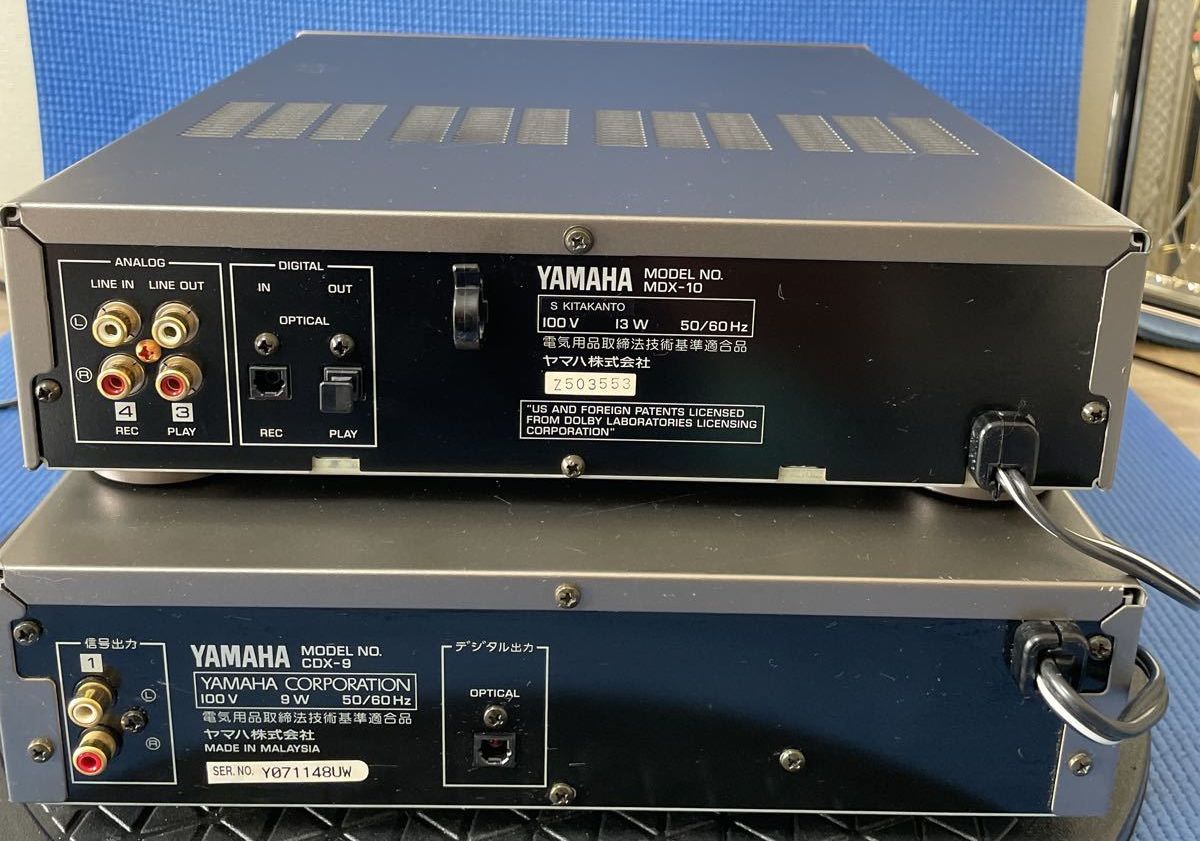

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

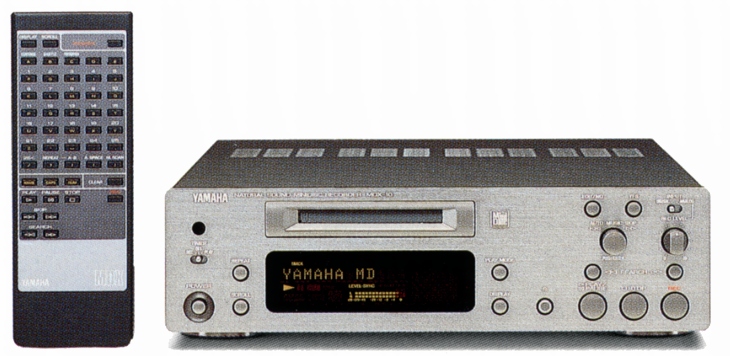

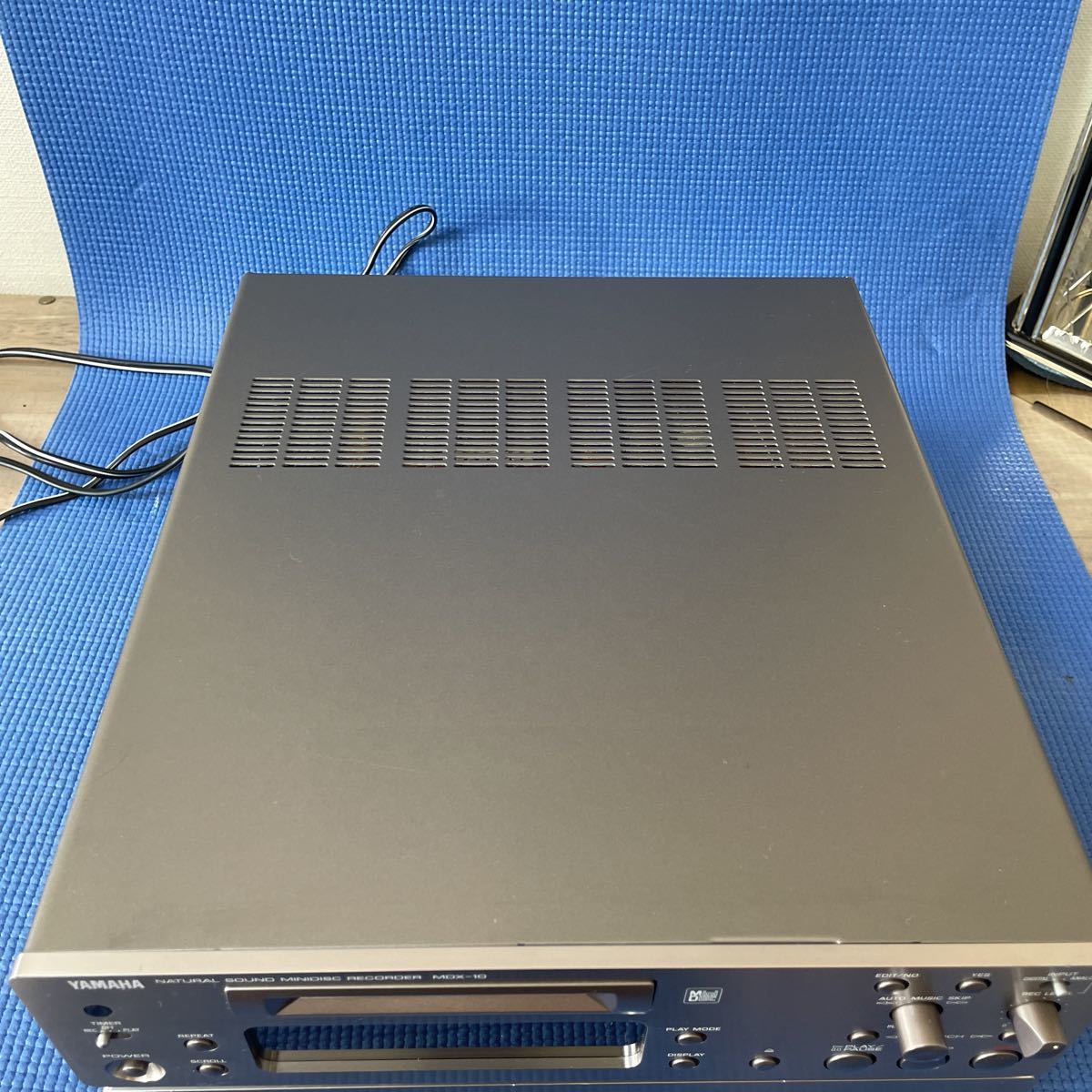

Yamaha MDX-10
KMS-210A/J-A
ATRAC IC: CXD2536R
Content adapted from: audio-database.com Yamaha Product Page Yamaha Product Page (MiniDisc Wiki mirror) audio-heritage.jp
Manuals
Repair
MD drive is the same as in Sony MDS-S30, MDS-S35, Onkyo MD-110M, 122M
Optic pickup - KMS-210A (!).

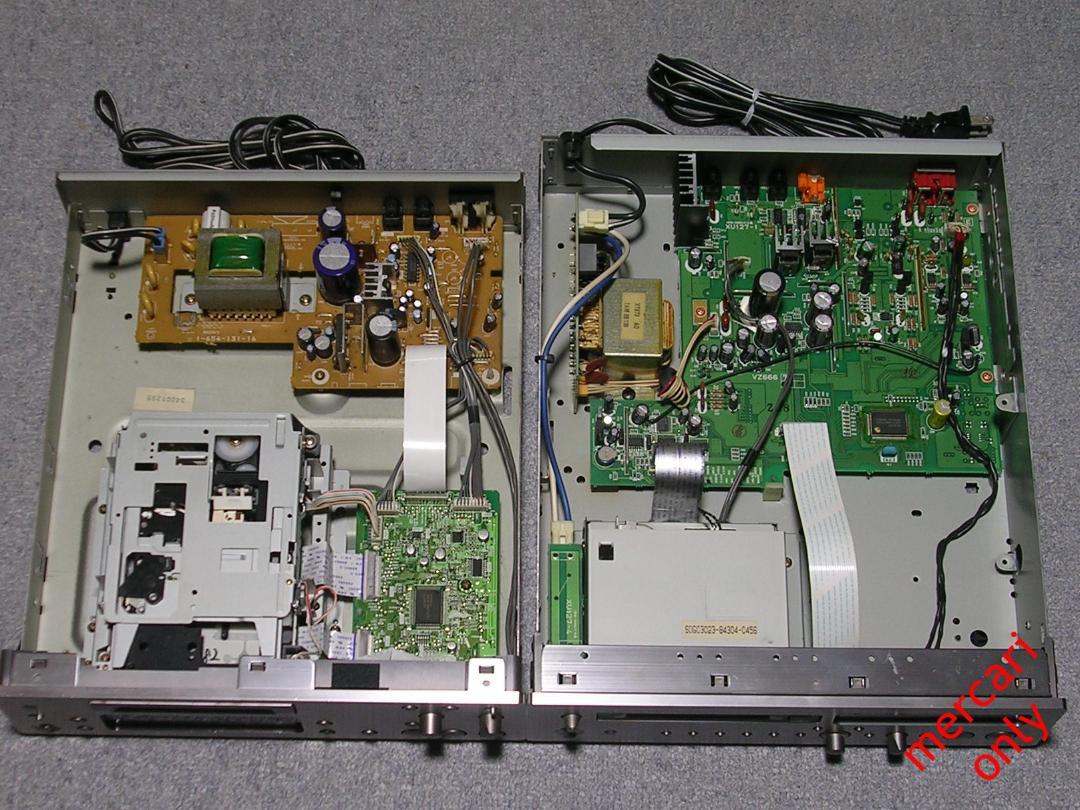

Teardown claiming it shares internals with ONKYO's MD-122M (JP)

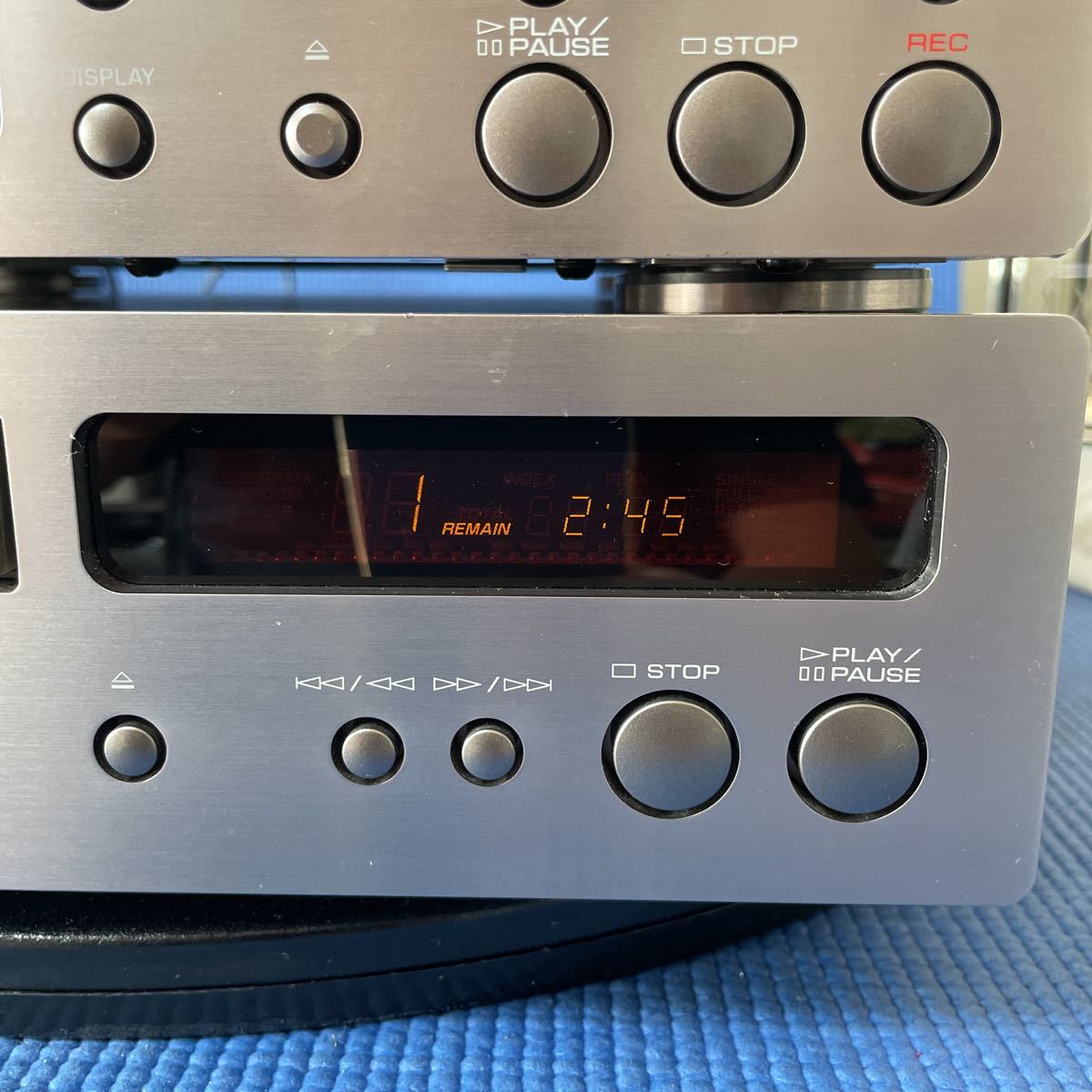

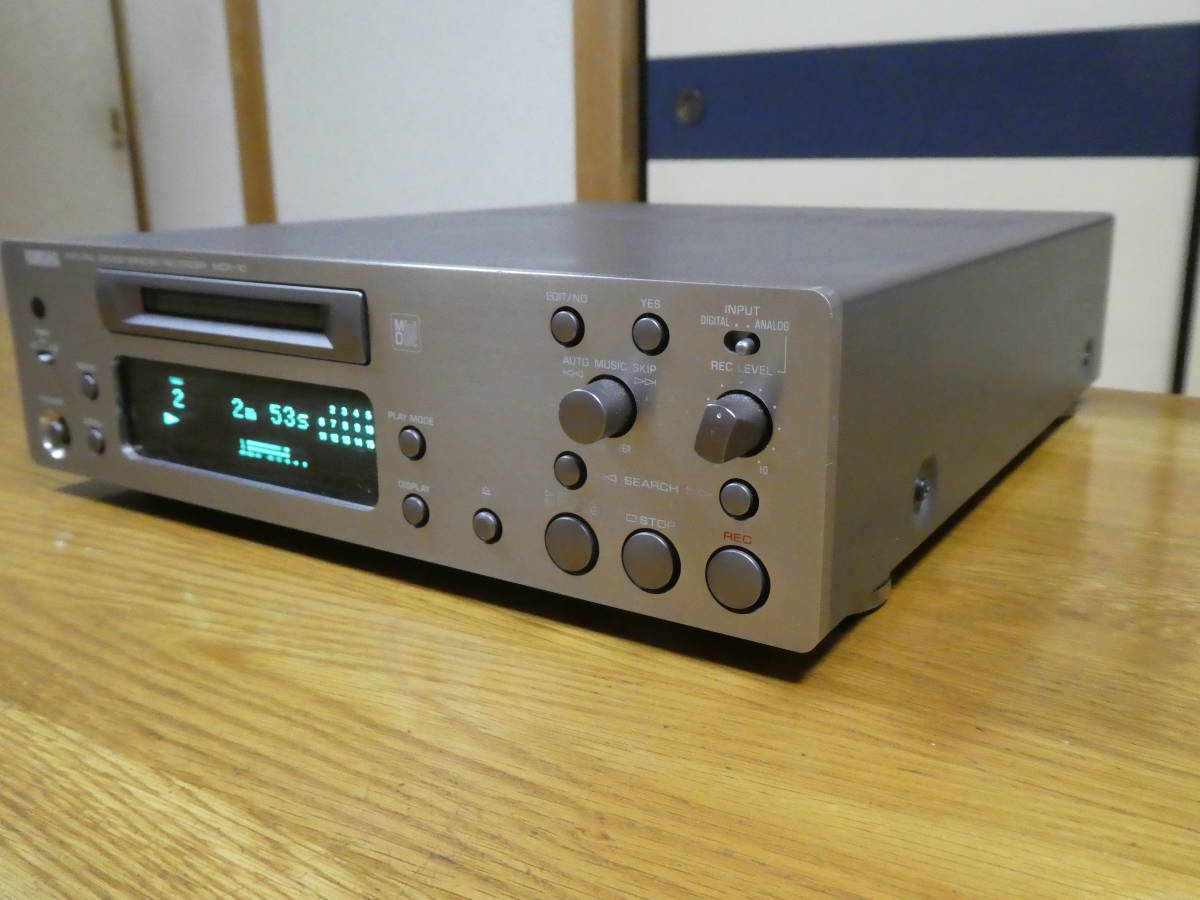

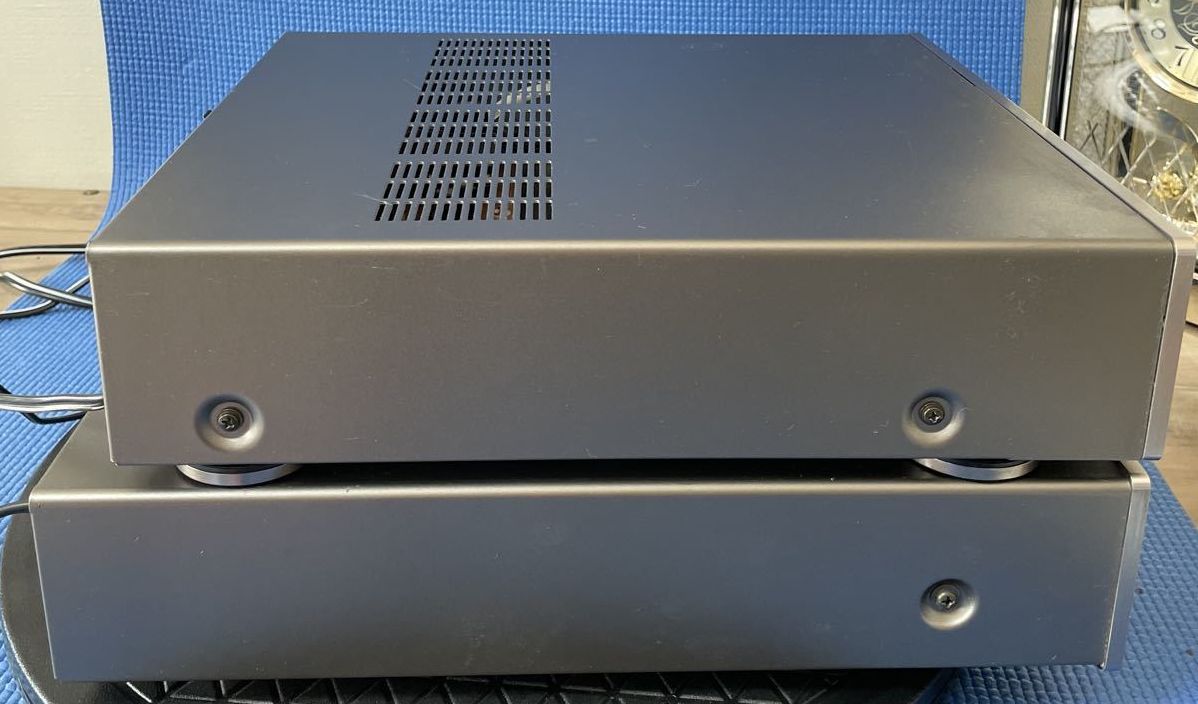

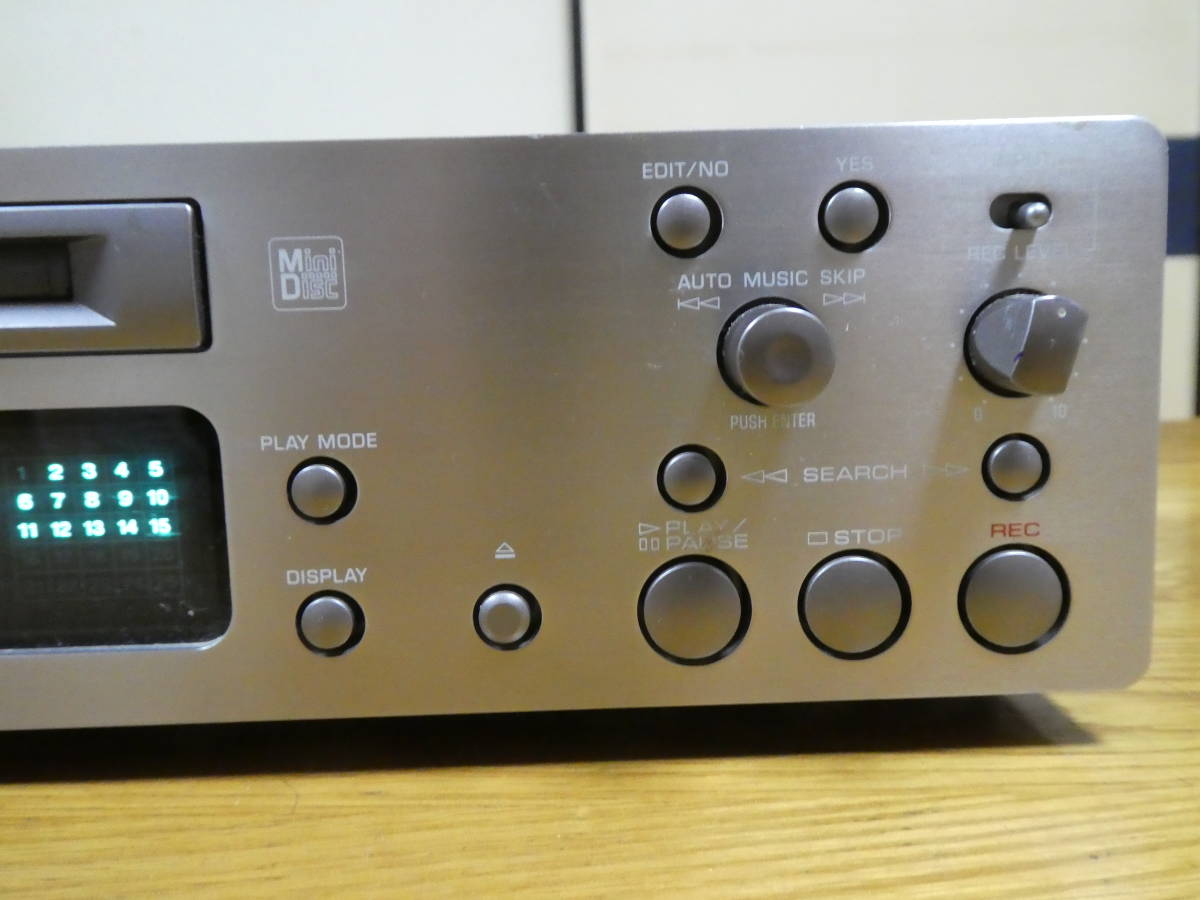

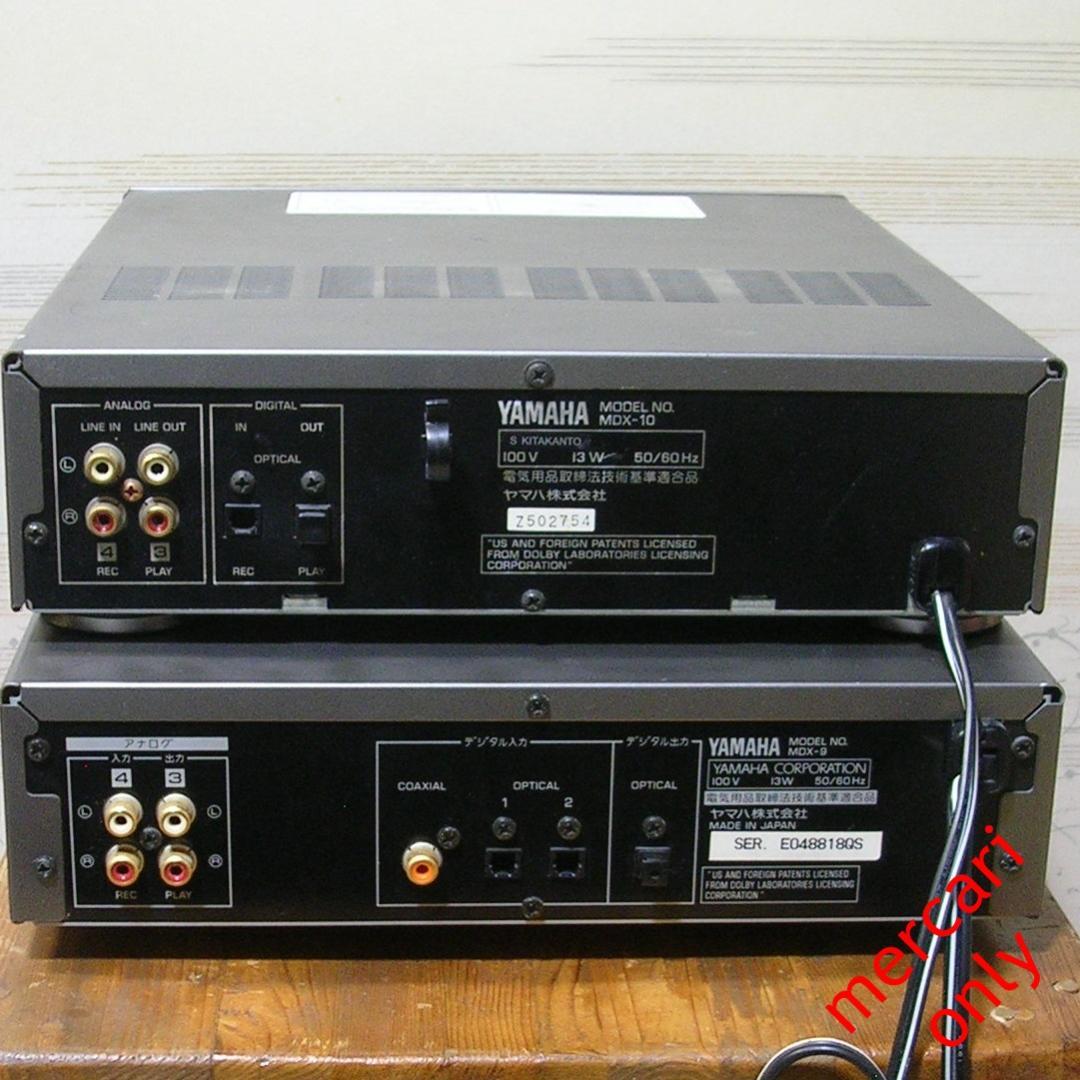

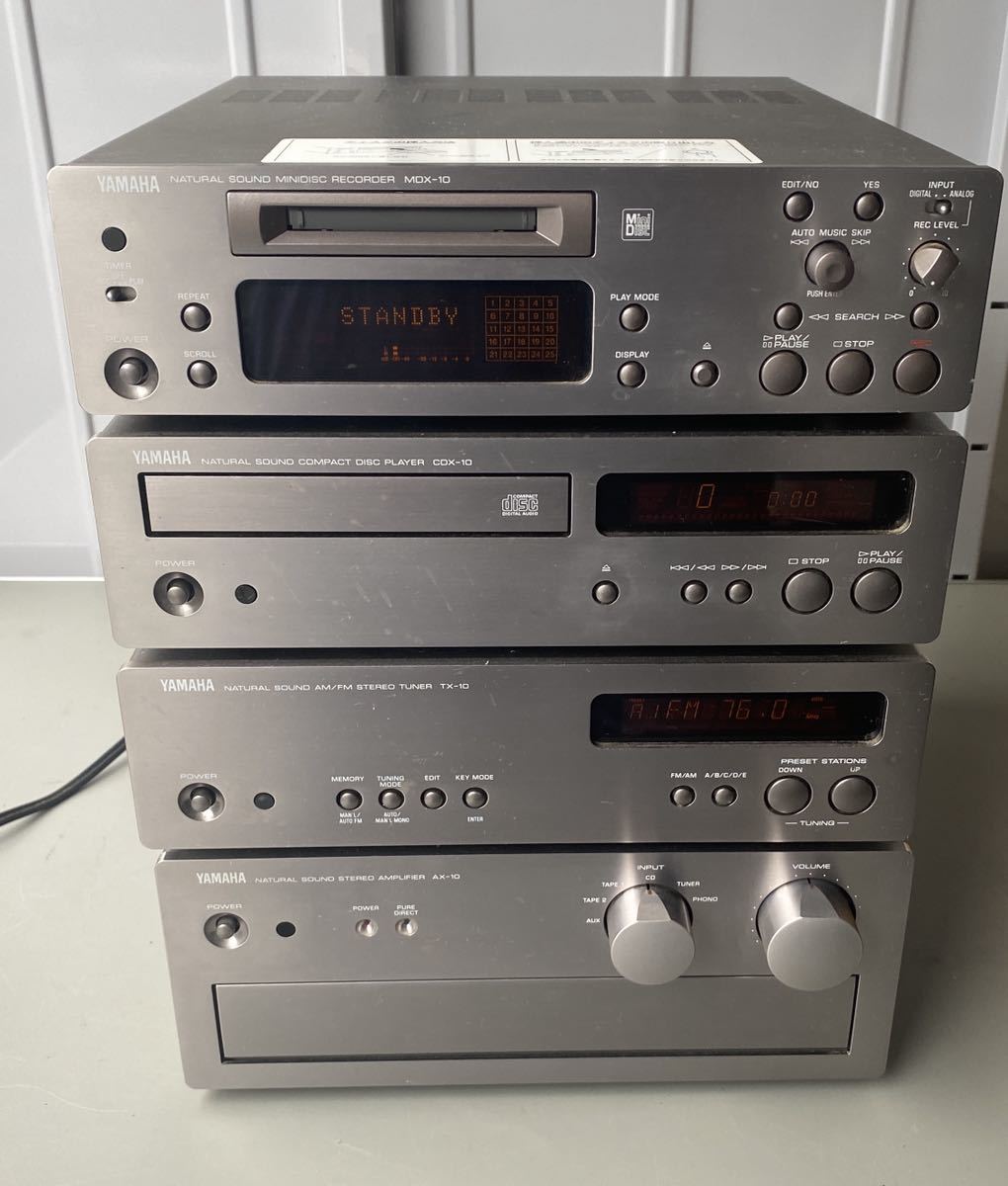

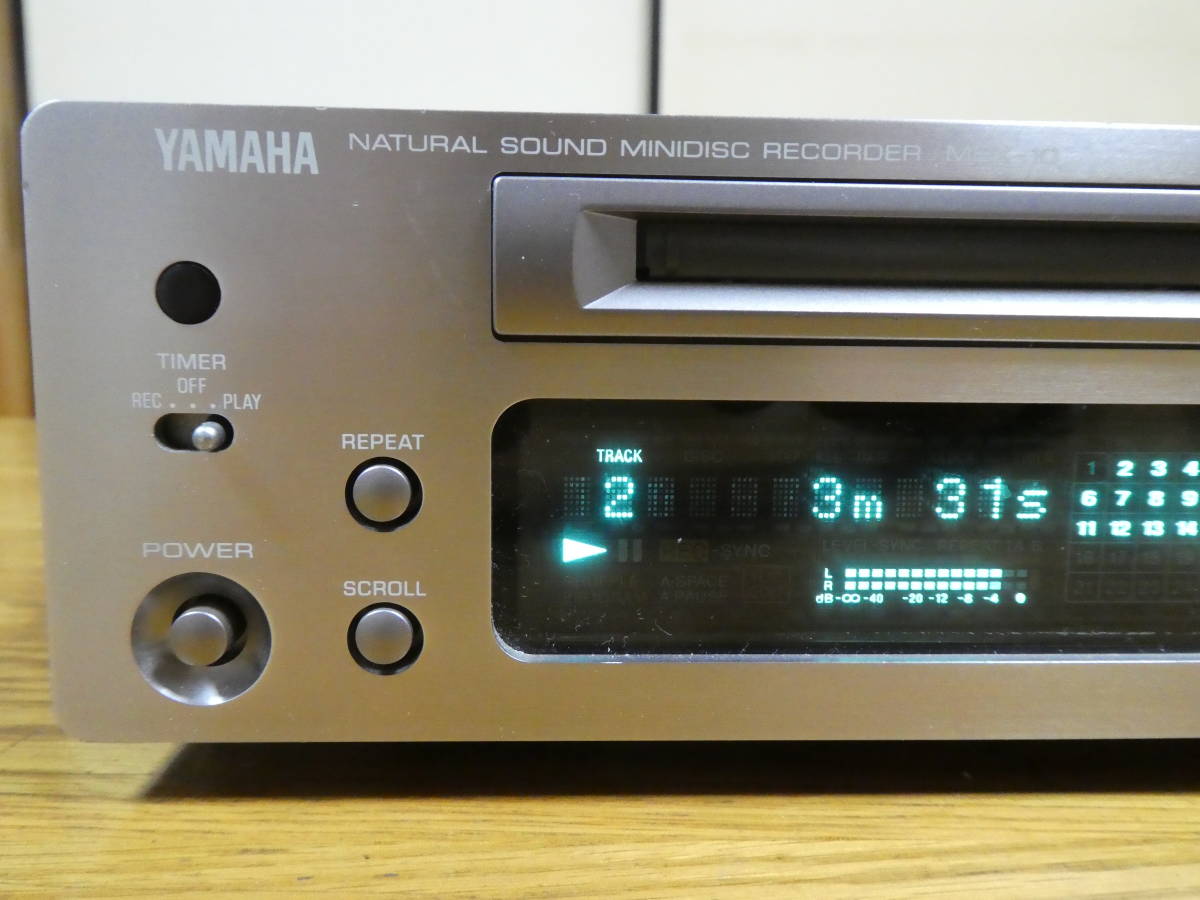

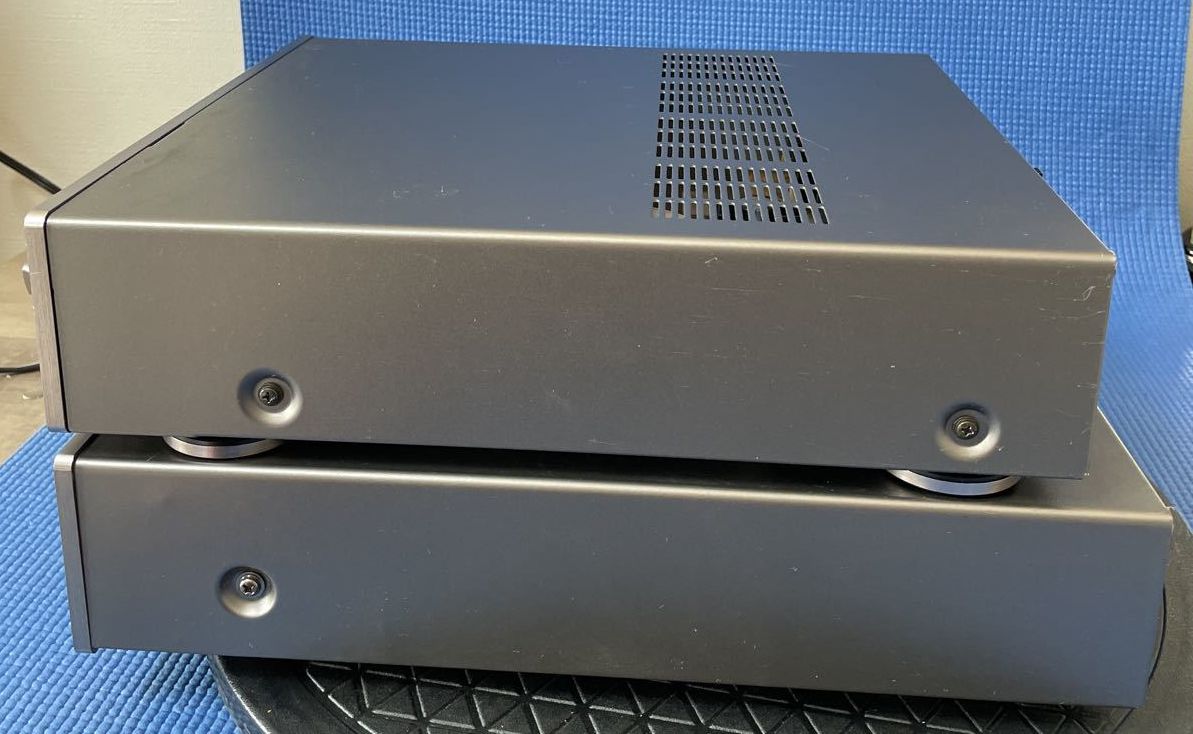

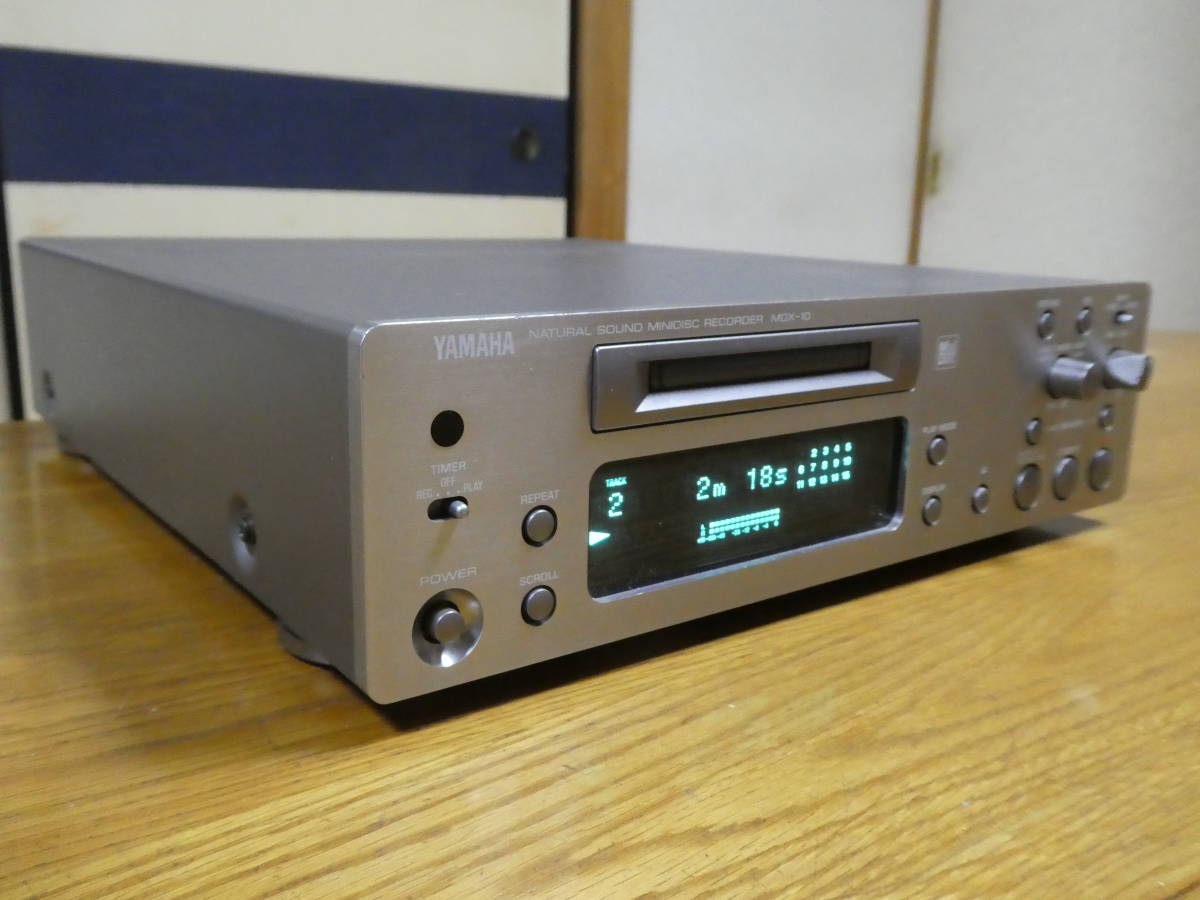

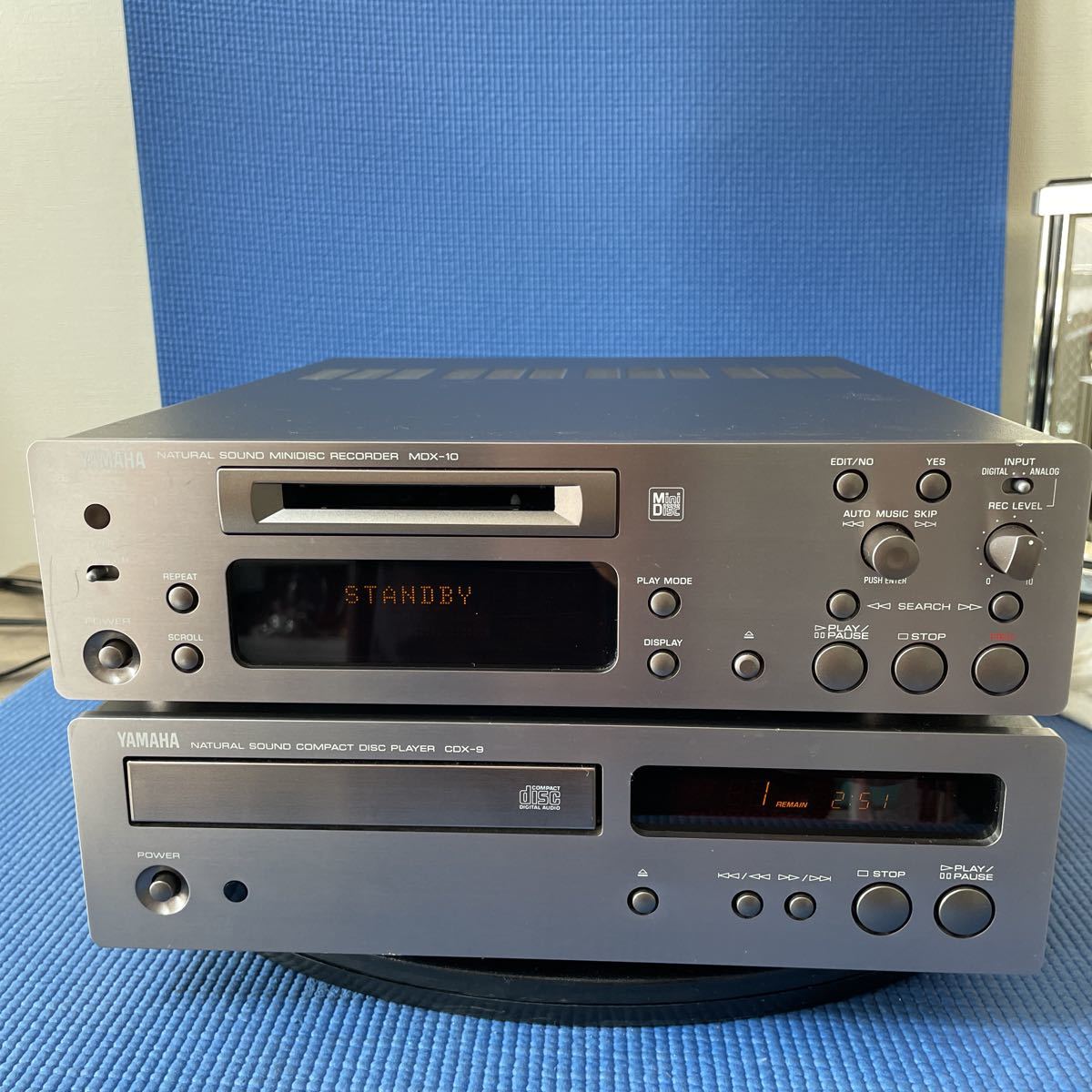

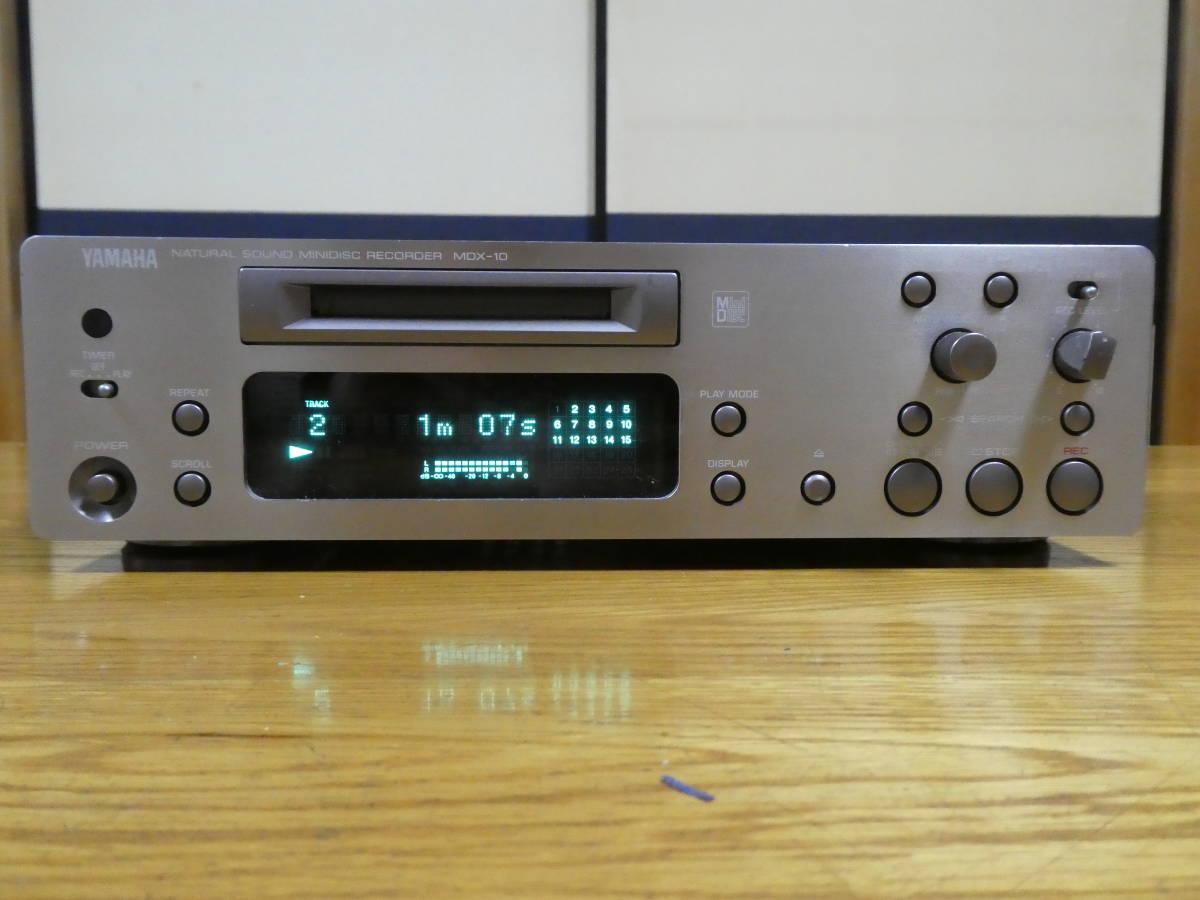

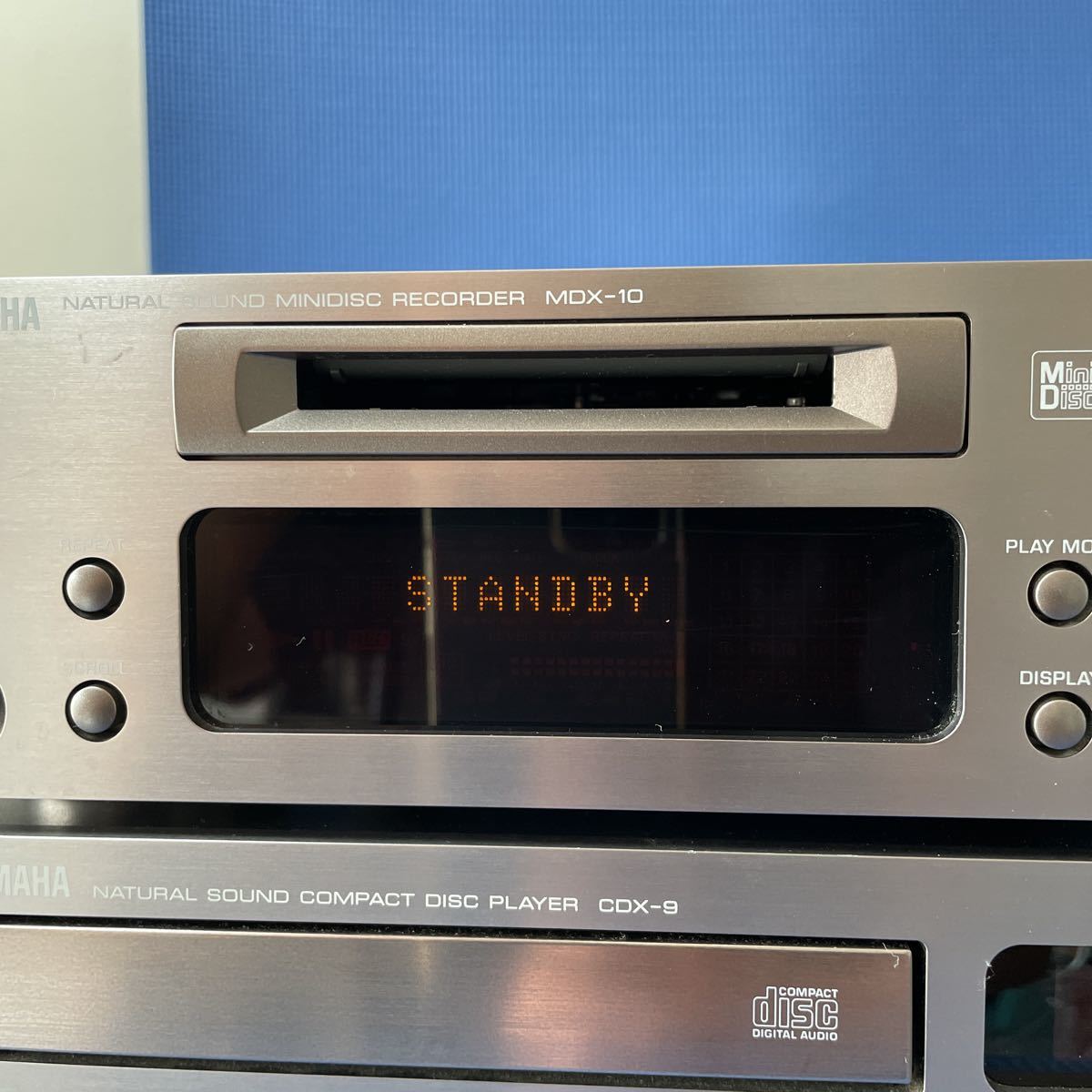

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Remote Page | |
| Pickup | j-a |

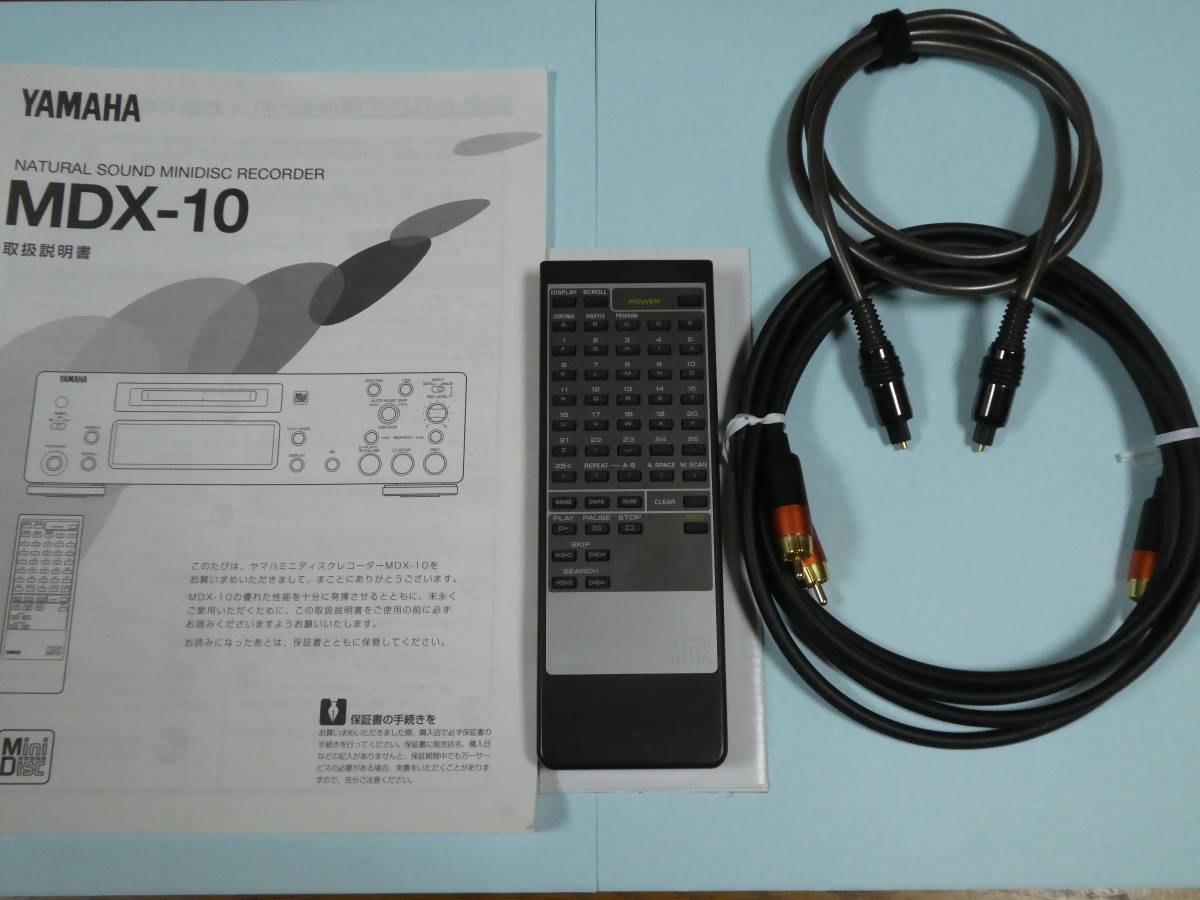

| Manual | User manual |
| Region | Japan |
