| Name | MDX-9 |
|---|---|
| Manufacturer | Yamaha |
| Released | 1997/12 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 280 x 82.5 x 354mm |
| Weight | 4.0Kg |
| ATRAC ver | Sharp 7 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥75 000 | |
| - | |

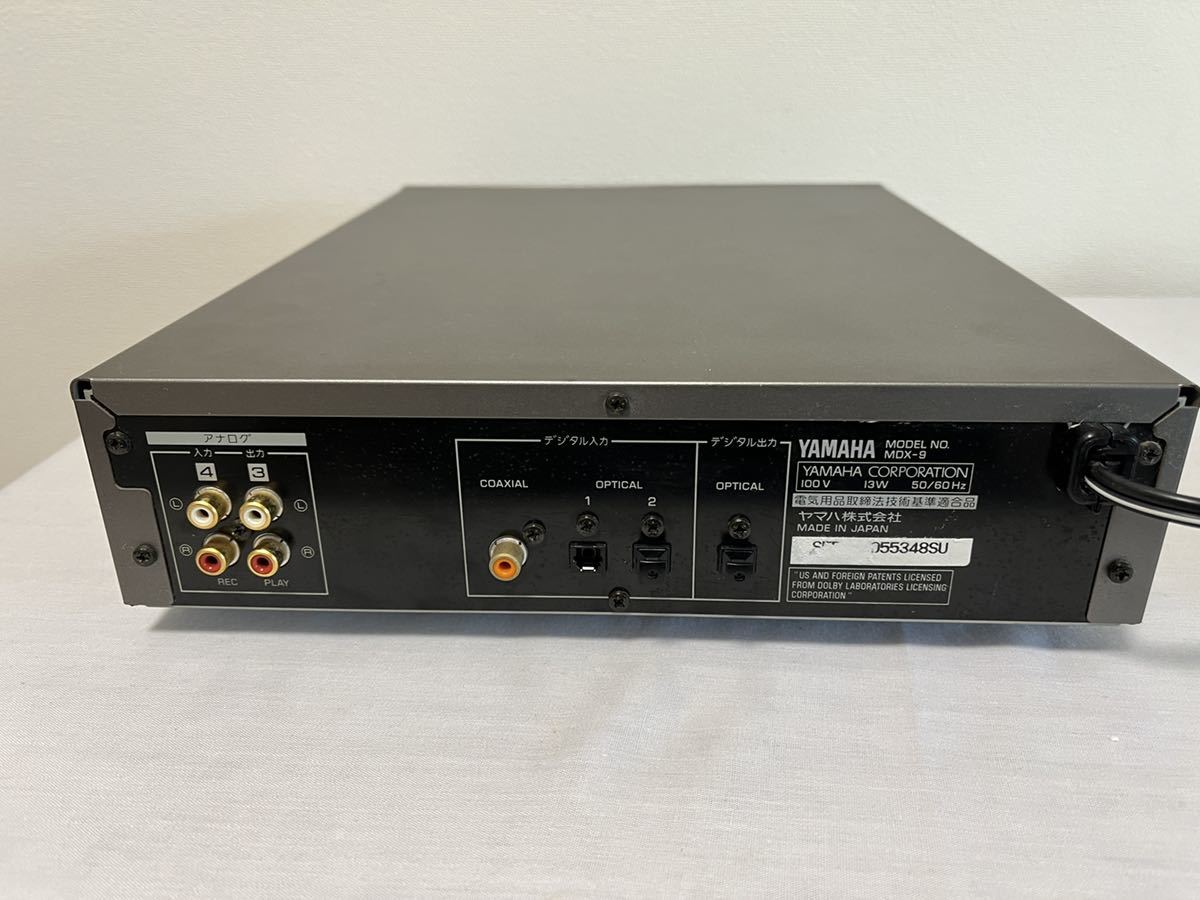

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

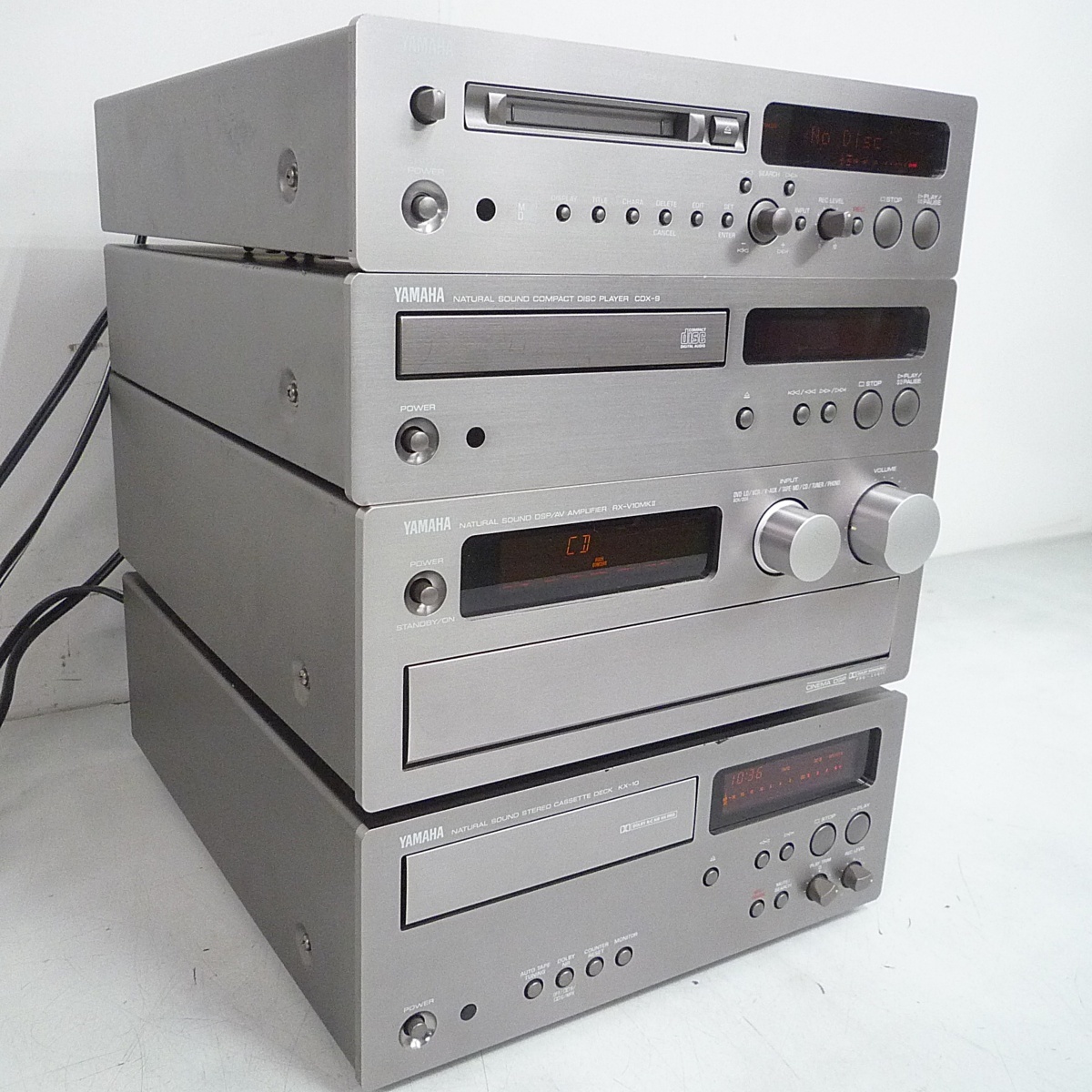

Part of the ToP-ART Series of shrunk down components. ToP-ART is an abbreviation of "Total Purity Audio Reproduction Technology".
Features:
- Digital-Digital Sampling rate converter.
- 20-bit precision D/A converter.

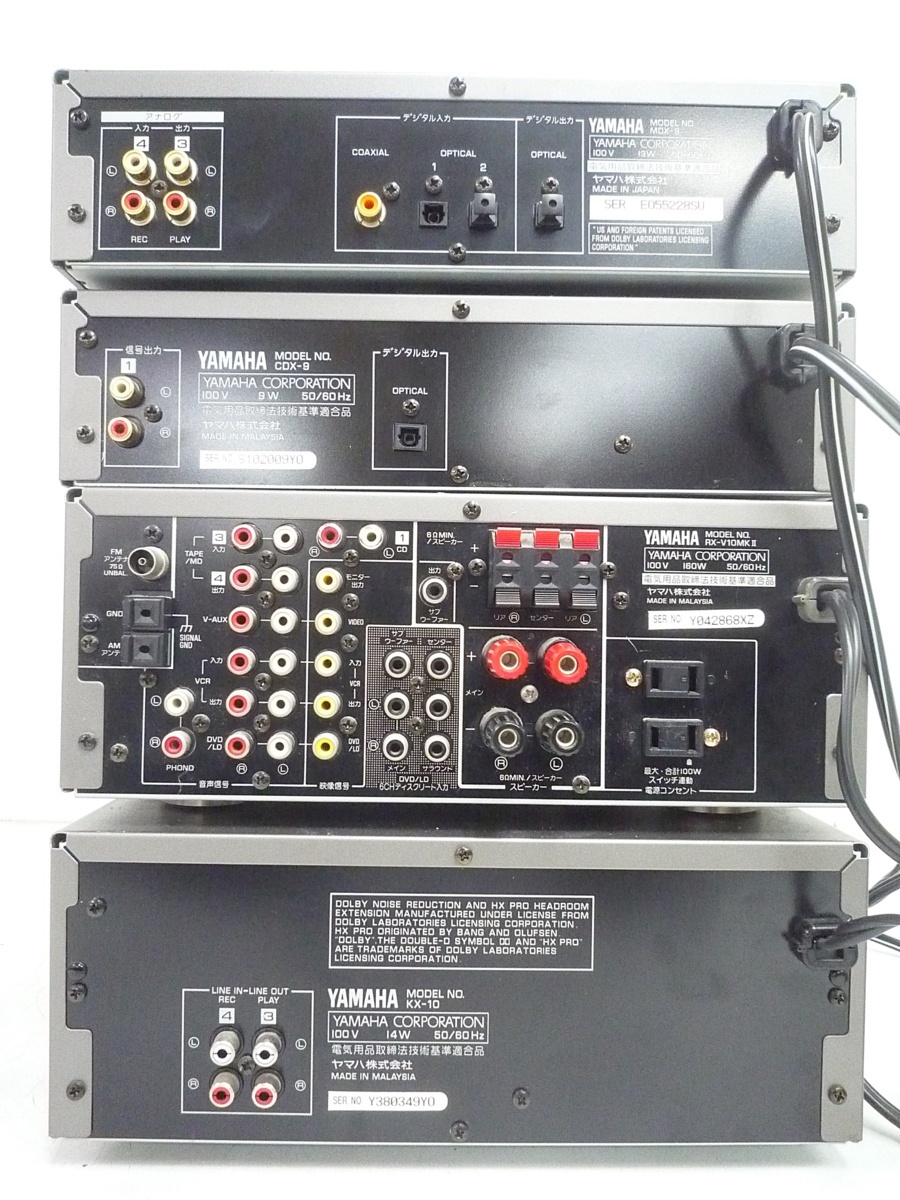

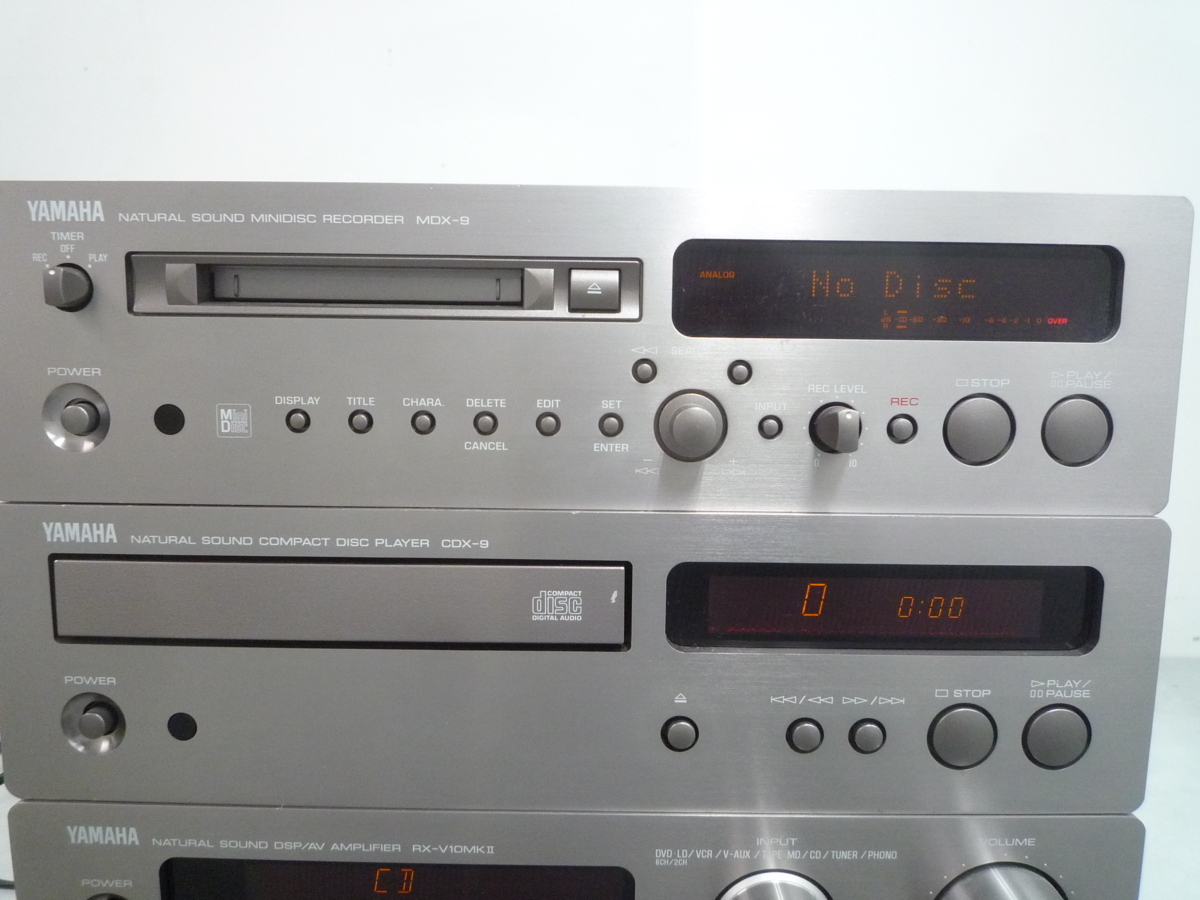

- Synchro recording when coupled with CDX-9 CD unit.
- katakana character support.
Specs: S/N: >98dB, Freq. Resp: 5-20kHz +/-0.3dB

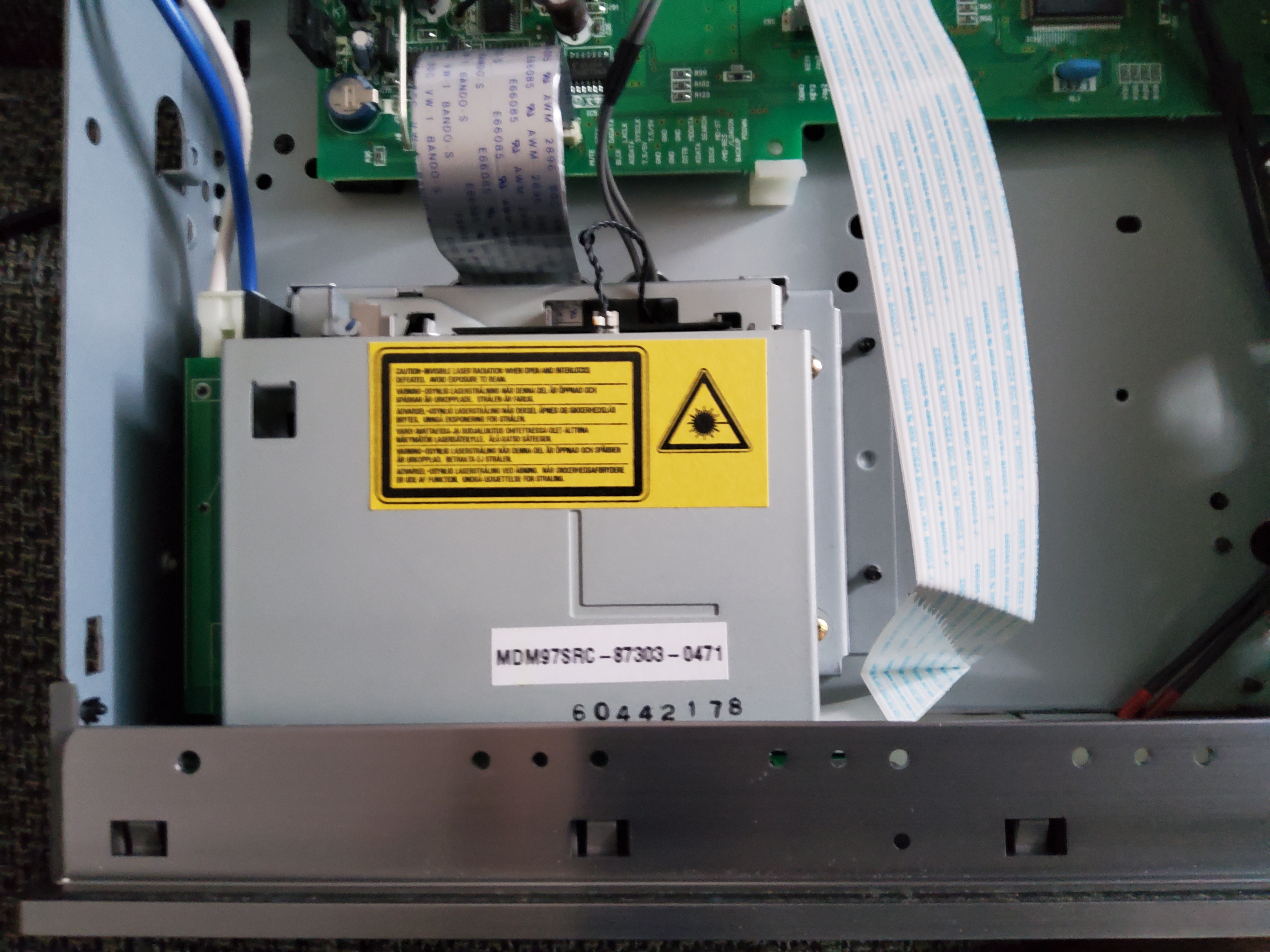

Transport: MDM97SRC
87303 0471
Similar to Denon DMD-800,DMD-1000 and DMD-M10

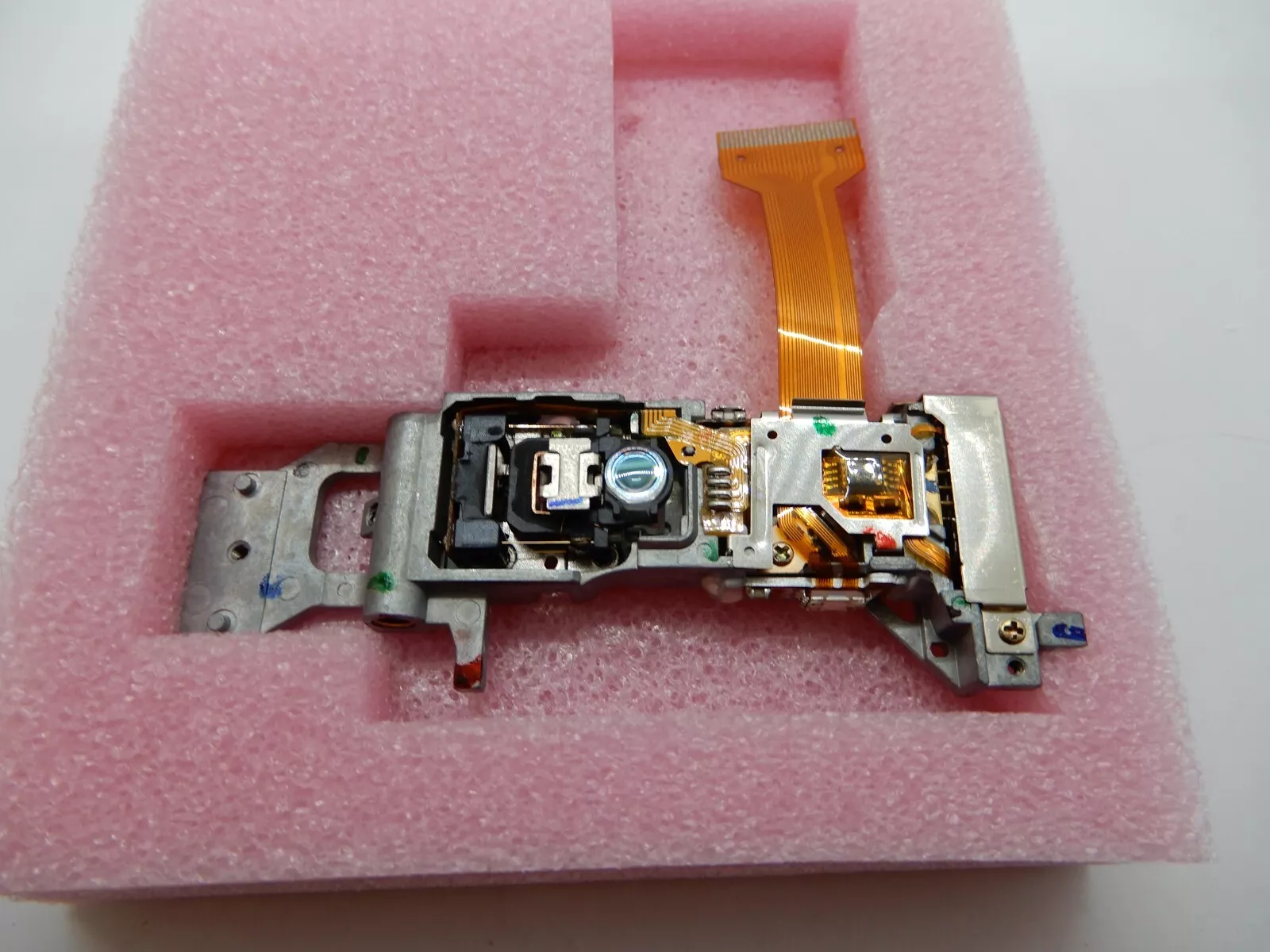

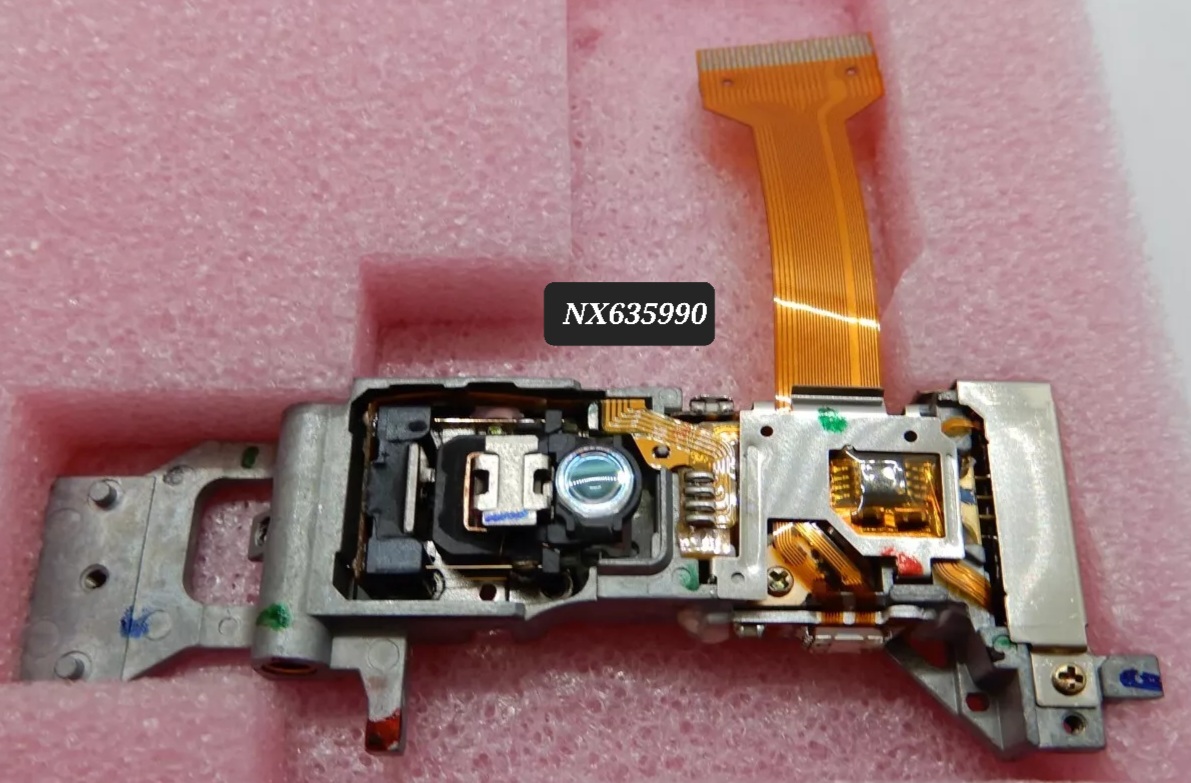

optical head mdx-9 NX635990
Content adapted from: Yamaha Press Release Yamaha Press Release (MiniDisc Wiki mirror) Minidisc.org Page
audio-heritage.jp Yamaha product page (Archived) Alternate Yamaha Product Page atwiki.jp
