| Name | MDX-E300 |
|---|---|
| Manufacturer | Yamaha |
| Released | 2002/06 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 217 x 88 x 297mm |
| Weight | 2.6Kg |
| ATRAC ver | Sharp 8 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100, 230 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥47 250 | |
| - | |

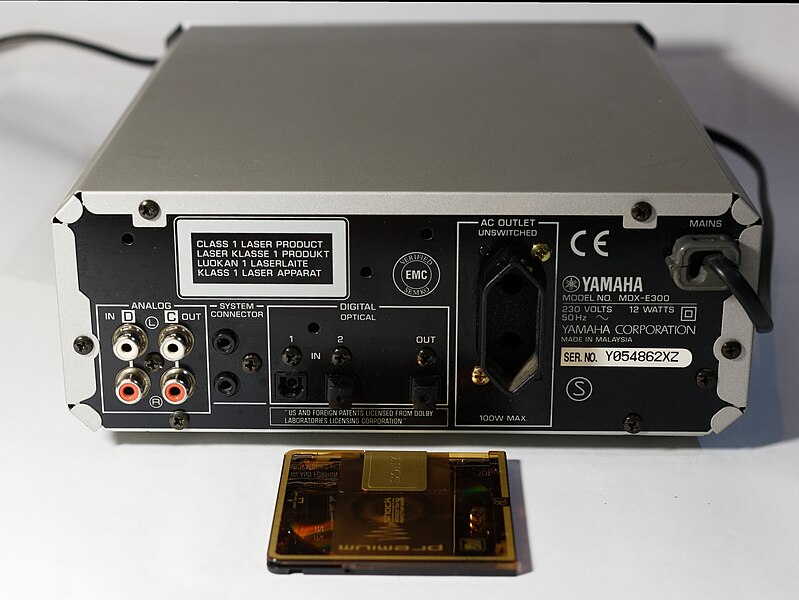

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Remote (Sharp) |
Features: MDLP unit that integrates with Yamaha's MCR-E300 Yamaha's MCR-E300 (MiniDisc Wiki mirror) "PianoCraft" line via Yamaha one line inter block link connector 3.5mm mono jack.
• Digital de-emphasis for 32, 44.1 and 48 kHz
Used latest Sharp Atrac 8.3
Drive: MDM-08A
DAC / ADC: UDA1345TS
ADC S/N signal-to-noise: 96dB
DAC signal-to-noise: 100dB
Specs: Freq Resp. 5-20kHz +/- 0.5dB.
SNR: 99dB.
Digital rec level: Min. +12dB.
ATRAC Chip: LR37816A
MD Mech: MDM-08A)
Optical Pickup: Yamaha part# AAX17200 (probably a rebranded unit from sharp or sony)
Content adapted from: Minidisc.org Page Yamaha Product Page Yamaha Product Page (MiniDisc Wiki mirror)
Manuals
Repair
(repair links go here)
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Remote Page | |
| Mechanism | mdm-08a |
| Atrac Ic | LR378161 (Sharp) |
| Manual | User manual, Service manual |
| Region | Japan, Europe |
