Device
Aiwa AMD-100
Historical source · MiniDisc.org archive
- Manufacturer
- Unknown
- Model / source grouping
- AMD-100
- Device type
- Unknown
- MDLP modes
- Unknown
- NetMD interface
- Unknown
- Hi-MD support
- Unknown
Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.
No directly linked document has been identified for this record. Search the manual library or consult the source below.
Accessories & internal parts
Source-referenced components. Check conditions before substituting parts.
Preserved historical reference
Original source · Original dates and notices remain in the article. Historical advice may no longer apply.

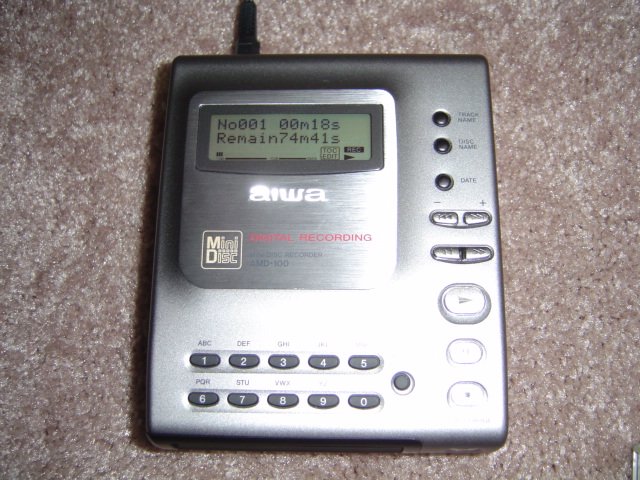

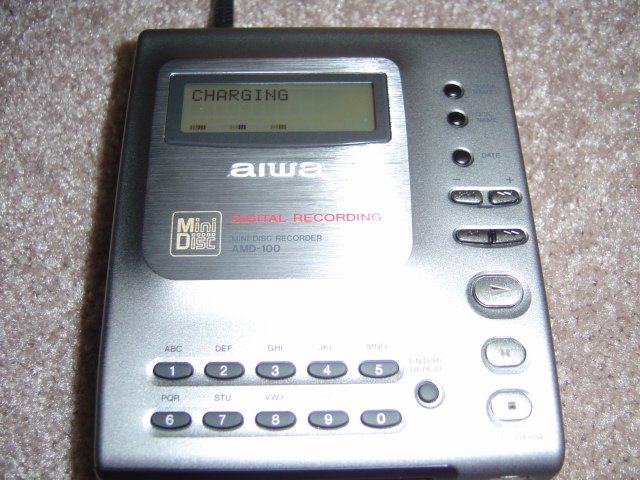

Aiwa AMD-100
All, notes, AM-NX9, NX1, F90, C80/F72/F75/F80, F65/F70, F5/F7, F3, F1, AMD-100
| Picture | Name | Desc | Price | Connectors | Dimensions |
|---|
| Aiwa AMD-100 | portable recorder
Intro: 12/1992 (?) | msrp: $600
street: $250?
Availability:
| In: optical, line, mic (1.38mv min:0.55mv). Out: optical, line, hdphn
(5mwx2 max, load 16 ohms) | 4 1/2" x 1 5/8" x 5 1/2" 1.1lbs |
Features:
- Aiwa clone of Sony MZ-1.
- ATRAC 1.
- Track divide, combine, swap and erase.
- Battery level indicator.
- 24 Character title display.
- Disc and track labeling.
- Date and time stamp recording.
- 21-selector program memory.
- 4-way repeat play (one/all/shuffle/program).
- Resume play function.
- Clock display.
- Automatic and manual gain control (can switch between these two
modes while recording, or change the manual gain while recording).
- -20dB mic attenuator switch.
- 3 level bass boost.
- Backlit display.
- Resume mode.
- AC adapter, rechargeable battery supplied.
Reviews:
| Battery Life | Play | Record | Recharge |
| Rechargable BP-MZ1 (NiCd) | 1.25 hr | 1 hr | 1-1.5 hr |
|
