Kenwood DMC-J7R

Features: First recorder with an ``MD Jacket'' (i.e. square front face) design. Sharp ATRAC 5. 10 second shock memory. New 1 chip LSI incorporating the [digitalized] RF section, signal processing encoder/decoder, digital servo, EFM processing and audio compression/decompression circuitry. MS702 is ``sporty look'' model. Sampling rate converter. Digital/Line/Mic synchro start, goes into pause after 3 seconds silence. Mono recording. 2X quick playback mode. Time automarking at 3, 5 and 10 minute intervals. ``Moji Stamp'' function allows text transfer from original to newly recorded disc. Manual recording level control only (no AGC), microphone sensitivity selection is built-in, as part of the recording level control setting (0-20: HIGH, 21-30: LOW). Katakana/ Alphanumeric/ Symbol titling. Random, all repeat, 1 repeat play modes.

Included Accessories: Backlit LCD remote, headphones, LiIon rechargeable, AC adapter, AA case, carrying case.

Mis-features: No date/time stamp during recording. Be aware that when recording from the mic input and you adjust the recording level, a small 'glitch' (a few millisecs silence) will be recorded where the level drops from MIC 'H' to MIC 'L' (position 20 on the 0 - 30 level scale). -Graham Baker

TOC Undo: TOC Undo with the Kenwood DMC-J7R is very simple: Remove the battery/unplug the power supply without turning the unit off. When powered up again, it forgets that there are unwritten TOC changes. -Stefan Werner

Problems: There have been reports on MD-L of Sharp MD-MS701/702 units malfunctioning, displaying intermittent "UTOC Error" messages with damaged/irrecoverable recordings as a result. A user ([email protected]) advises:

1. It is important not to do an auto calibration in service mode without a "tdys1" (sony) testing MD or equivalent (Teac). This will definetly cause more problems!
2. Unit should be returned immediately when the first UTOC errors appear, it is a bad sign! It makes no sense to wait until the warranty has expired.

Accessories: Sharp seems to have sold the MD-MS702 outside of Japan without the external AA cell case. It's available though from Planet Minidisc and Minidisco.

Links:

• Sharp's Japanese information.
• Sharp's English page for these portables.
• Sharp Canada's page for the unit.

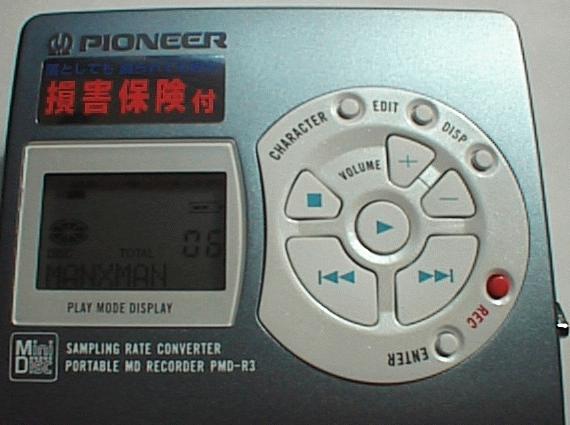

• Nic Boyde's snapshots of the MS701, MS702, Pioneer PMD-R3 and and the Kenwood DMC-J7R.
• A user's review of the Sharp MD-MS701.
• Matthew Brock compares the Sony MZ-R50 and Sharp MD-MS701.
• An MD user has made a page for the Sharp MD-MS702.
• John Beale has measured the SNR of the MD-MS702 and found it to be 81dB.
• Hannes Rohde has done a little experiment with the mic synchro start feature.
• MiniDiscussion has collected user reviews for this unit.
• Peter Wood has made a nice Sharp MD-MS7xx page.
• A user submits this unit's EEPROM settings.
• Ian Horsey illustrates the Sharp MD-MS701 disassembly procedure.
• A user comments that he repaired his MD-MS701 by using Horsey's procedure.
• MiniDisc-Canada offers the hard-to-find Sharp external drycell case for the MD-MS70x and MD-S301 portables.

Specs: 20-20kHz +/-3dB, wow & flutter <.001% peak. Output: Line: 300mV (-12dB) (50Kohms). Headphones: 10mW+10mW (32ohms). Input: Mic H: 0.25mV 10kOhms. Mic L: 2.5mV 10kOhms. Line: 100mV 20kOhms.

Reviews:

User Manuals: MD-MS701, HTML

Service Manual: MD-MS701
