| Name | DMC-J7R |
|---|---|
| Manufacturer | Kenwood |
| Released | 1997/09 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 87x29.4x81.5mm |
| Weight | 218g (including battery) |
| ATRAC ver | Sharp 5 |
| Battery | Not recorded AA, "Gumstick" |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | Not recorded |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥49 800 | |
| - | |
| Inputs | 3.5mm line in (optical multi) |
| Outputs | 3.5mm line out (analog-only) |
| Control | Not recorded |
See also Sharp MD-MS701/MD-MS702 and Pioneer PMD-R3.

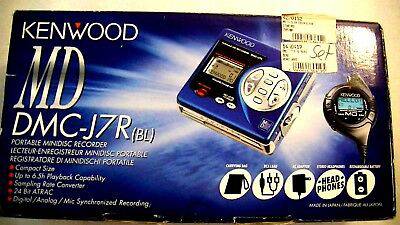

The Kenwood Product page lists two colors: Black DMC-J7R(B) and Silver DMC-J7R(S), but a Blue model was sold as well: DMC-J7R(BL)
The "DMC-J7R" is an MD jacket-sized recording / playback portable MD recorder that uses a slot-in mechanical system, and achieves high-quality recording / playback despite its compact body that fits in the palm of your hand.
Equipped with various recording / editing functions.

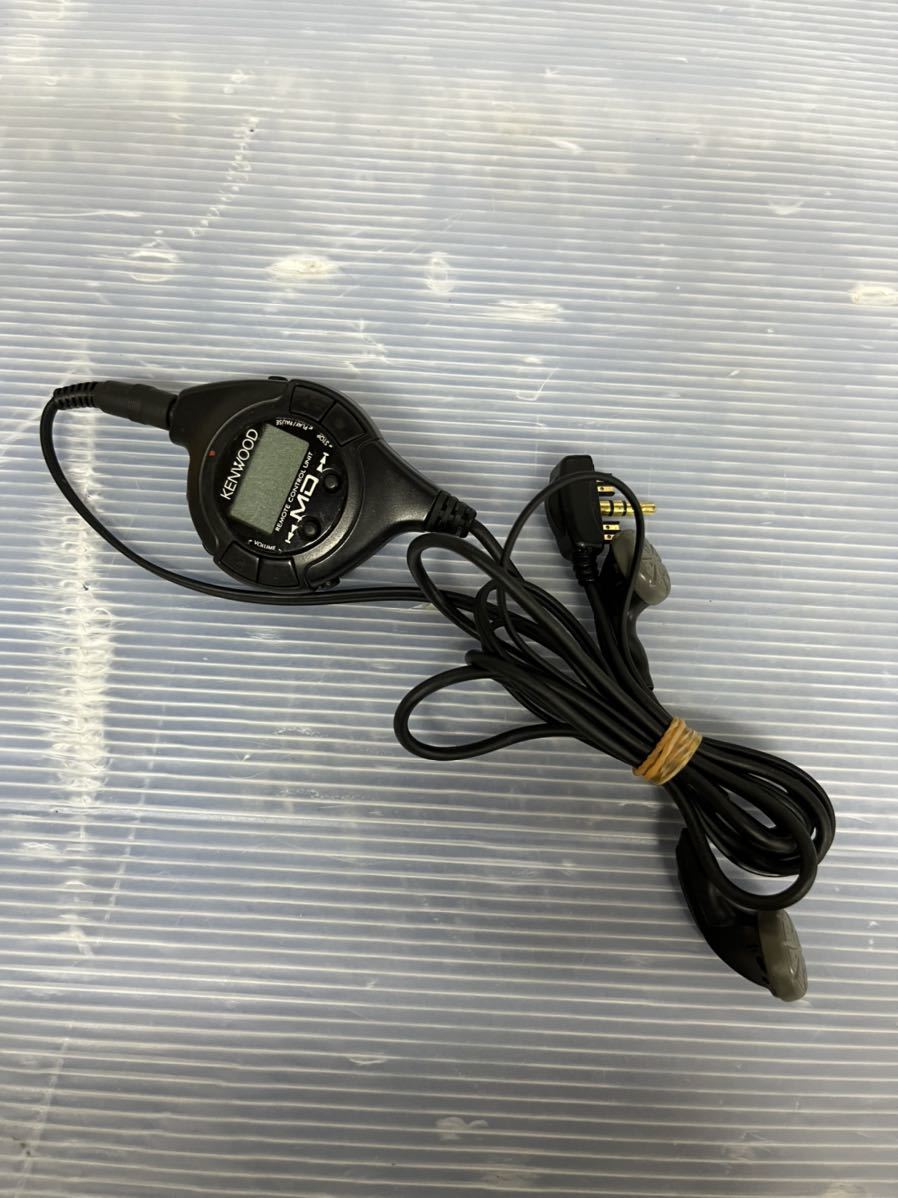

In addition to being equipped with a sampling rate converter that enables digital recording not only from CDs but also from BS / CS broadcasts, a highly visible backlit LCD remote controller is standard equipment.
Content adapted from: Minidisc.org page, Kenwood Product Release page Kenwood Product Release page (MiniDisc Wiki mirror)
Manuals
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
