Maycom Handheld
All, Handheld
| Picture | Name | Desc | Price | Connectors | Dimensions |
|---|
(2067x2067)

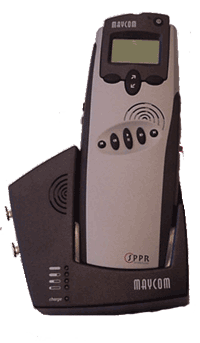

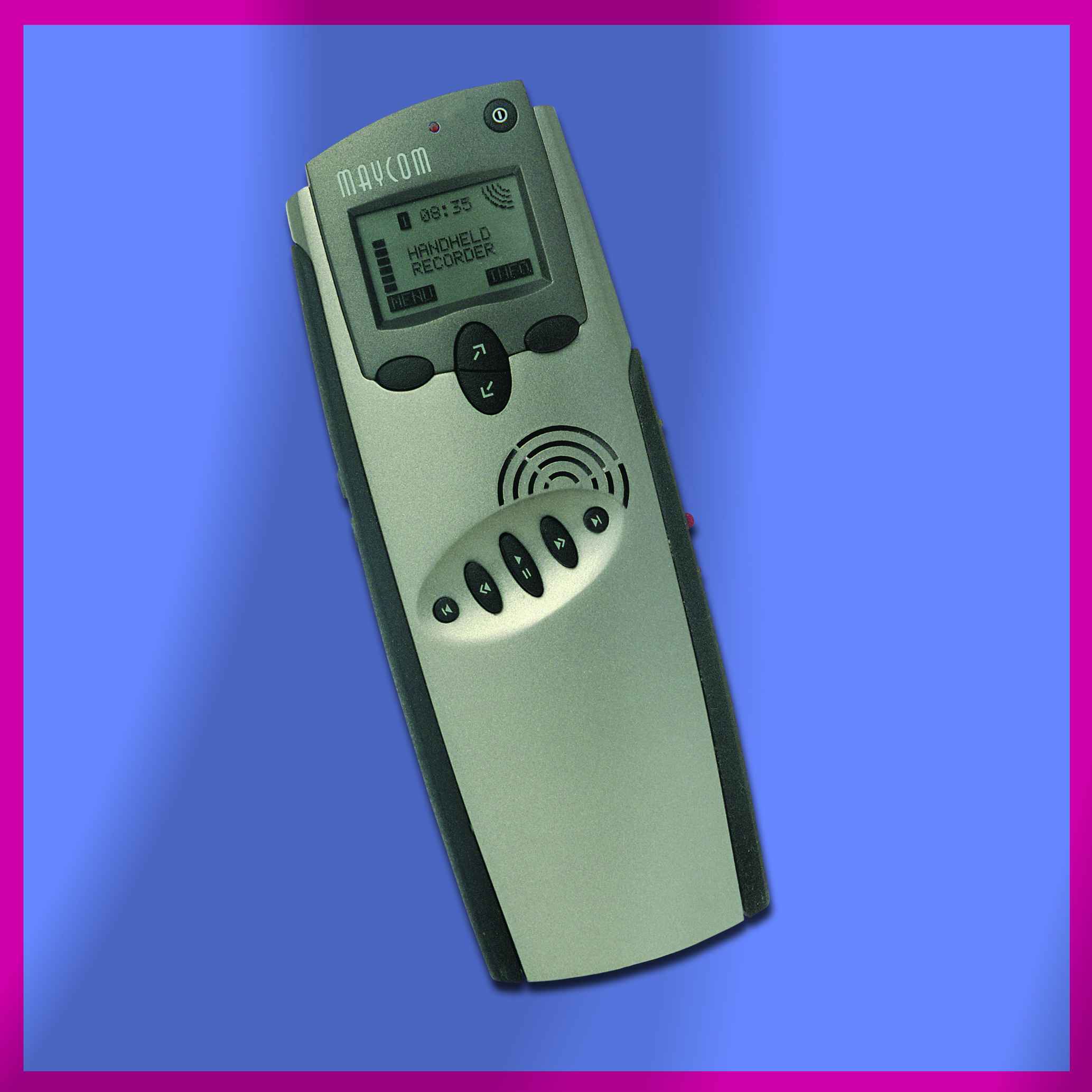

| Maycom Handheld | Portable MP3 recorder
Intro: 1/2003 | US$1145
Availability:
| Portable: In: 2x balanced mic/line, internal electret. Out: 2x unbalanced line, headphones (3.5mm jack). Data: USB 1.1

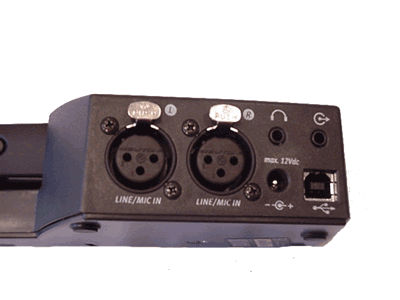

Dock: In: 2x XLR balanced mic/line. Out: line (3.5mm jack), headphones (3.5mm jack). Data: USB 1.1 | Portable: 178 x 64 x 30mm, 300g
Dock: 160 x 120 x 44mm, 280g |
Features:
- Records to Compact Flash cards in Linear or MPEG2-Layer 2 format (8-384kbps, 16-48kHz sampling)
- File format: BWF (Broadcast Wave)
- "Time-machine" recording with 2, 5 or 10 second (selectable) pre-record buffer.
- Manual and automatic record level control.
- Docking station with recharger and speaker.
- Handheld has small internal speaker.
- Date and Time stamp recording.
- Unit appears as mountable volume when connected through USB cable to a PC.
- No editing controls other than track delete
Links:
Specs: SNR: >80dB, Crosstalk: <-80dB, Harm. Distortion: < 0.005%
Reviews:
User Manual: Handheld
|
