Reactive Sounds Boost Box
All, Boost Box

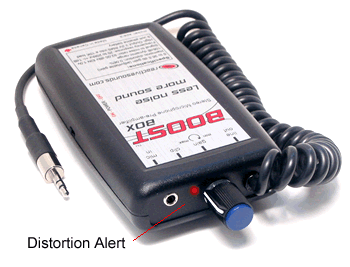

Picture Name Desc Price Connectors Dimensions Reactive Sounds Boost Box Microphone Pre-Amplifier US$199.95 Out: 1/8" stereo plug. In: 1/8" stereo jack 4.9 X 2.75 X .94 Manufacturer's Description:
A true high gain, low noise stereo pre-amplifier. Featuring clipping LED,
belt clip and slimline construction. It is compatible with all Minidisc
Players and Digital Records, MP3, DAT, Laptops, desktop PC's and
professional music equipment with a line input.
Specifications:
0 to 36.5 dB gain (adjustable gain)
Runs 80 hours on a 9 volt alkaline battery
Output cable: 24" shielded coiled cable 1/8" (3.5mm) stereo mini plug
Input connector: 1/8" (3.5mm) stereo mini jack
Signal to noise ratio: 92.00 dBv EIN 1.0v
Harmonic distortion: 0.06%
106dB dynamic range
Frequency response 20 to 20khz +/- 1dB
High Output 3.2V RMS into a 10K load
Supports all electret "plug-in-power" mic's at input jack.
Battery reverse-polarity protection
Separate battery compartment
Flush ON/OFF switch to prevent inadvertently switching off.
