Aiwa ADN-1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
ADN-1
Device type
bookshelf
MDLP modes
Yes
NetMD interface
Yes
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa ADN-1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name ADN-1
Manufacturer Aiwa
Released 2003/03
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD Yes
Hi-MD No
Radio No
Dimensions 79.2 x 221 x 192 mm (unit only)
Weight 1.5kg
ATRAC ver Type-S
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs CD
Outputs 3.5mm line out (optical multi), 3.5mm headphone, Speaker amplifier
Control USB Type-B

Works as PC speakers over USB, and will also work as a netMD recorder after switching modes. CD and MD slot exposed by motorized front panel, activated by a "touch sensor" button. Can write discs through netMD using Sony's SonicStage or OpenMG software. Device playback can also be controlled using these programs. Can also record to MD from a CD directly at 4x speed.

The device has NO AUDIO INPUTS. Only way to write minidiscs is through netMD or a direct transfer from CD.

Unit appears to be nearly (if not exactly) a clone of the Sony LAM-Z10.

While it passes the testing app, like the rest of the LAM series it is unlikely to be supported by web/platinum minidisc. Update: The latest platinum minidisc (v1.2.0) added limited support for the LAM series.

Content adapted from: Minidisc.org page, Sony / Aiwa press release av.watch

Manuals

LAM-Z10 User Manual (Japanese) (This is the manual for the device it is a clone of. Should be very similar in function.)

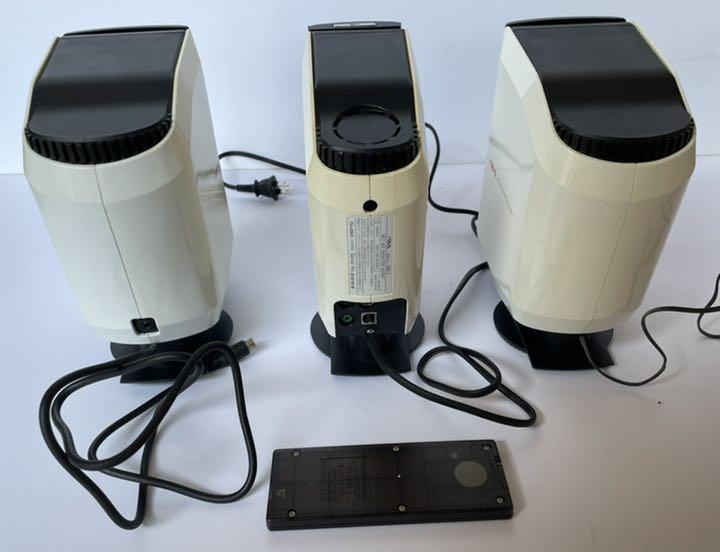

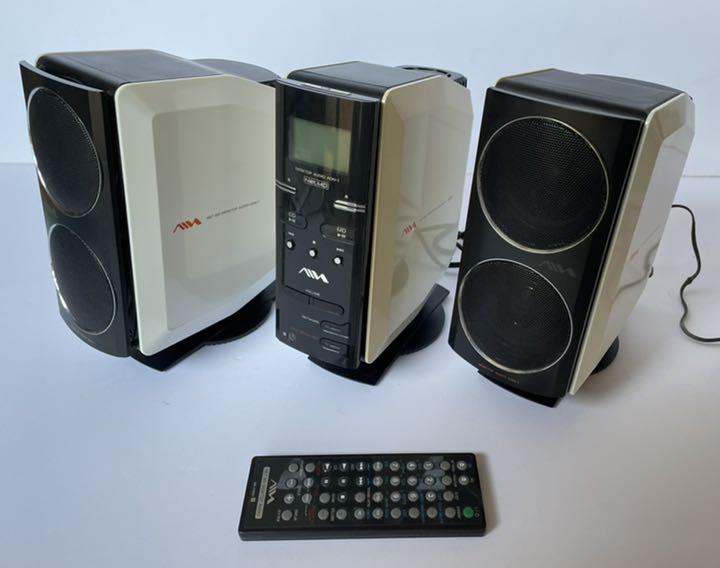

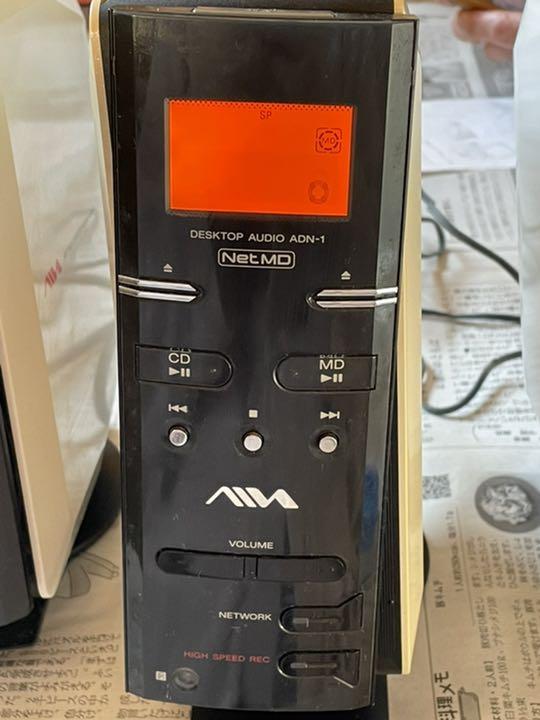

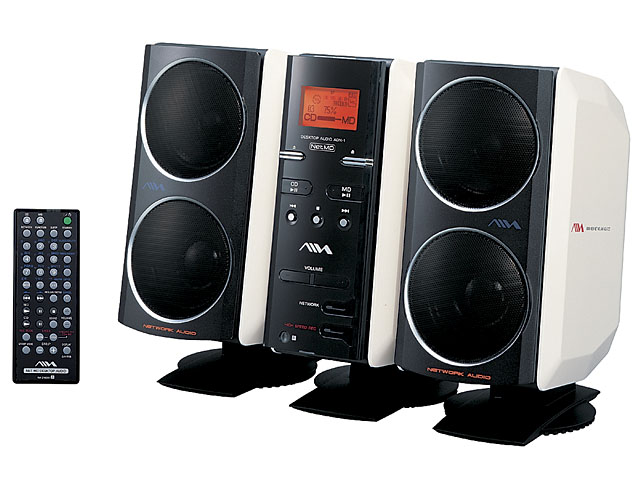

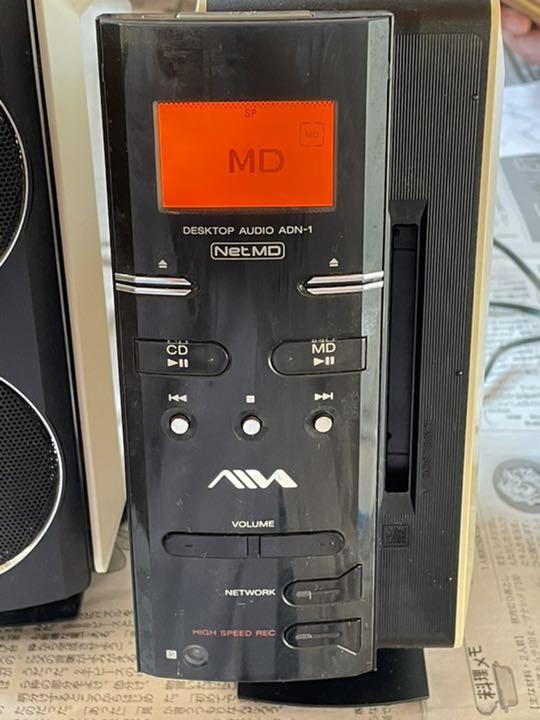

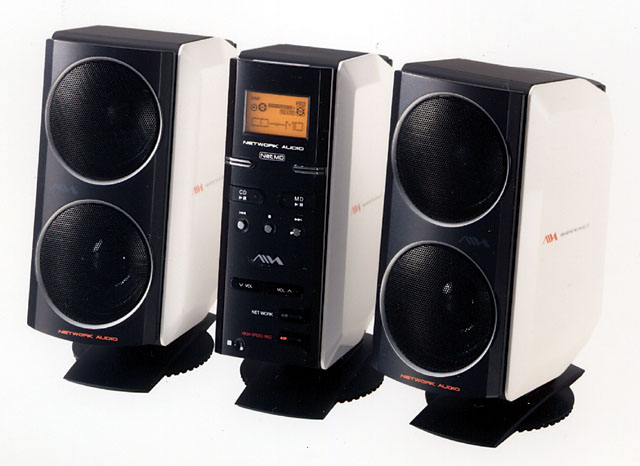

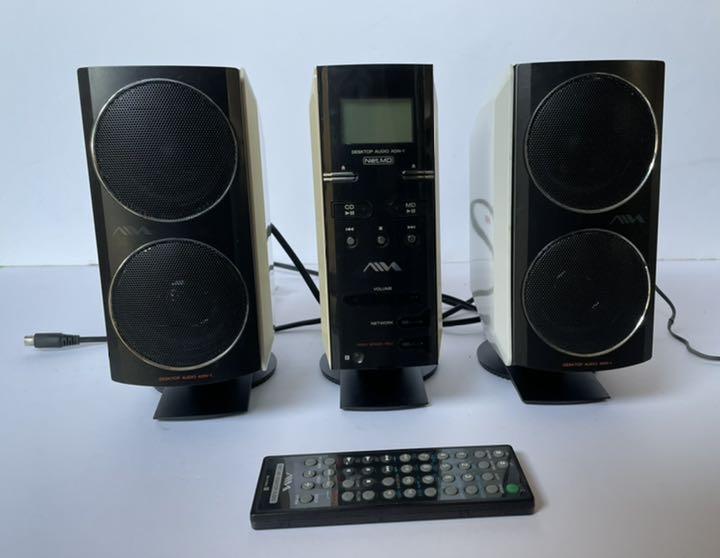

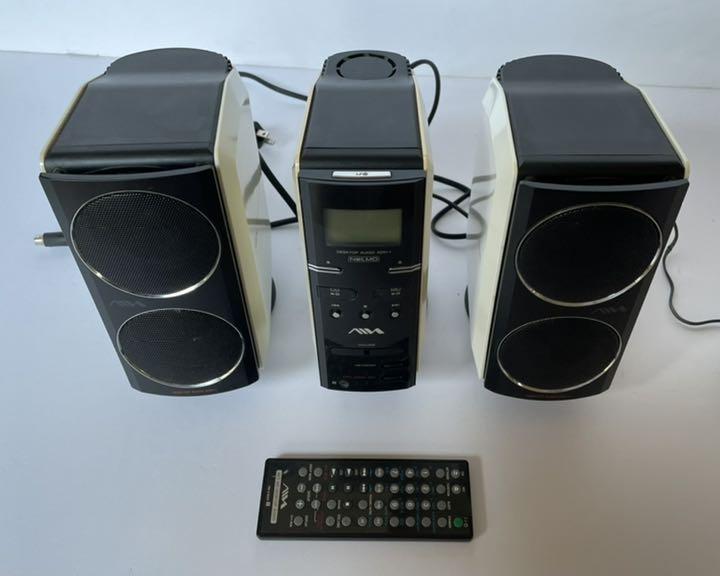

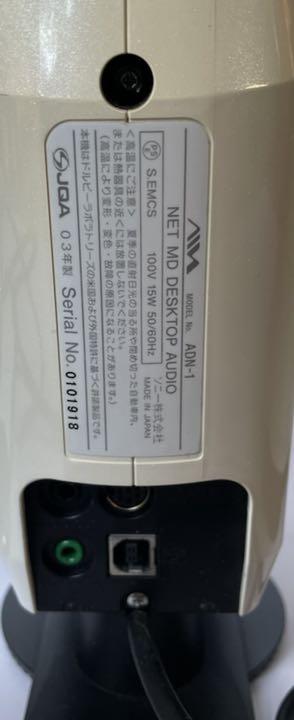

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdSuspected supported
Manualother
RegionJapan
