Denon DMD-1300 / DMD-1550G

Name	DMD-1300 / DMD-1550G
Manufacturer	Denon
Released	1998/09
Device type	deck
MDLP	No
NetMD	No
Hi-MD	No
Radio	No
Dimensions	434 x 100 x 285mm
Weight	Not recorded
ATRAC ver	Sharp 6
Power cable	AC
Price (launch)	$799
Price (launch)	¥69 800
-

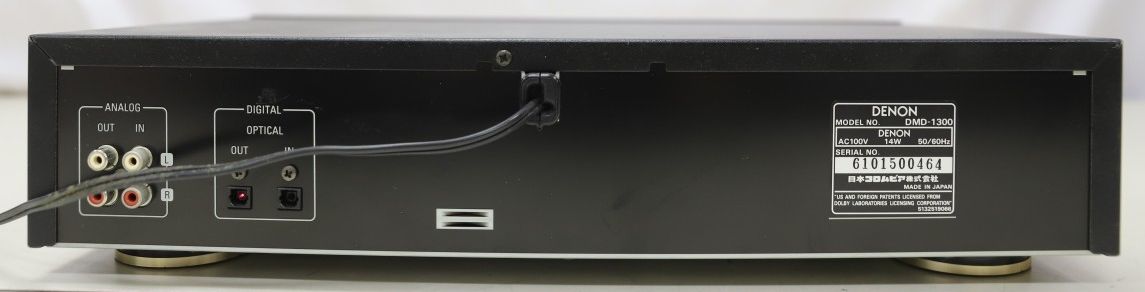

Inputs	RCA in, Digital optical (TOSLINK)
Outputs	RCA out, Digital optical (TOSLINK)
Control	Not recorded

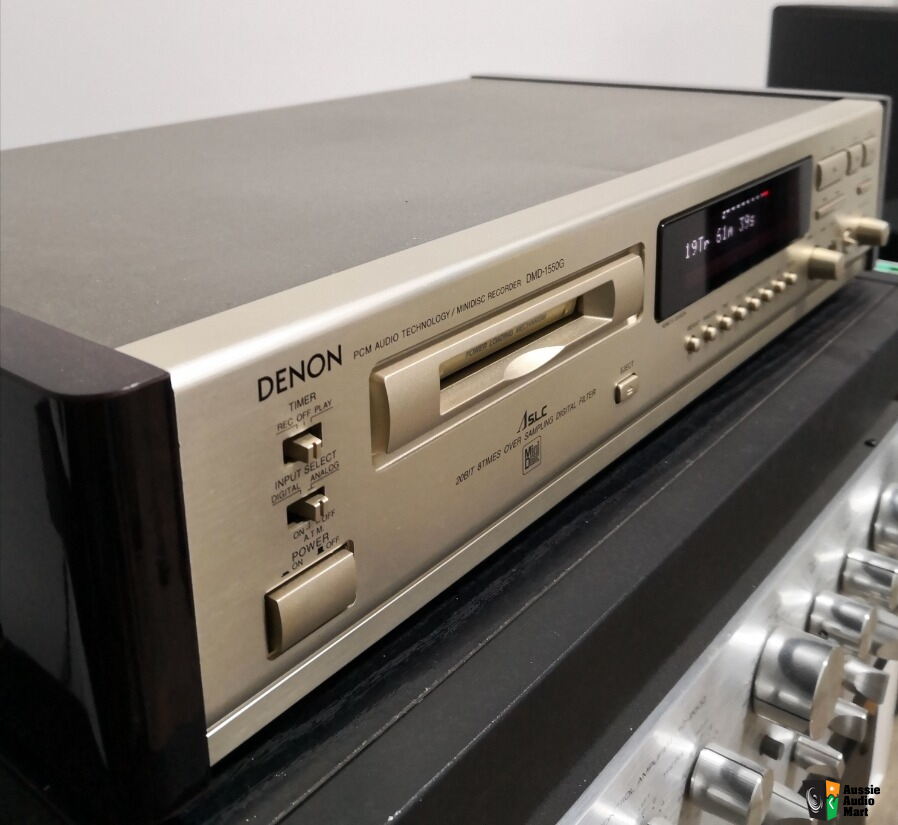

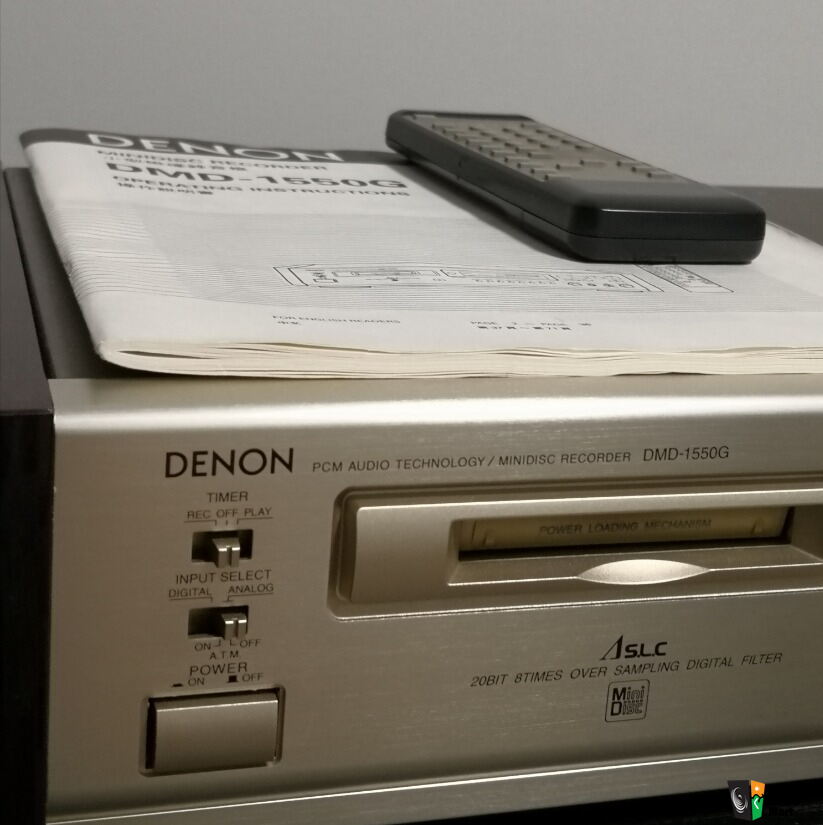

Denon DMD-1550G (1300 with Gold with wooden side panels)

Features: Sampling rate converter (always in effect, circumventing input jitter and time base problems). Sigma-Delta ADC with 64X oversampling. Divide, combine, move, erase (60ms positional accuracy), but no rehearse function. Program, repeat and random play modes.

Comments: German Stereo Magazine: First home recorder that has no Sony parts. Contains Sharp MD drive and Sharp single chip ATRAC/sample rate converter circuit equivalent to Sony's ATRAC 4. Sounds nearly as good as the Sony MDS-JA3ES but costs only about half as much.

Specs: S/N 105dB (playback), Dynamic range 96dB. 16W.

ATRAC IC for DMD-1550G: LR37643 (page 22) LR37545 (page 36) The service manual lists both part#'s at different points.
Sharp ATRAC 6
Optical Block: 937 0159 213 (denon part#)

Content adapted from: Minidisc.org Page audio-heritage.jp (claims release date was around 1996)
