| Name | M919 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 1-Din 178 (W) x 50 (H) x 160 (D) mm |
| Weight | 1700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |
| Inputs | Not recorded |

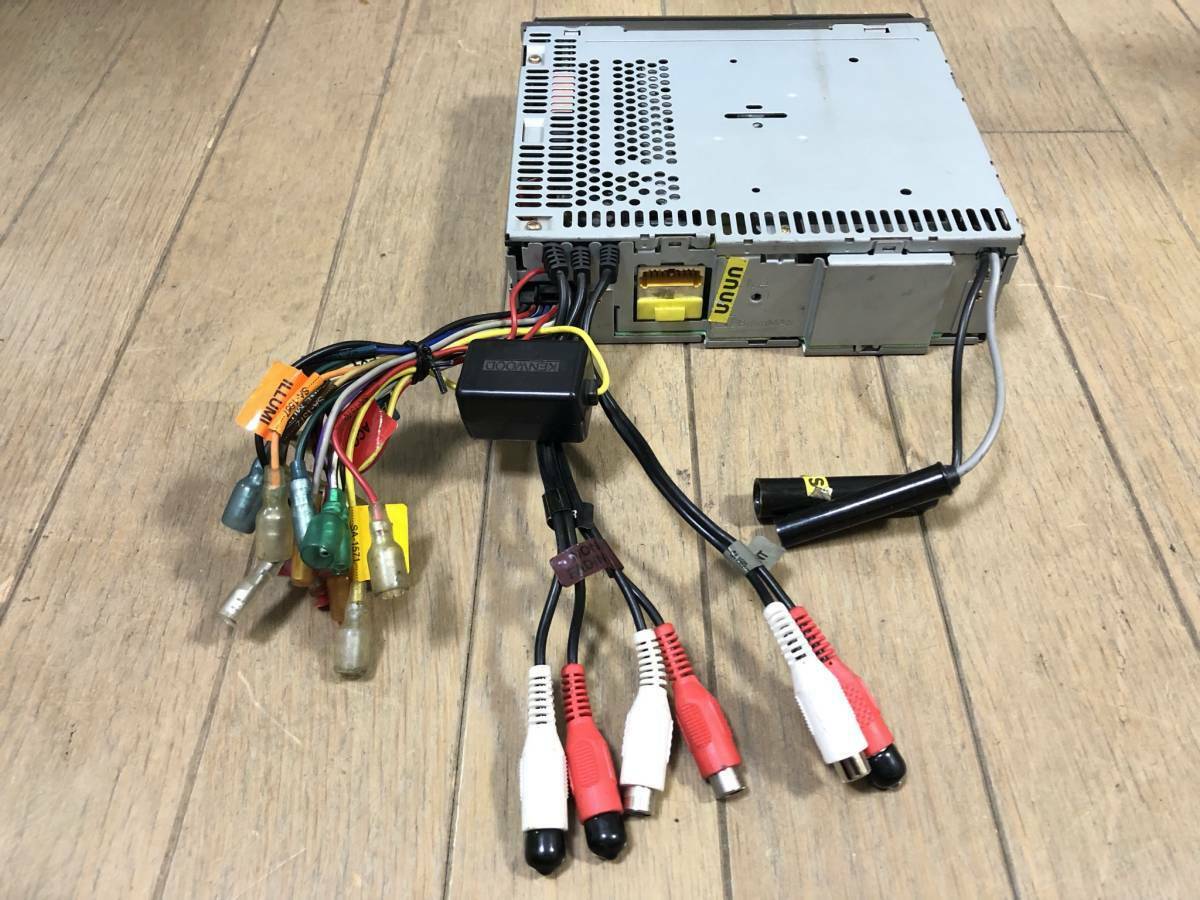

| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

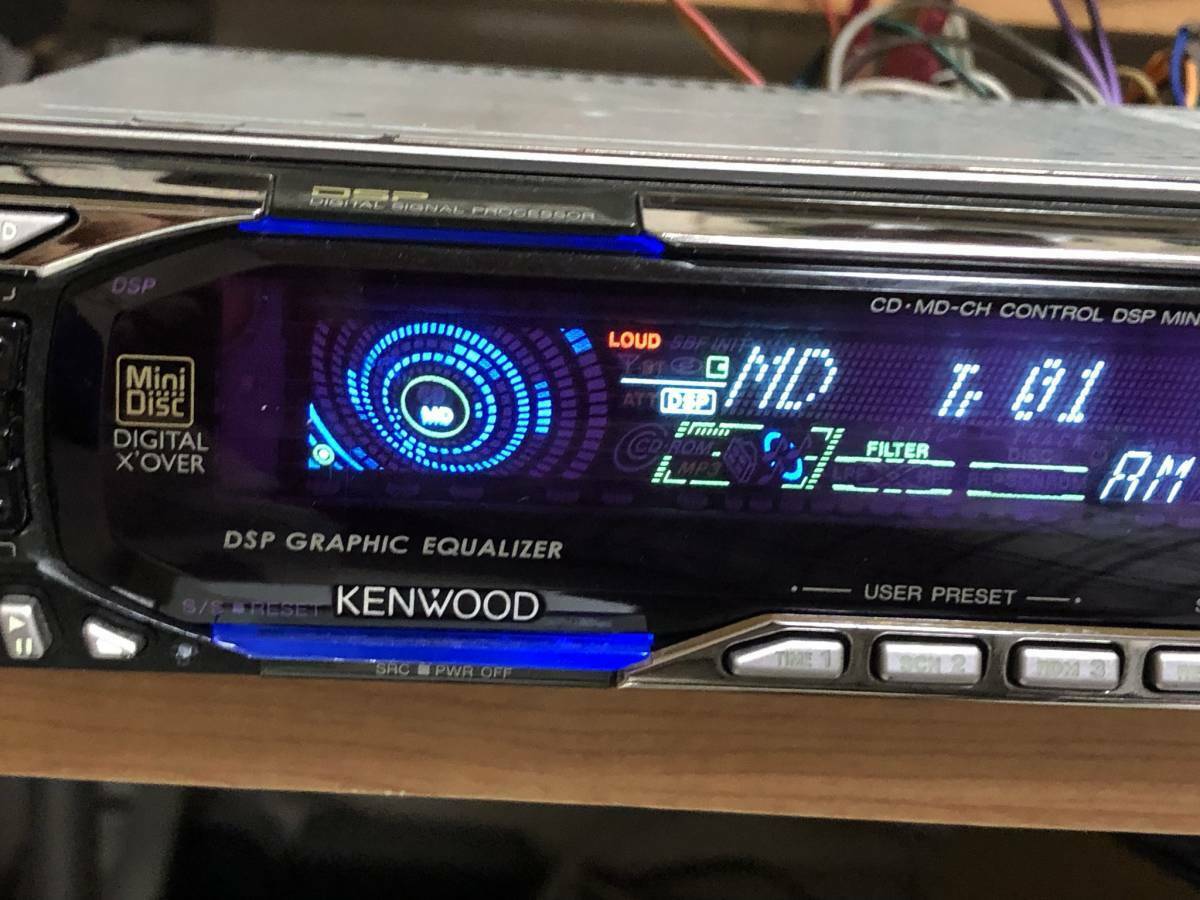

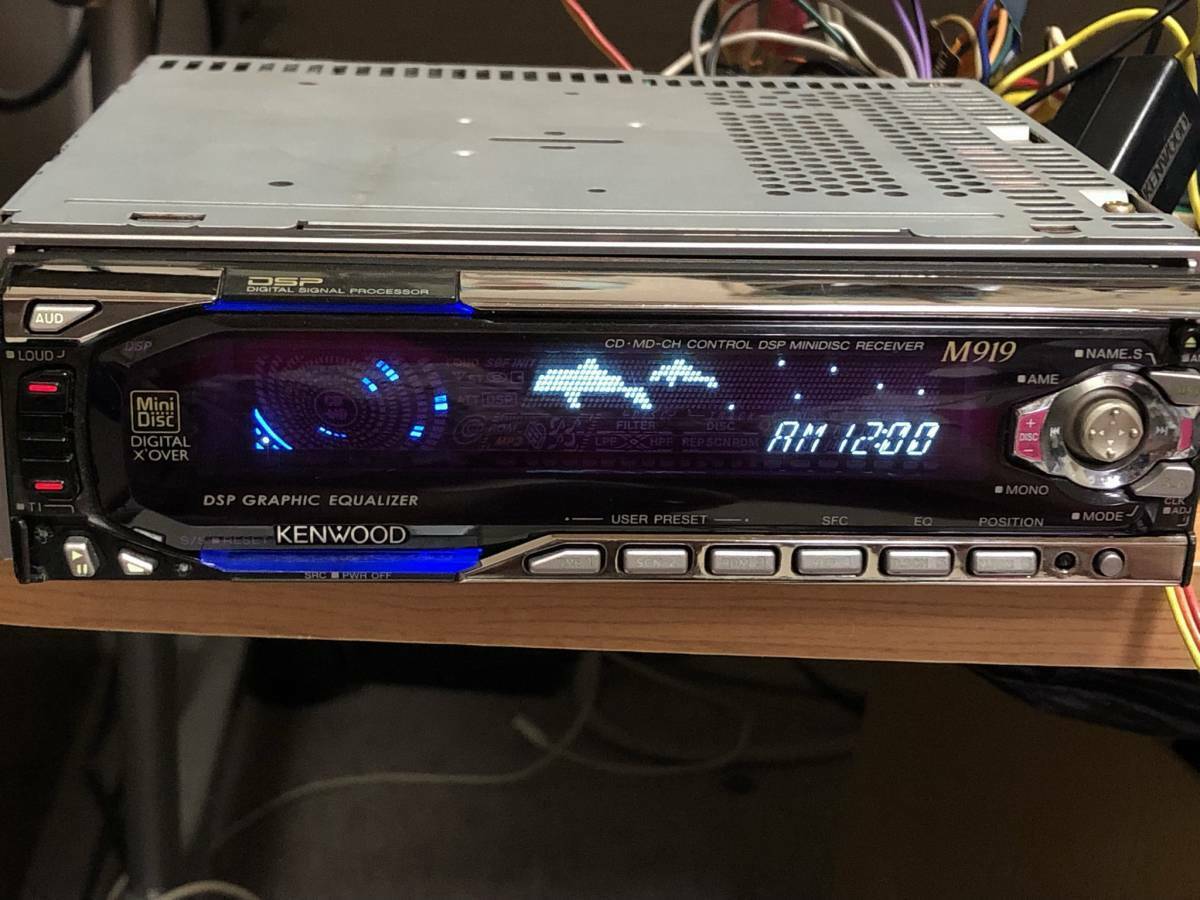

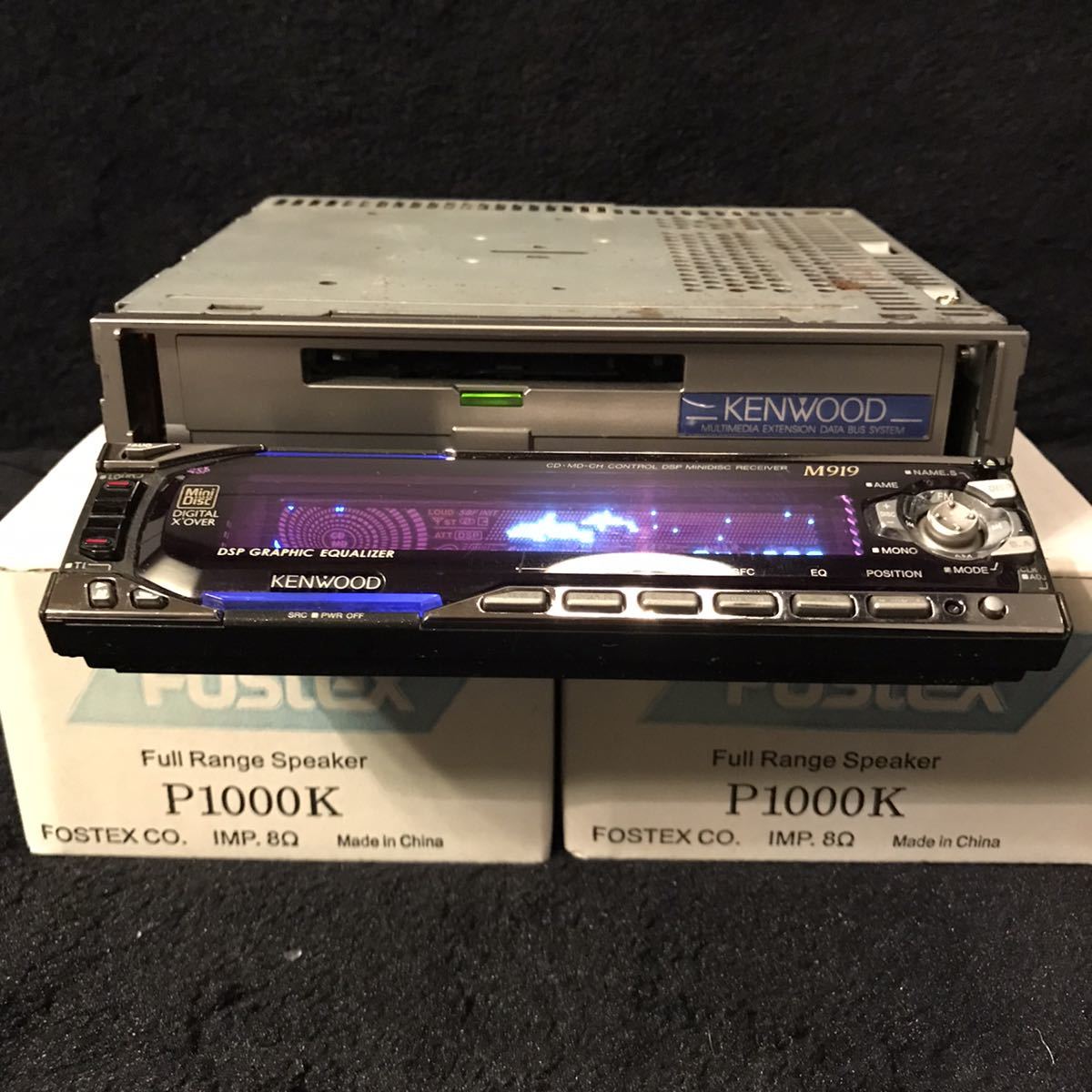

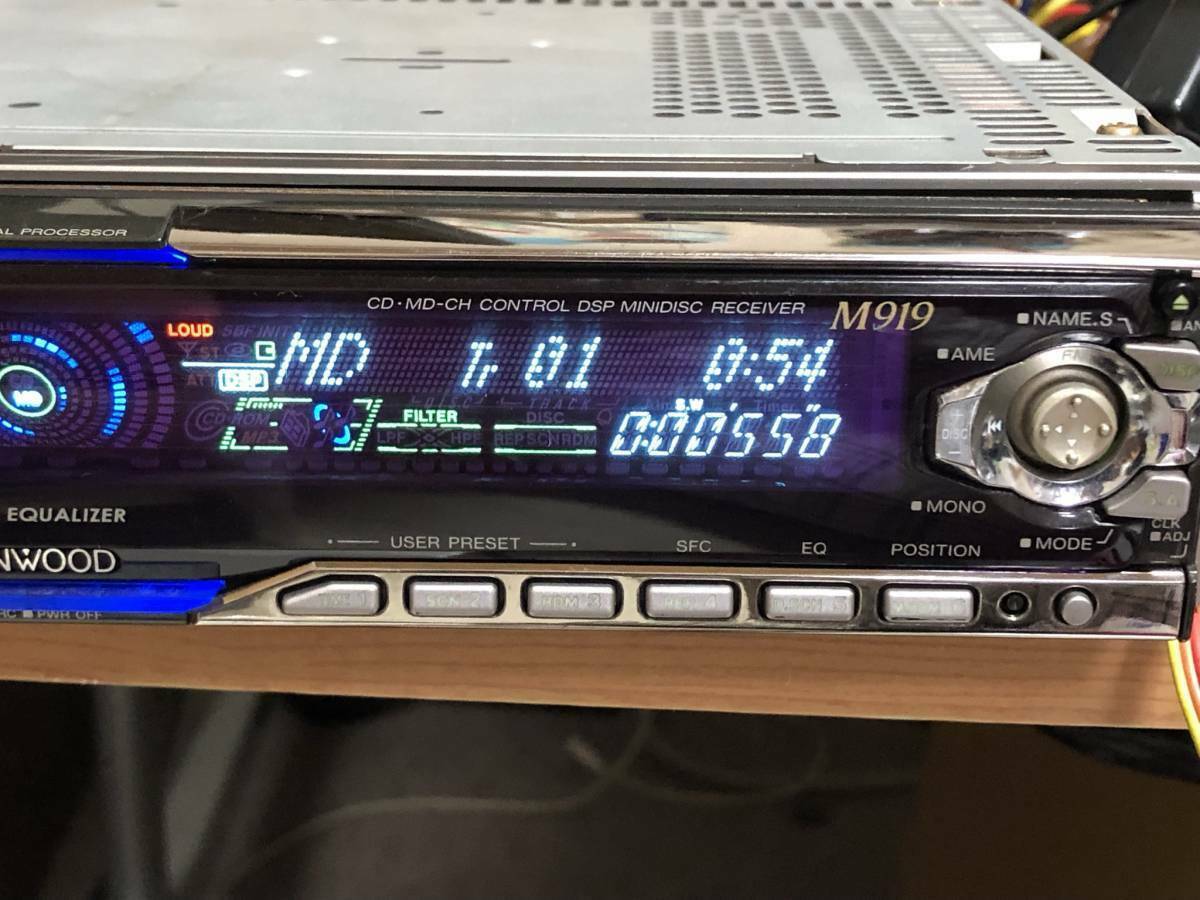

MD receiver with fully automatic slide panel and a multifunctional full-dot FL tube display. The M919 is part of the 2000s "919" series by Kenwood. Often paired with the D919 CD player. Equipped with 1.5V high-voltage pre-outs and a 45W x 4ch ultra-high power amplifier. Featuring DSP/EQ settings, different S.A. options, 2-mode font selection and Clock/Stop Watch/Timer/Alarm functions.
Later be followed up by the Kenwood M929.
[MD department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 90dB (1kHz)
- Dynamic range: 90dB
- Stereo Separation: 85dB
[FM section]

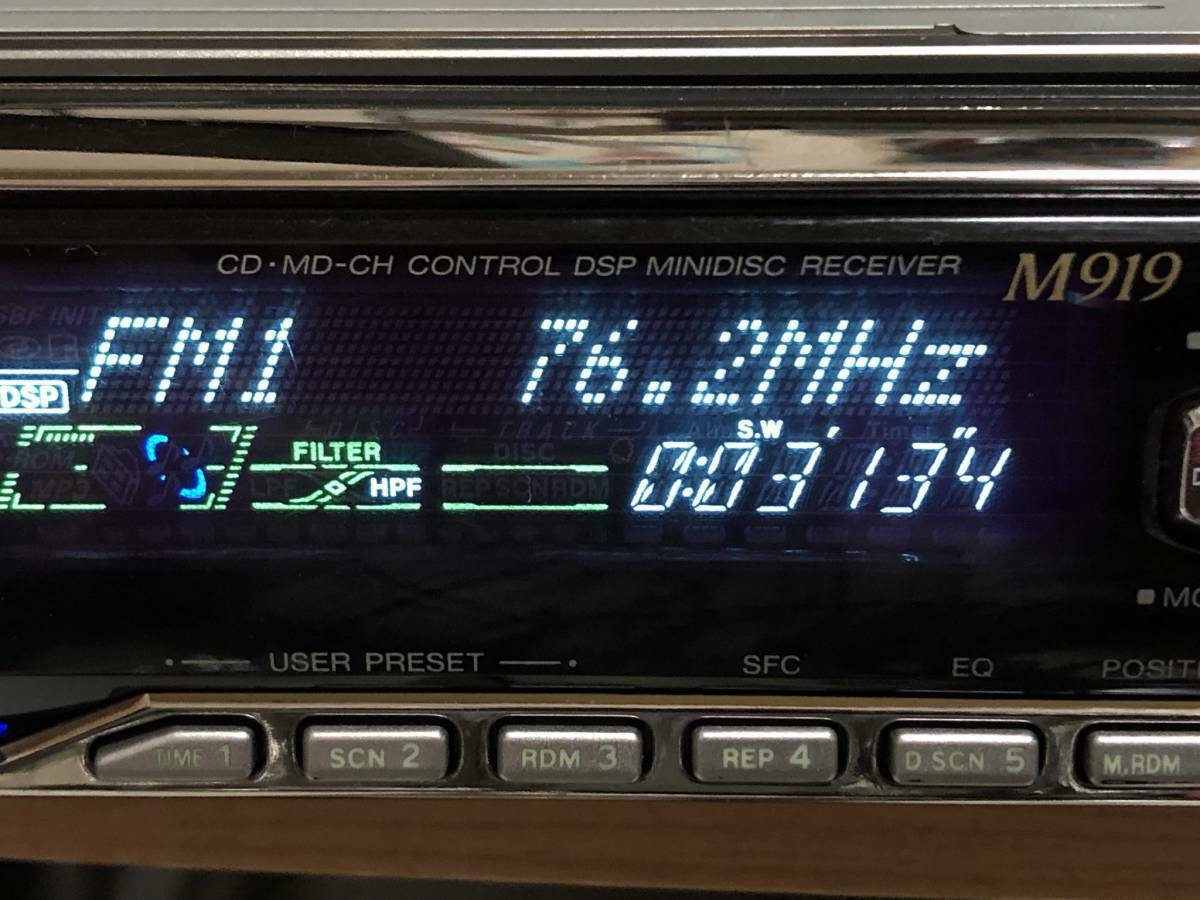

- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[AM section]

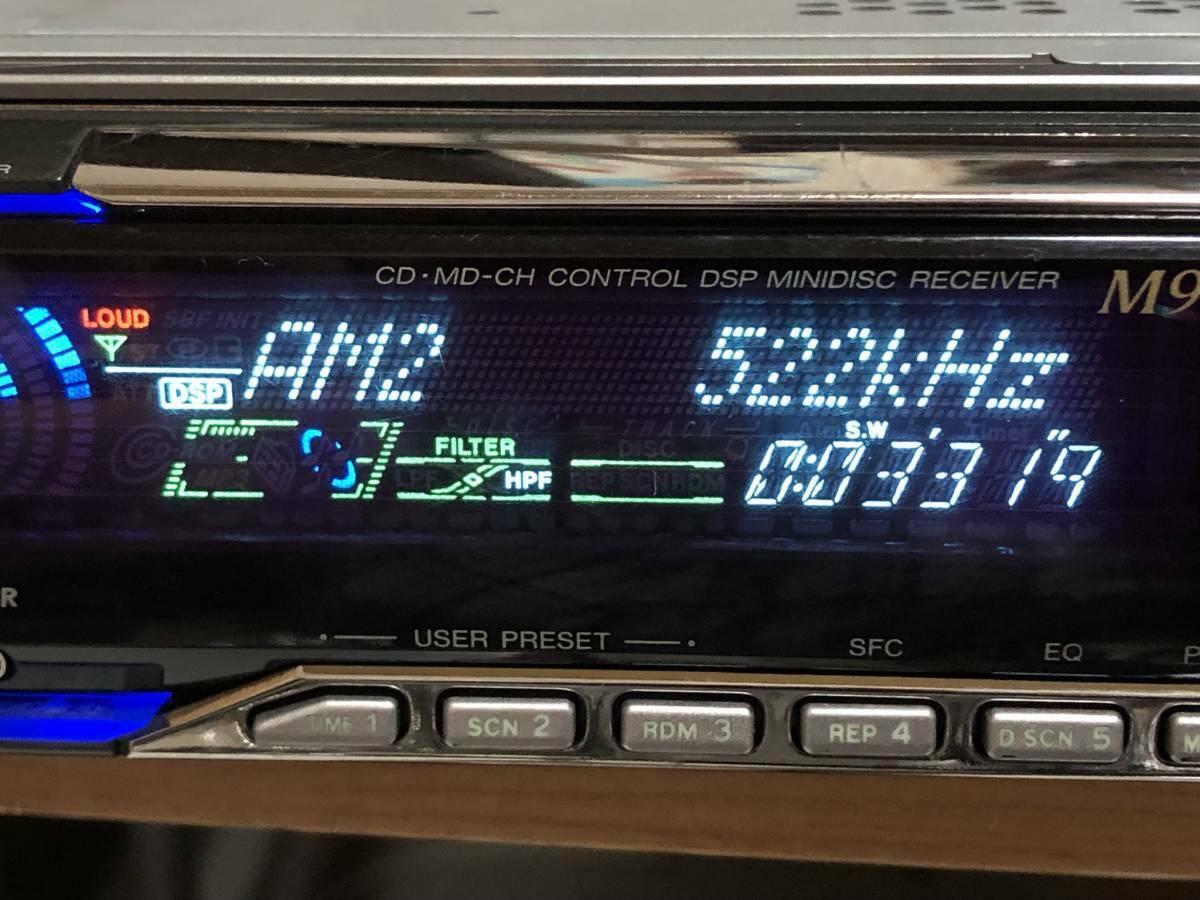

- Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ
[EQ section]
- Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
- Variable range: ±12dB
[Audio part]
- Maximum output: 45W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1500mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A

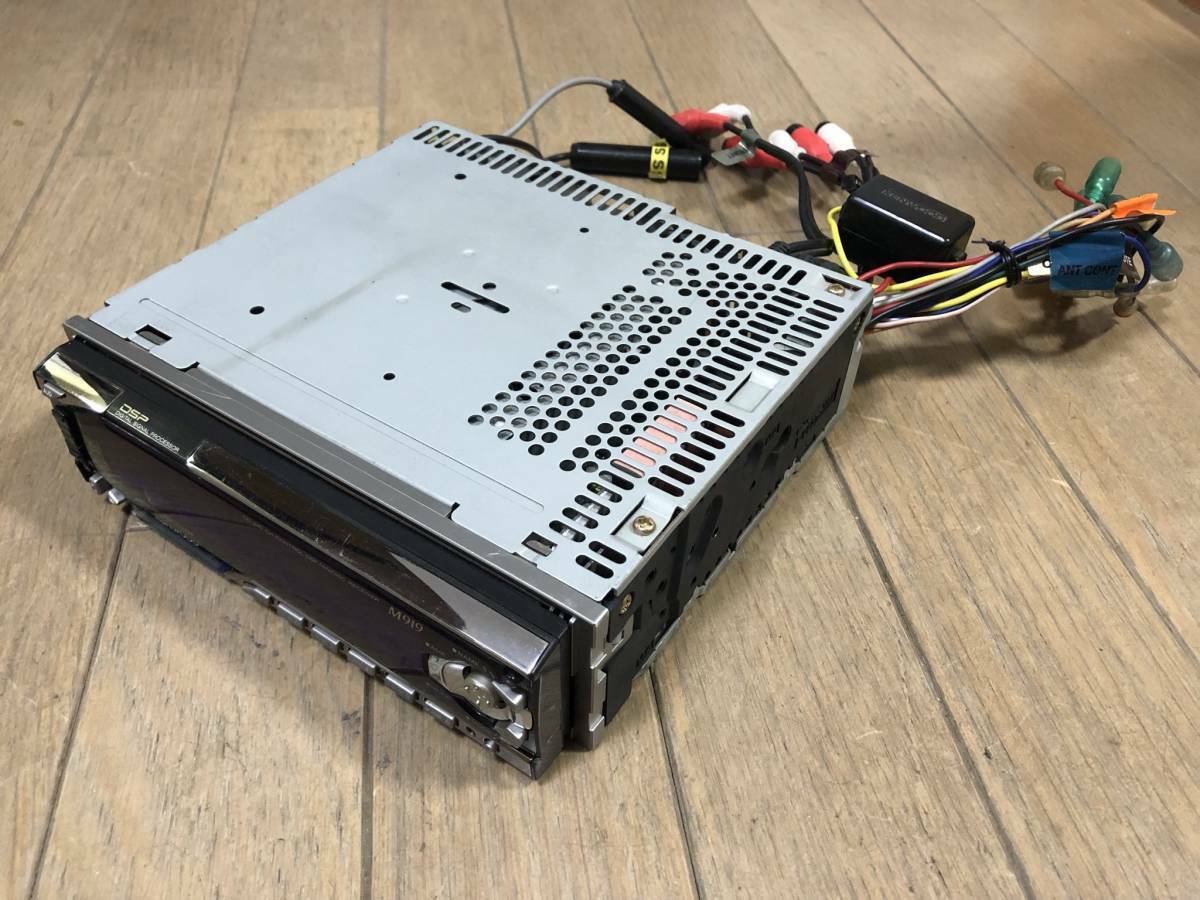

- Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
- Mass: 1.7kg
Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)
Manuals
Repair

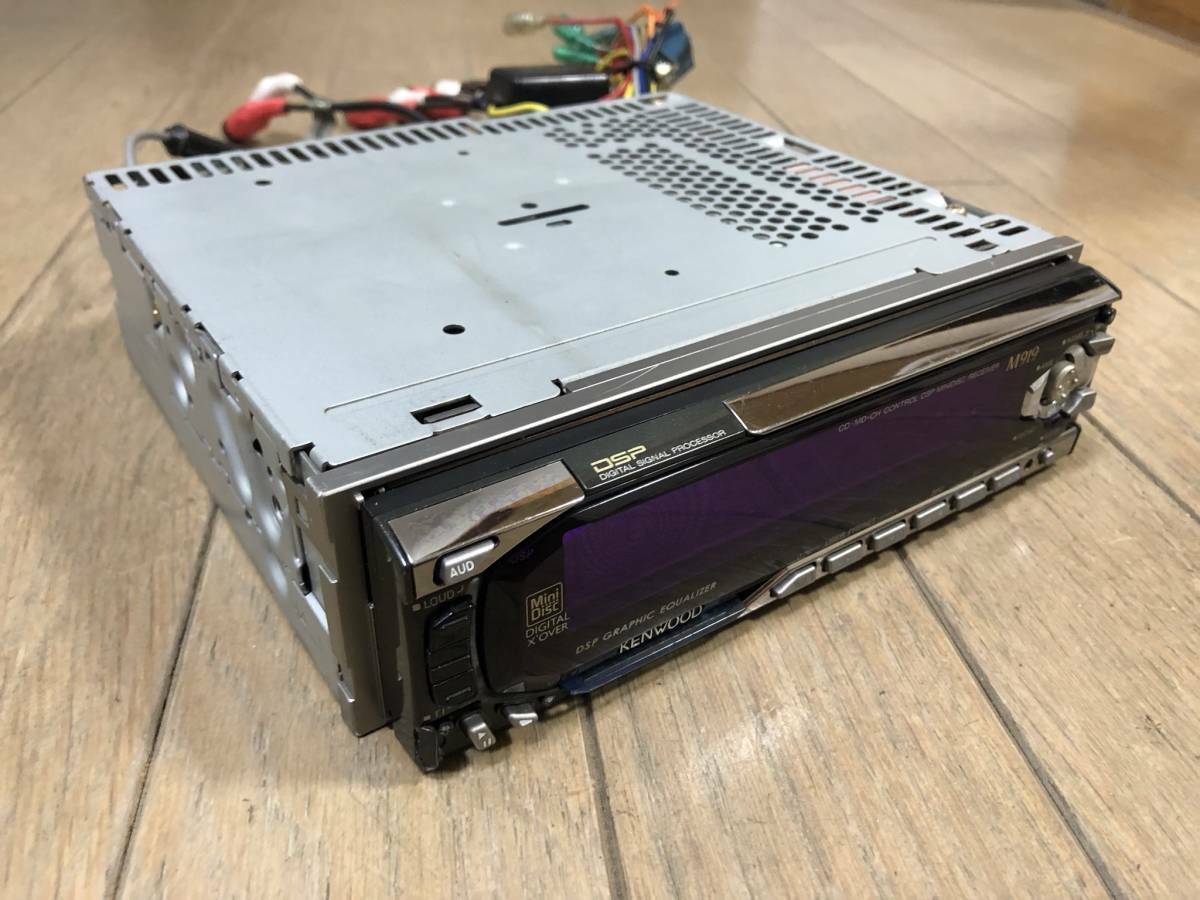

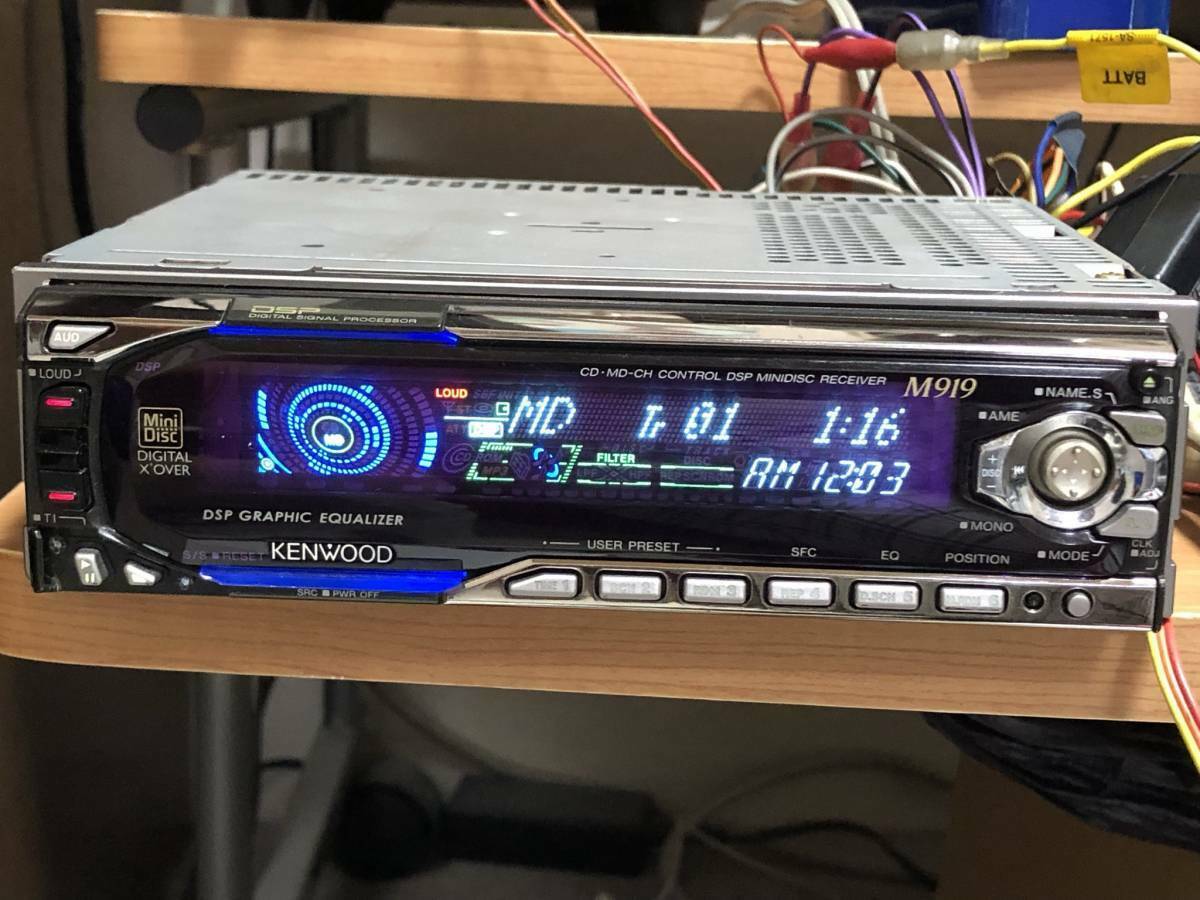

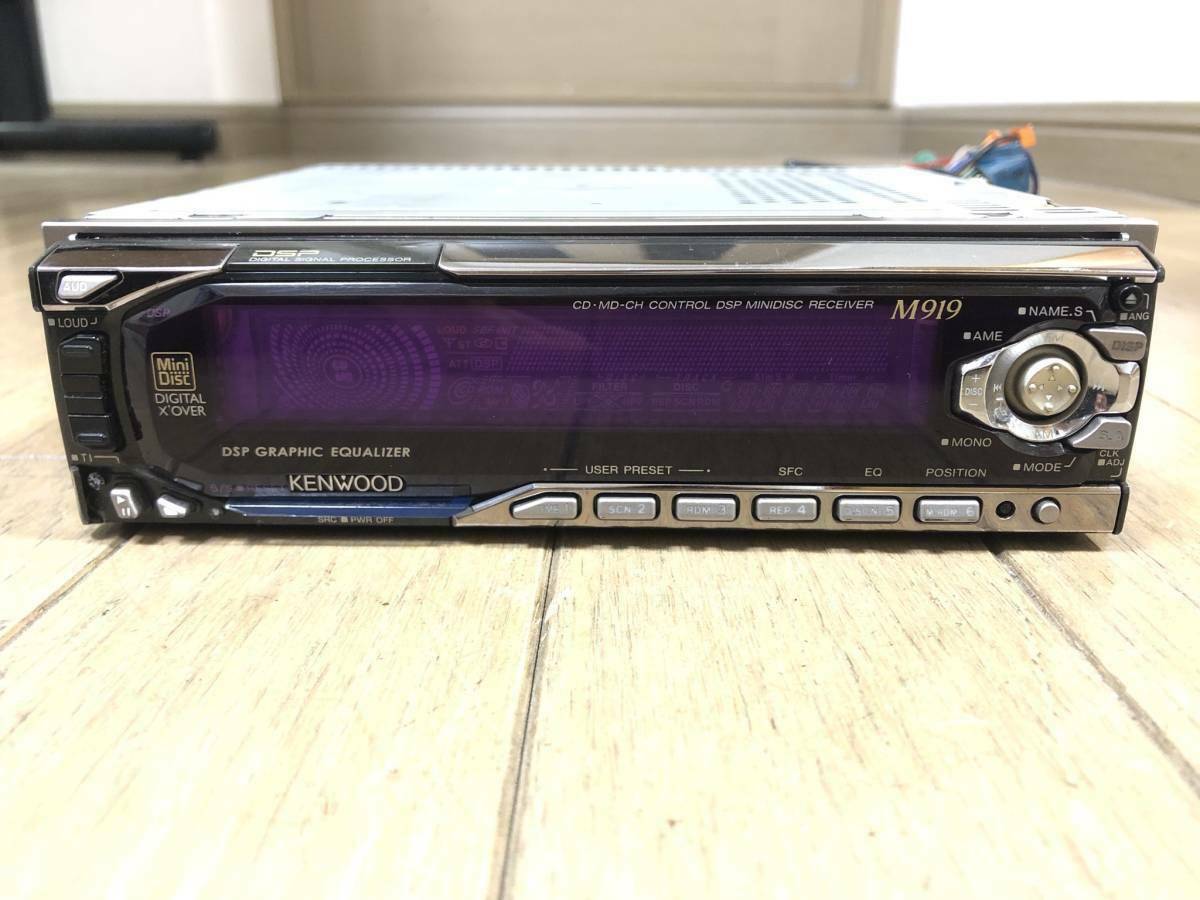

Photos
