Kenwood DMC-F5R

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-04-13

Manufacturer
Kenwood
Model / source grouping
DMC-F5R
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DMC-F5R”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name DMC-F5R
Manufacturer Kenwood
Released 1995/12
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 109.2x30.5x81.3mm
Weight 275g
ATRAC ver Sharp 3
Battery 1x NB-L5
Battery notes Not recorded
Sidecar (depr) Other
Voltage 3.6, 5
Power cable Center positive
Price (launch) Not recorded
¥49 000
-

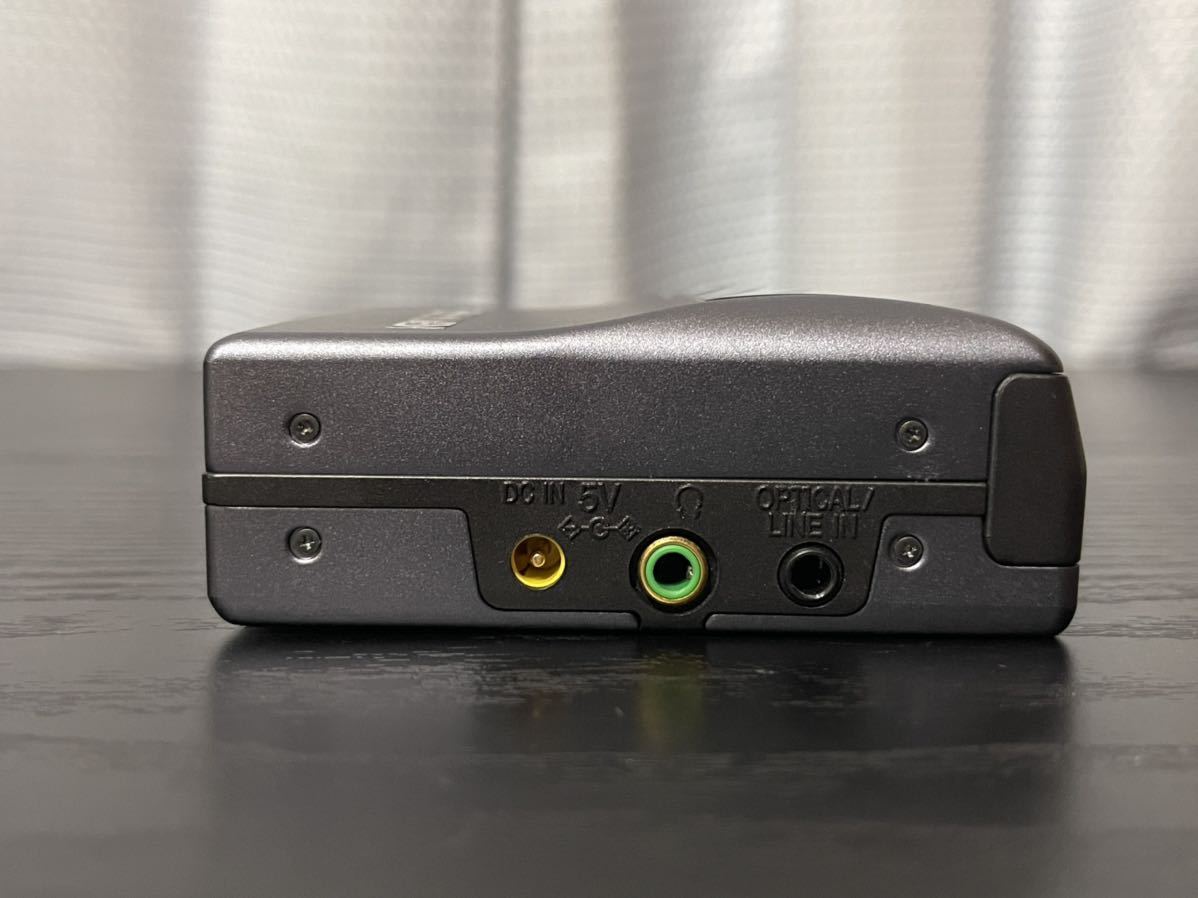

Inputs 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Remote (Sharp)

See also Denon DMP-R50, Sharp MD-100EX, Sharp MD-MS100, Pioneer PMD-R1

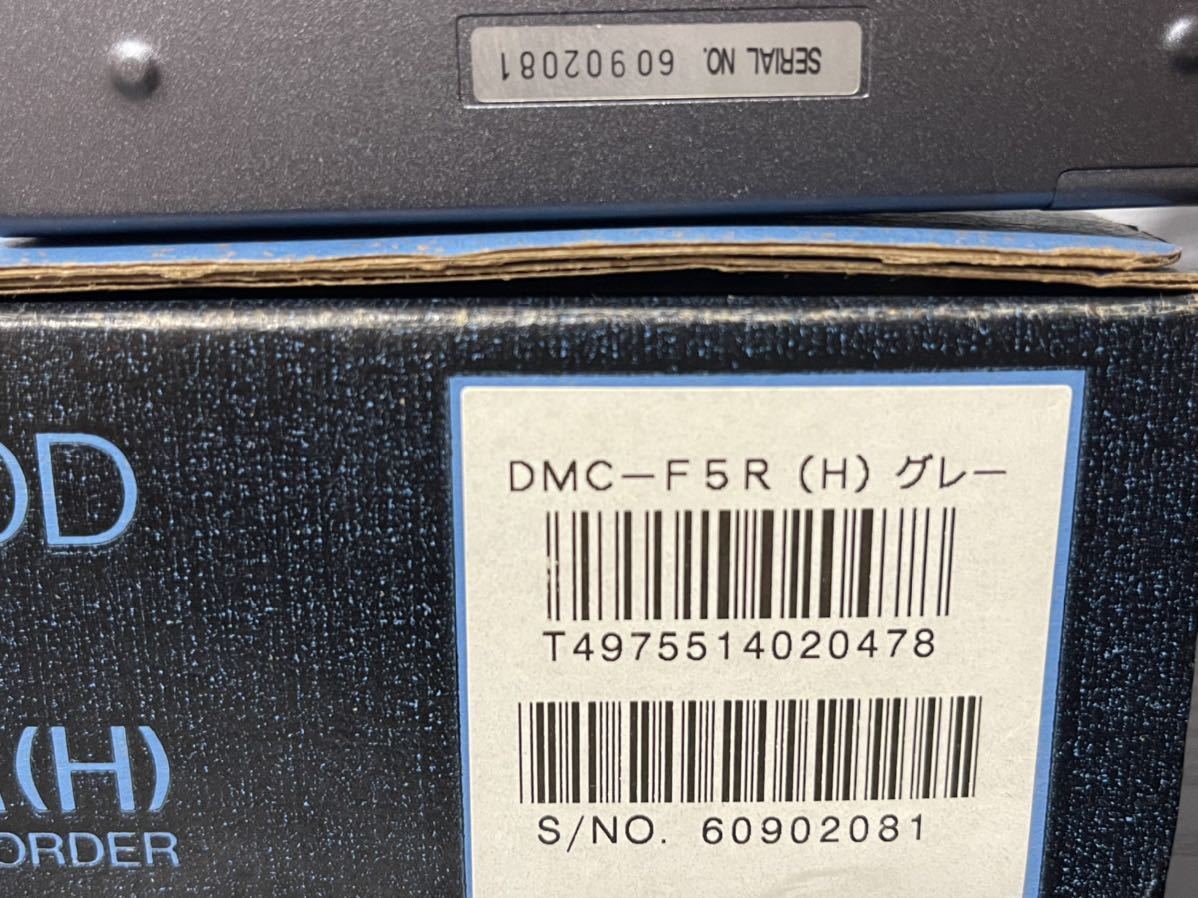

Offered in (H) gray and (L) blue

Features:

  • Sharp ATRAC 3.

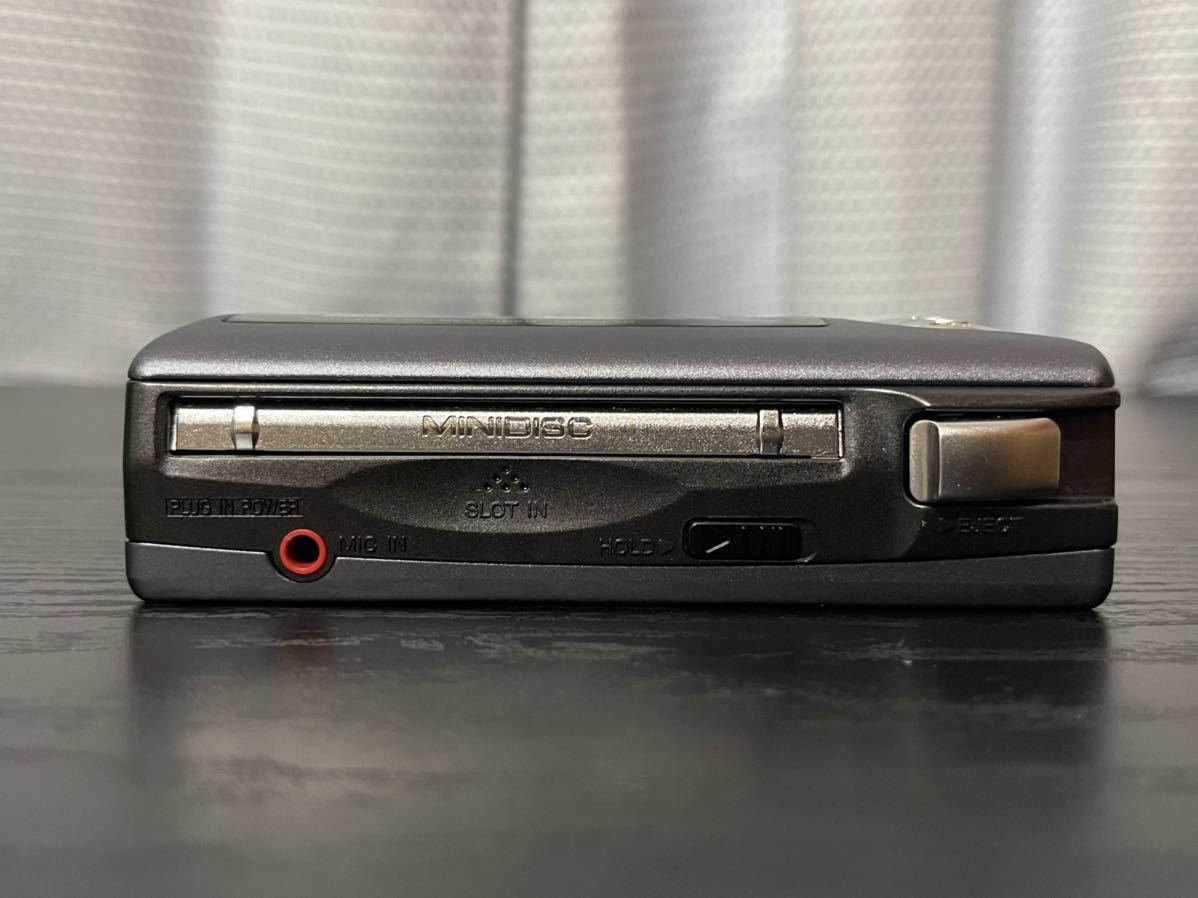

  • "slot-in" (non-clamshell) disc insert/eject [easier to manage when you're on the go]
  • stereo/mono recording
  • track move/ divide/ combine/ erase
  • random play
  • sound-synchro recording [starts recording when audio appears on the input, automatically truncates between track silence exceeding 4 seconds], auto marker
  • remote on headphone cord (volume, track select/position, stop/ pause/ play, bass boost)
  • katakana/roman alphabet input/display.
  • Line out uses the headphone connector.

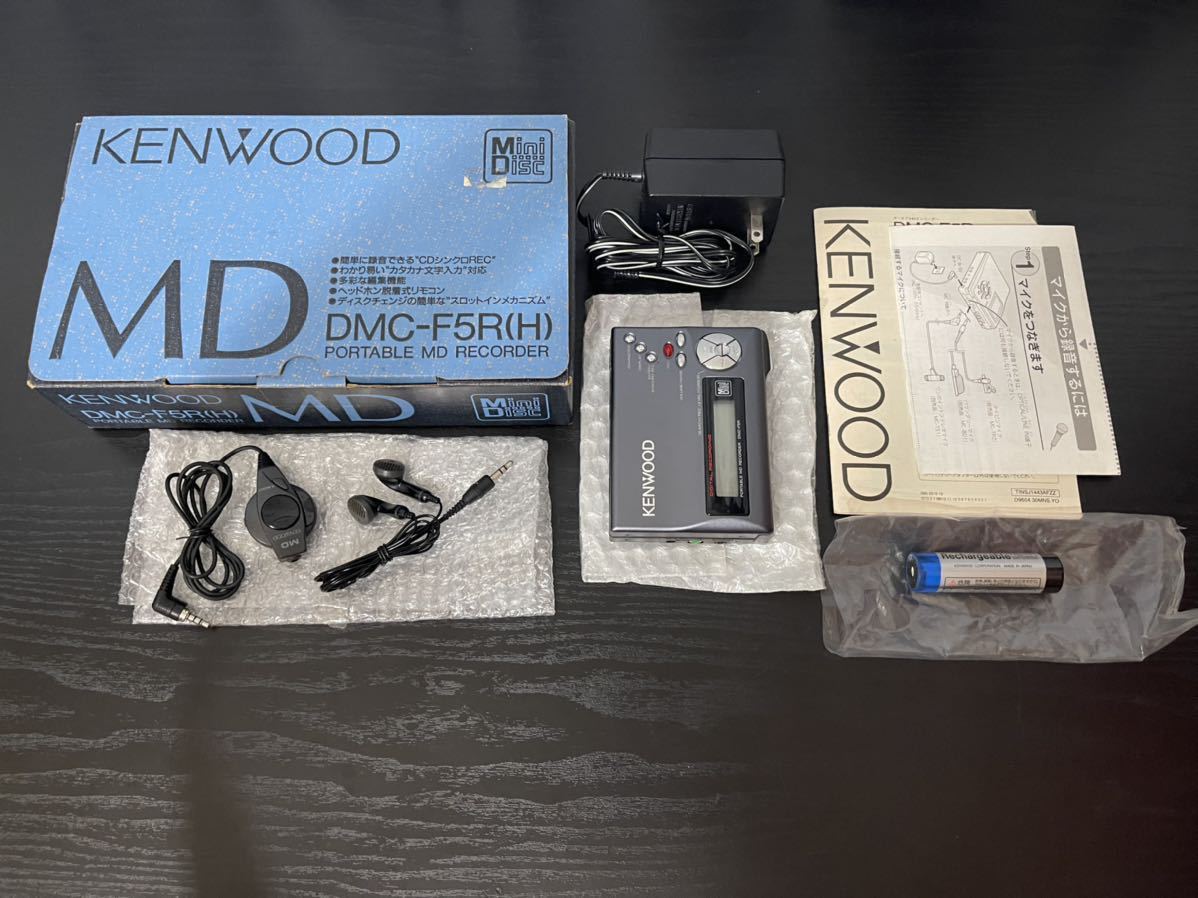

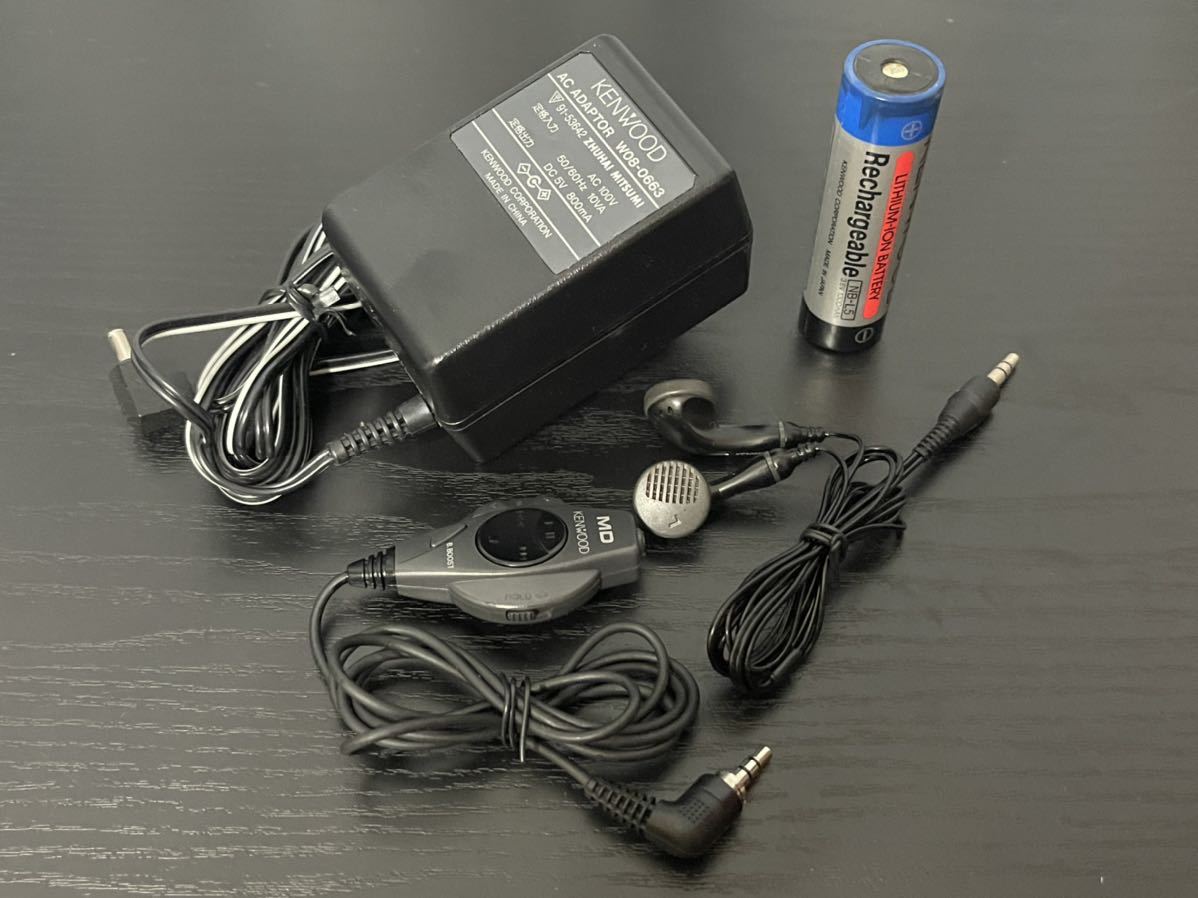

Comes with: headphones, remote control, lithium ion rechargeable battery, AC adapter, analog line cord, carrying case. Playback time 4.5 hours, recording 3.5. Recording time about 12 hours with separately available battery case (AD-MS10BC)

Content adapted from: Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Minidisc.org page

Manuals

Service Manual

Repair

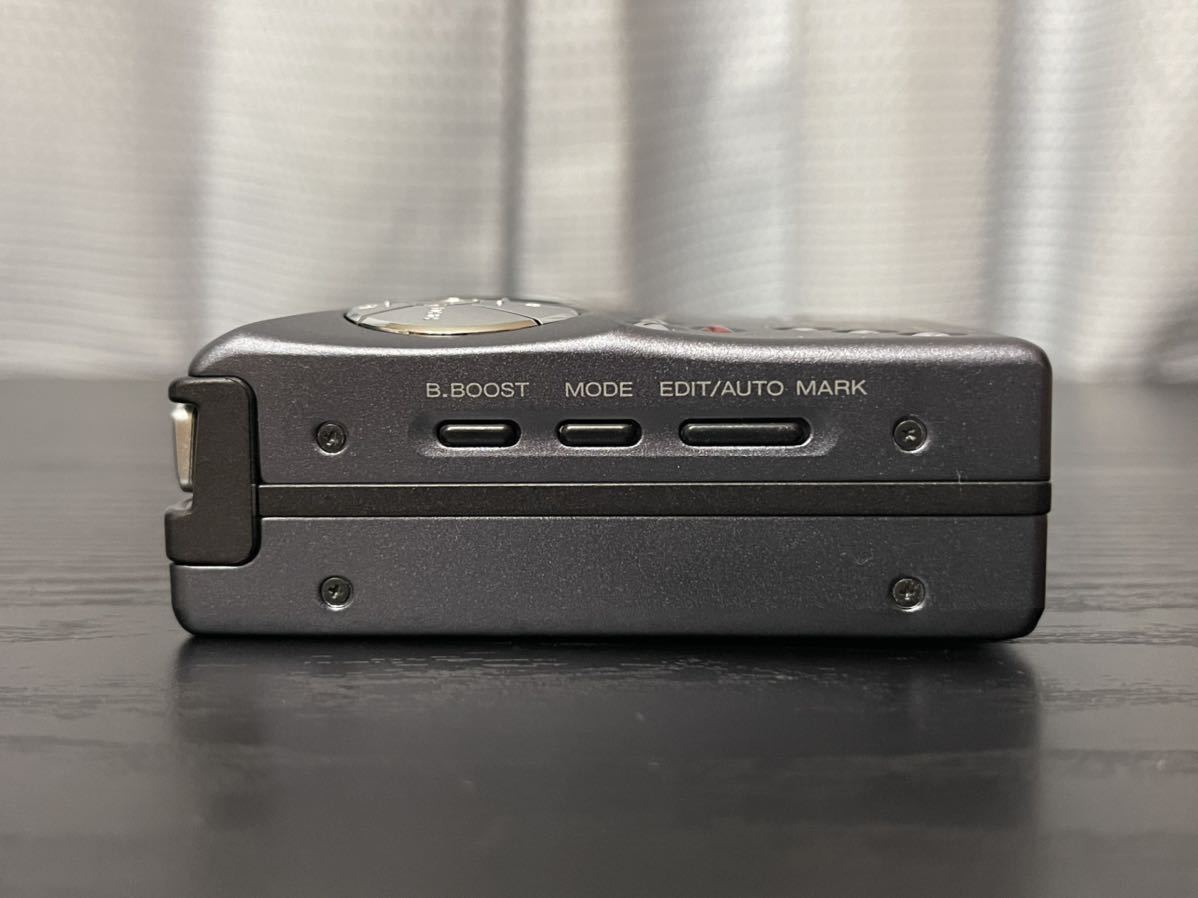

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)
Pickuph8158af10
Atrac Icvhilr37643
ManualService manual
RegionJapan
