Sharp MD-MS100

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-04-13

Manufacturer
Sharp
Model / source grouping
MD-MS100
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-MS100”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-MS100
Manufacturer Sharp
Released 1995/12
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 109.2x30.5x81.3mm
Weight 275g
ATRAC ver Sharp 3
Battery Not recorded AD-MS10BT
Battery notes Not recorded
Sidecar (depr) Other

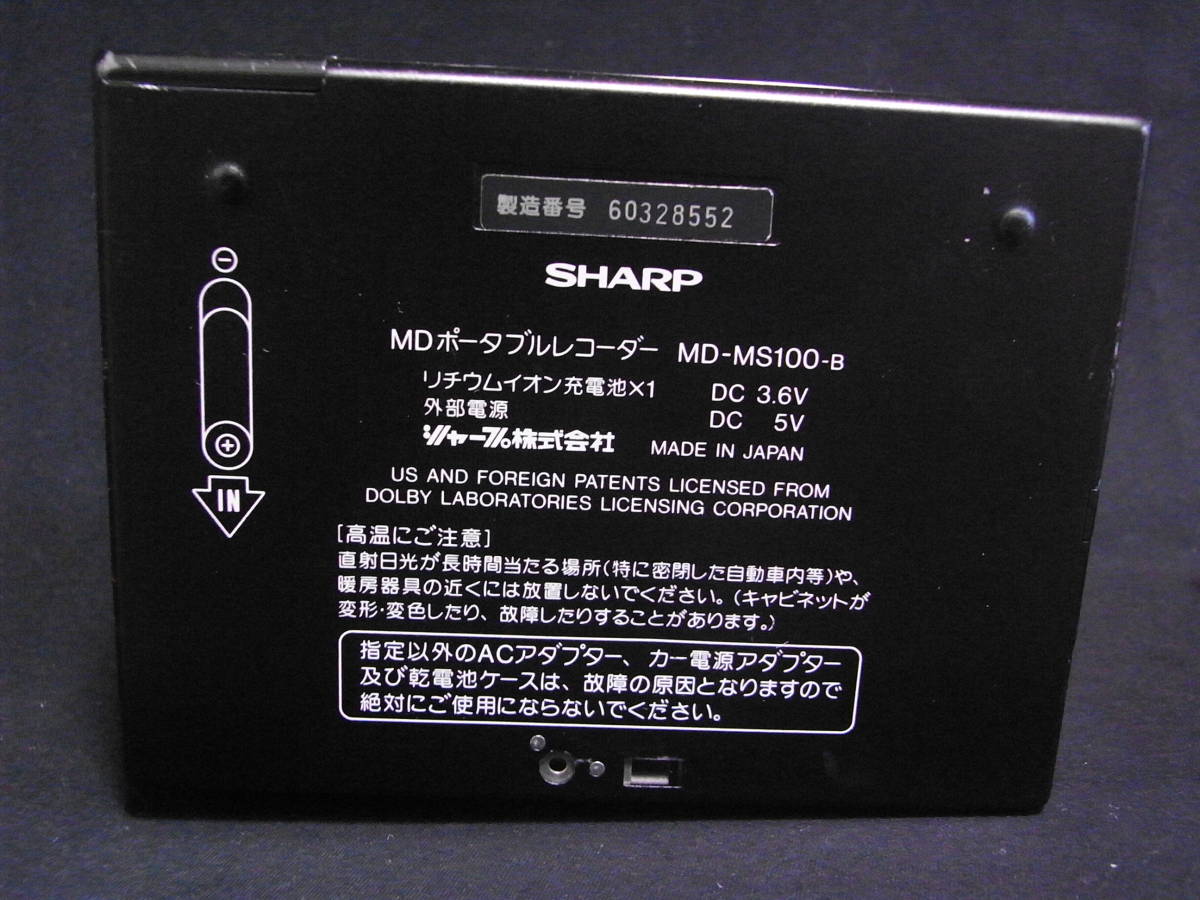

Voltage 3.6, 5
Power cable Center positive
Price (launch) Not recorded
¥49 000
-

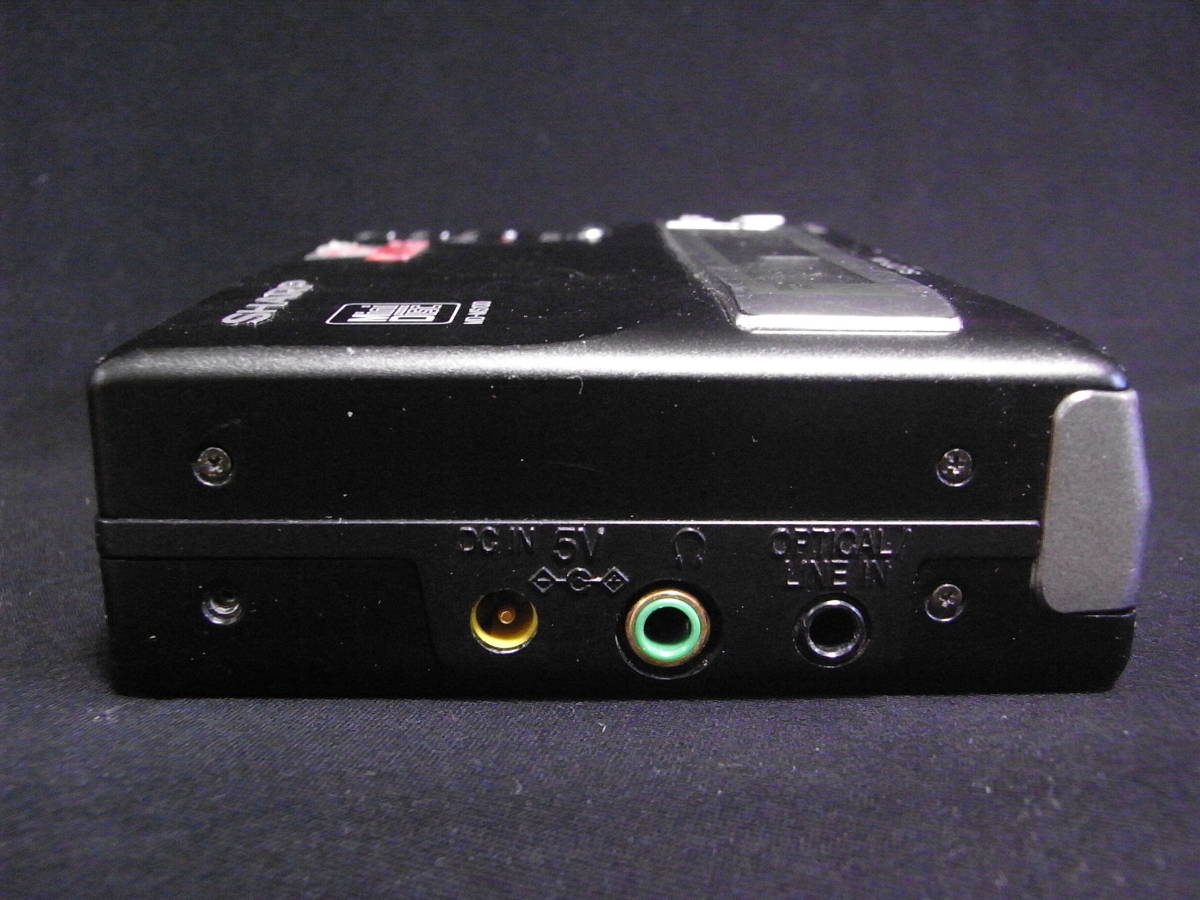

Inputs 3.5mm line in (analog-only), 3.5mm line in (optical multi)
Outputs 3.5mm headphone
Control Not recorded

See also Sharp MD-100EX, Denon DMP-R50, Kenwood DMC-F5R, Pioneer PMD-R1

Available in Black or Silver.

Features:

  • Sharp ATRAC 3.

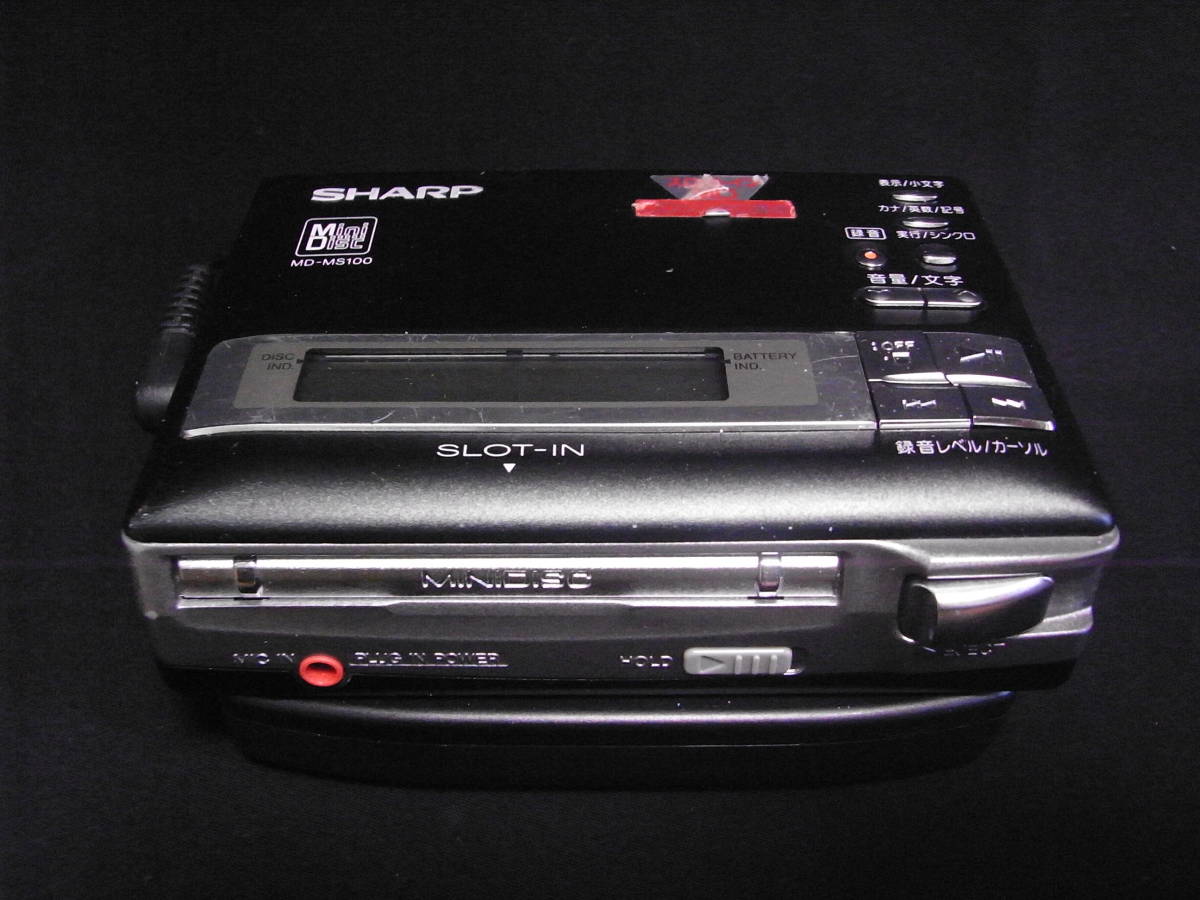

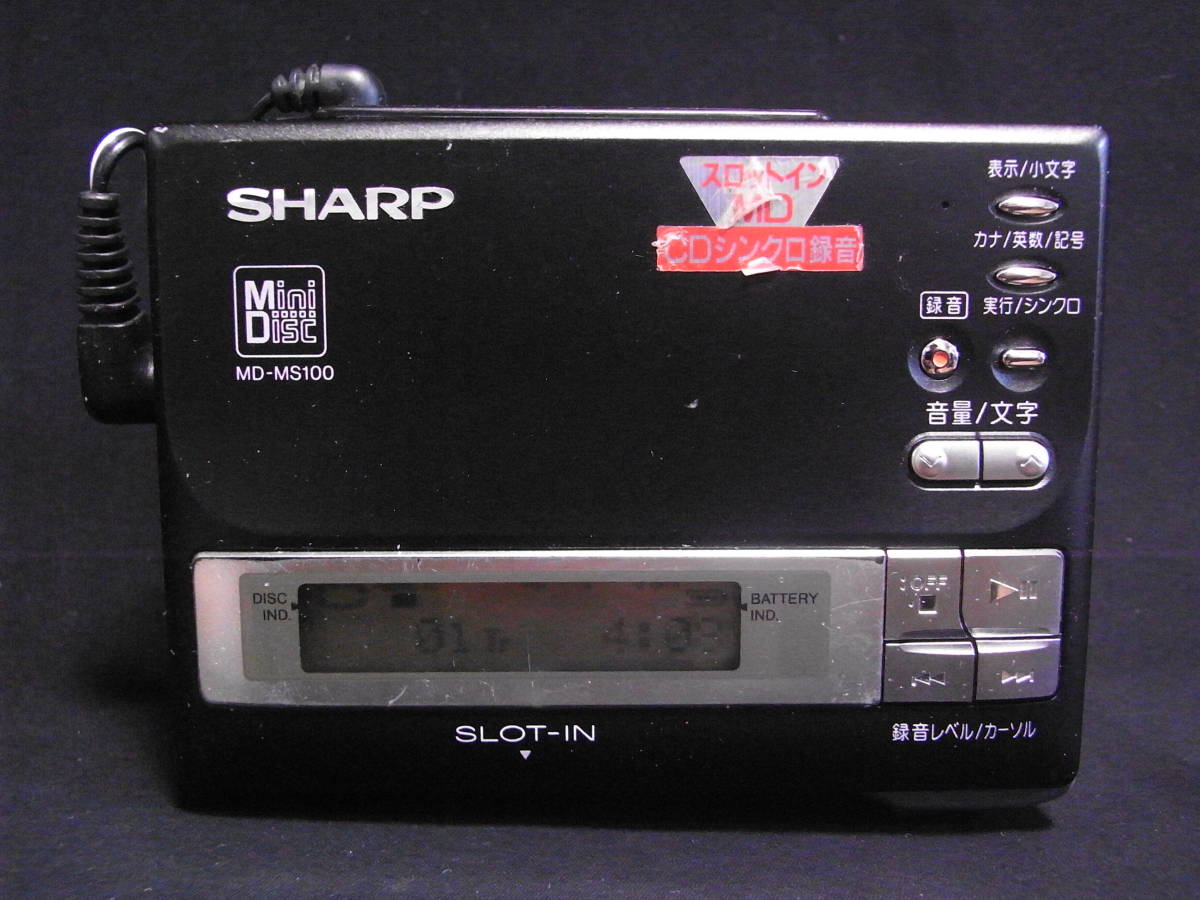

  • "slot-in" (non-clamshell) disc insert/eject [easier to manage when you're on the go]
  • stereo/mono recording
  • track move/ divide/ combine/ erase
  • random play
  • sound-synchro recording [starts recording when audio appears on the input, automatically truncates between track silence exceeding 4 seconds], auto marker
  • remote on headphone cord (volume, track select/position, stop/ pause/ play, bass boost)
  • katakana/roman alphabet input/display.
  • Line out uses the headphone connector.

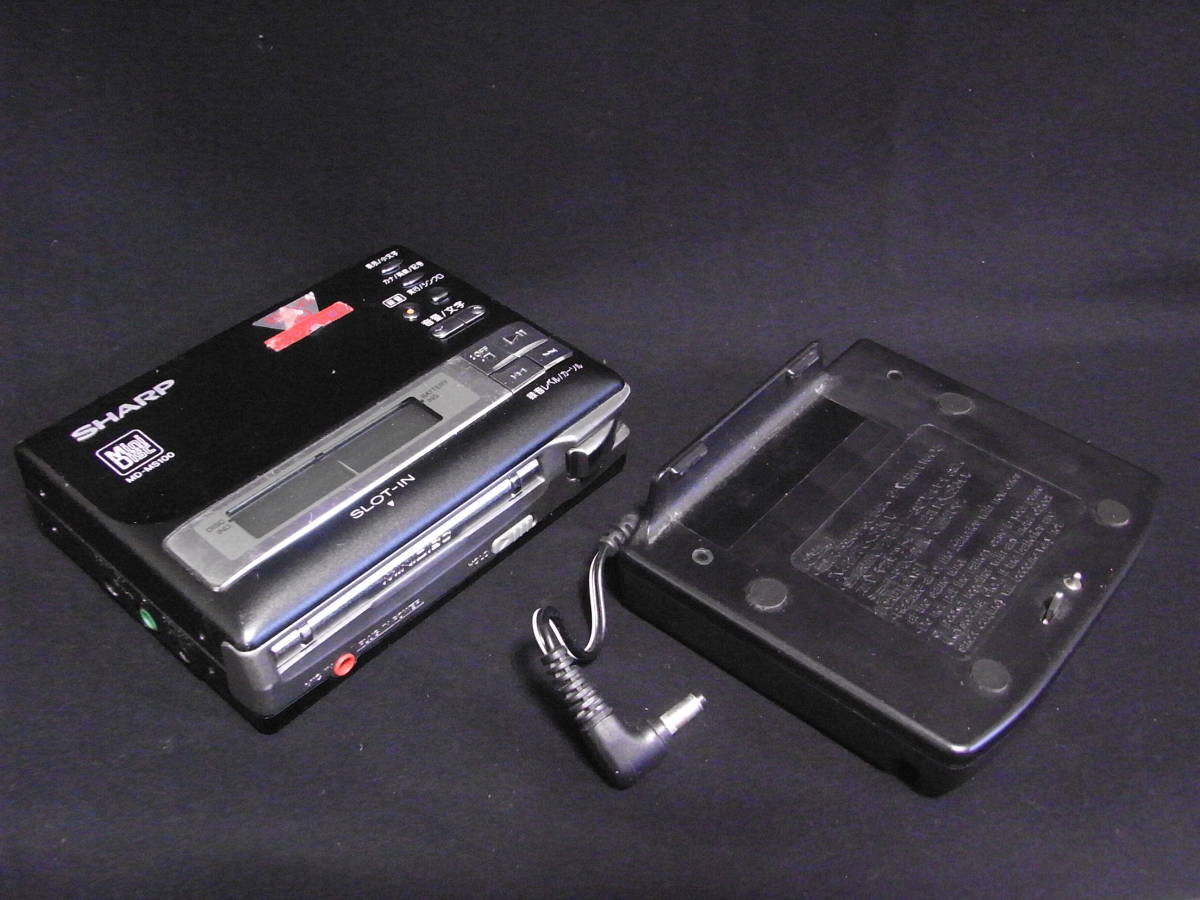

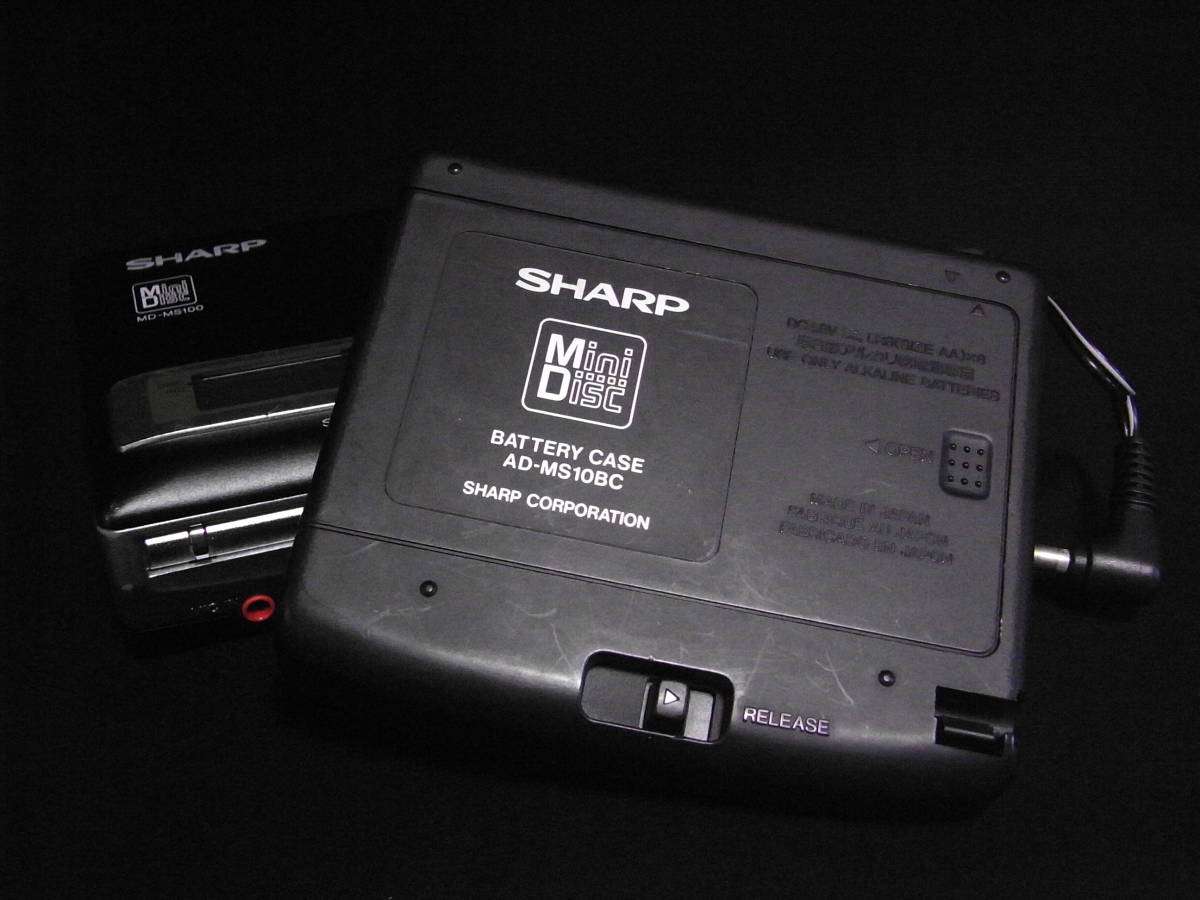

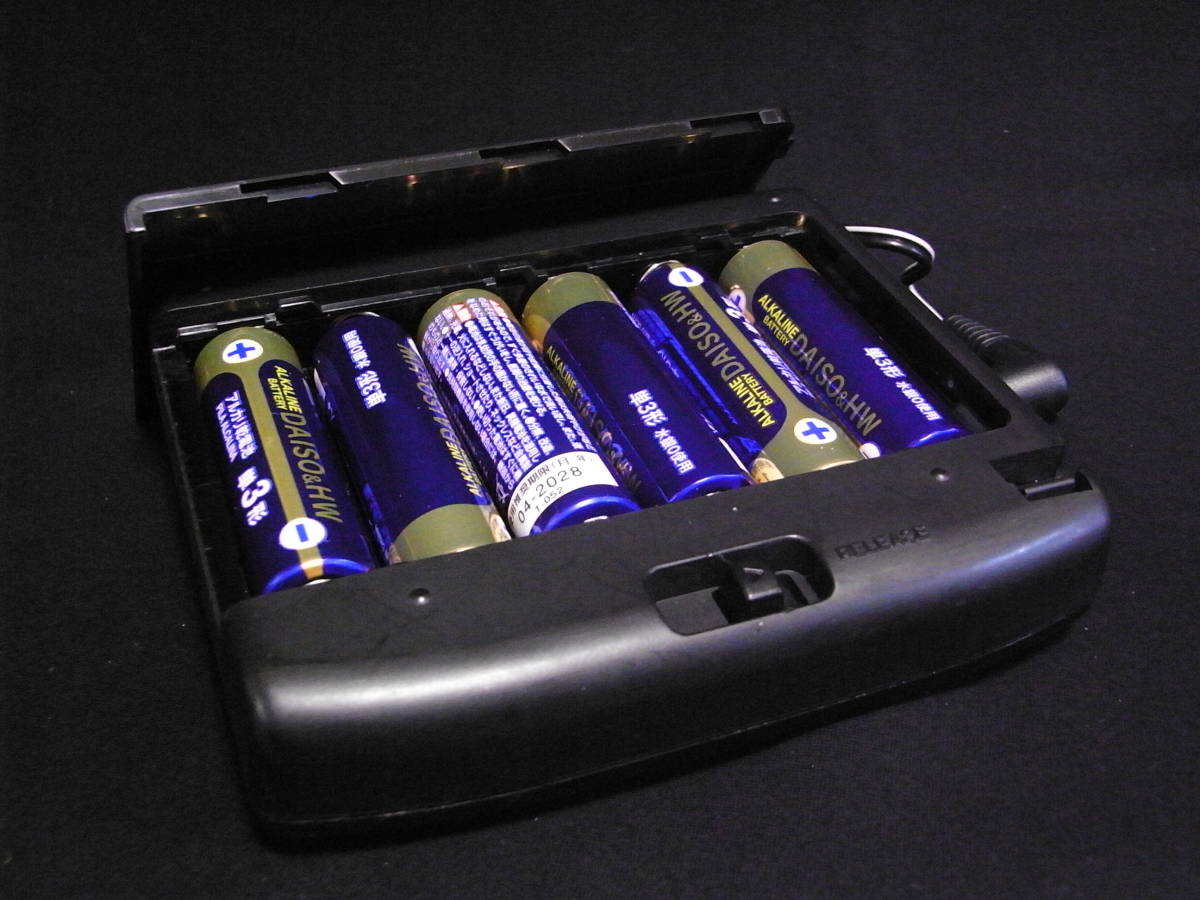

Comes with: headphones, remote control, lithium ion rechargeable battery, AC adapter, analog line cord, carrying case. Playback time 4.5 hours, recording 3.5. Recording time about 12 hours with separately available battery case (AD-MS10BC)

Content adapted from: Sharp Corporate News Releases Sharp Press Release (different part of site) Sharp Press Release (different part of site) (MiniDisc Wiki mirror) Sharp LSI info Sharp LSI info (MiniDisc Wiki mirror)

Manuals

User Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Pickuph8158af10
Atrac Icvhilr37643
ManualUser manual
RegionJapan
