| Name | DMC-M7R |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/11 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 72.7 x 17.0 x 79.3mm |
| Weight | 137g |
| ATRAC ver | Sharp 6 |
| Battery | Not recorded "Gumstick" |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 5 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥46 000 | |
| - | |
| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
See also: Sharp MD-MT77/877
Offered in DMC-M7R-S (Silver) and DMC-M7R-G (Green)

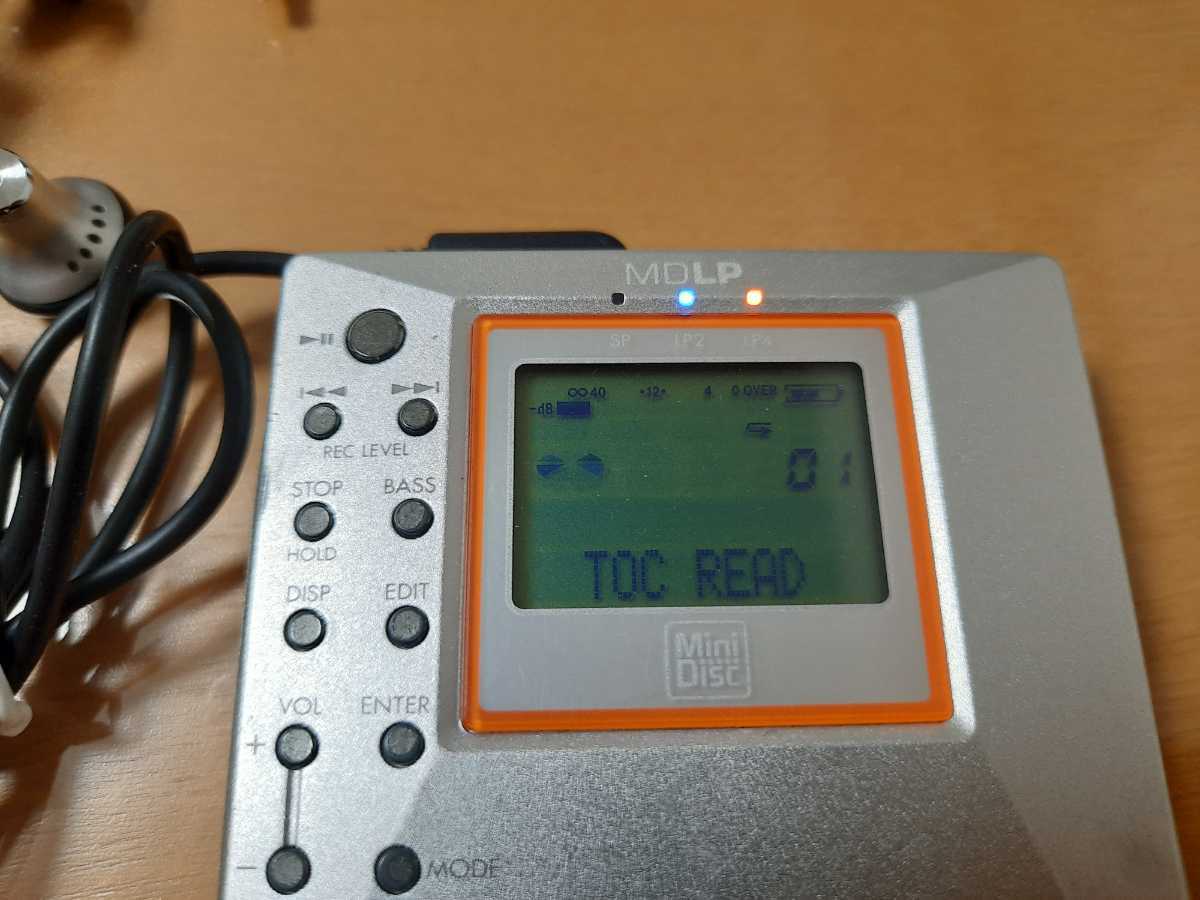

Features: MDLP capable. Smallest portable MD recorder in the world as of October 2000. Battery "memory effect" is reduced by automatic discharging circuitry in the charge stand. Can interface with a computer via USB connection kit (AD-PCR2), allowing track and title management and automatic label printing of a MiniDisc's contents, as well as an audio connection. "Scan" feature plays the first five seconds of each track. Two-line 12-character LCD display, digital recording level control, X-BASS boost, 40-second shock protection (provides 160 second protection in LP4 mode), hand strap. Microphone-synchronized recording function only records when sound is heard. Mono mode recordings can be played back at 2x speed. Track ``auto-mark'' function can be set to mark a track at regular intervals (3,5,10 minutes?). "Name Stamp" function allows easy copying of character information from one disc to another.
Specs: 5mW+5mW headphone output, 20 bit D/A converter, 1.2V NiMH, 1.5V AA, 5V adapter. Disc spins at about 400-1,350 rpm.
Content adapted from: Kenwood Press Release Minidisc.org page

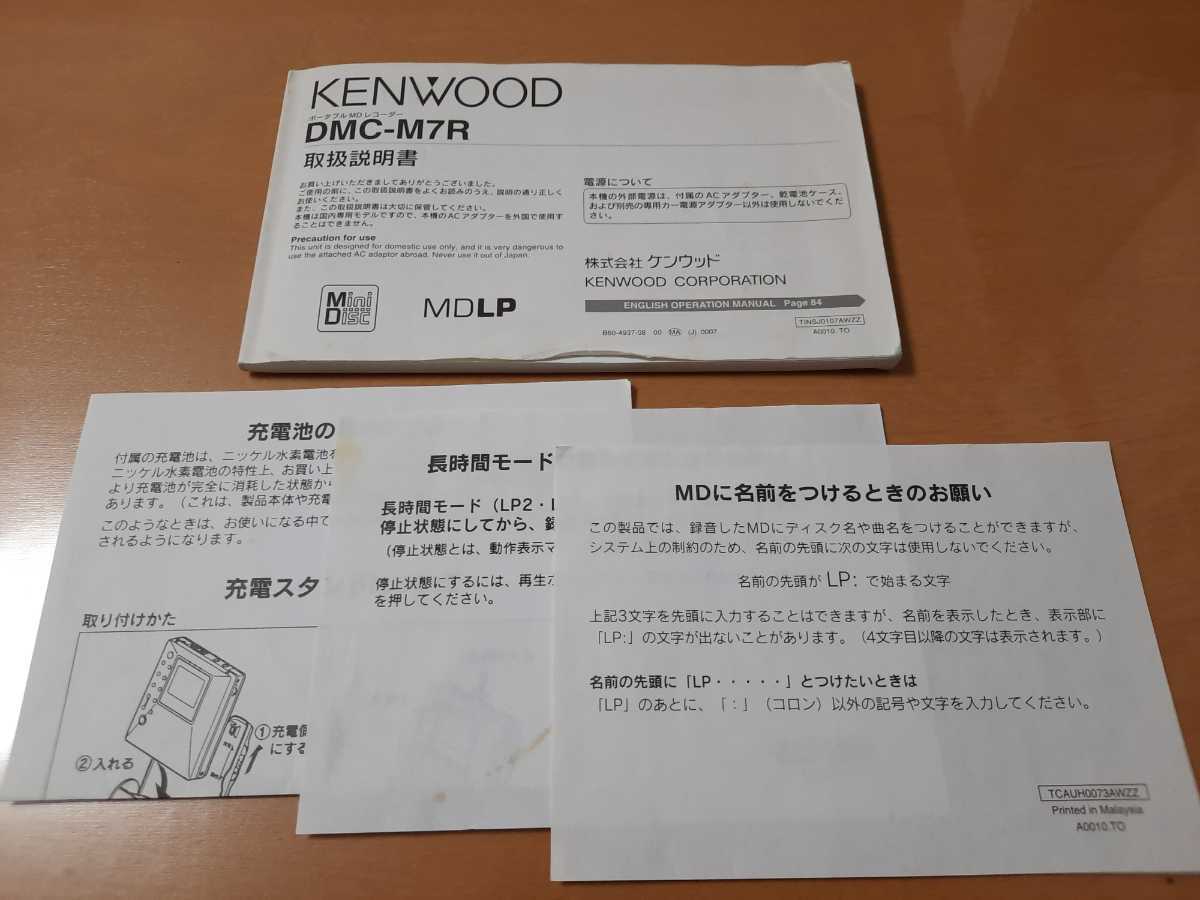

Manuals
Repair

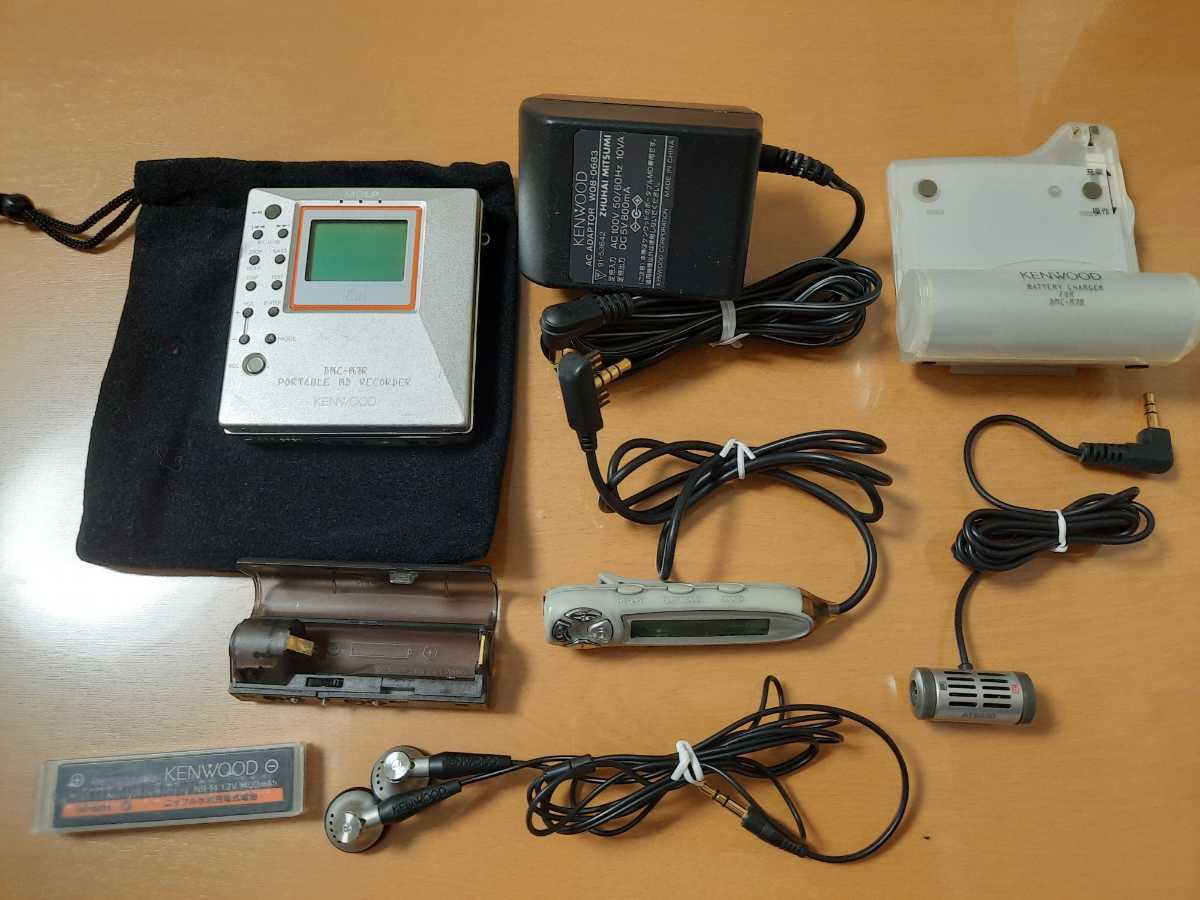

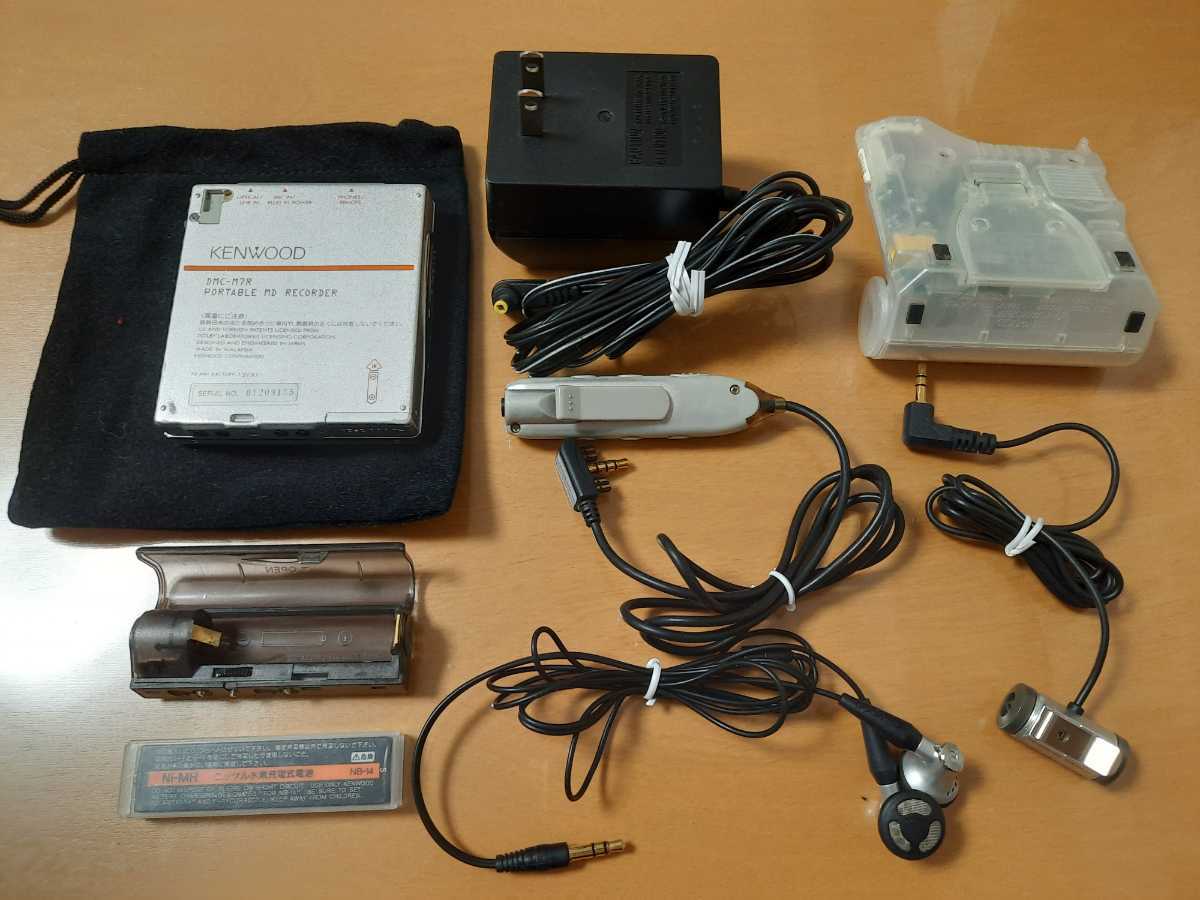

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | LR378161 (Sharp) |
| Manual | |
| Region | Japan |
