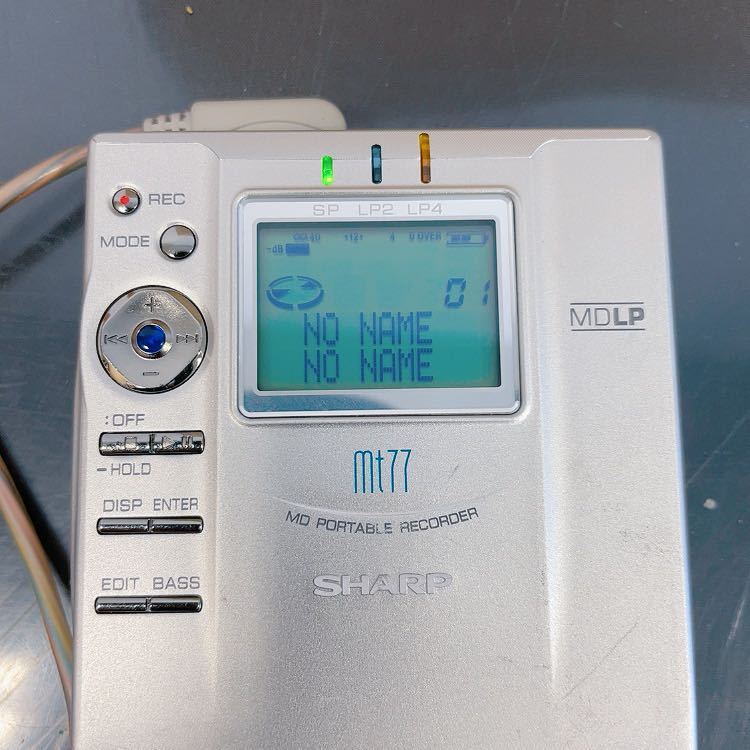

| Name | MD-MT77 / MD-MT877 |
|---|---|
| Manufacturer | Sharp |
| Released | 2000/11 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 78.7x71.9x16.8mm |
| Weight | 131g w/batt |
| ATRAC ver | Sharp 8 |

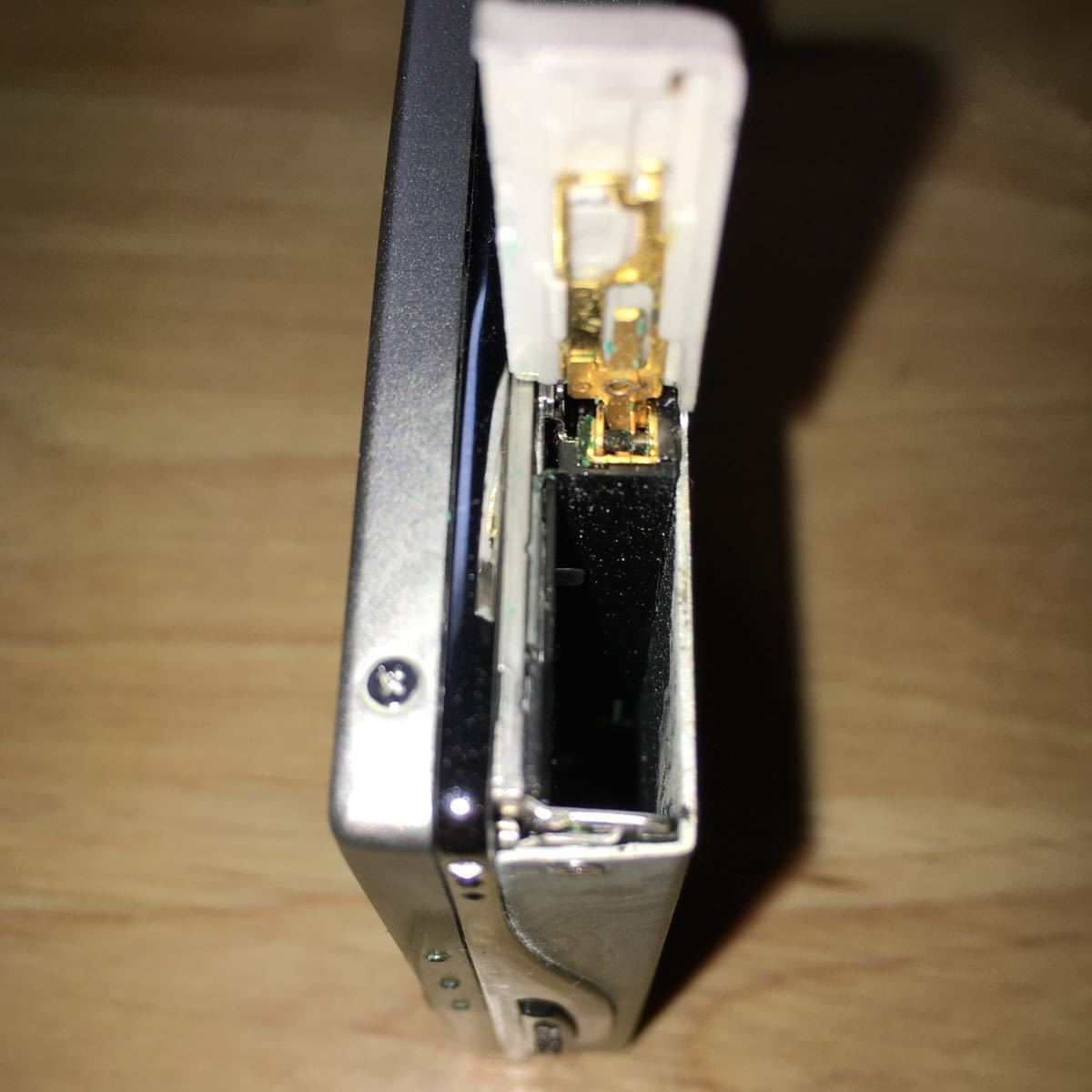

| Battery | Not recorded "Gumstick" |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 1.2, 1.5, 5 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥46 000 | |
| - | |

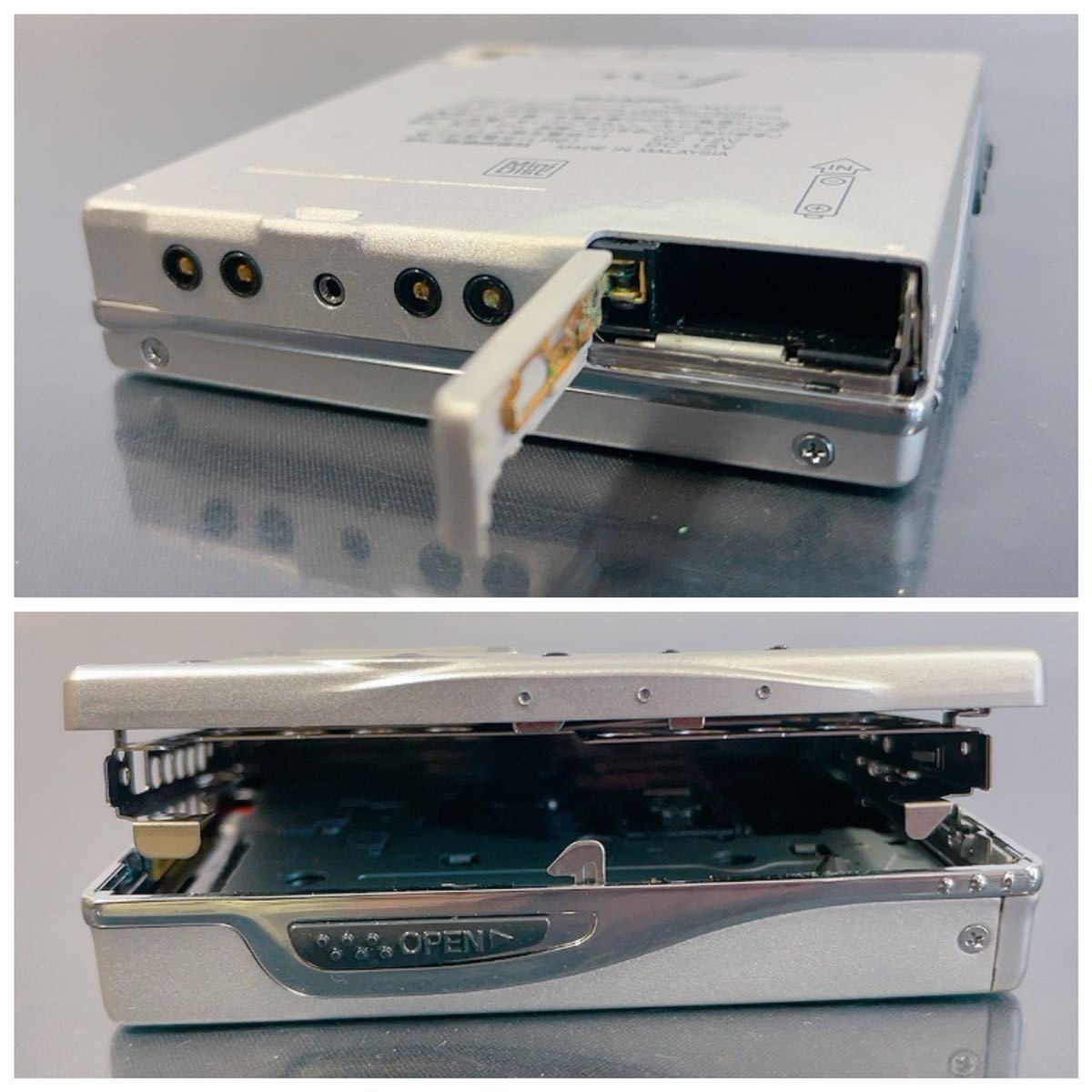

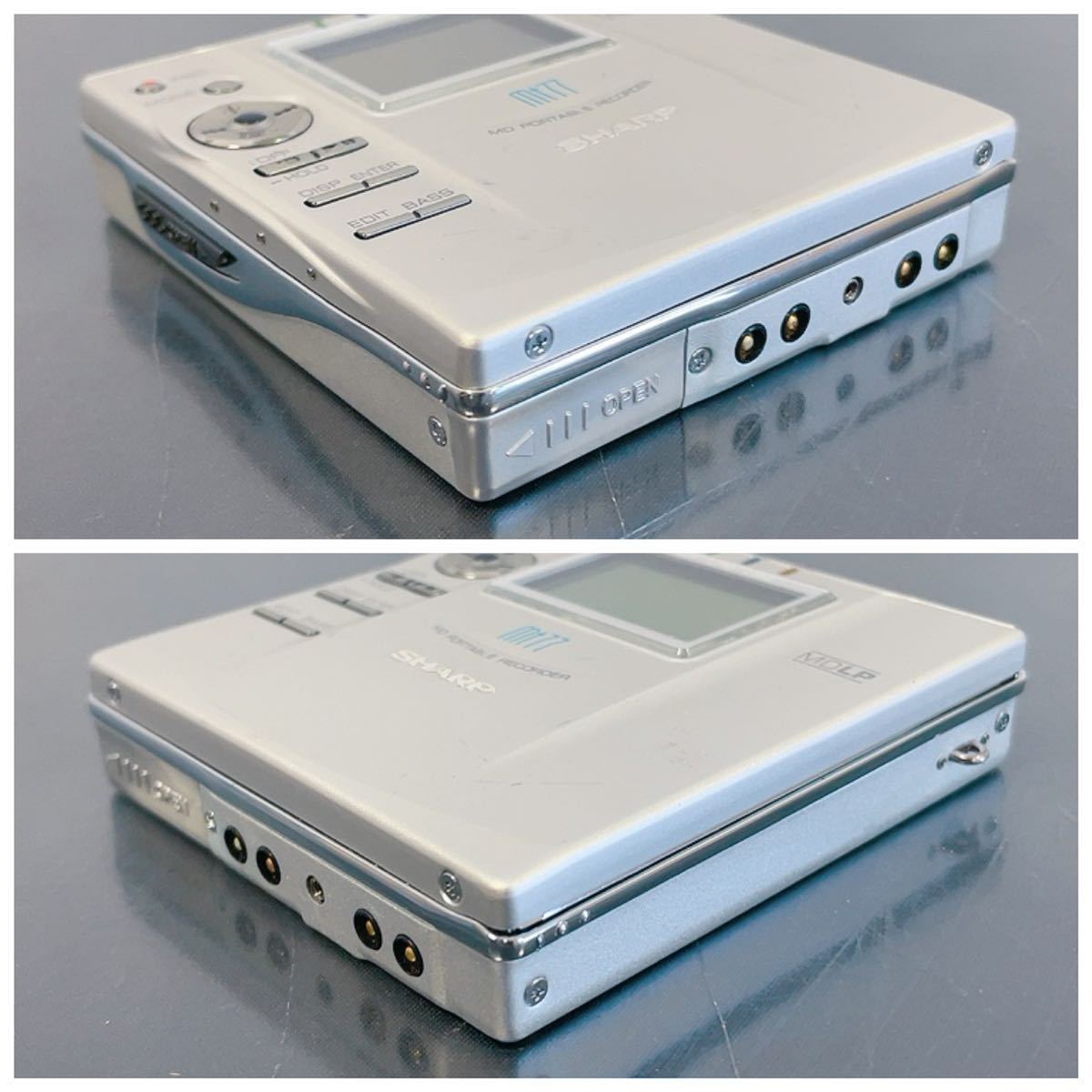

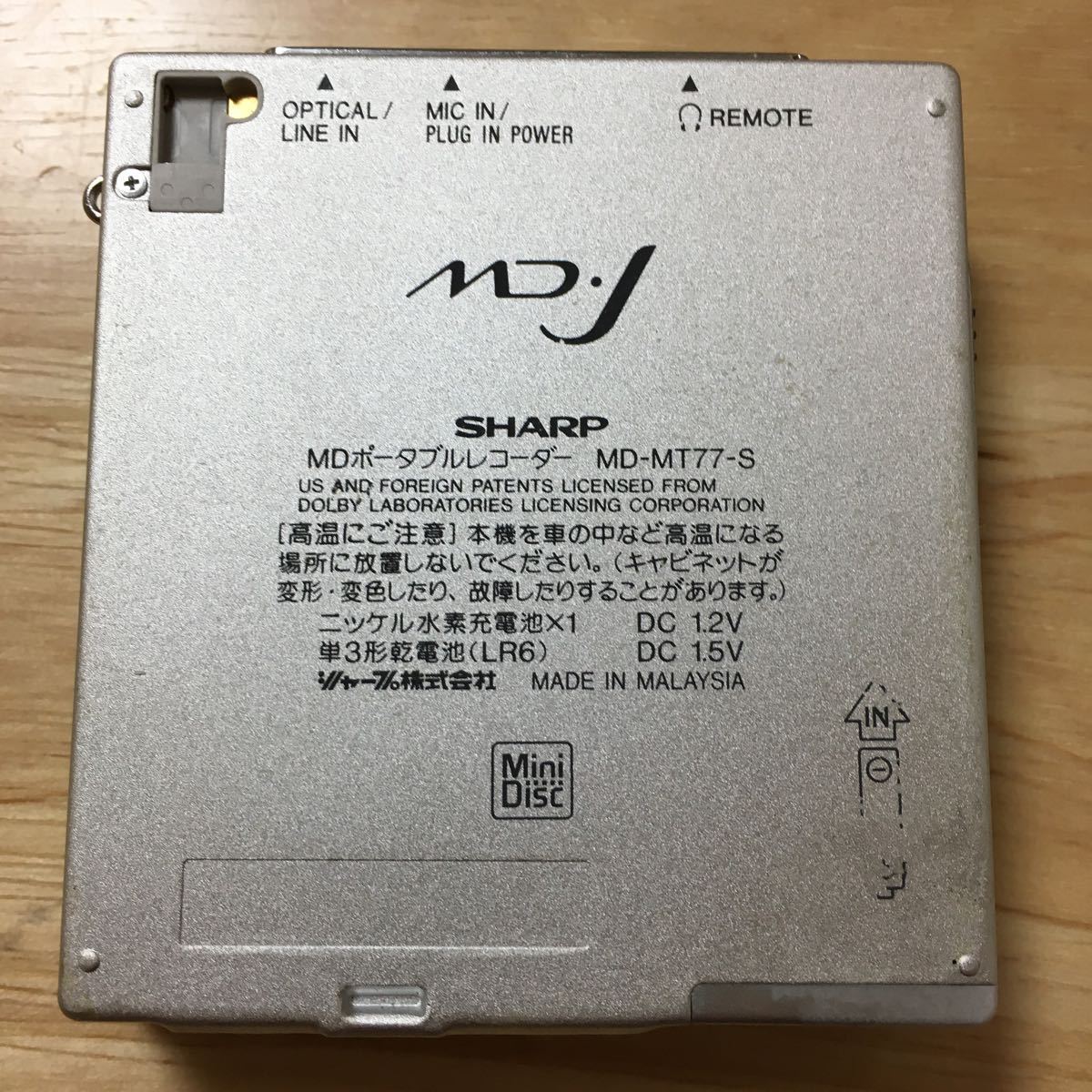

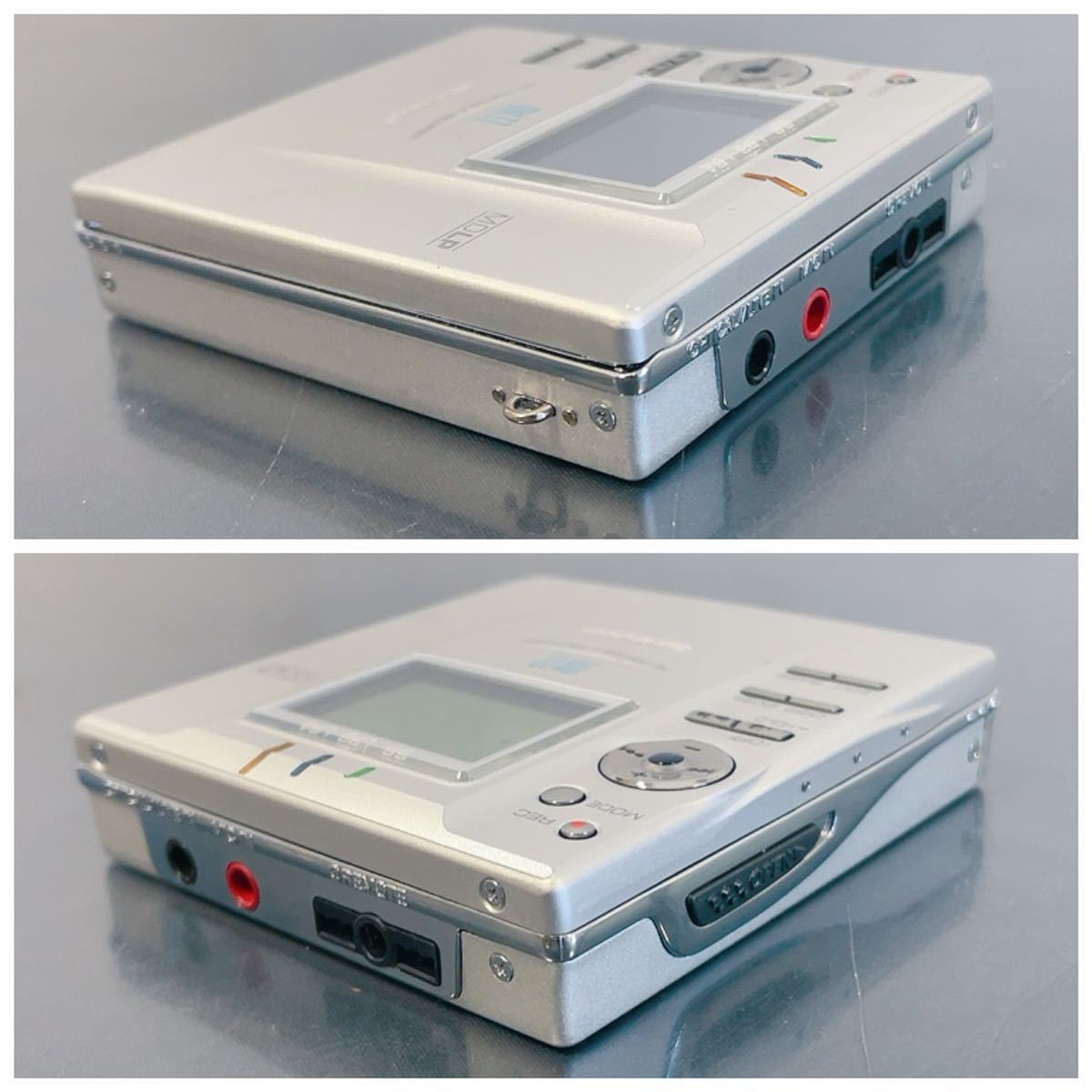

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
See also: Kenwood DMC-M7R

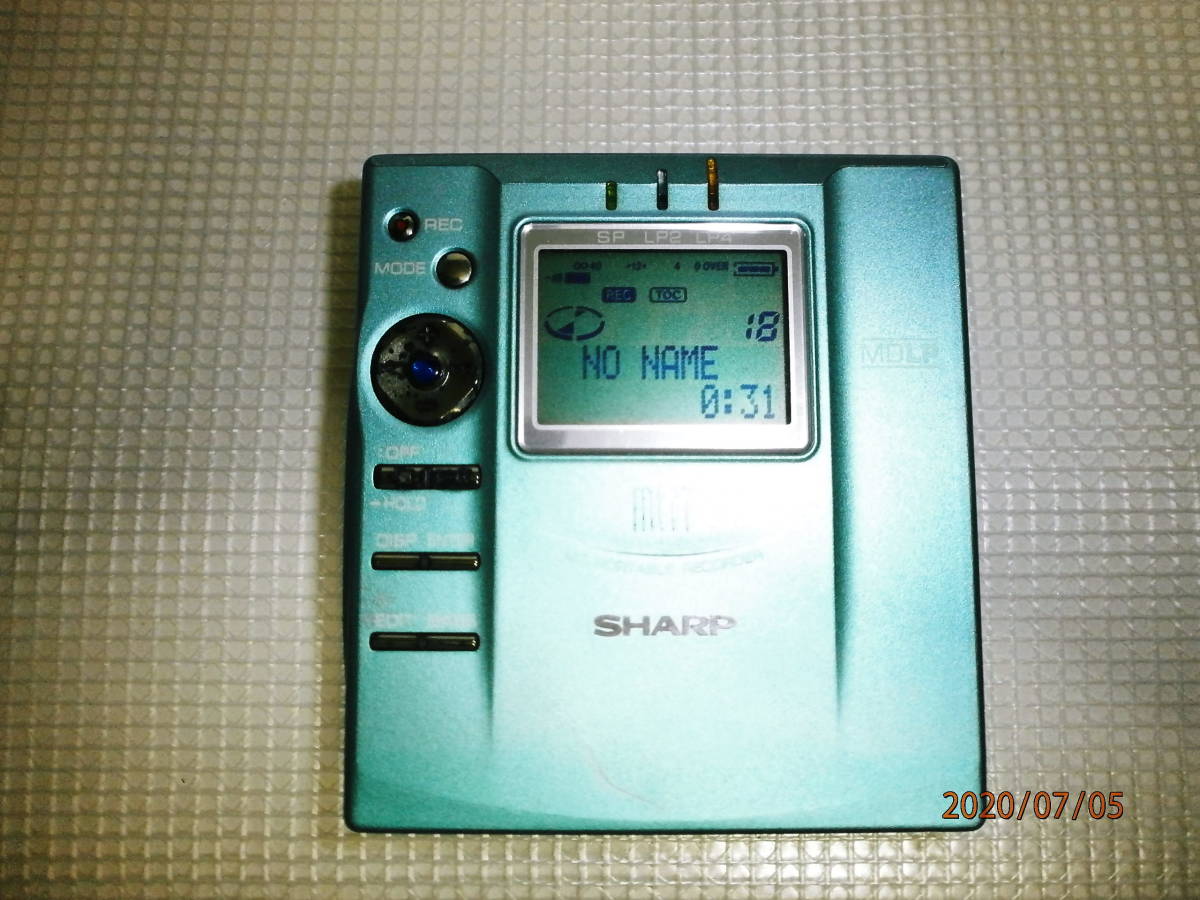

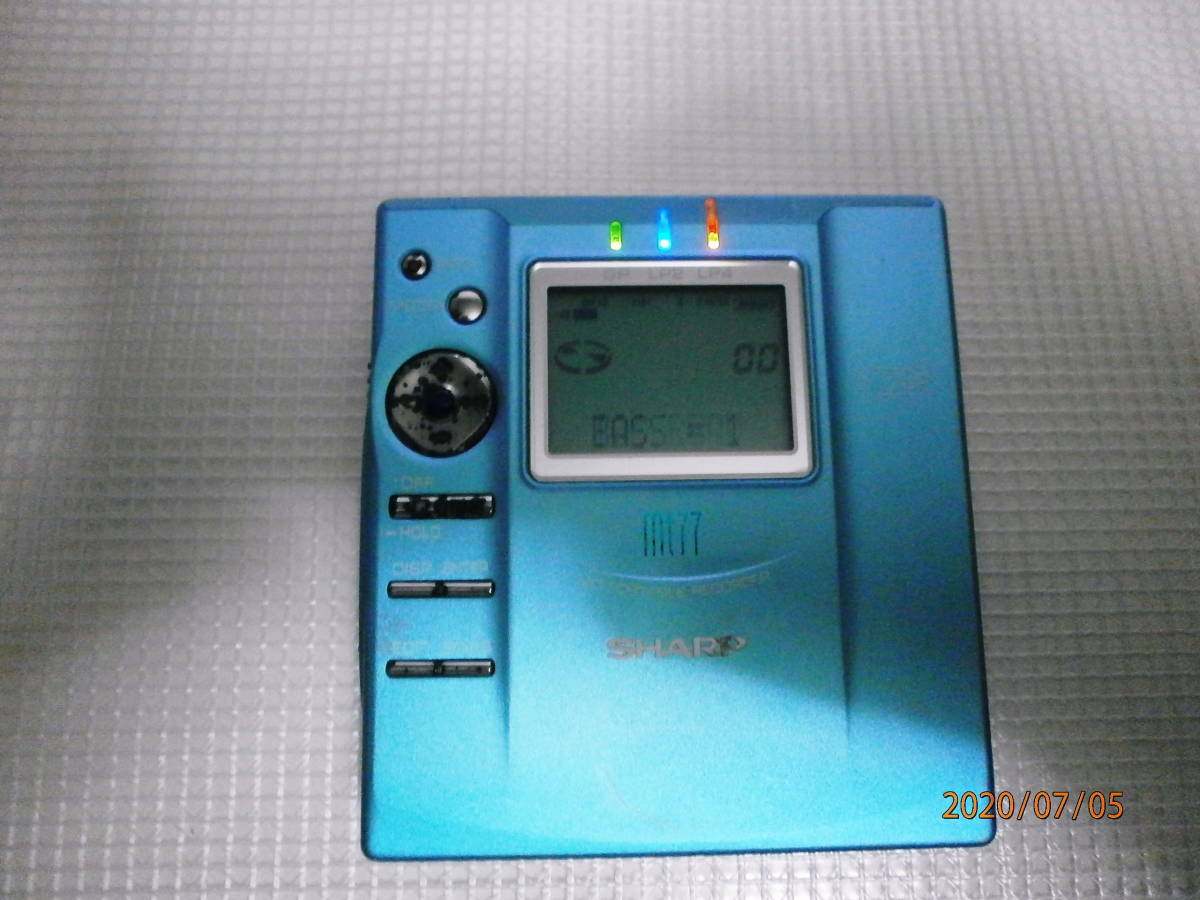

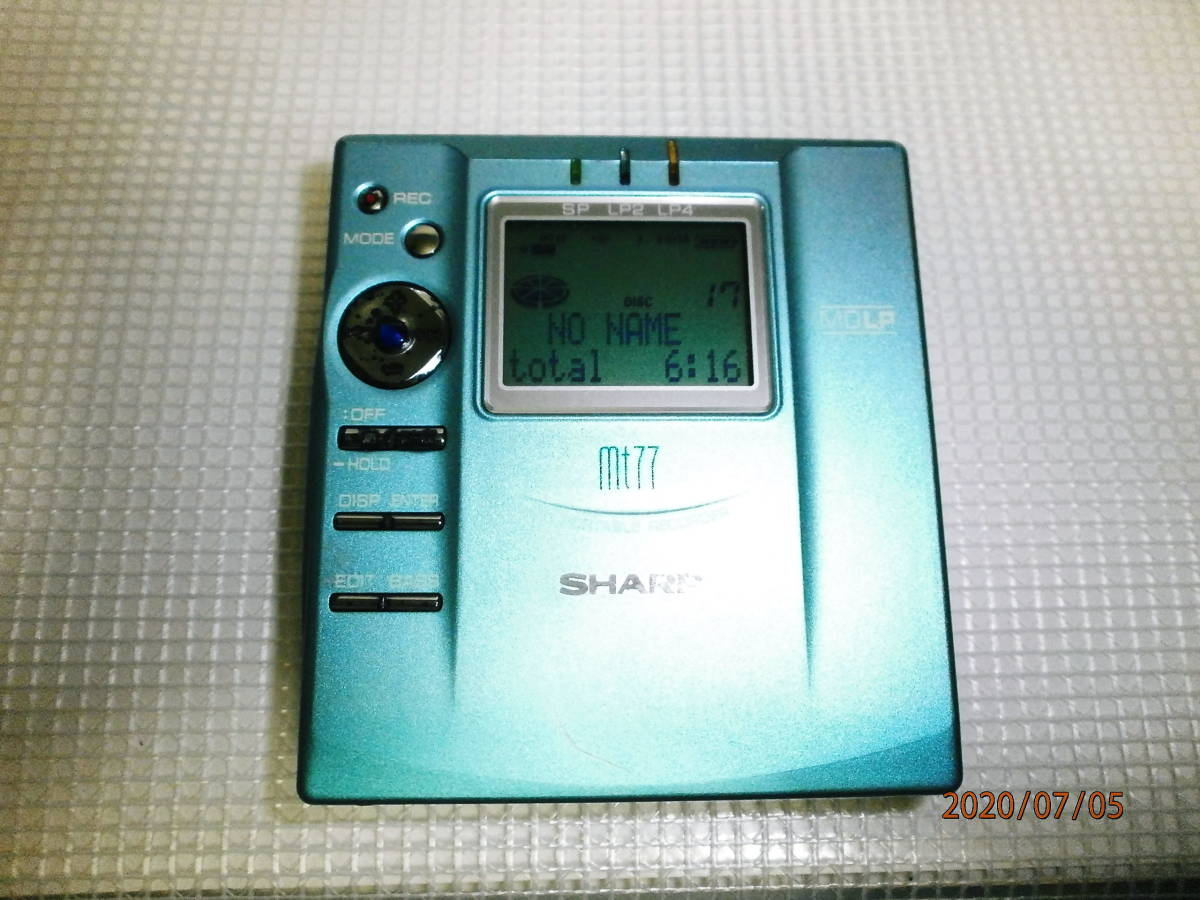

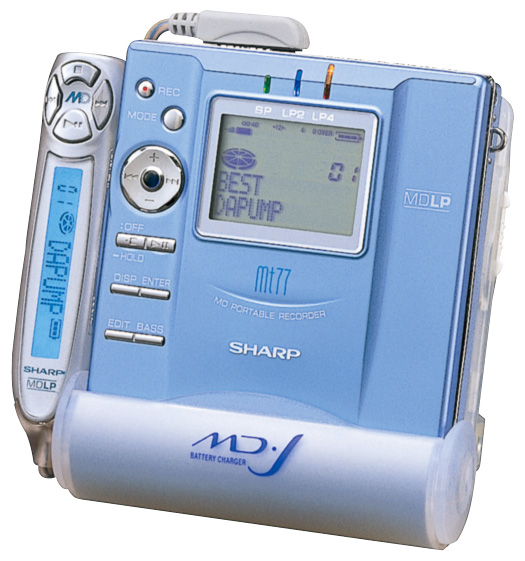

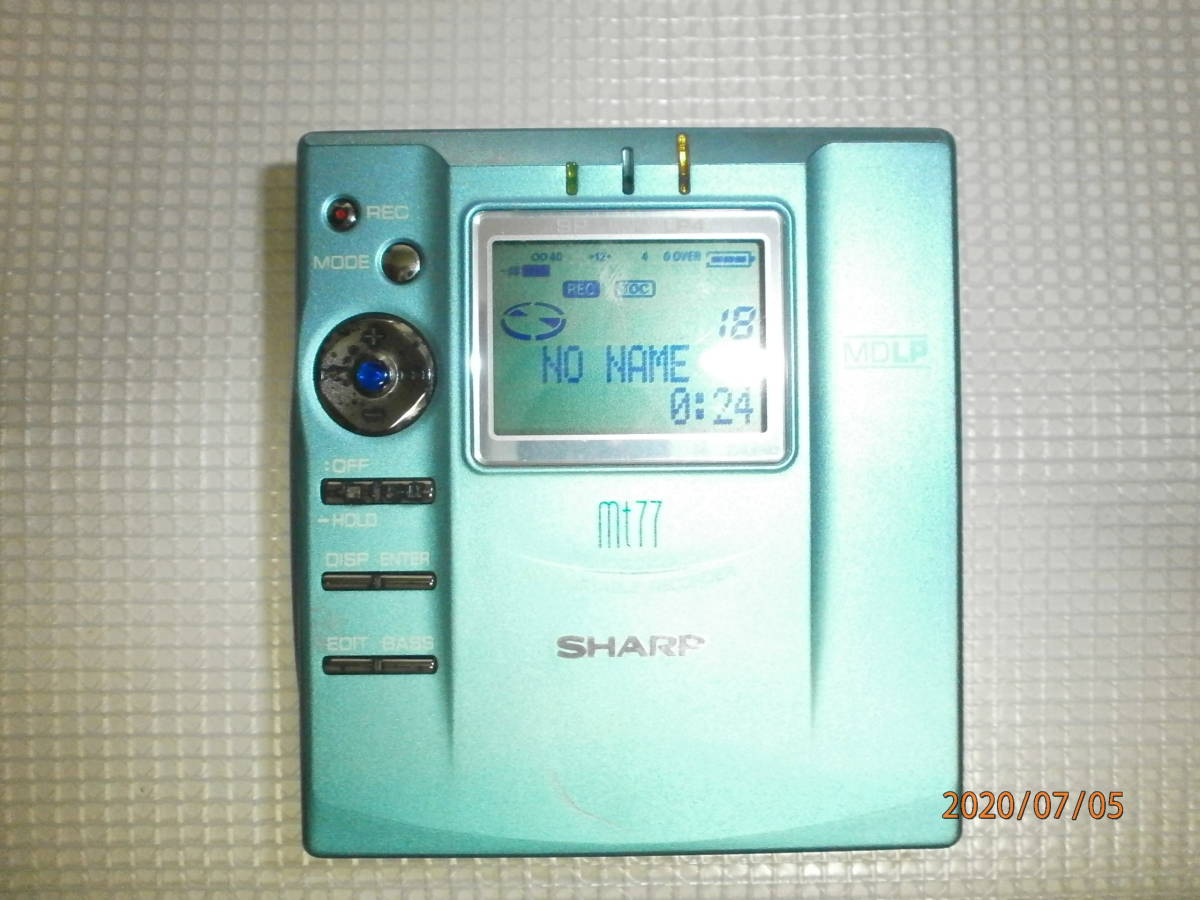

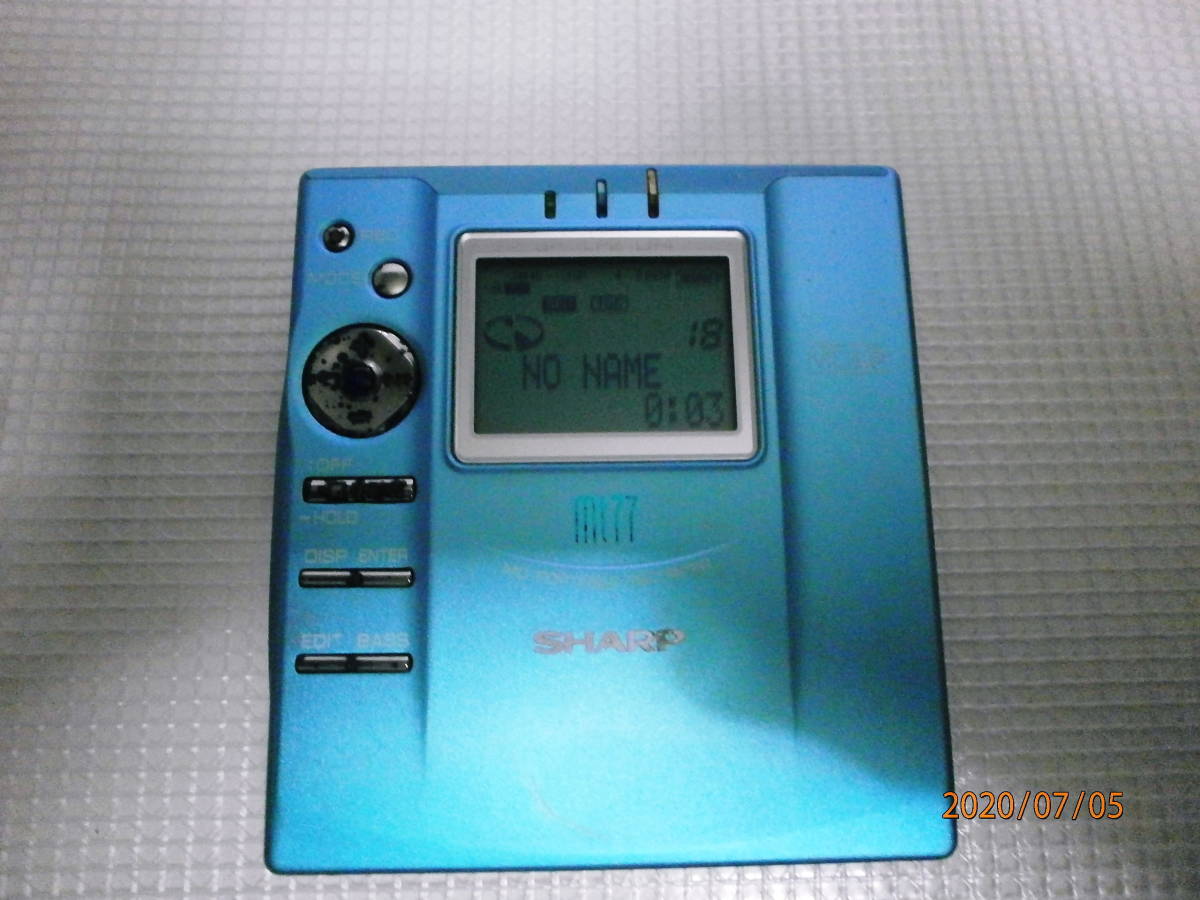

Available in MD-MT77-A (blue) and MD-MT77-S (silver)

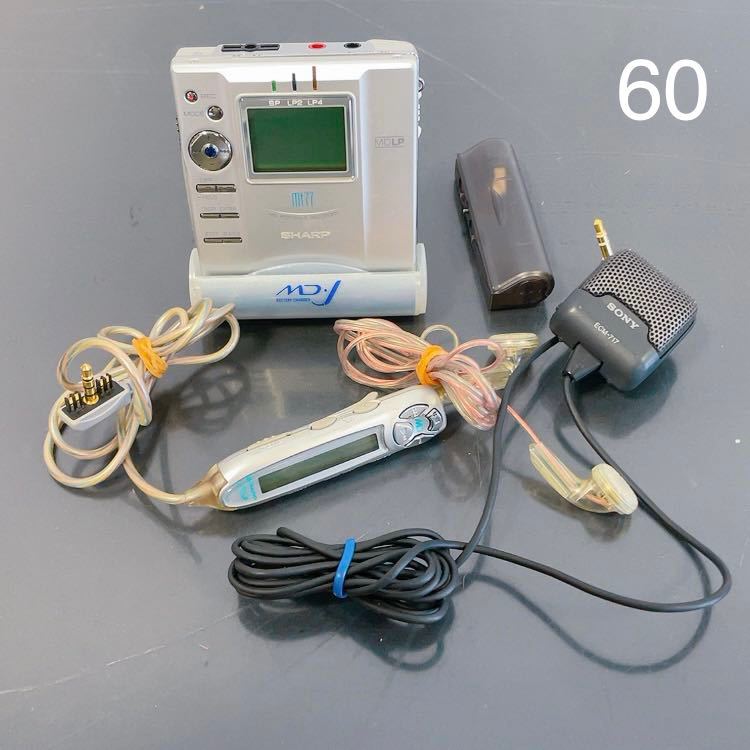

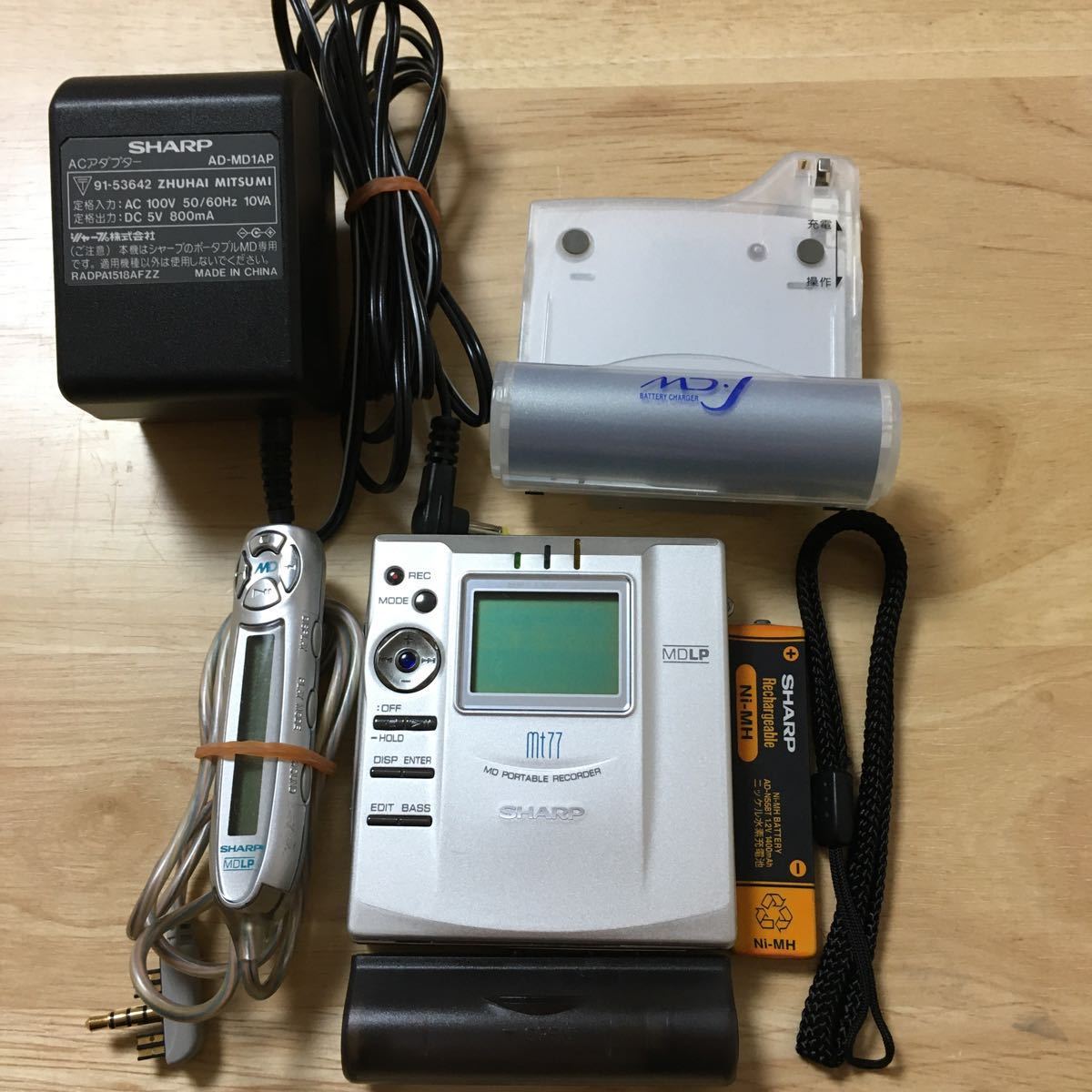

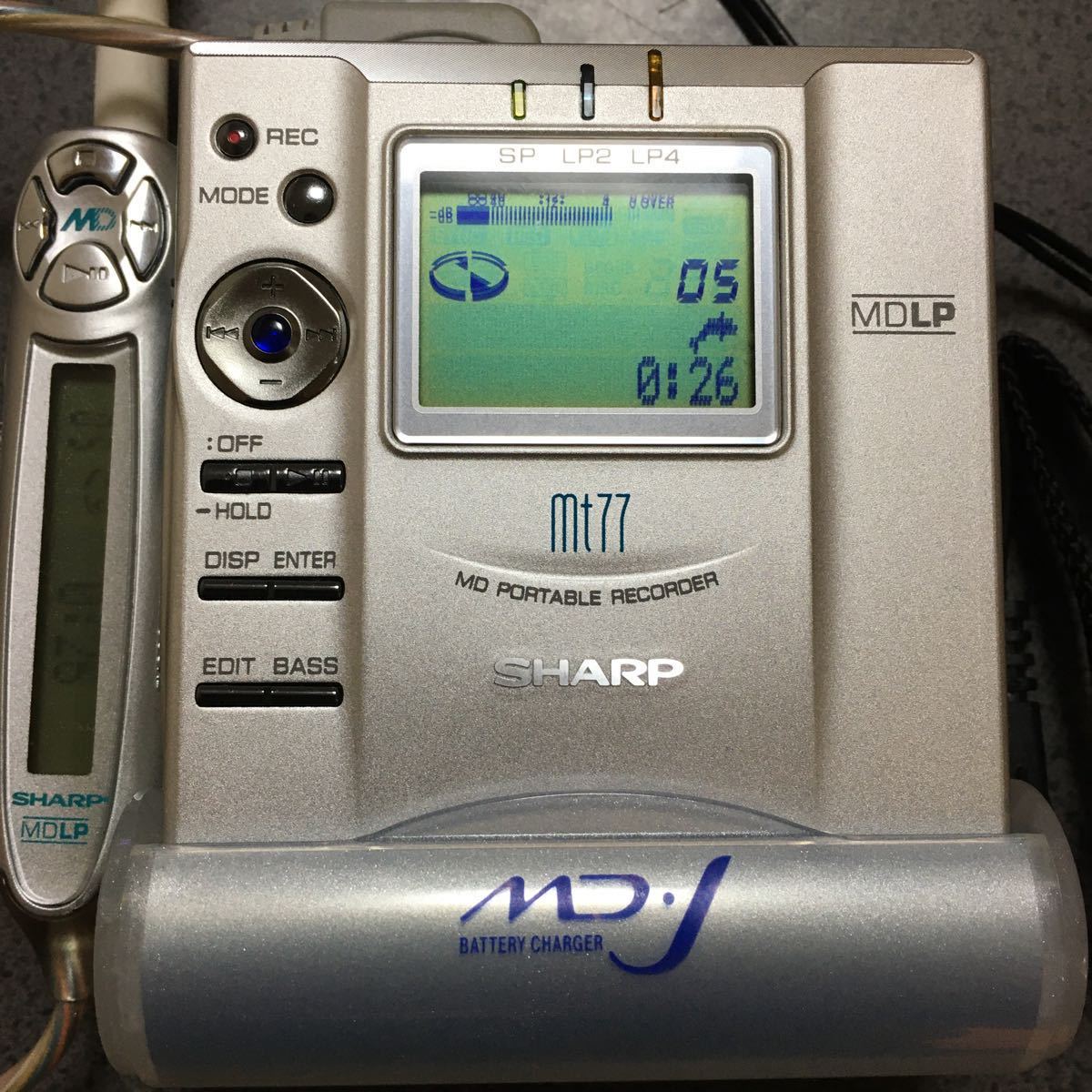

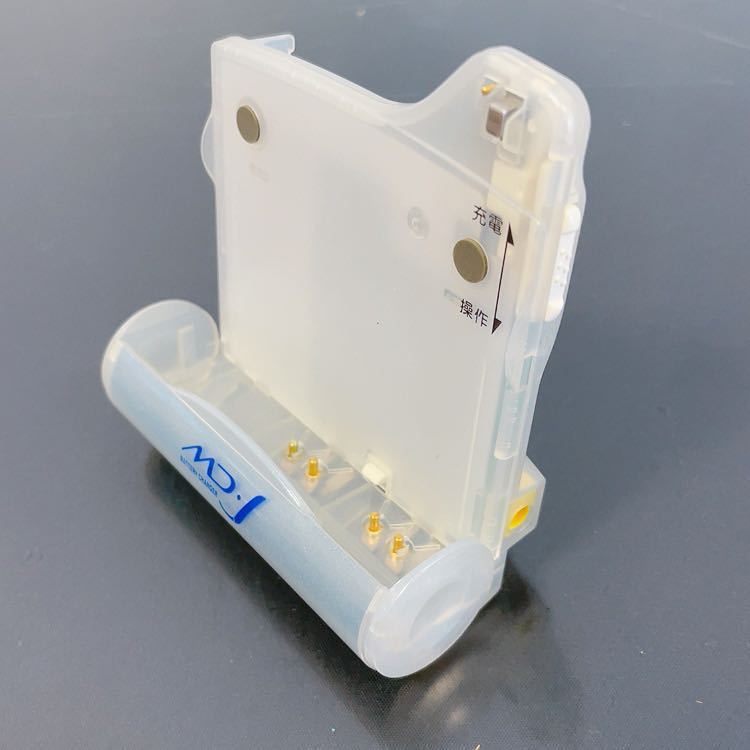

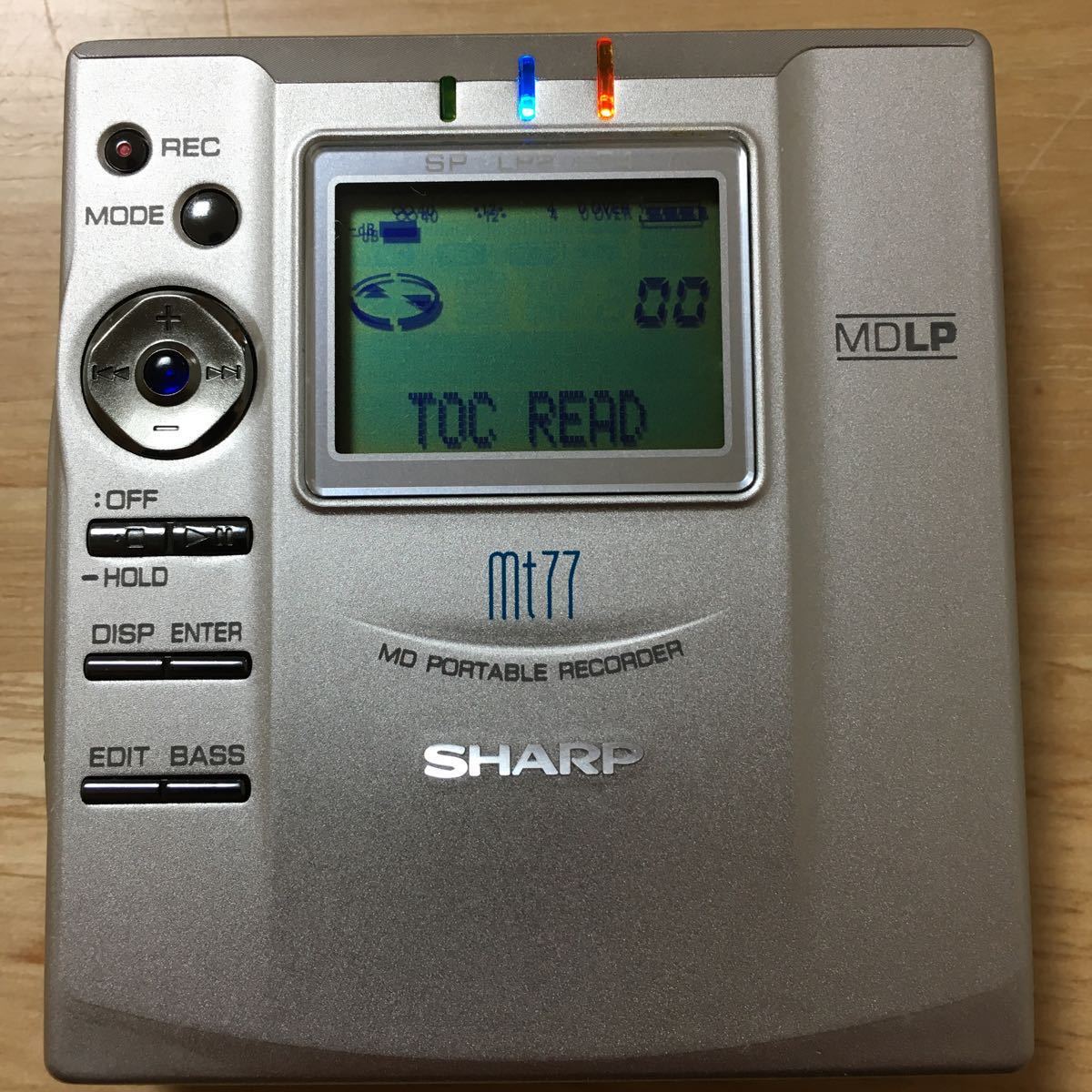

Features: MDLP capable. Smallest portable MD recorder in the world as of October 2000. Battery "memory effect" is reduced by automatic discharging circuitry in the charge stand. Can interface with a computer via USB connection kit (AD-PCR2), allowing track and title management and automatic label printing of a MiniDisc's contents, as well as an audio connection. "Scan" feature plays the first five seconds of each track. Two-line 12-character LCD display, digital recording level control, X-BASS boost, 40-second shock protection (provides 160 second protection in LP4 mode), hand strap. Microphone-synchronized recording function only records when sound is heard. Mono mode recordings can be played back at 2x speed. Track 'auto-mark' function can be set to mark a track at regular intervals (3, 5, 10 minutes?). "Name Stamp" function allows easy copying of character information from one disc to another.

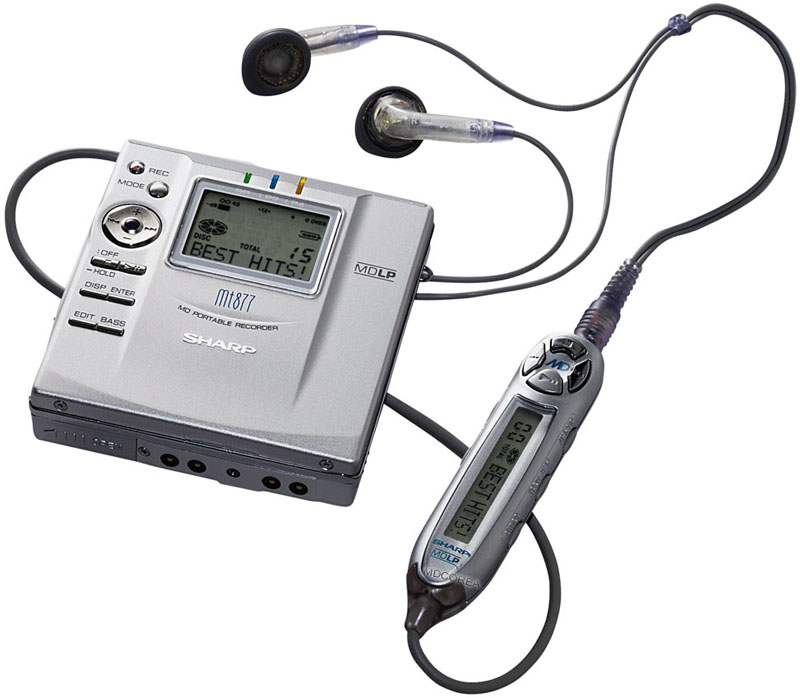

Variants: US (and Euro?) model badged the MD-MT877.
Specs: 5mW+5mW headphone output, 20 bit D/A converter, 1.2V NiMH, 1.5V AA, 5V adapter. Disc spins at about 400-1,350 rpm.
newly developed 8.3 generation recording/reproducing LSI of low power consumption type that supports MDLP mode compression/expansion with 0.25 μm process
Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Brian Youn Review Brian Youn Review (MiniDisc Wiki mirror) image source
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | LR378161 (Sharp) |
| Manual | User manual |
| Region | Japan |
