Pioneer FH-P003MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-04

Manufacturer
Pioneer
Model / source grouping
FH-P003MD / FH-P003MDzz
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P003MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P003MD / FH-P003MDzz
Manufacturer Pioneer
Released 2003/03
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 x 100 x 160
Weight 1800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥49 800
-
Inputs CD
Outputs Not recorded
Control Not recorded

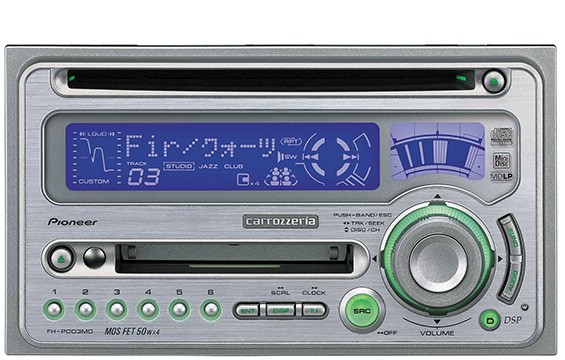

Pioneer Carrozzeria FH-P003MD / FH-P003MDzz

Features:

  • "MD-auto gain control" adjusts track volumes so that large differences do not occur between tracks.
  • Selectable subwoofer and hi-pass filter cutoff frequencies (50, 63, 80, 100, 125Hz) and slope (-12, -18dB/octave).
  • 9-band graphic equalizer (50, 100, 200, 400, 800, 1.7k, 3.15k, 6.3k, 12.5kHz) adjustable from -12dB to +12dB.
  • CD-R/CD-RW compatible.
  • Kana/Kanji title display for MDs and MP3-CDs

Variants: FH-P005MD has these features, which the FH-P003MD does not:

  • CD-Player handles MPEG-1&2 Audio Layer 3.
  • "ASL" (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
  • "Changeable color"
  • BBE digital sound enhancement.
  • Remote control included (available separately for FH-P003MD).

Content adapted from: minidisc.org Pioneer Press Release av.watch

Manuals

Pioneer FH-P003MD User Manual JP

Repair

Photos

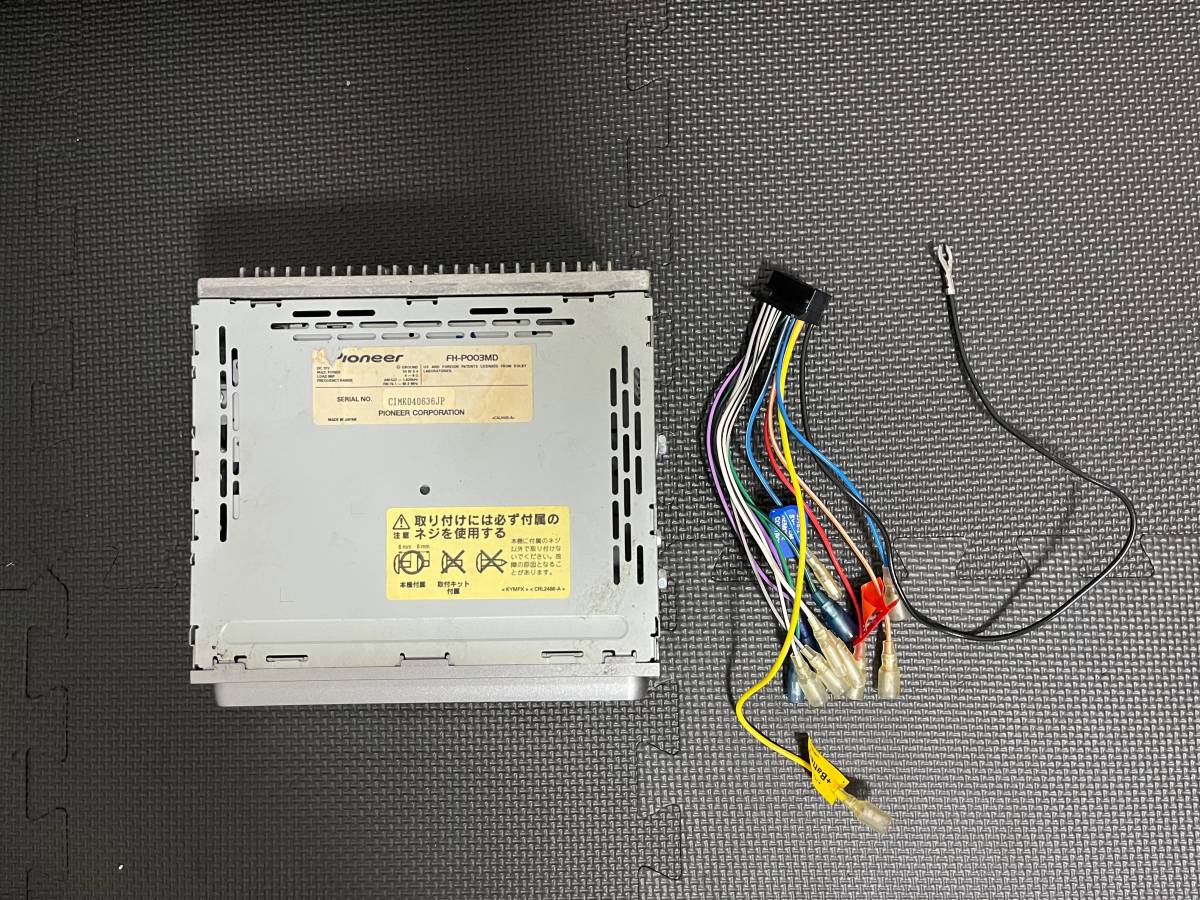

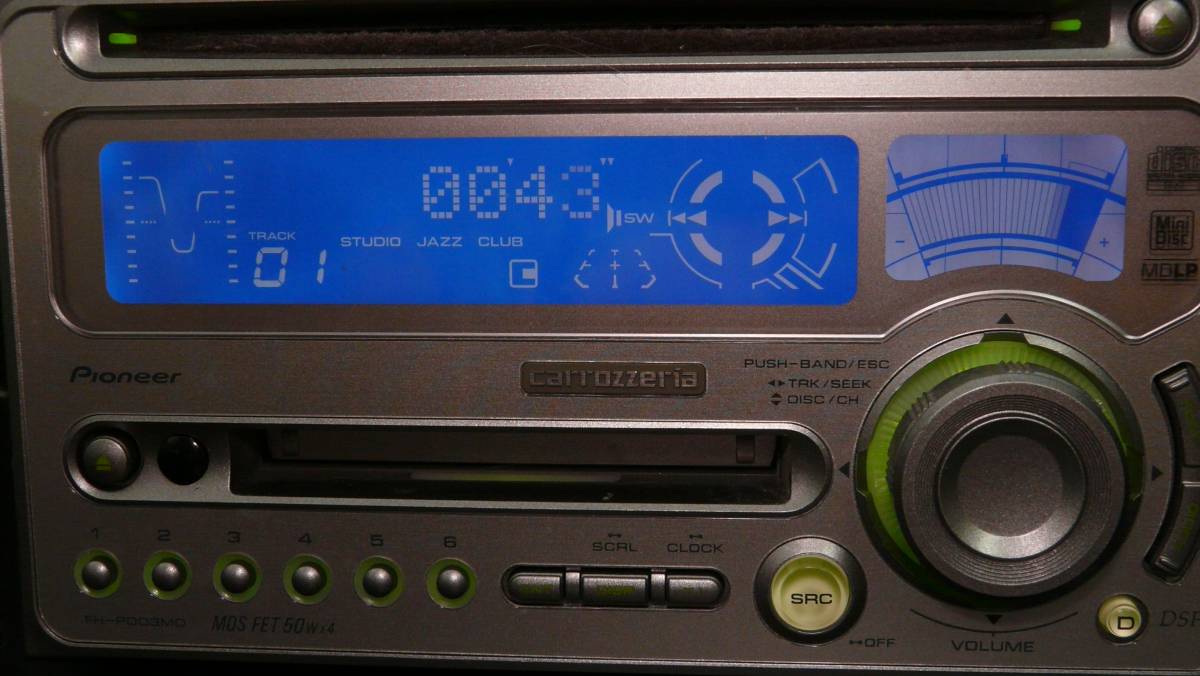

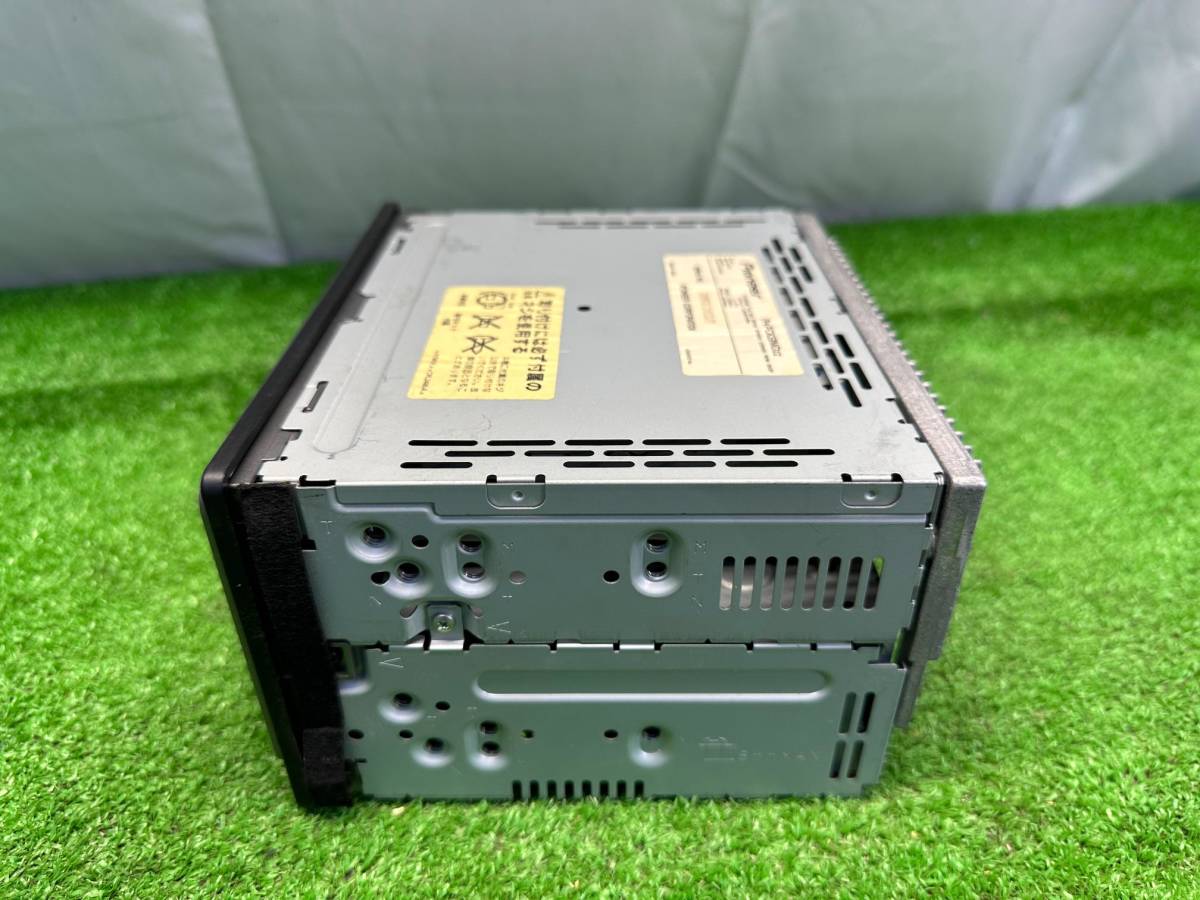

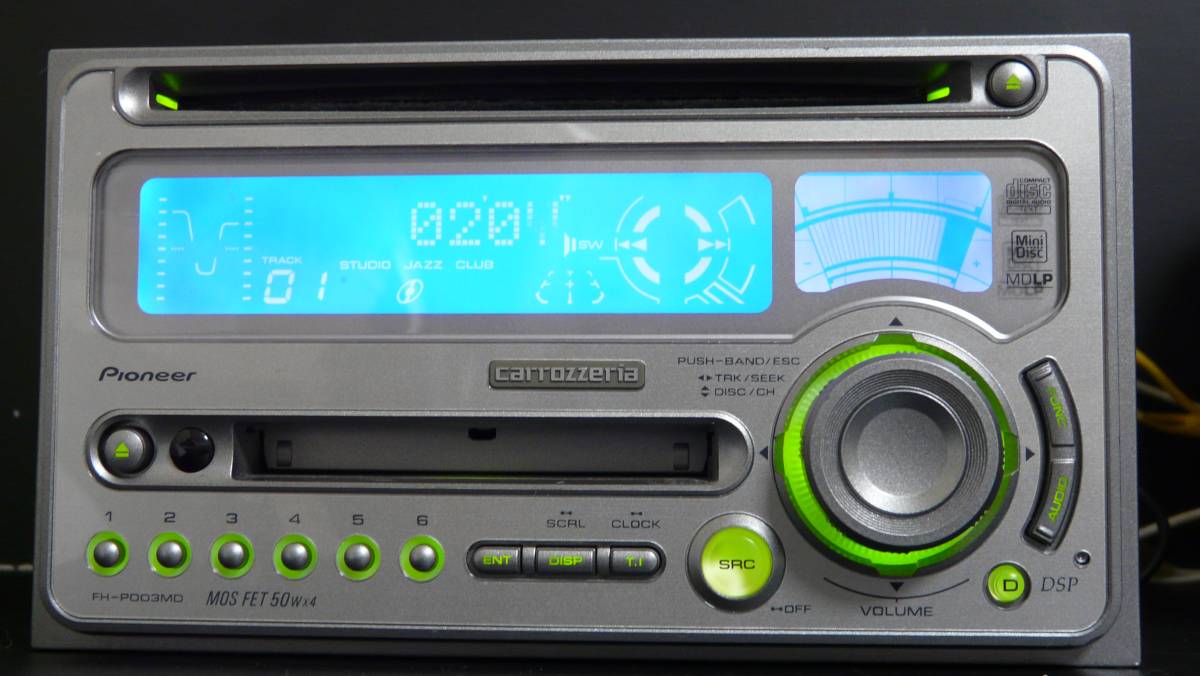

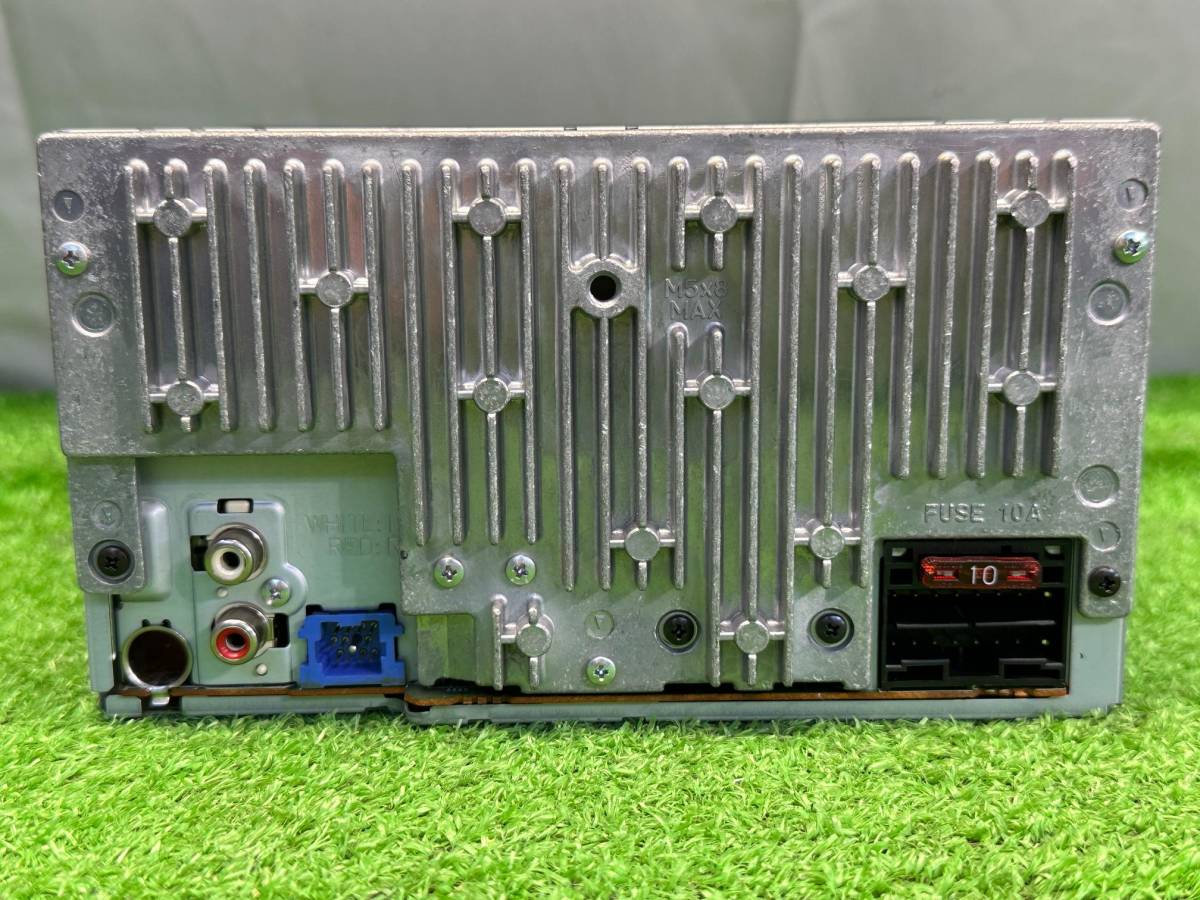

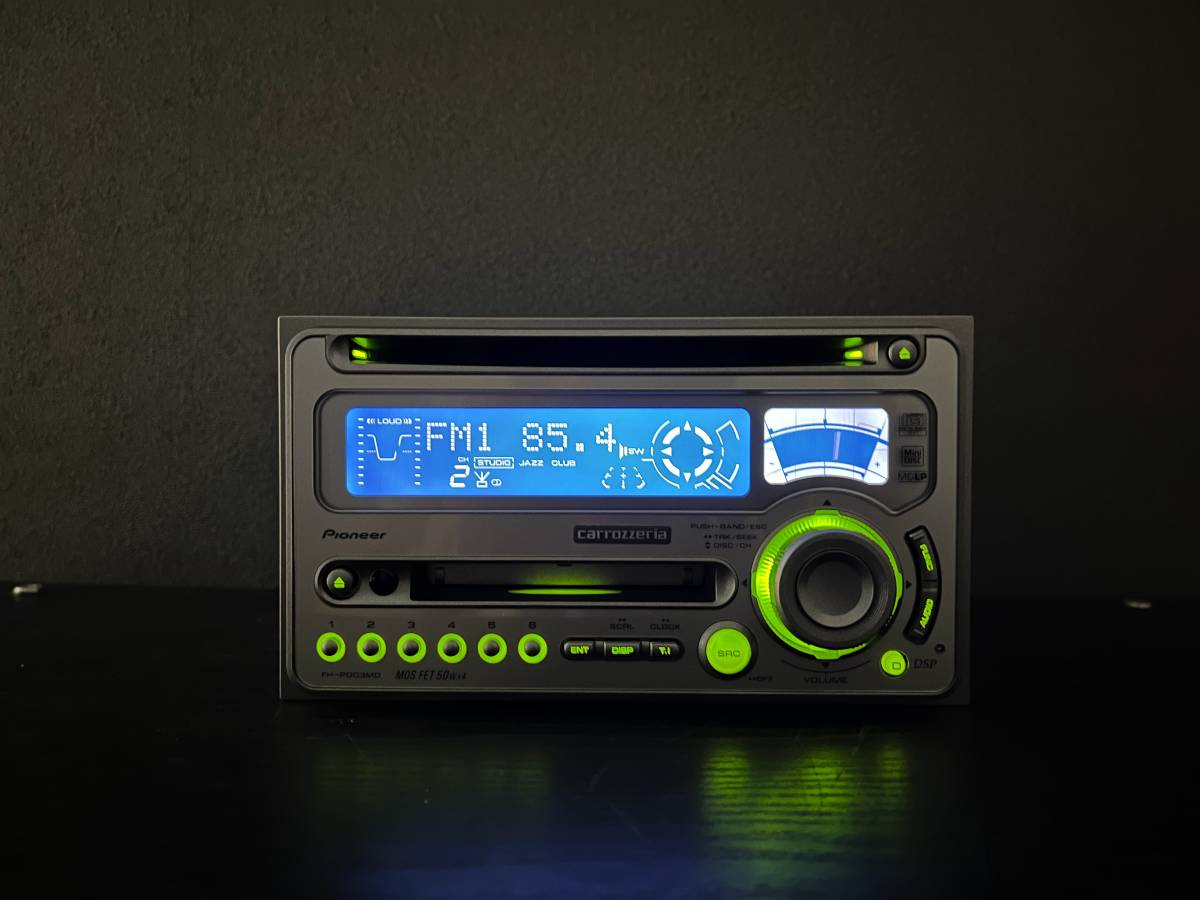

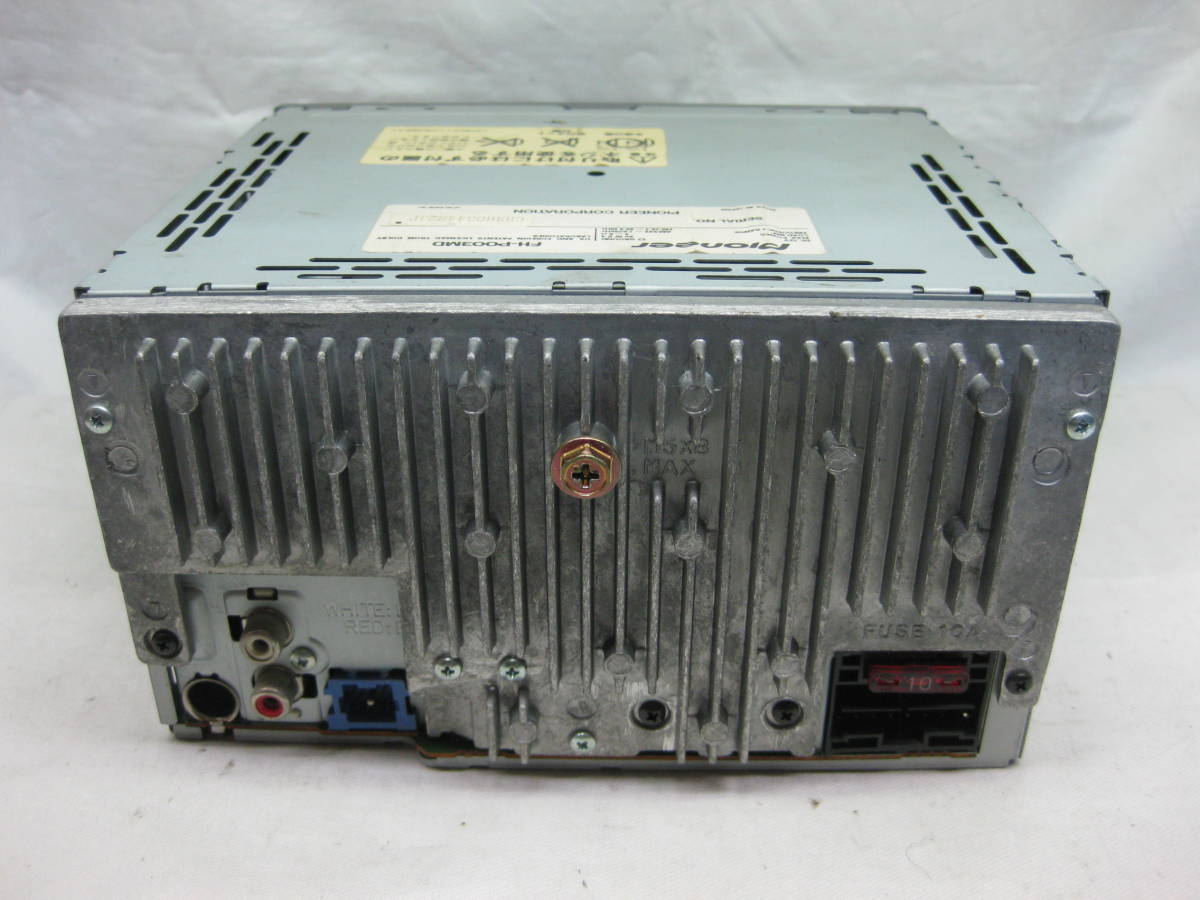

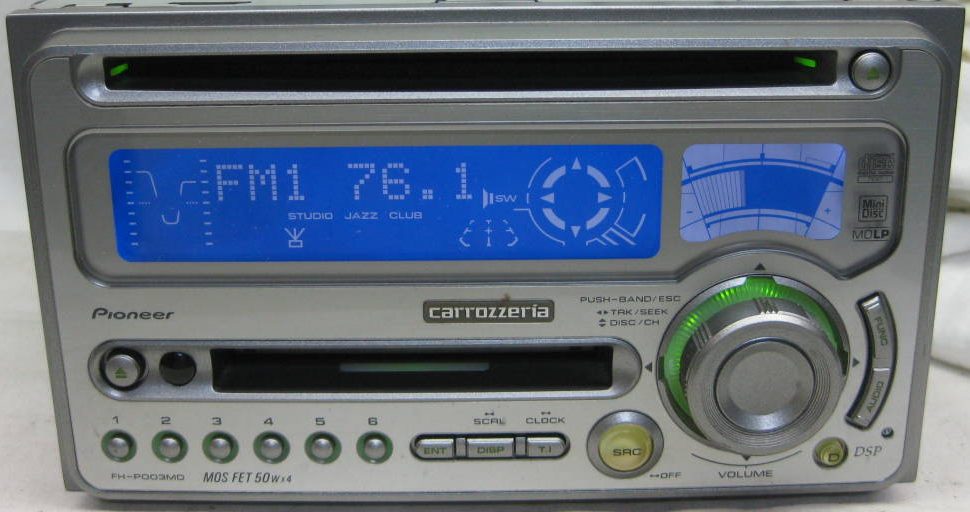

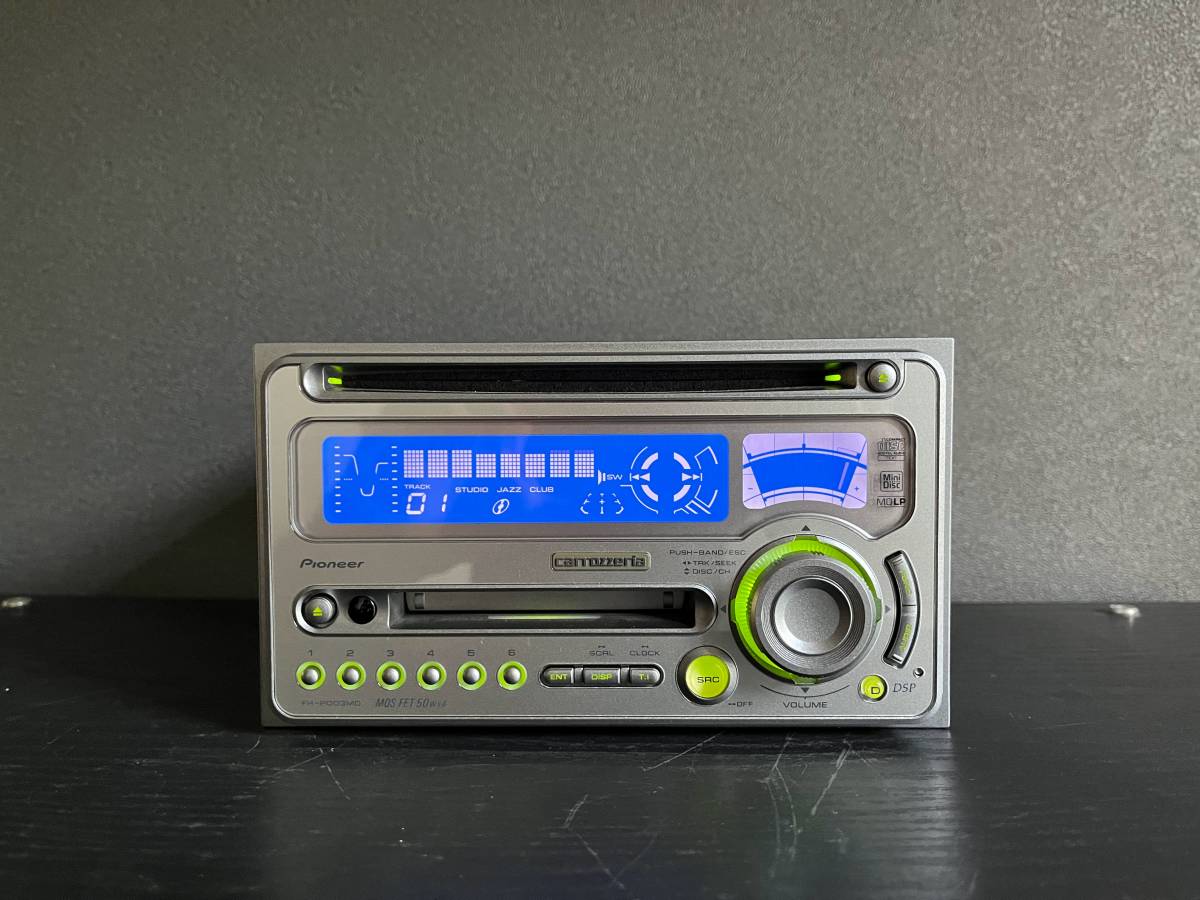

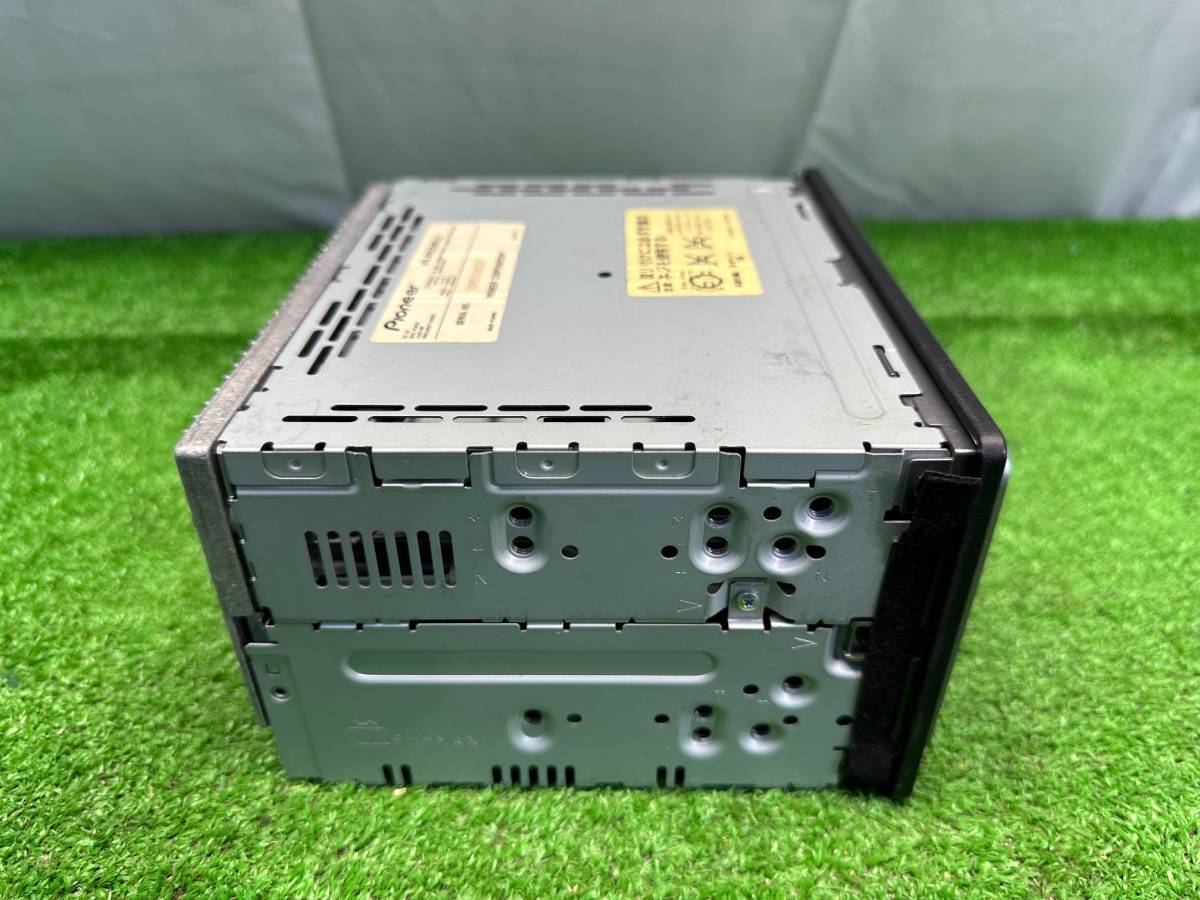

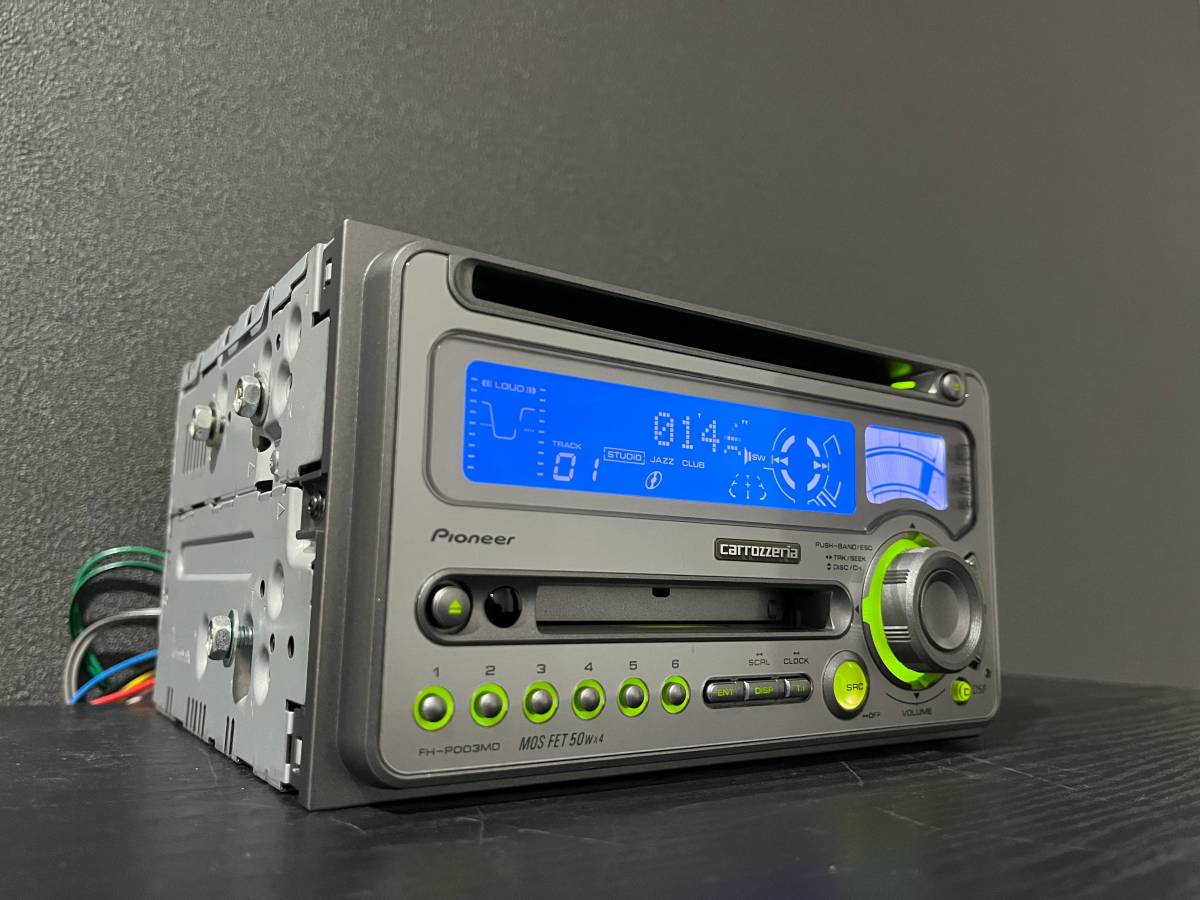

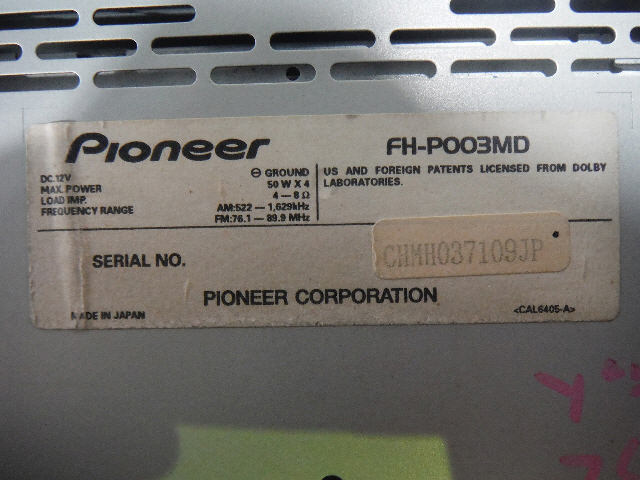

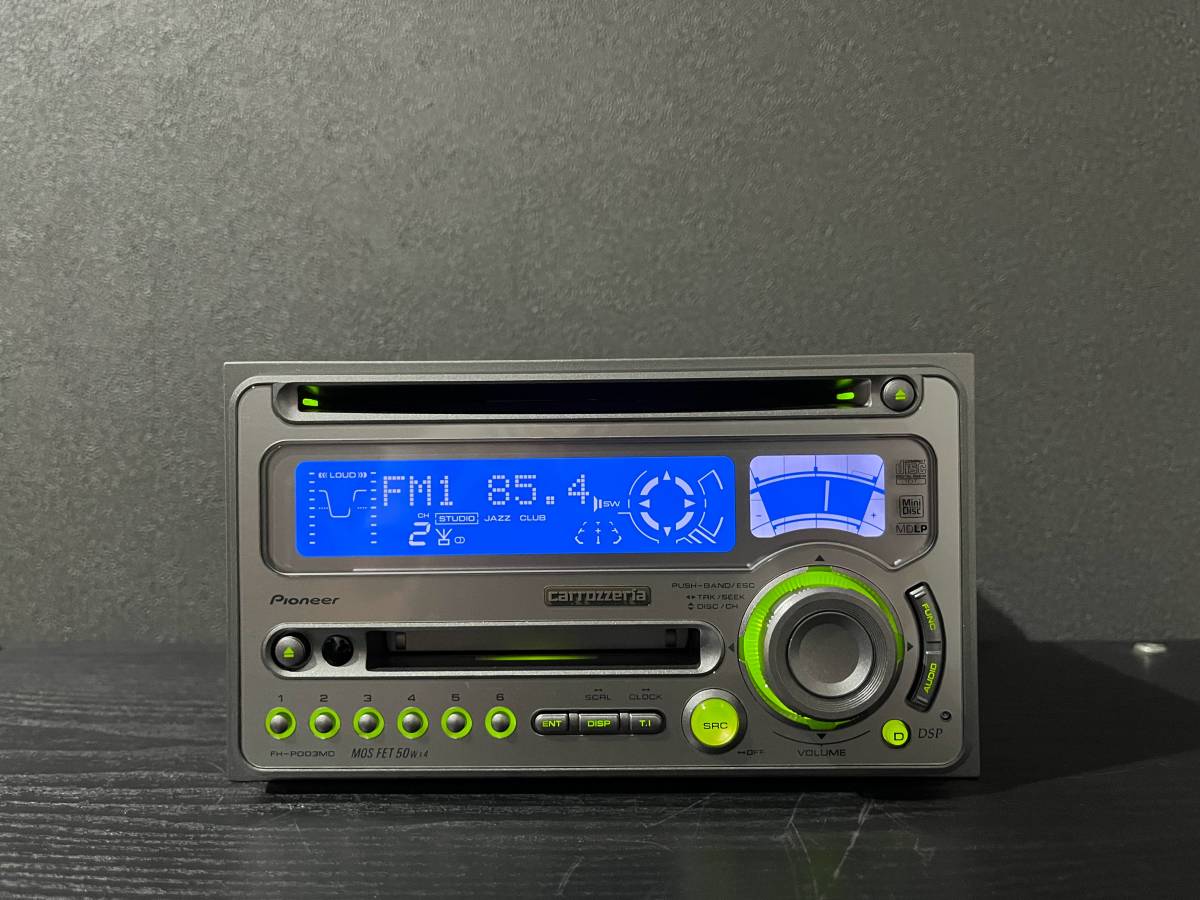

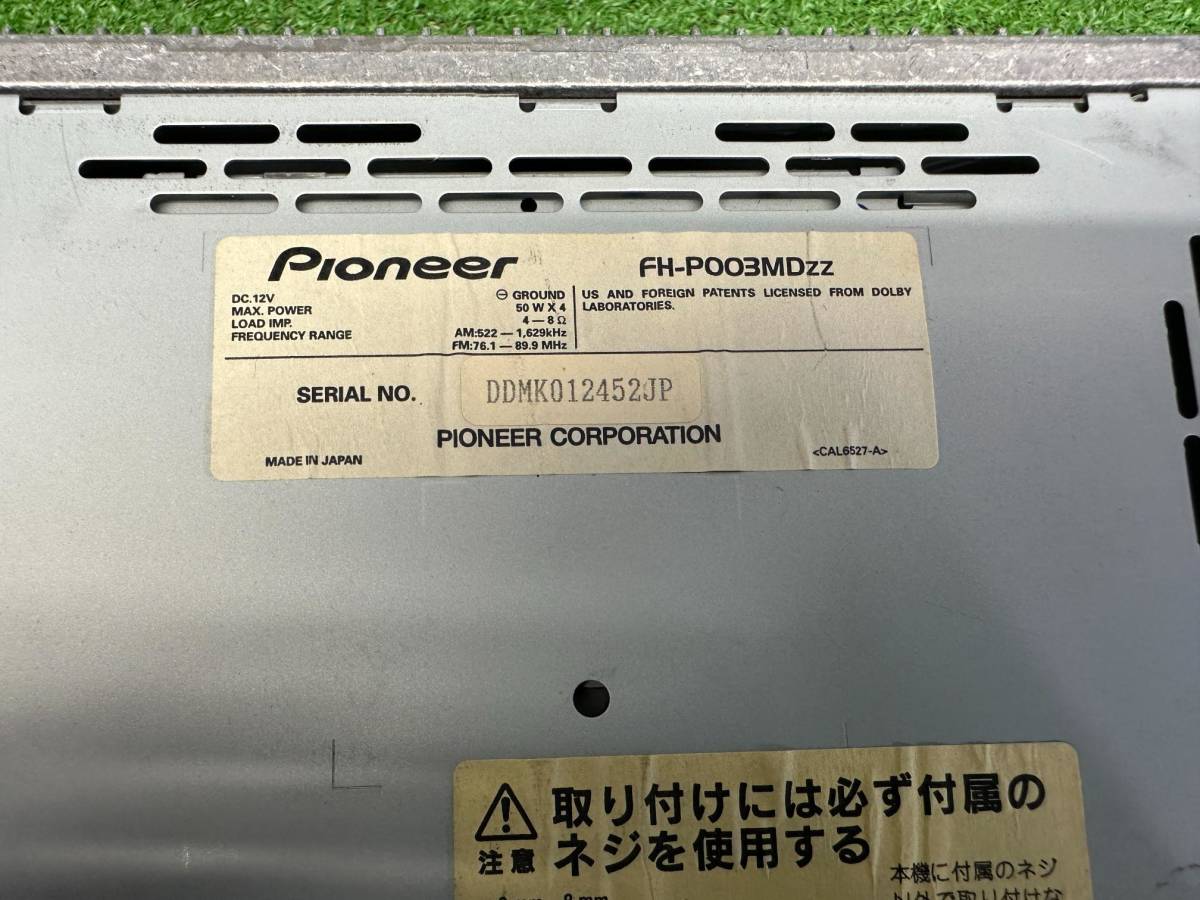

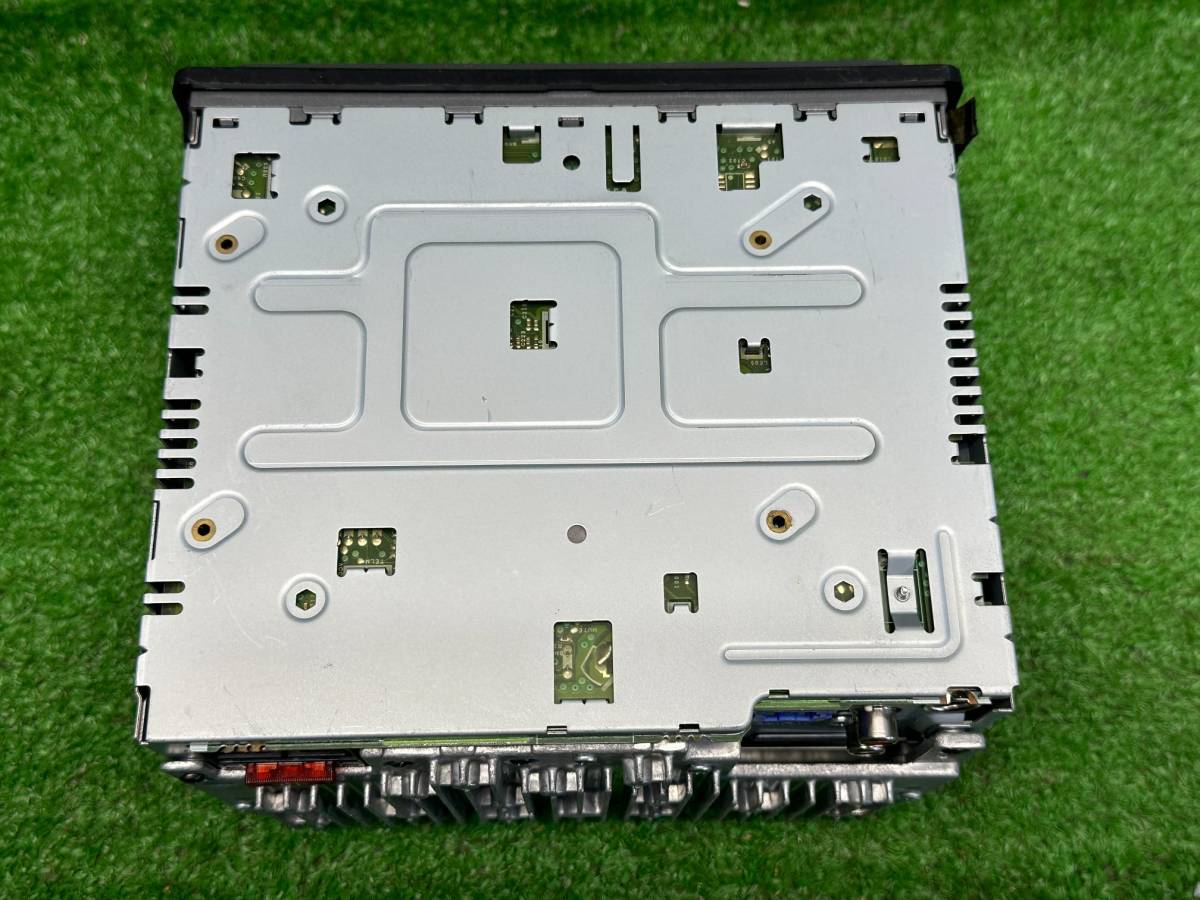

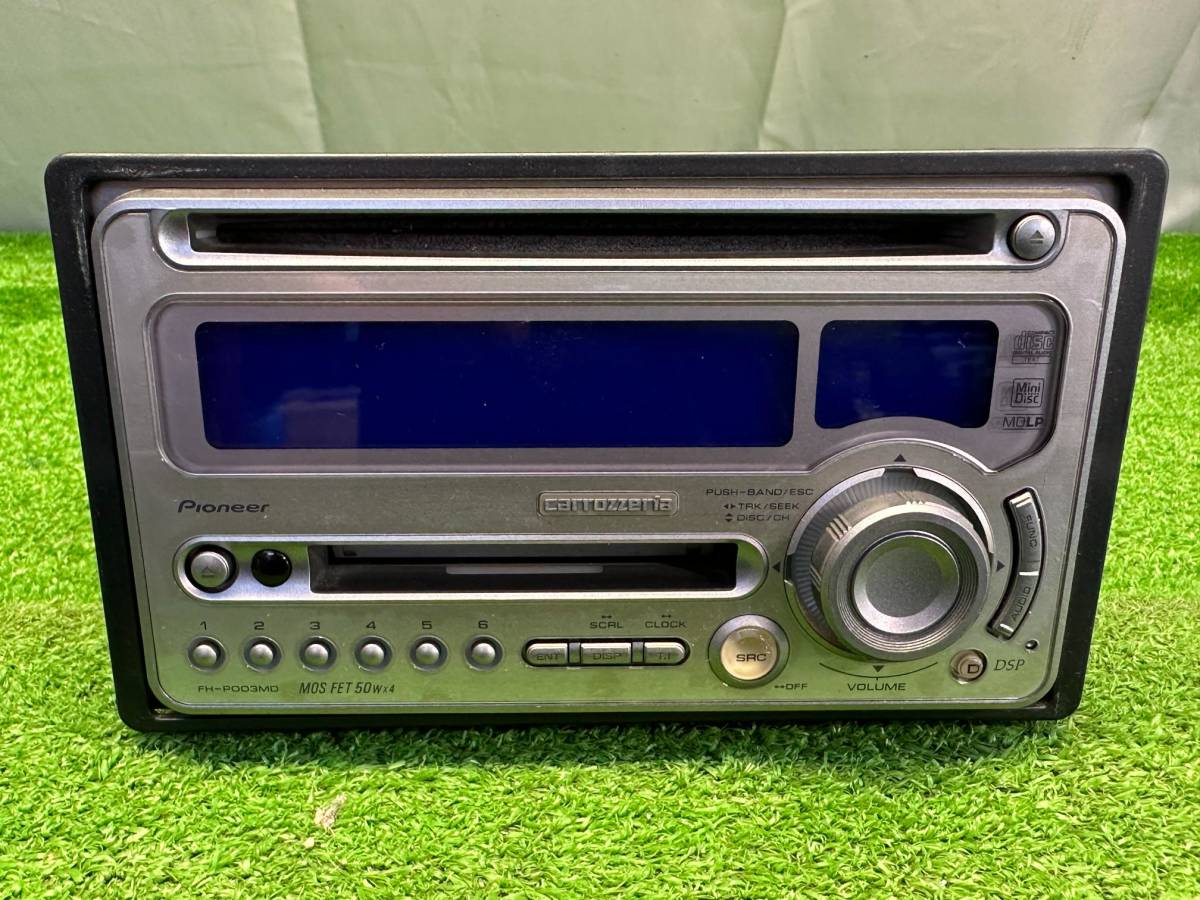

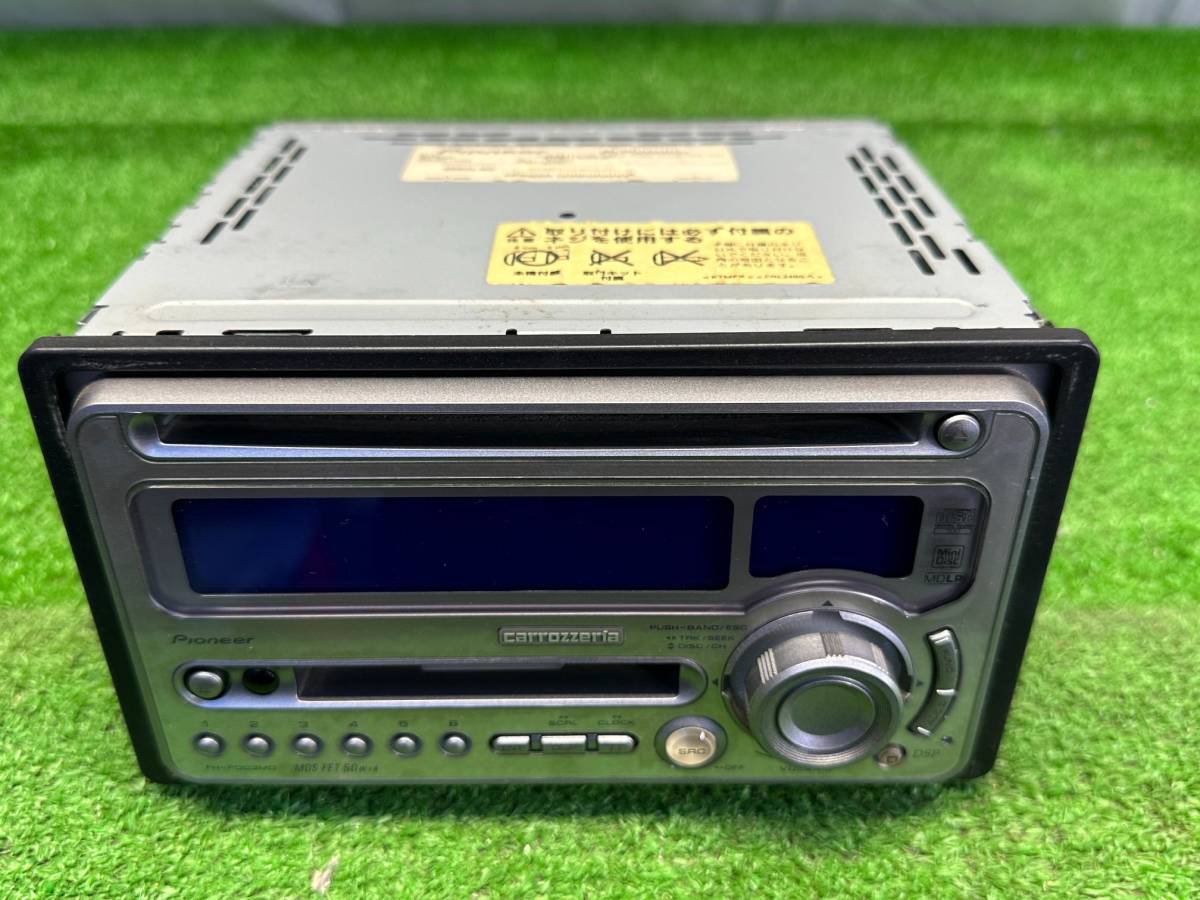

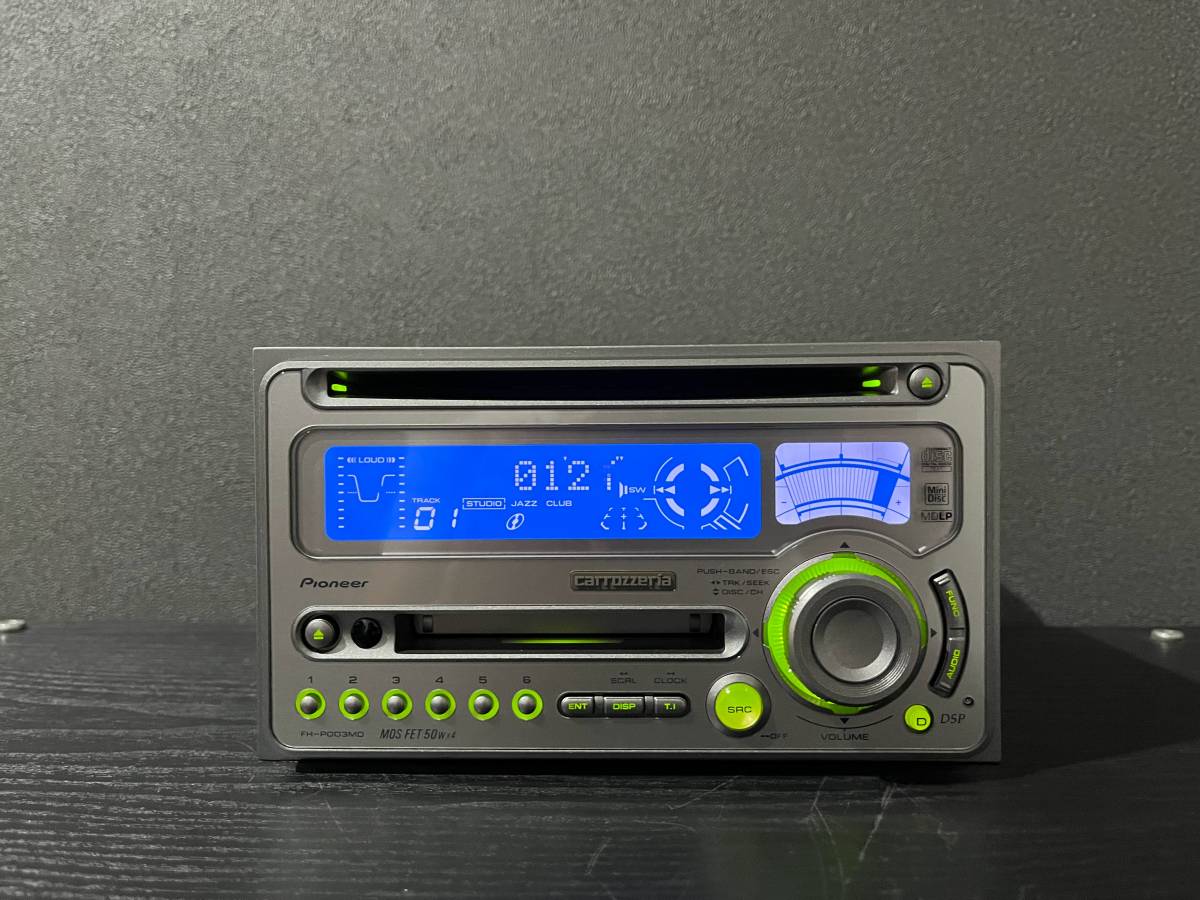

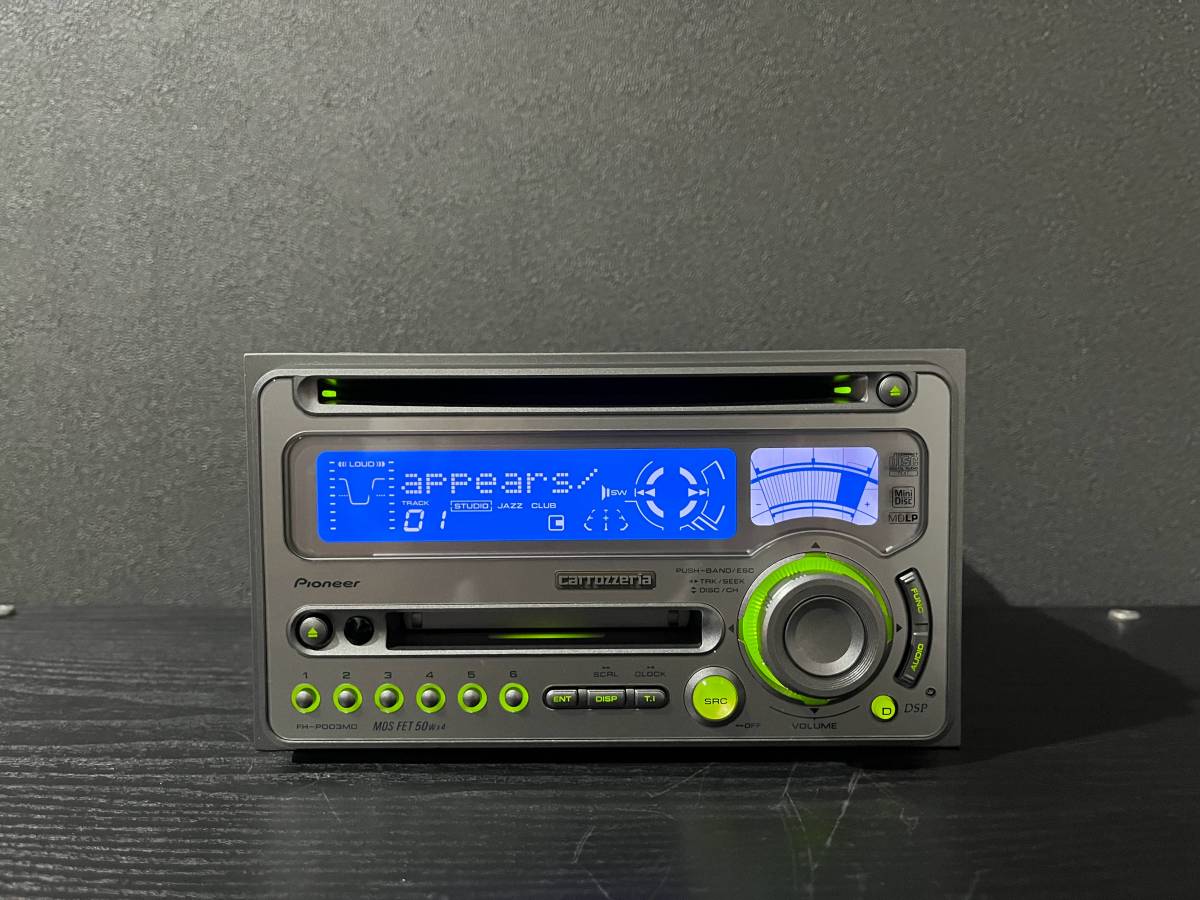

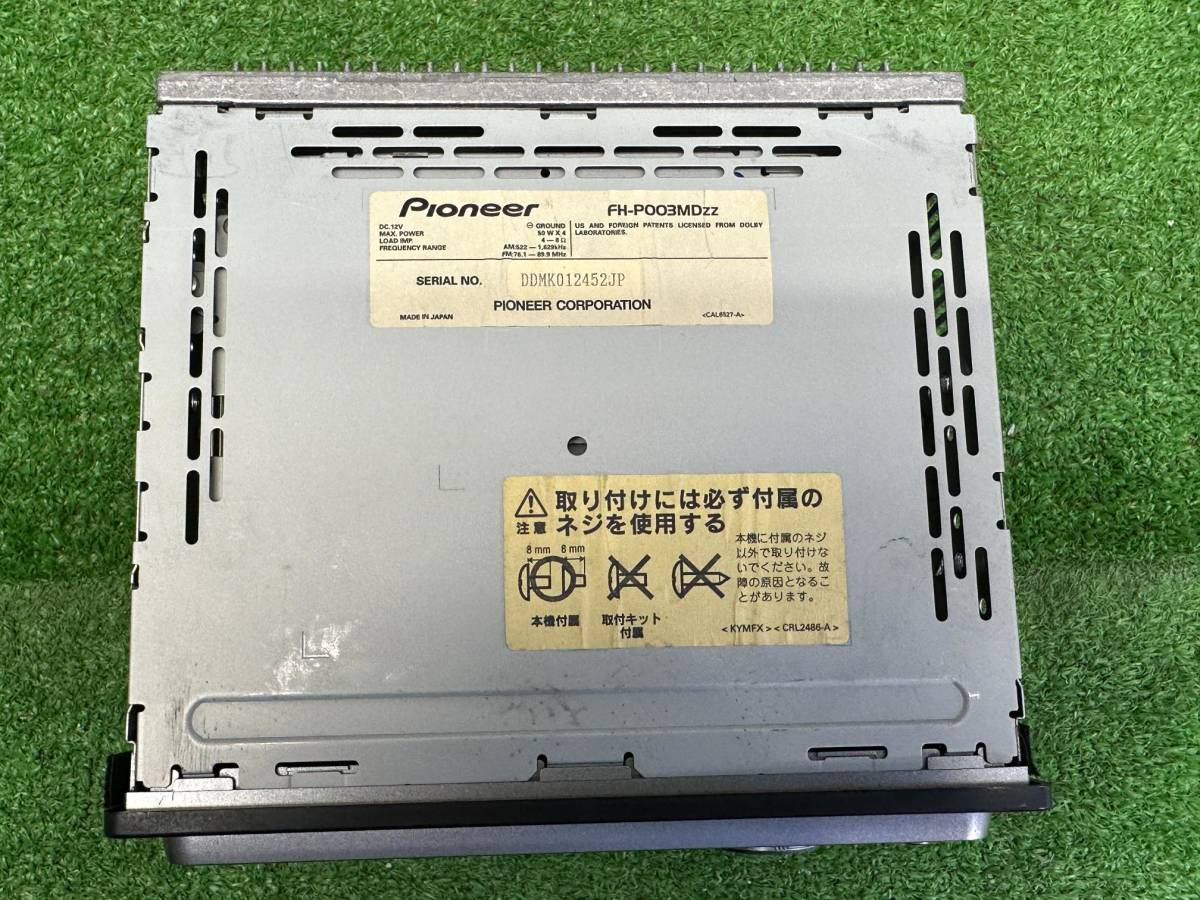

FH-P003MDzz:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
