Pioneer FH-P003MD/P005MD

Original source · Original dates and notices remain in the article. Historical advice may no longer apply.

Picture	Name	Desc	Price	Connectors	Dimensions

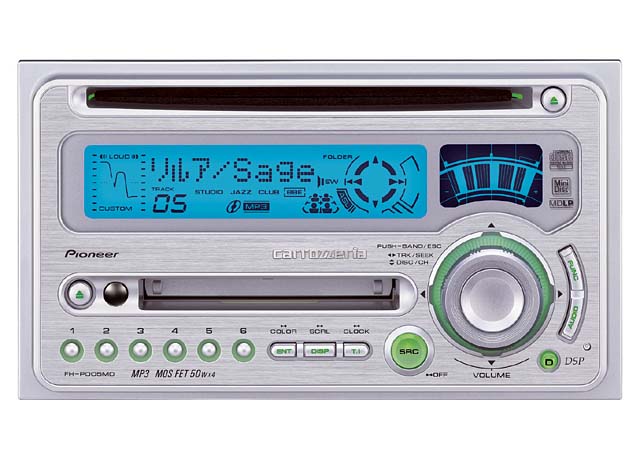

FH-P005MD FH-P003MD	Pioneer FH-P005MD Pioneer FH-P003MD	in-dash CD/MP3-CD/MDLP receiver Intro: 3/2003	FH-P005MD: ¥ 55,000, FH-P003MD: ¥ 49,800 Availability:	In: IP bus. Out: line: subwoofer or non-fading outputs, speakers	178w x 100h x 160d mm, 1.8Kg (2DIN)
Features: "MD-auto gain control" adjusts track volumes so that large differences do not occur between tracks. Selectable subwoofer and hi-pass filter cutoff frequencies (50, 63, 80, 100, 125Hz) and slope (-12, -18dB/octave). 9-band graphic equalizer (50, 100, 200, 400, 800, 1.7k, 3.15k, 6.3k, 12.5kHz) adjustable from -12dB to +12dB. CD-R/CD-RW compatible. Kana/Kanji title display for MDs and MP3-CDs Variants: FH-P005MD has these features, which the FH-P003MD does not: CD-Player handles MPEG-1&2 Audio Layer 3. "ASL" (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes). "Changeable color" BBE digital sound enhancement. Remote control included (available separately for FH-P003MD). Links: Pioneer Press release (Japanese) Pioneer FH-P005MD page. Pioneer FH-P003MD page. AVWatch (Japan) page. Specs: Amp: 50W x 4, SNR: 90dB, Dyn. Range: 90dB Reviews:


Name

Desc

Price

Connectors

Dimensions

in-dash CD/MP3-CD/MDLP receiver
Intro: 3/2003

FH-P005MD: ¥ 55,000, FH-P003MD: ¥ 49,800
Availability:

In: IP bus. Out: line: subwoofer or non-fading outputs, speakers

178w x 100h x 160d mm, 1.8Kg (2DIN)

Features:

"MD-auto gain control" adjusts track volumes so that large differences do not occur between tracks.
Selectable subwoofer and hi-pass filter cutoff frequencies (50, 63, 80, 100, 125Hz) and slope (-12, -18dB/octave).
9-band graphic equalizer (50, 100, 200, 400, 800, 1.7k, 3.15k, 6.3k, 12.5kHz) adjustable from -12dB to +12dB.
CD-R/CD-RW compatible.
Kana/Kanji title display for MDs and MP3-CDs

Variants: FH-P005MD has these features, which the FH-P003MD does not:

CD-Player handles MPEG-1&2 Audio Layer 3.
"ASL" (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
"Changeable color"
BBE digital sound enhancement.
Remote control included (available separately for FH-P003MD).

Links:

Specs: Amp: 50W x 4, SNR: 90dB, Dyn. Range: 90dB

Reviews:
