| Name | X-MDX707 |
|---|---|
| Manufacturer | Pioneer |
| Released | 1999/01 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - world band |
| Dimensions | Main unit: 160 x 237 x 350 mm Speaker: 130×234×226mm |
| Weight | 6.5kg (main unit) 1.9kg (each speaker) |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, CD, Tape deck |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone, Speaker amplifier |
| Control | Not recorded |

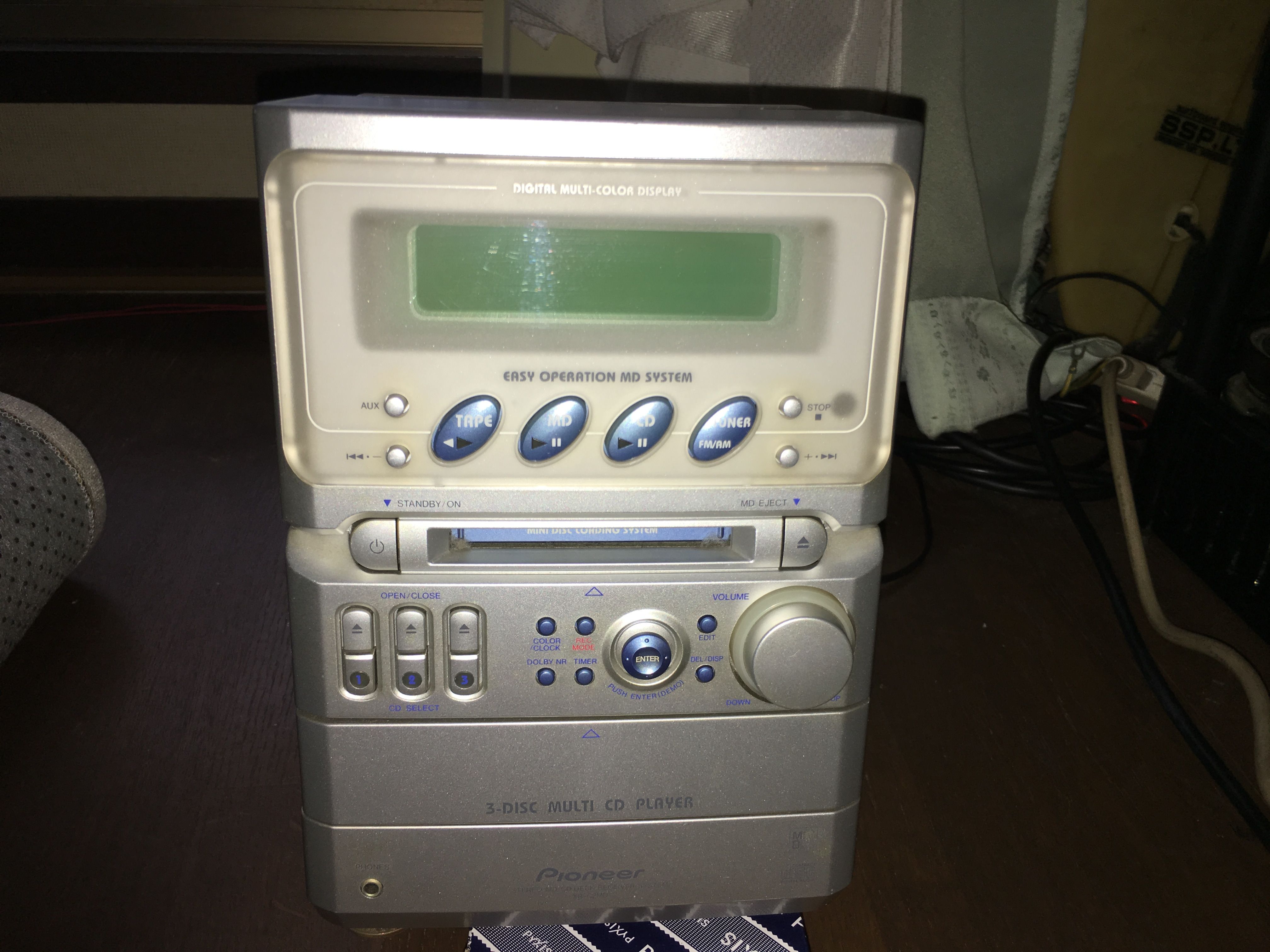

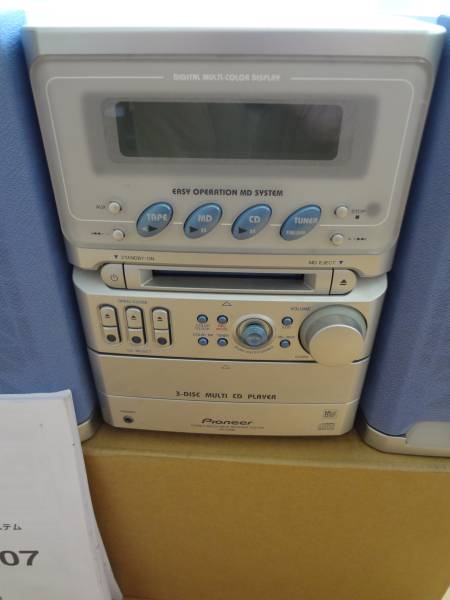

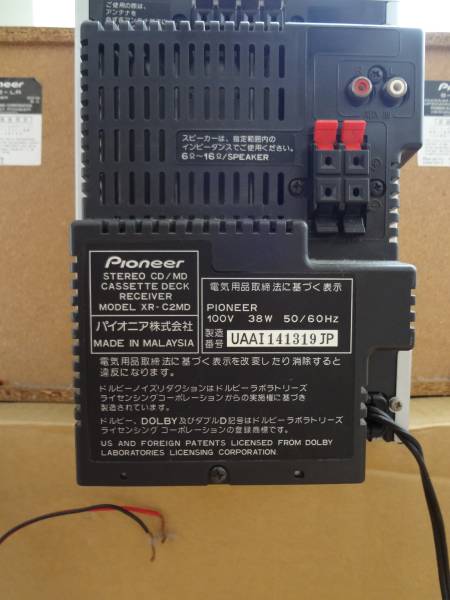

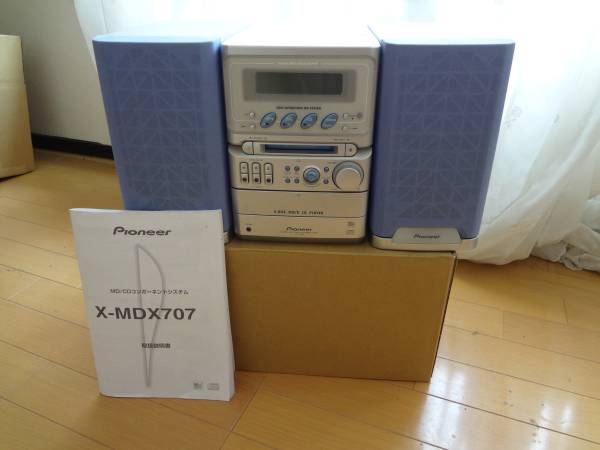

Pioneer X-MDX707. Closely related to the XR-C2MD
Amplifier section practical maximum output (EIAJ): 15W + 15W (1kHz, 10%, 6 Ω)
Remote: CU-XR043
Content adapted from:
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Remote Page | cu-xr043 |
| Pickup | KMS-260A |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | Japan |
