Device

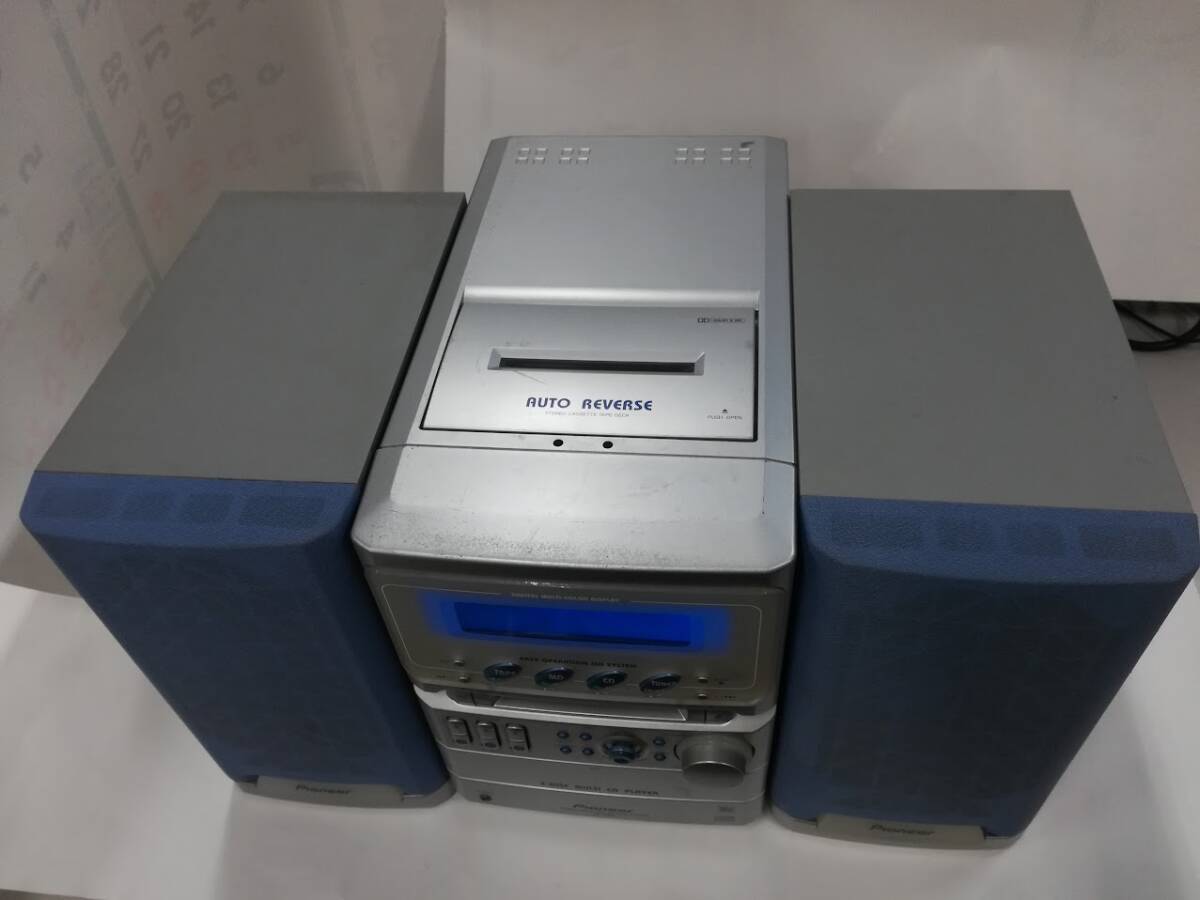

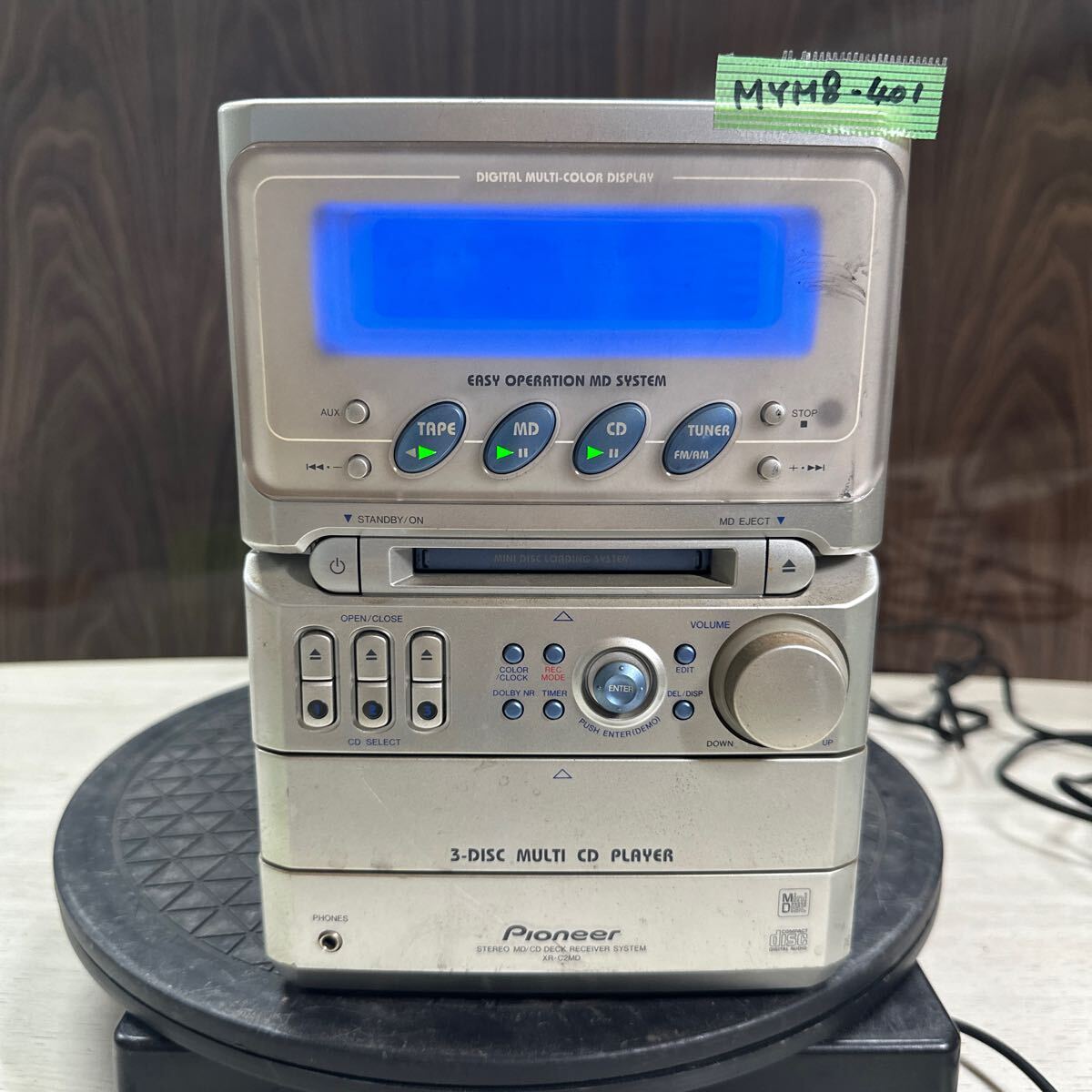

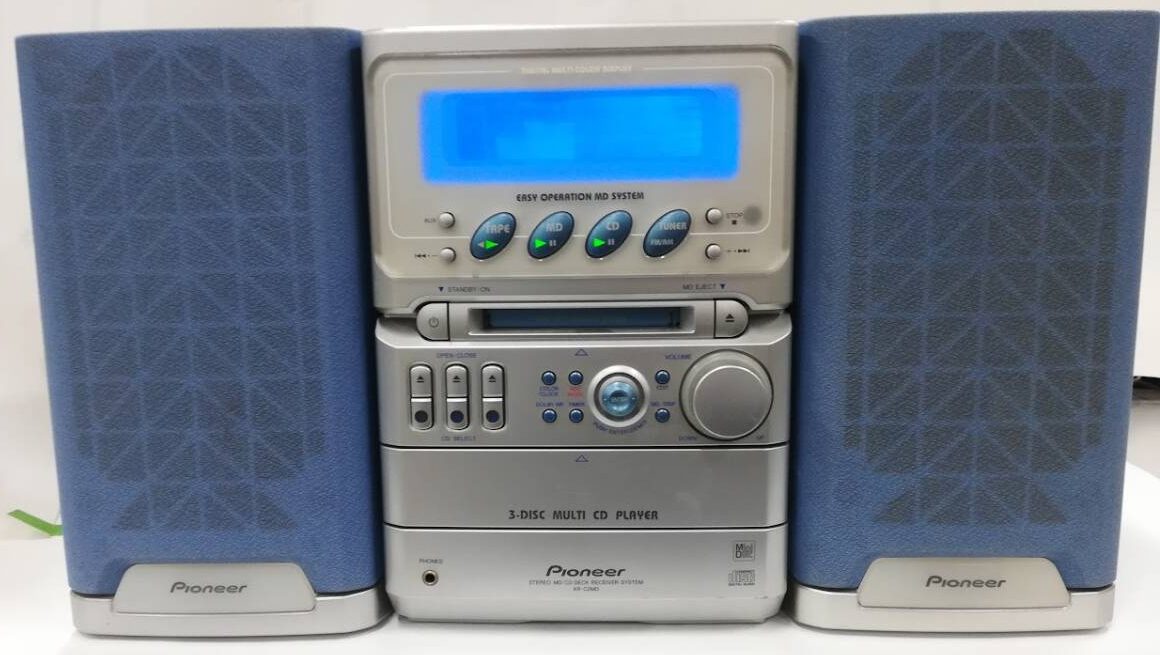

Pioneer XR-C2MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-10-18

Manufacturer
Pioneer
Model / source grouping
XR-C2MD
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer XR-C2MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name XR-C2MD
Manufacturer Pioneer
Released Not recorded
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions Not recorded
Weight Not recorded
ATRAC ver 4
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

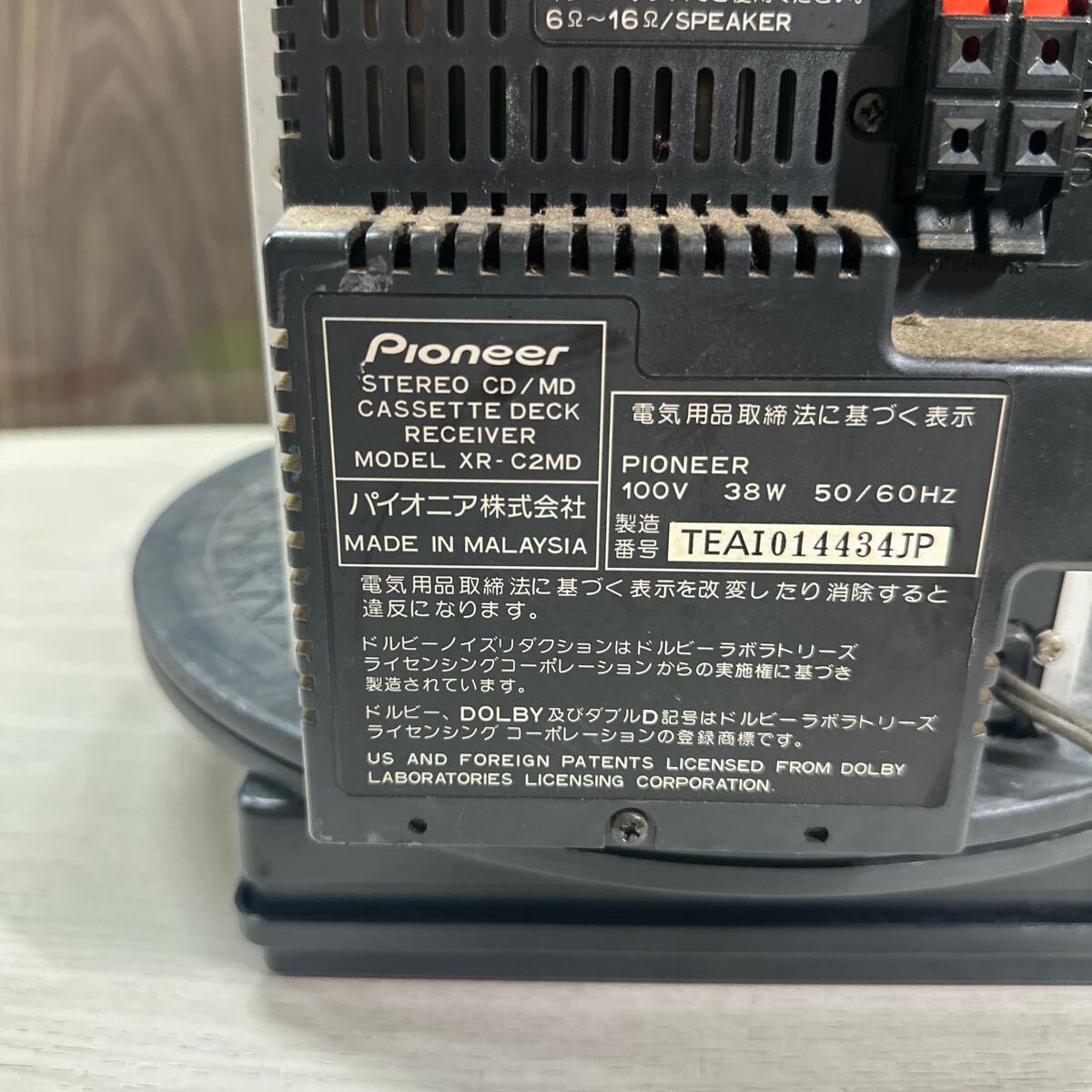

Voltage 12
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-

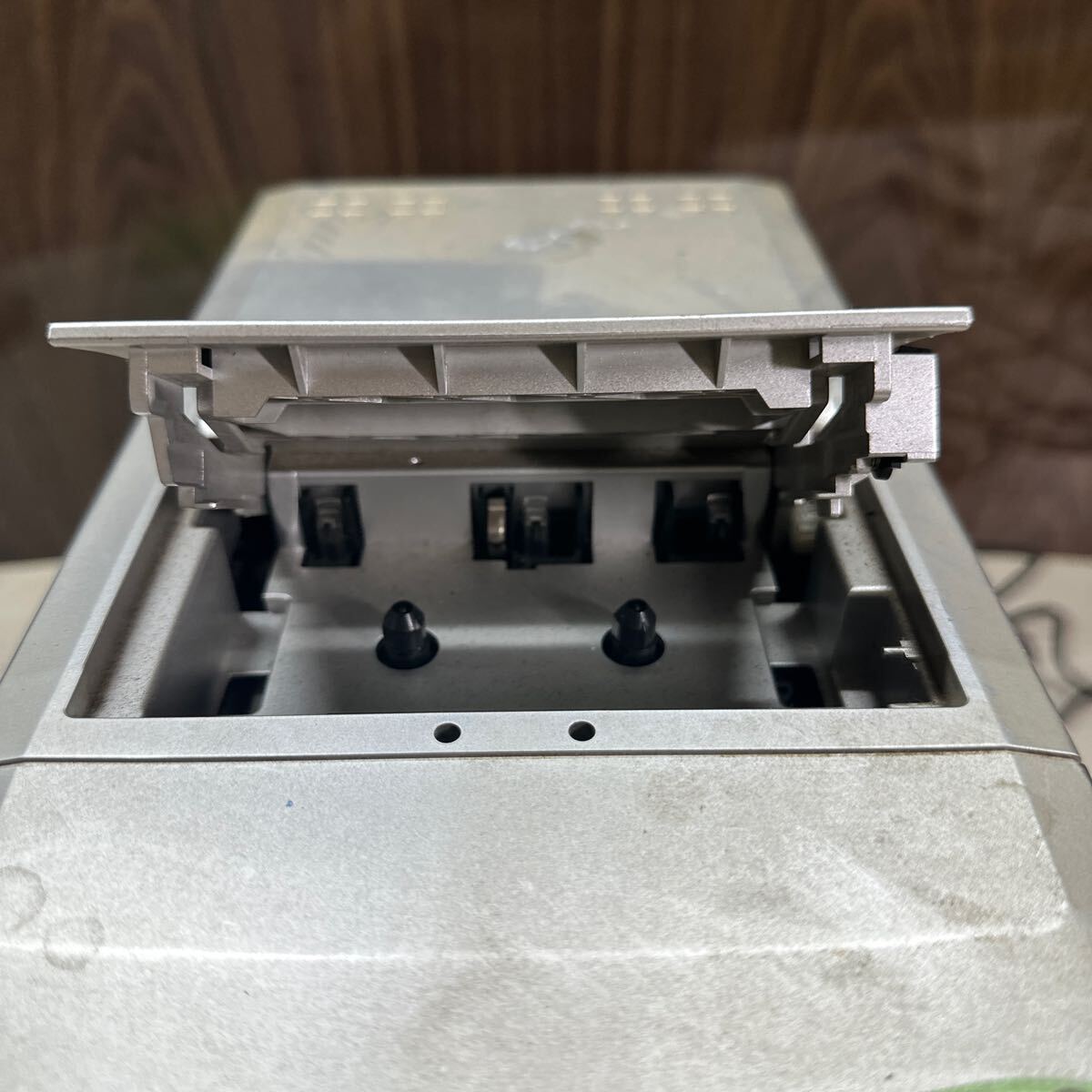

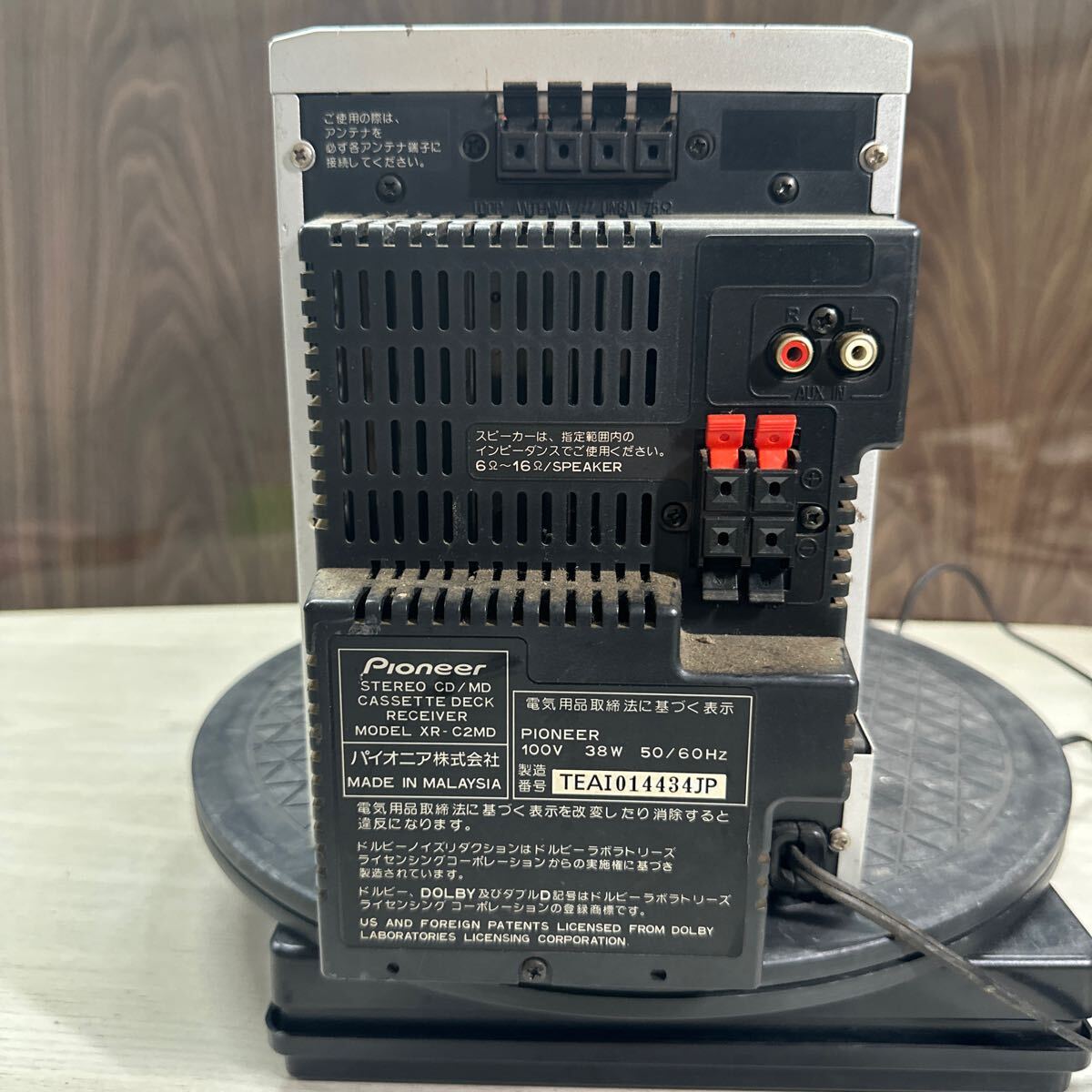

Inputs RCA in, CD, Tape deck
Outputs 3.5mm headphone, Speaker amplifier
Control Not recorded

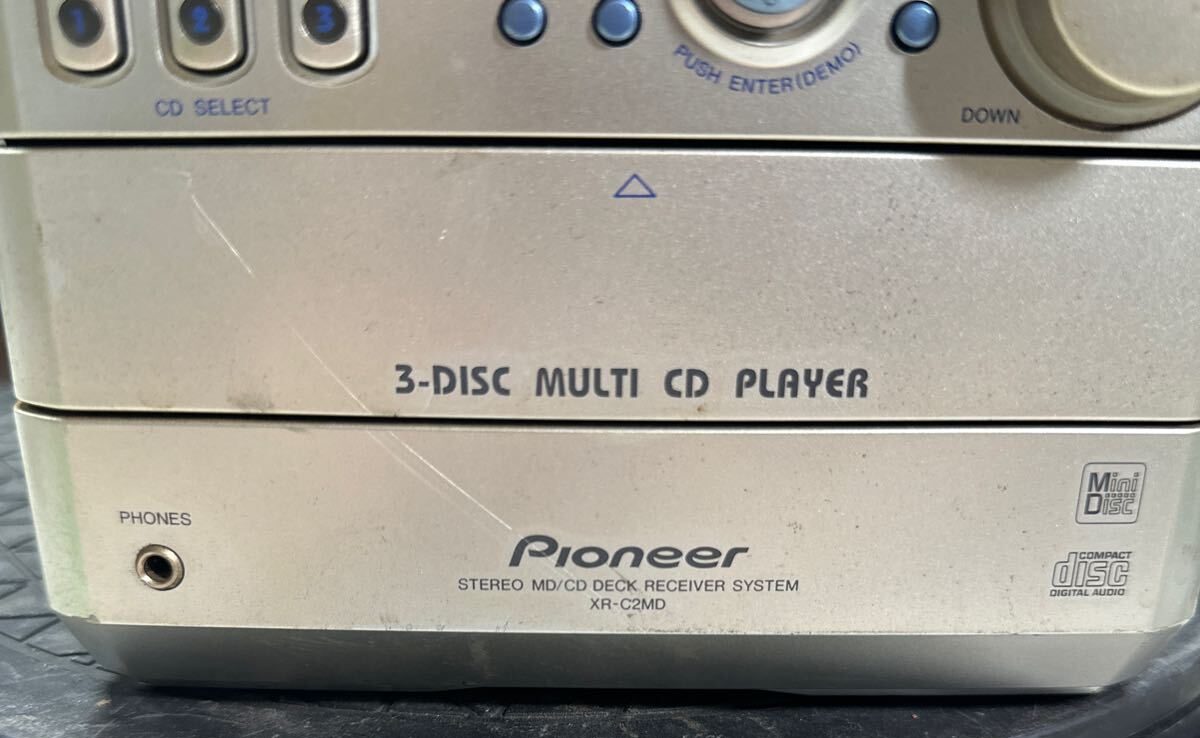

Pioneer XR-C2MD. Shares a service manual with the X-MDX707.

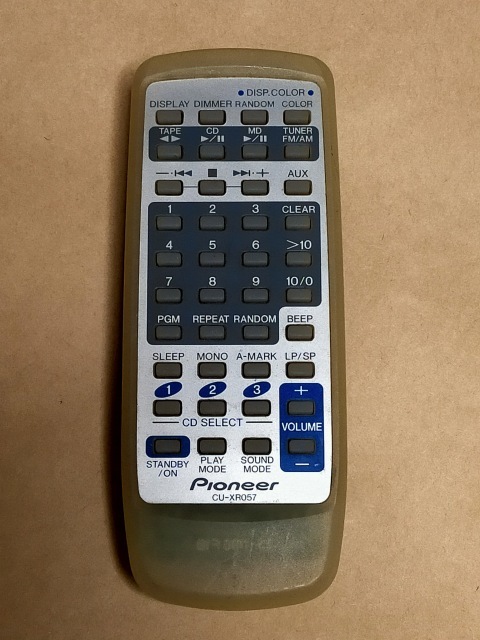

Remote: CU-XR057

Optical Pickup: KMS-260A
ATRAC IC: CXD2652AR

Content adapted from:

Manuals

Pioneer XR-C2MD / X-MDX707 Service Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
Remote Page
PickupKMS-260A
Atrac IcCXD2650R / CXD2652/R/AR
ManualService manual
RegionJapan
