| Name | MD-02B |
|---|---|
| Manufacturer | Tascam |
| Released | 2009/10 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 482.6 x 94 x 308.7 |
| Weight | 4500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 120, 230 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, XLR in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, XLR out, Digital optical (TOSLINK), Digital coaxial |
| Control | PS/2 keyboard |

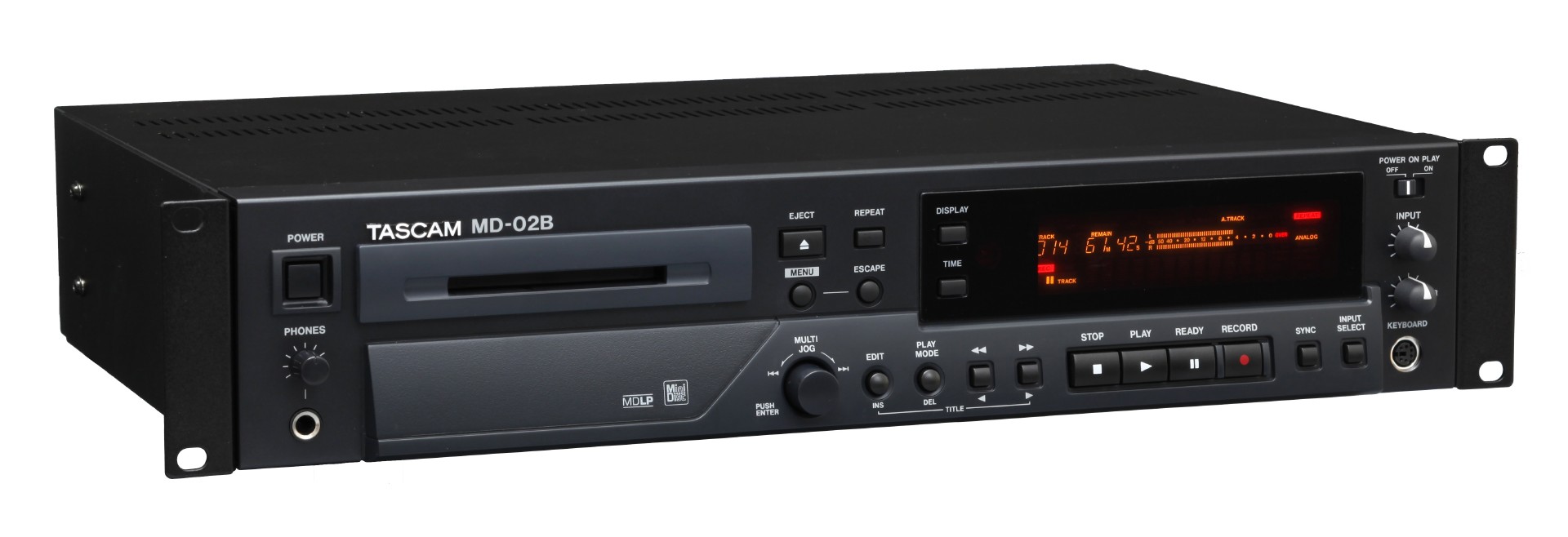

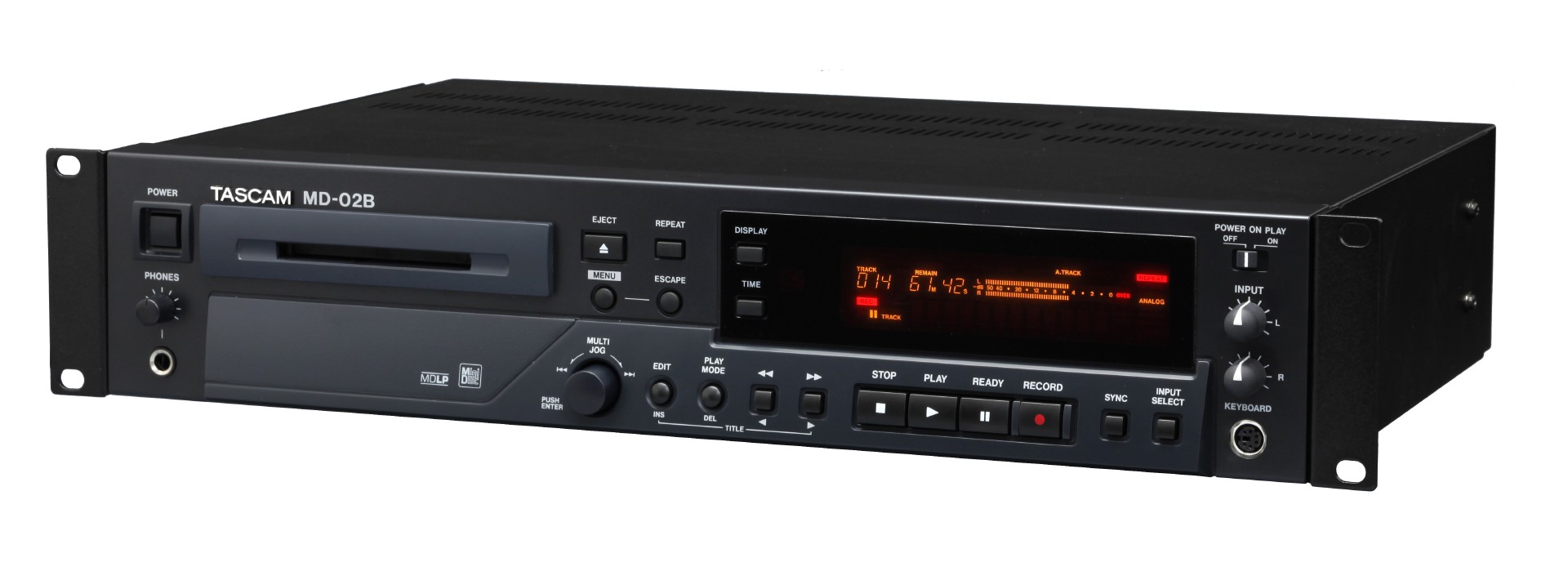

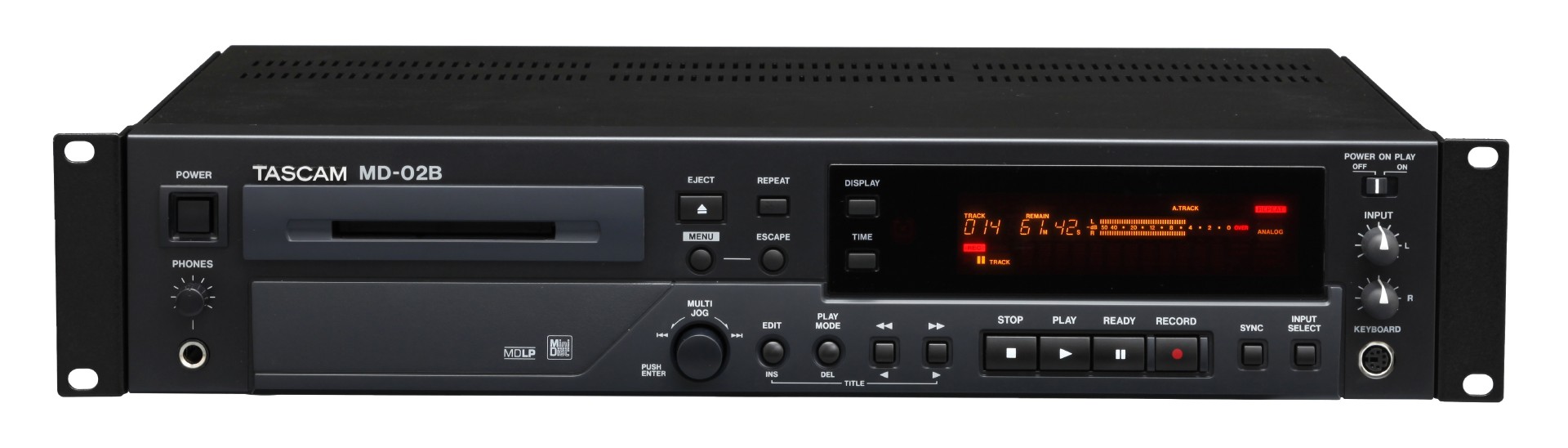

Tascam MD-02B. Replaced by MD-CD1BMK3
- 2u rackmount MiniDisc recorder
- Stereo, Mono, LP2, LP4 recording modes
- 44.1kHz/16-bit recording resolution
- ATRAC3 encoding
- Power-on play

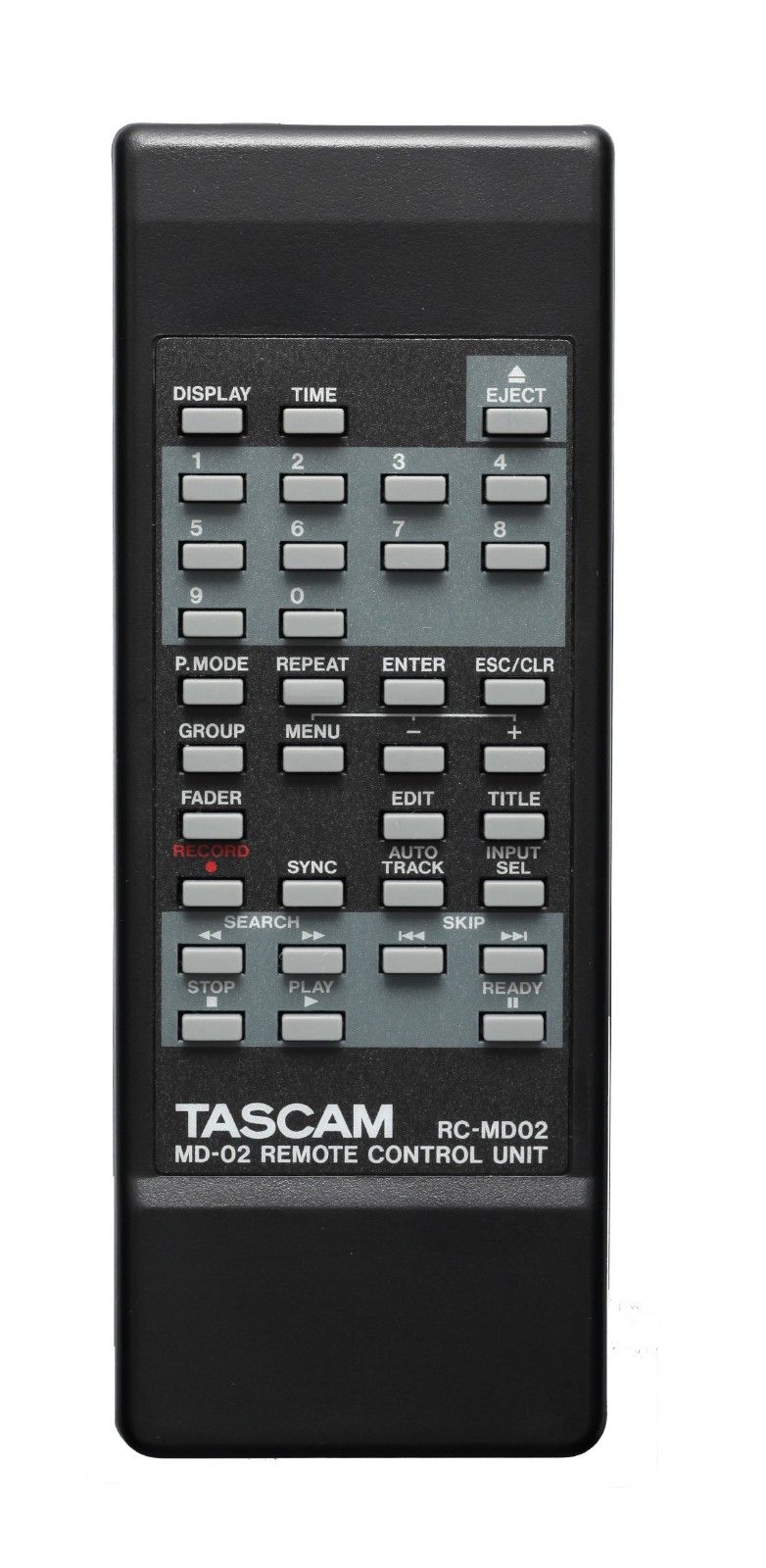

- Included RC-MD02 35-key wireless remote control

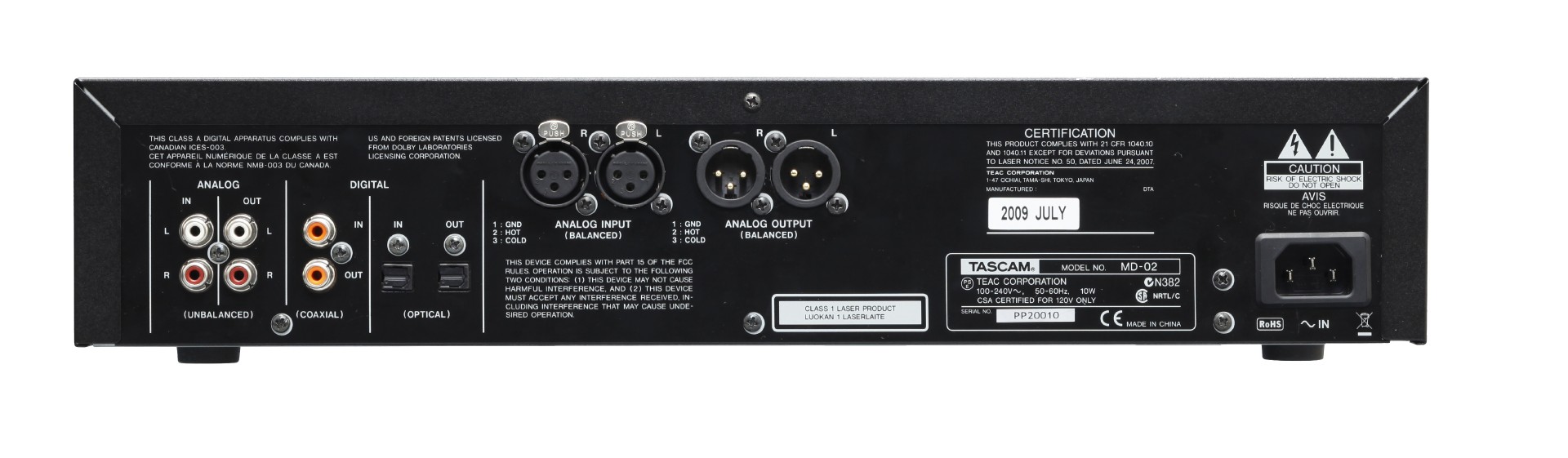

- Balanced XLR or unbalanced RCA inputs and outputs
- Coaxial and Optical S/PDIF digital input and output
- 1/4" stereo headphone output
- PS/2 keyboard input for labeling tracks
- 120-230V, 50 or 60Hz universal power input
Content adapted from: Tascam product page Tascam announcement of MD-02B being updated/released
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
