| Name | DM-F70 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1995/12 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 270 x 124 x 335mm |
| Weight | 3.0kg |
| ATRAC ver | Not recorded |

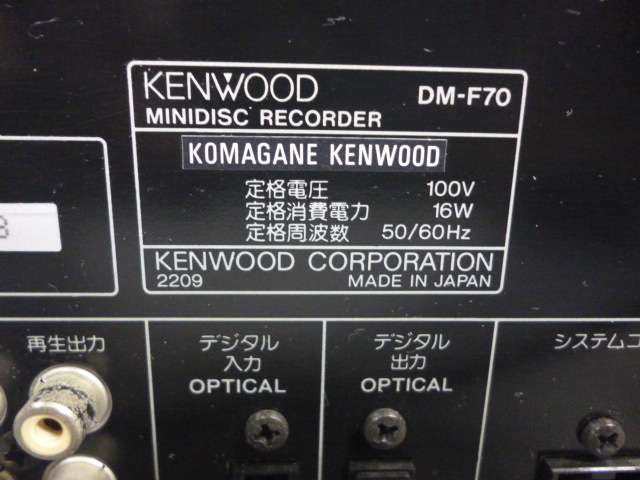

| Power cable | AC |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |

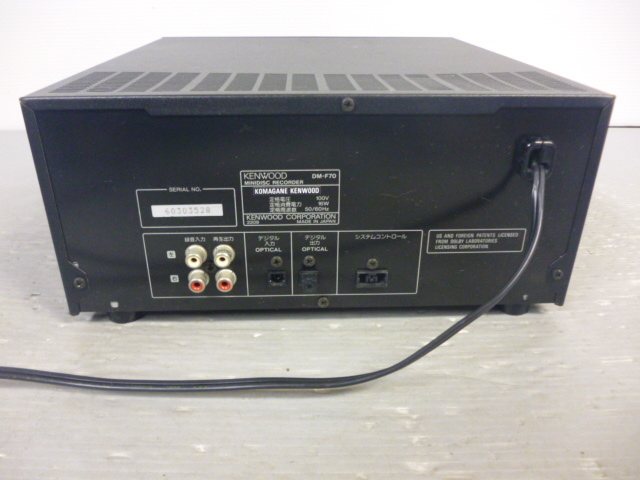

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
See also: Sharp MD-R1, Pioneer MJ-P5
Features: Sampling rate converter. Synchro recording (start recording when audio appears at input). Title search. Built in wall clock based timer for recording and playback.

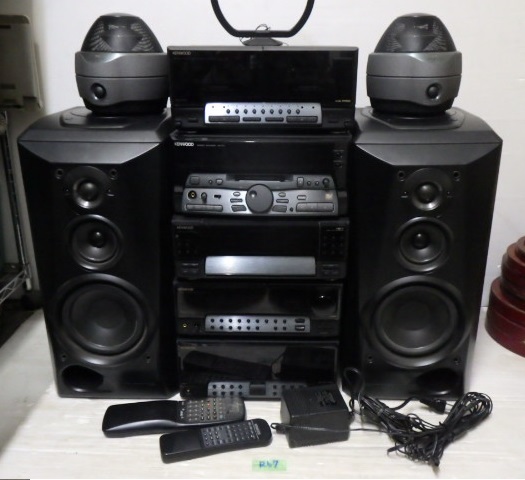

Appears to have been sold as a mini modular system with DP-ME9, C-E9, B-E9, X-E9, and / or OMNI-A5.

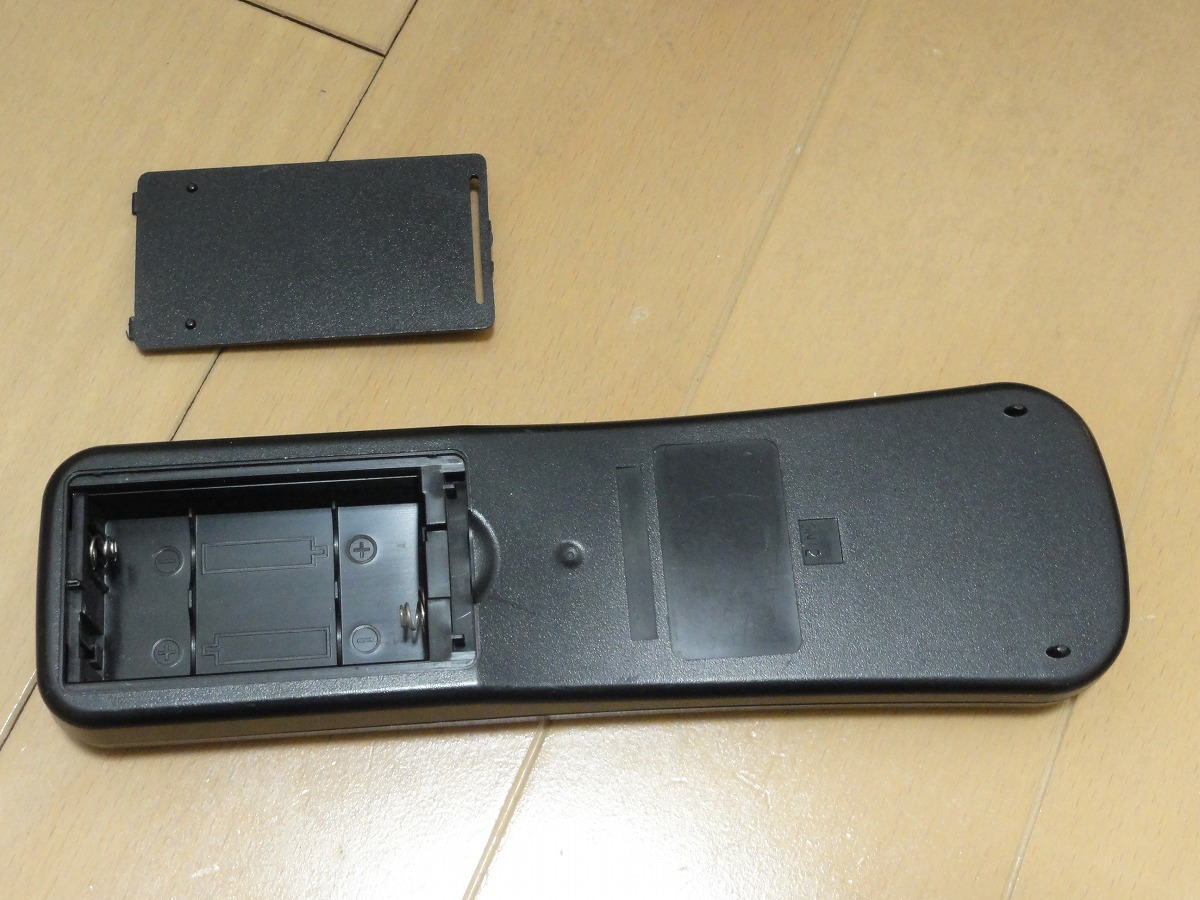

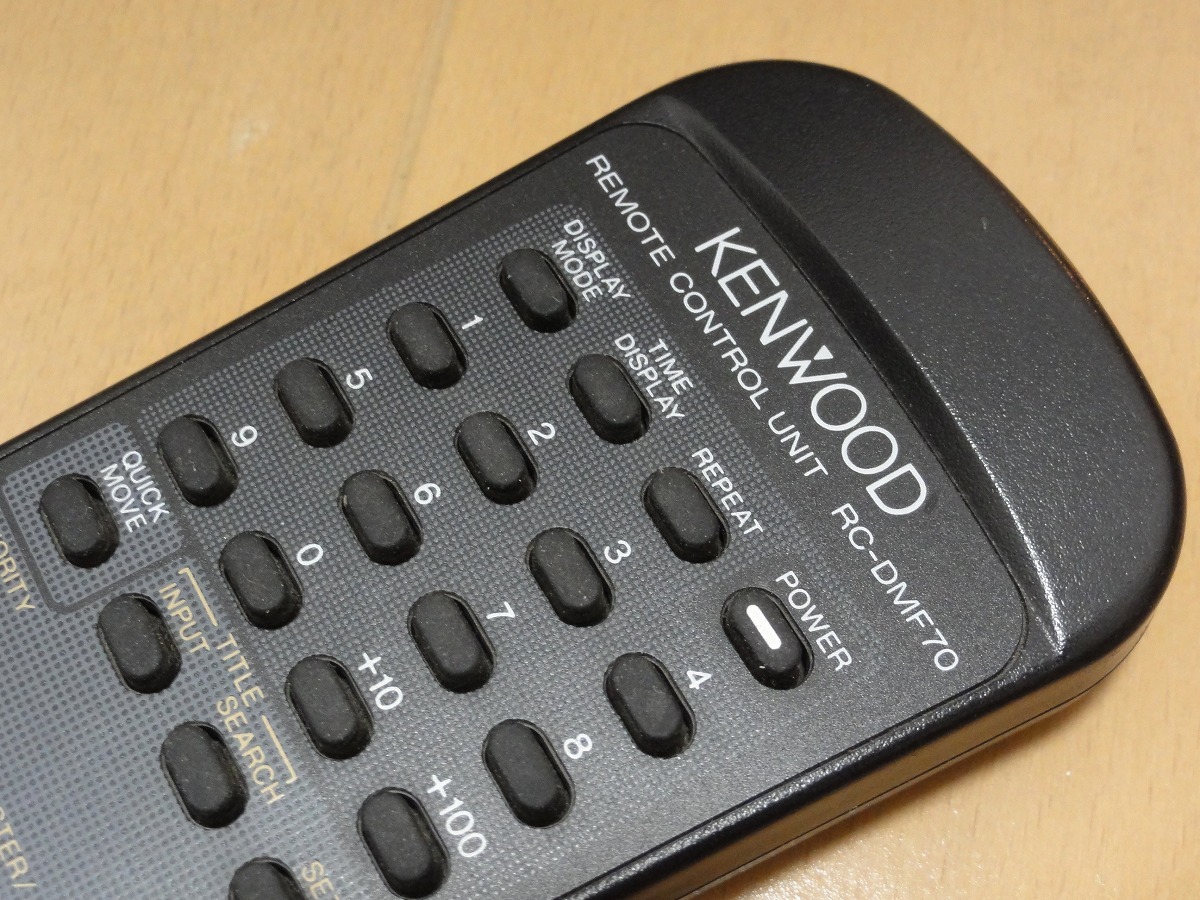

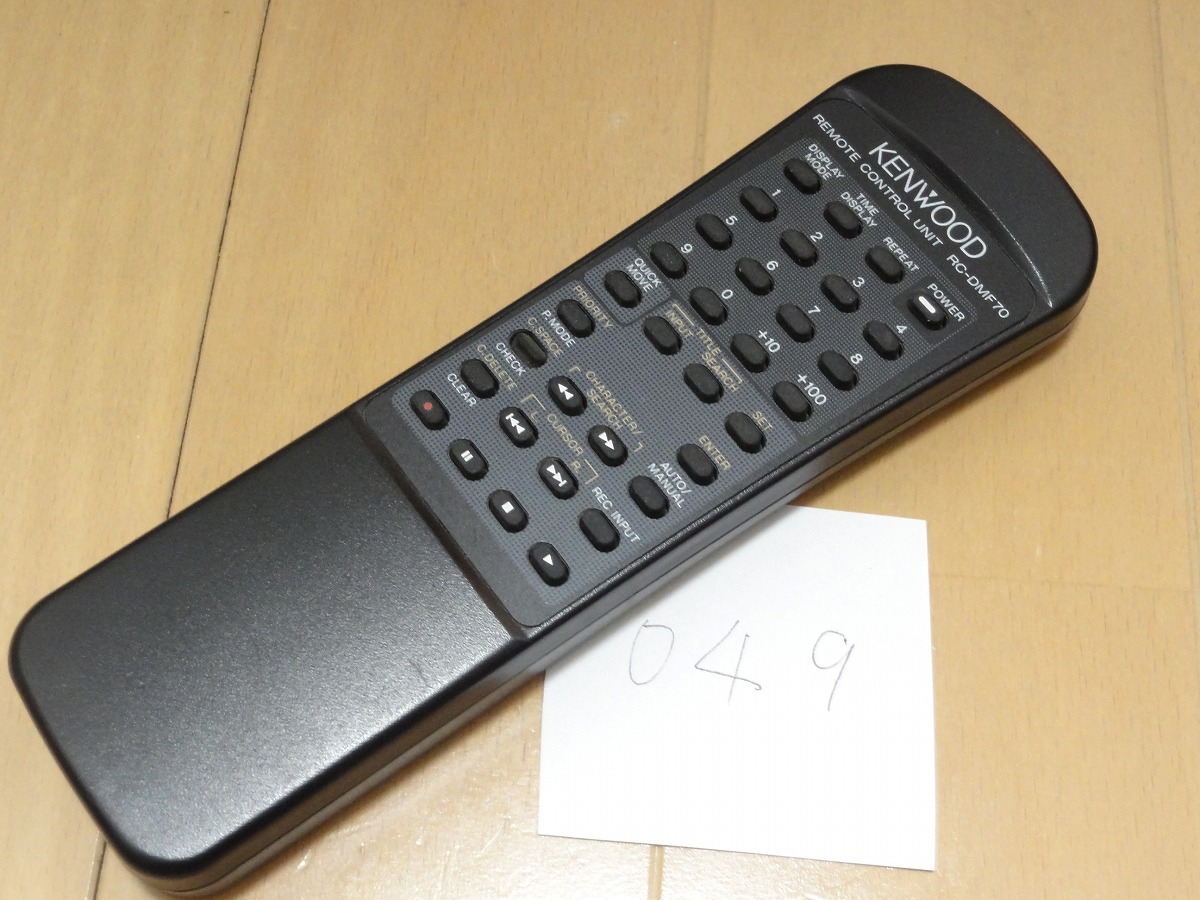

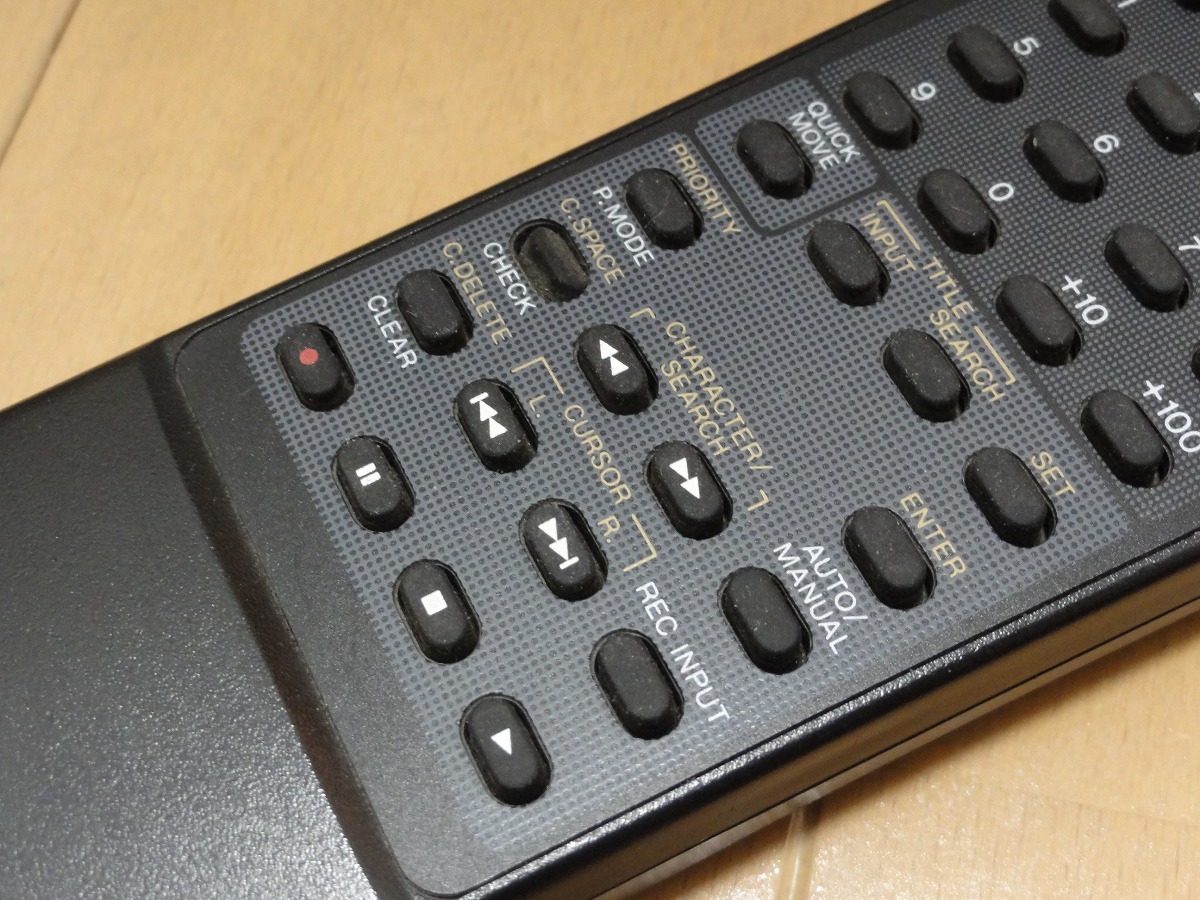

Remote: RC-DMF70
Criticism: Sampling rate conversion is a very convenient feature. It will be a must for MD decks before long. But be careful to check the performance. I found the specs of Sharp's sampling rate converter in IEEE trans. on consumer electronics. They are .. S/N 90dB, Distortion 0.005% (1kHz) That's about 14-bit accuracy. I've not yet checked the sound quality myself, but I'm afraid that it will affect the sound quality of low level music [when sampling rate conversion is used]. -Takeshi SASAKI
Content adapted from: Minidisc.org page, Yahoo Auctions listing
Manuals
Repair

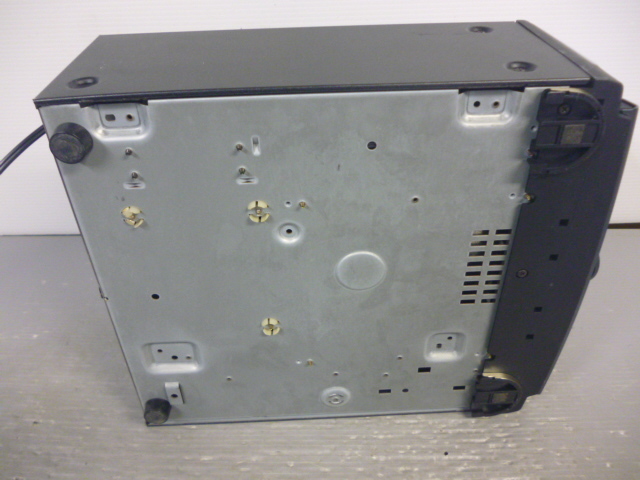

Photos
