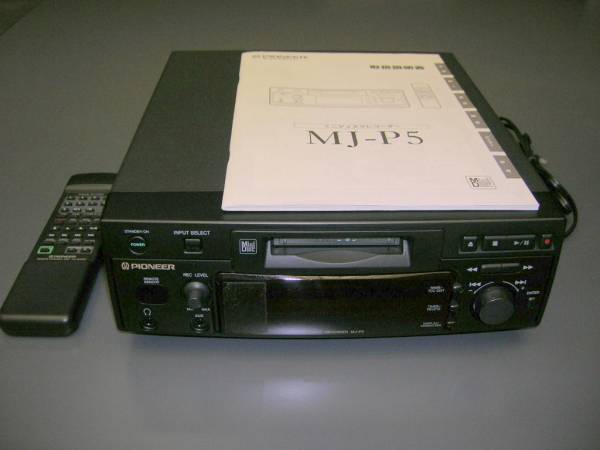

Pioneer MJ-P5

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-04-05

Manufacturer
Pioneer
Model / source grouping
MJ-P5
Device type
deck
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MJ-P5”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MJ-P5
Manufacturer Pioneer
Released 1995/12
Device type deck
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 270 (W) x 98 (H) x 311 (D) mm
Weight 3.1kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥59 000
-
Inputs 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), Digital coaxial
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

Proper model# is MJ-P5-S. See also: Sharp MD-R1, Kenwood DM-F70

Features:

  • Synchro recording (start recording when audio appears at input)
  • Sampling rate converter
  • Monaural 2x long-time recording mode
  • Title search
  • Equipped with an automatic recording date and time record that allows you to record and check the date and time (year/month/day) recorded on the MD

Criticism: Sampling rate conversion is a very convenient feature. It will be a must for MD decks before long. But be careful to check the performance. I found the specs of Sharp's sampling rate converter in IEEE trans. on consumer electronics. They are .. S/N 90dB, Distortion 0.005% (1kHz) That's about 14-bit accuracy. I've not yet checked the sound quality myself, but I'm afraid that it will affect the sound quality of low level music [when sampling rate conversion is used]. -Takeshi SASAKI

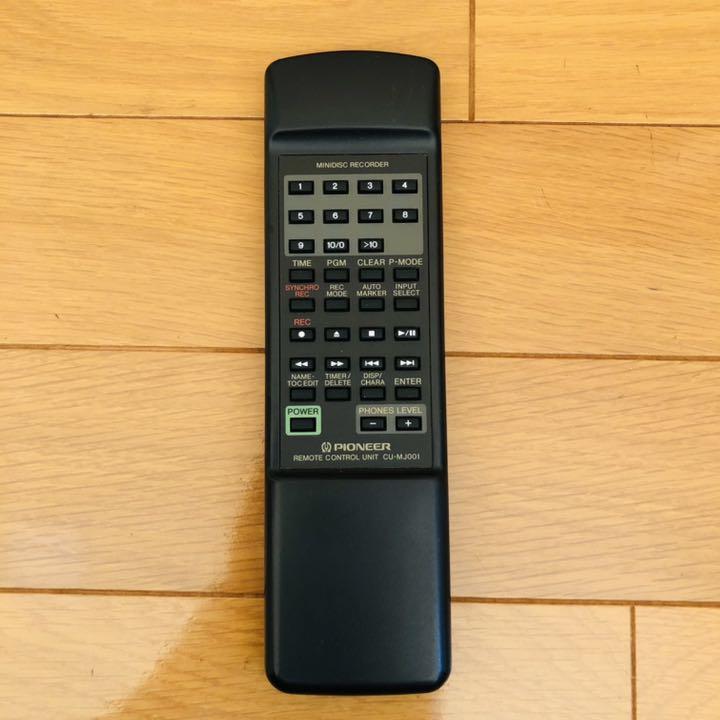

Remote: CU-MJ001

Content adapted from: Minidisc.org page Pioneer Press Release Pioneer Press Release (MiniDisc Wiki mirror) - silver model released Oct-1996 Pioneer History page saying it was released 12-1995

Manuals

Repair

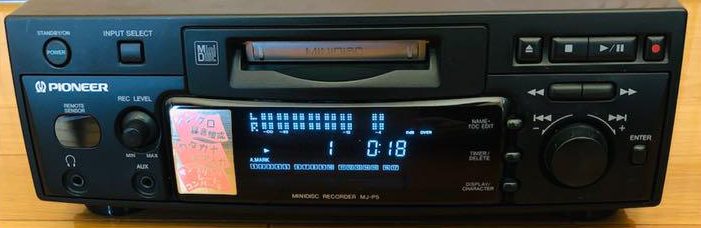

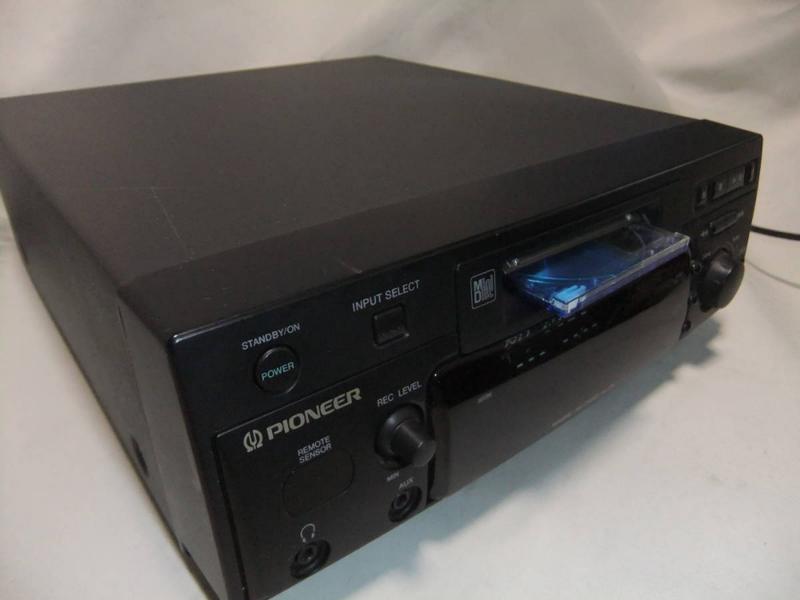

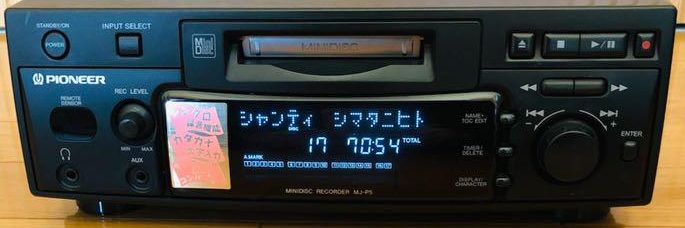

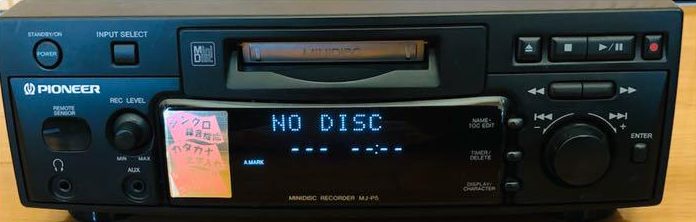

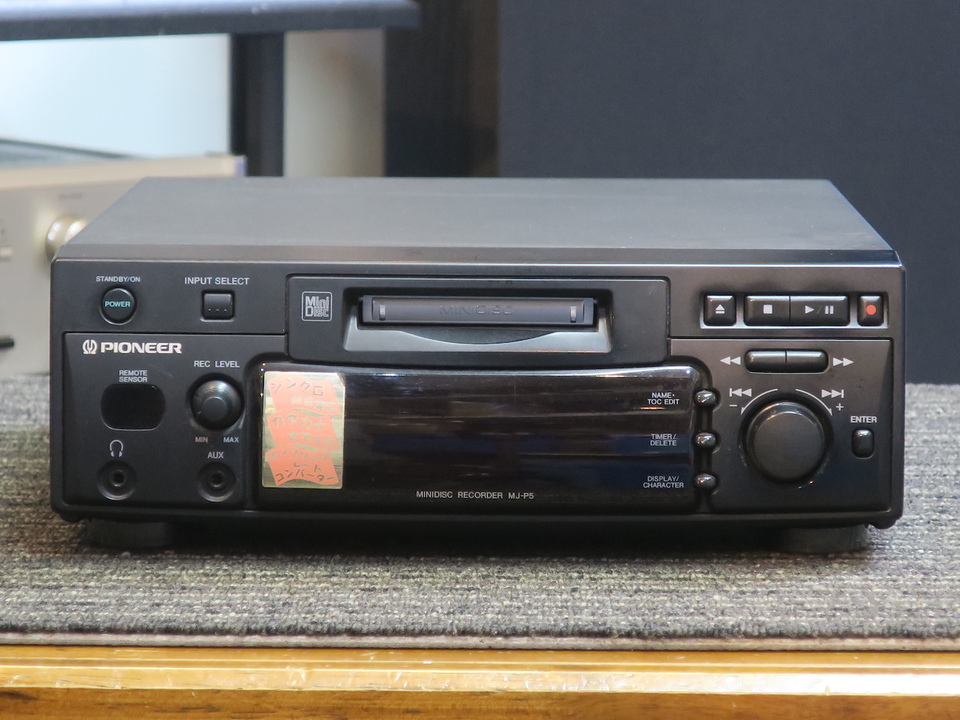

Photos

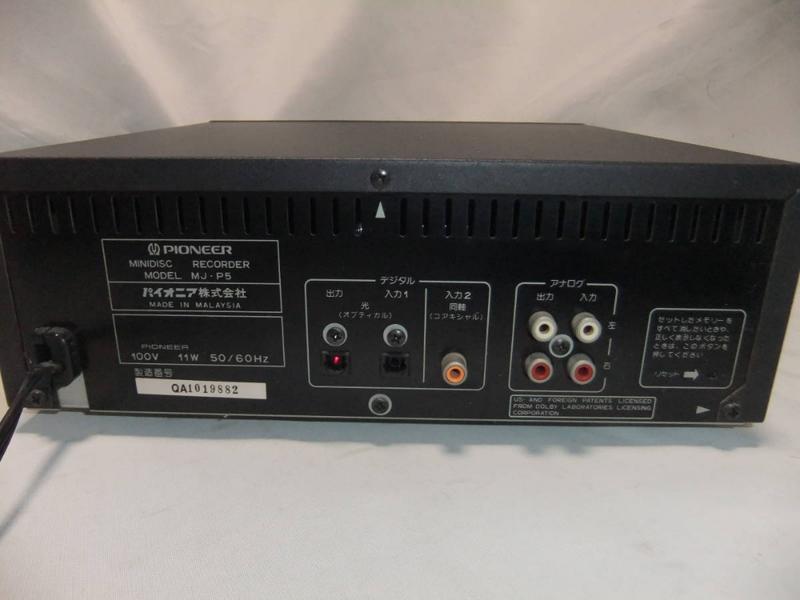

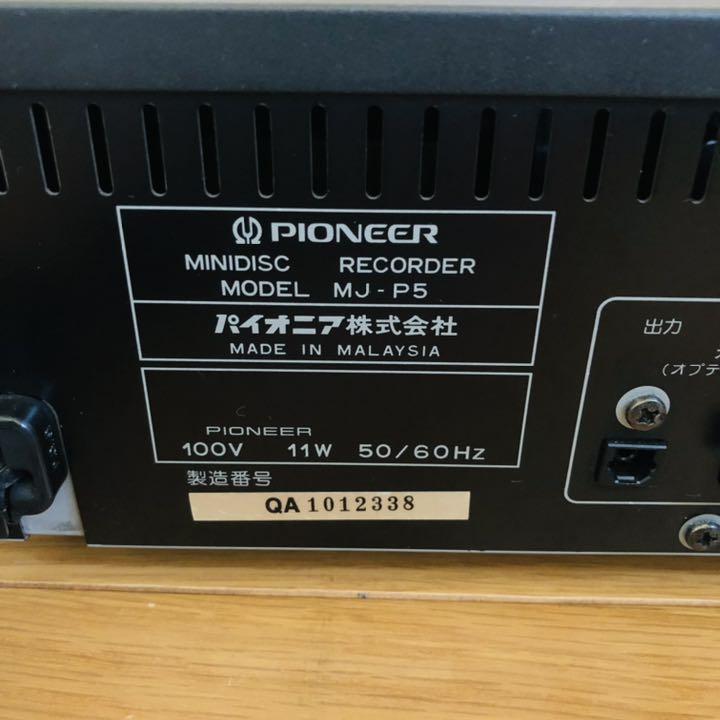

Rear of unit

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
Manual
RegionJapan
