| Name | MZ-N10 |
|---|---|
| Manufacturer | Sony |
| Released | 2002/11 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | No |
| Radio | No |
| Dimensions | 83.8 x 74.3 x 18.9mm |
| Weight | 84g |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 1.5, 3.6, 6 |
| Power cable | Center positive |
| Price (launch) | Not recorded |
| ¥40 000 | |
| - | |
| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone |
| Control | Remote (Sony), USB (proprietary) |

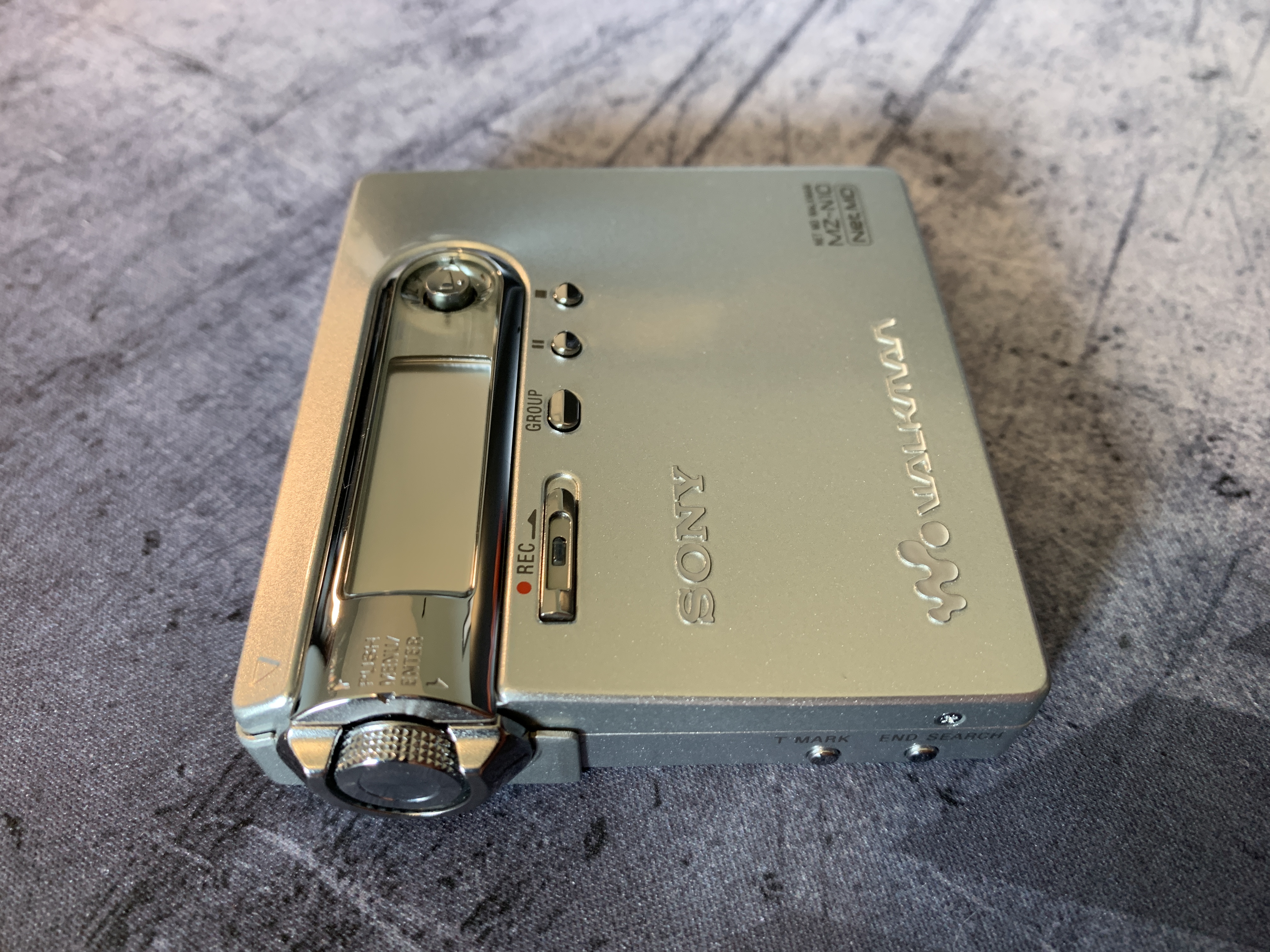

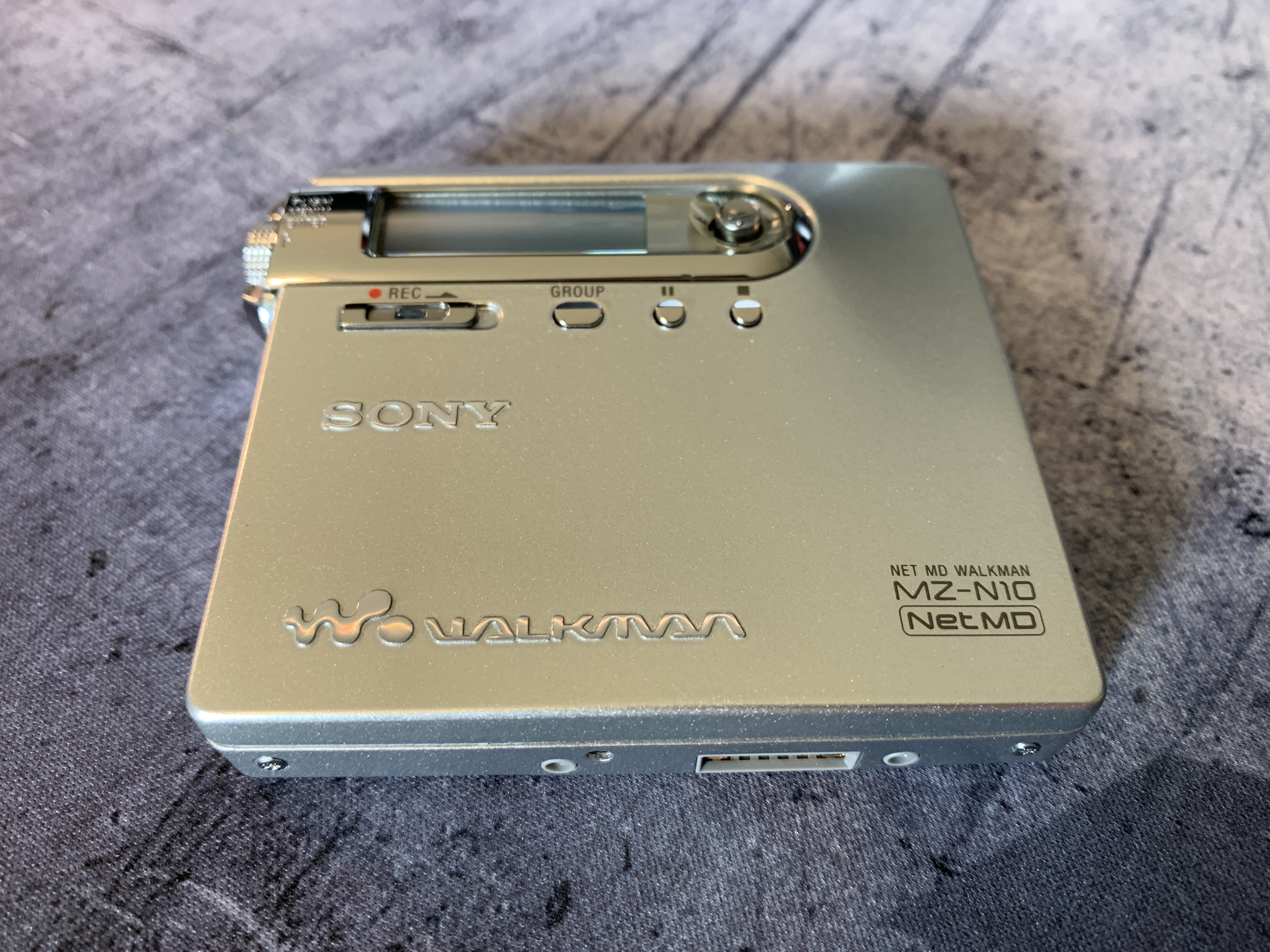

Tenth anniversary recorder, launched alongside the MZ-E10 and the LAM-Z10. 3-line LCD on main body, Jog-dial (or Jog-knob like on the JVC XM-R700), manual REC level control, MDLP group function, G-protection Jog-proof, one touch eject
- ATRAC DSP Type-S (System Controller/ATRAC DSP IC: CXD2678-202GA)
- Unit is 30g lighter and 2.6mm thinner than the MZ-N1
- LP4 audio downloading at 64x realtime (LP2 @ 32x?, SP @ ?)

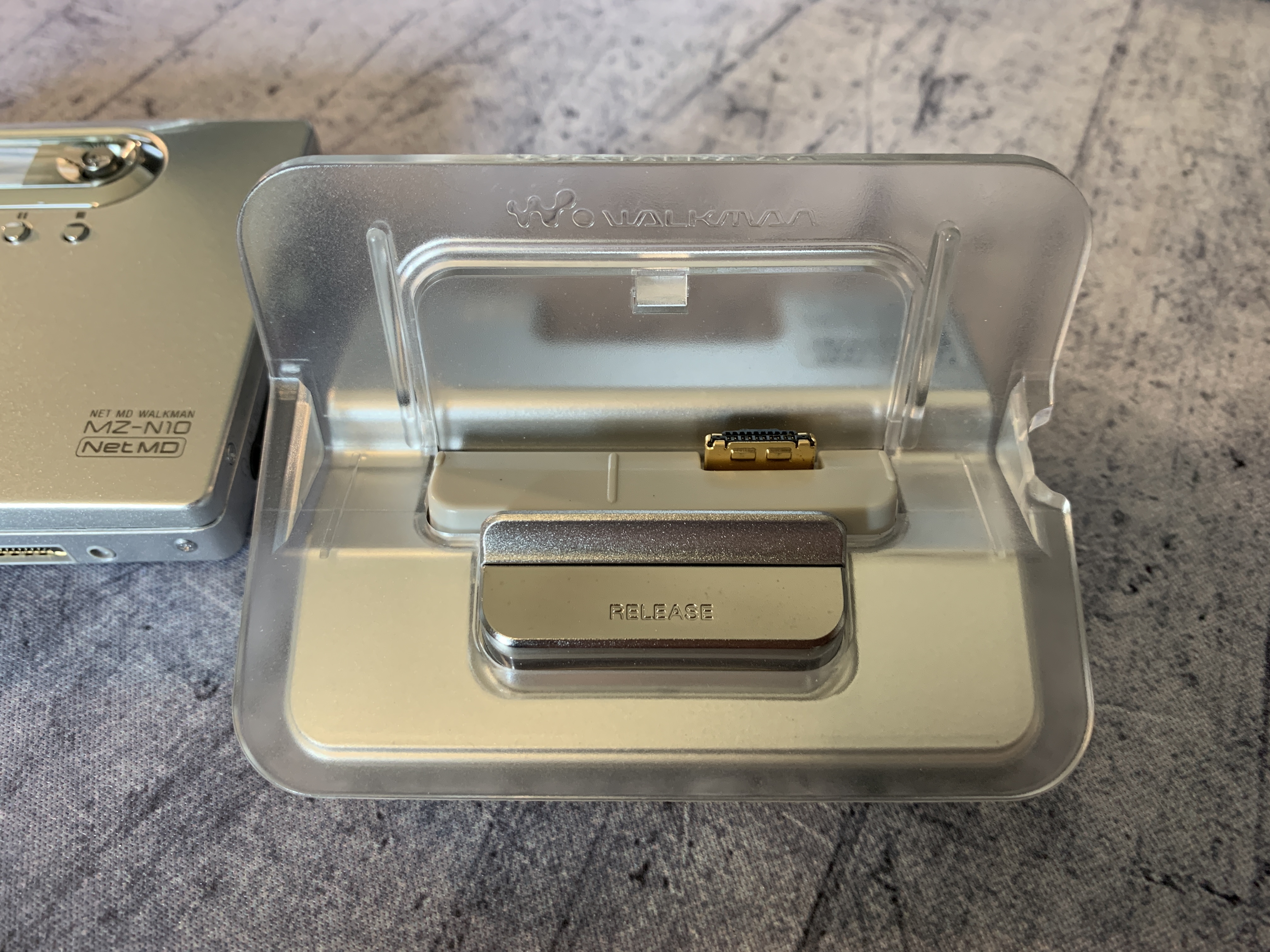

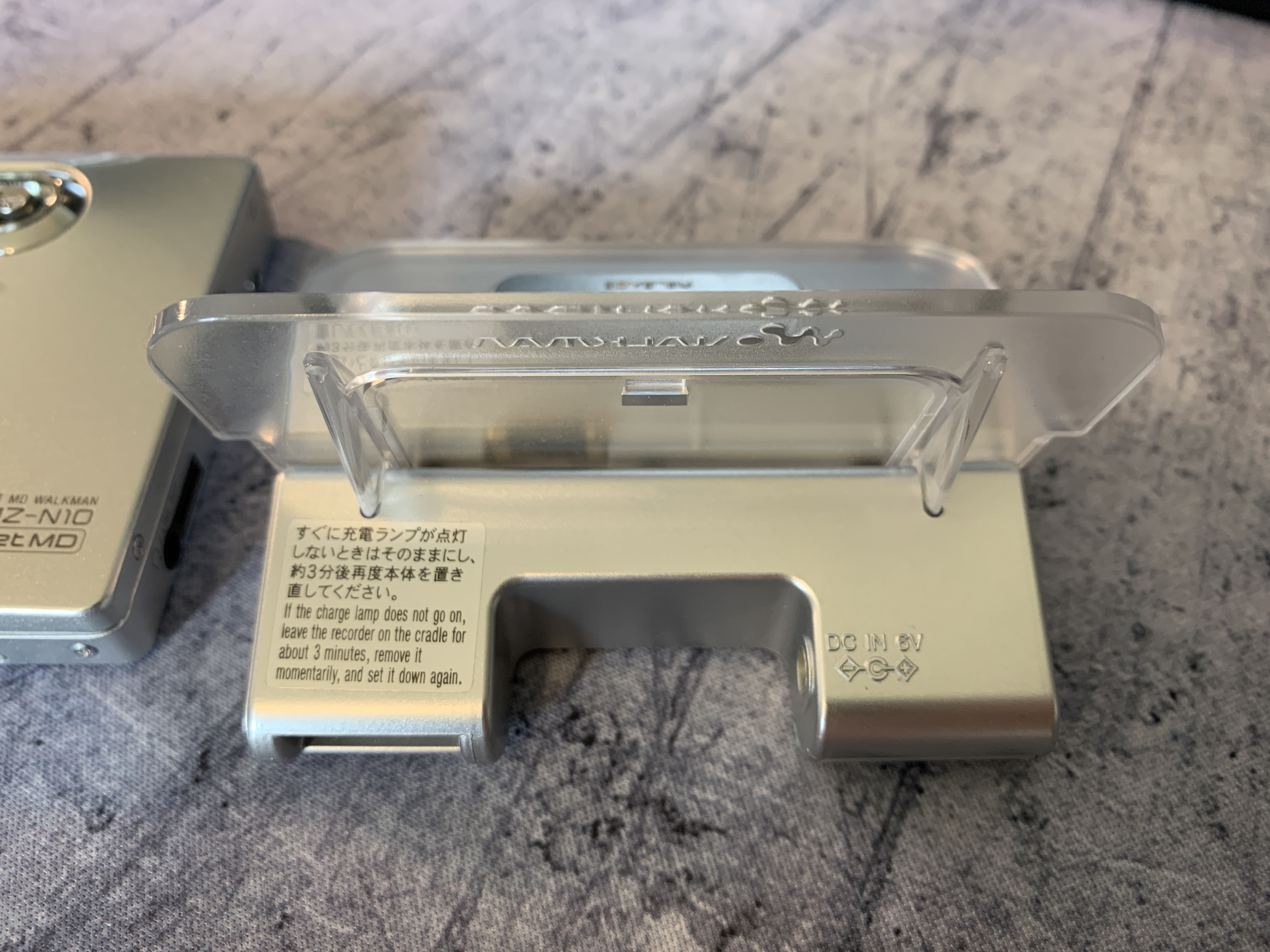

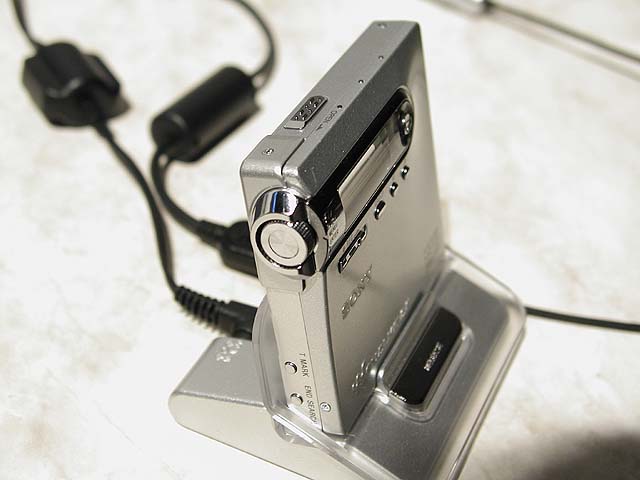

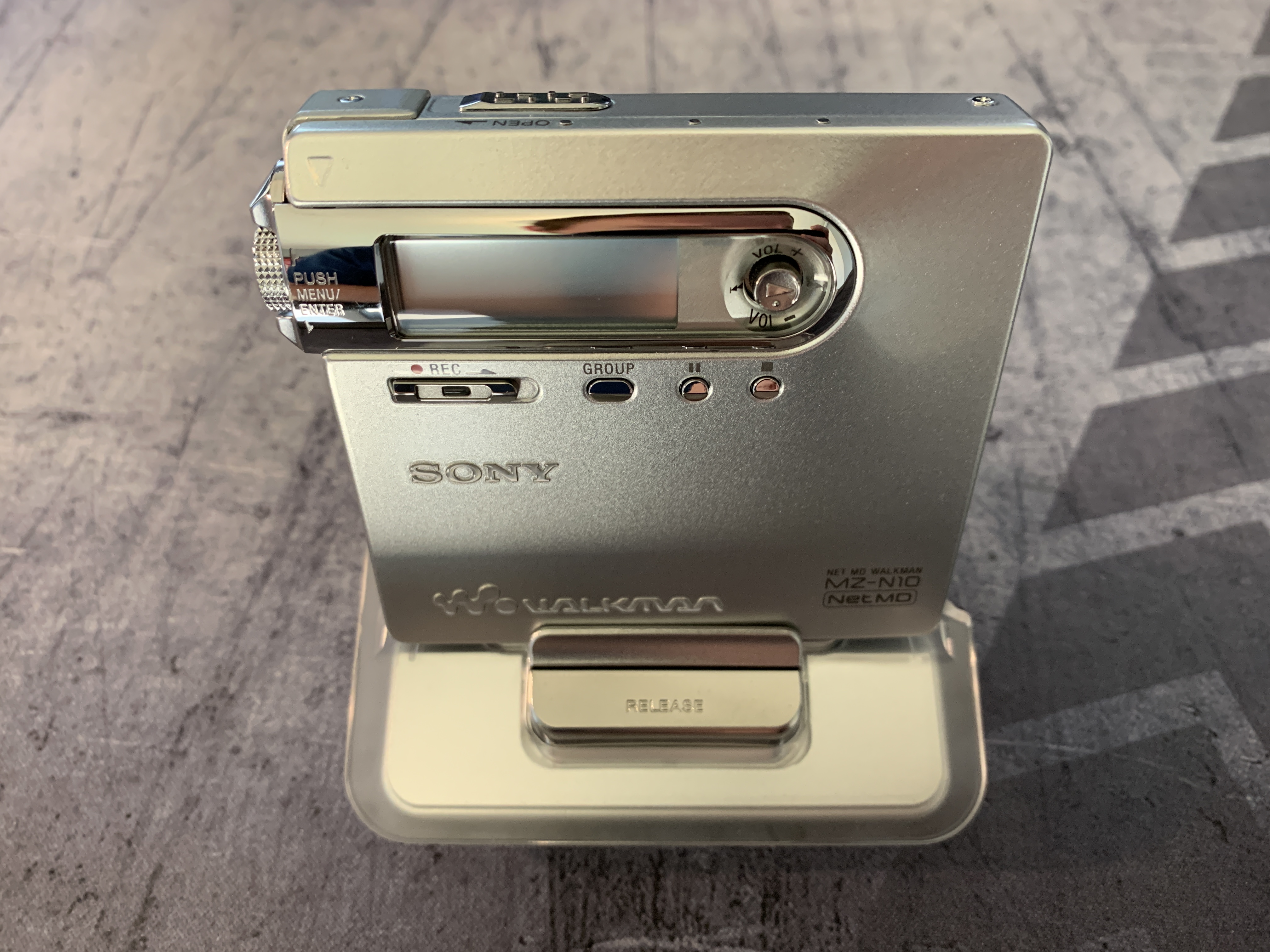

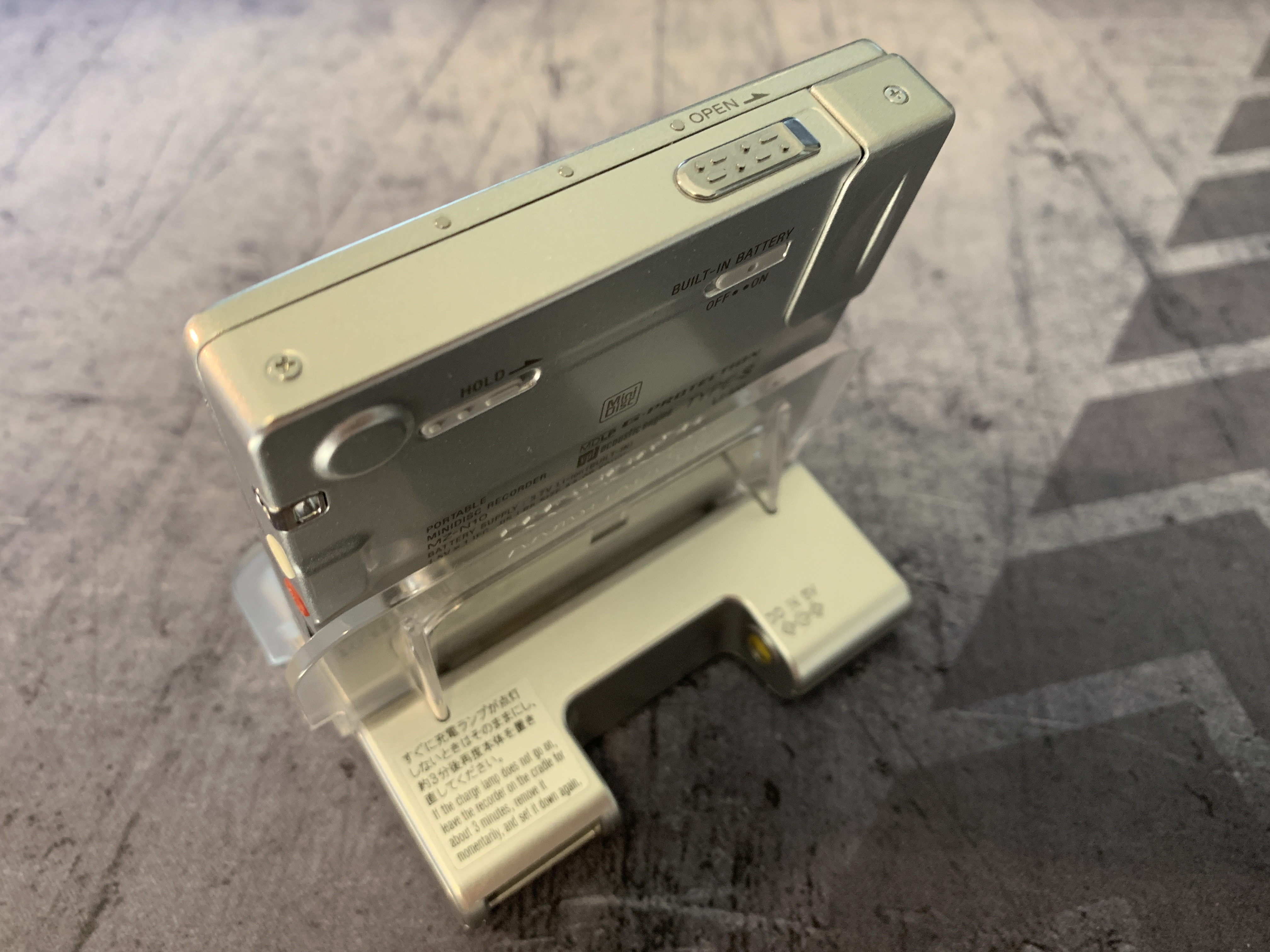

- USB and charging connections are made through the docking stand only
- Auto time-mark during recording
- Personal disc memory
- Silver or Grey
- Internal 3mm Lithium Ion cell
- "Virtual Headphone Technology Acoustic Engine" uses DSP to provide "Studio, Club, Live or Arena" effects
- Equalizer allows 7 steps of adjustment (-10db to +10db) in 6 frequency bands with four fixed presets (Heavy, Pops, Jazz, Unique) or one of two custom settings (Note - you cannot use EQ and "Virtual Headphone" simultaneously)
- Adjustable playback speed from -50% to +100% in 13 steps without change of pitch
Notes for Modern Day Buyers:
- This portable does not have DC-IN, for power and charging either the original sidecar or the original dock is required.

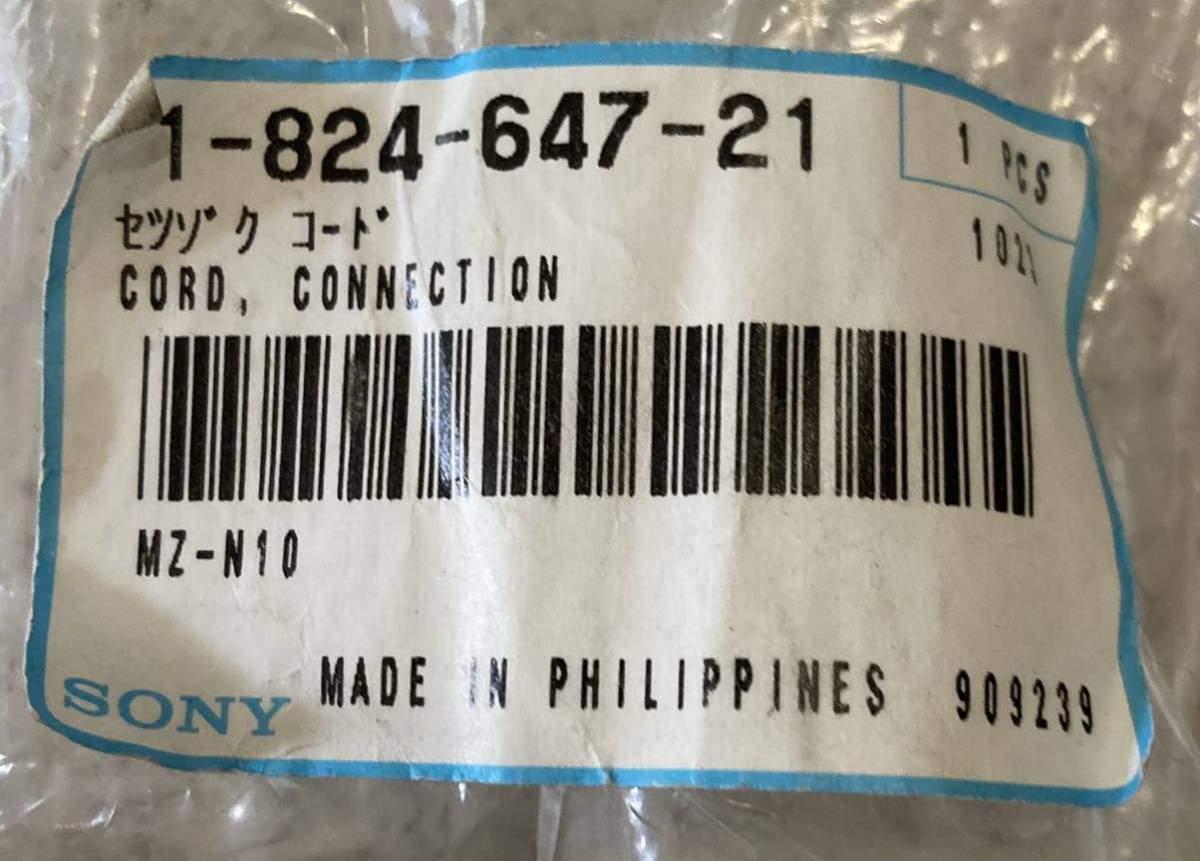

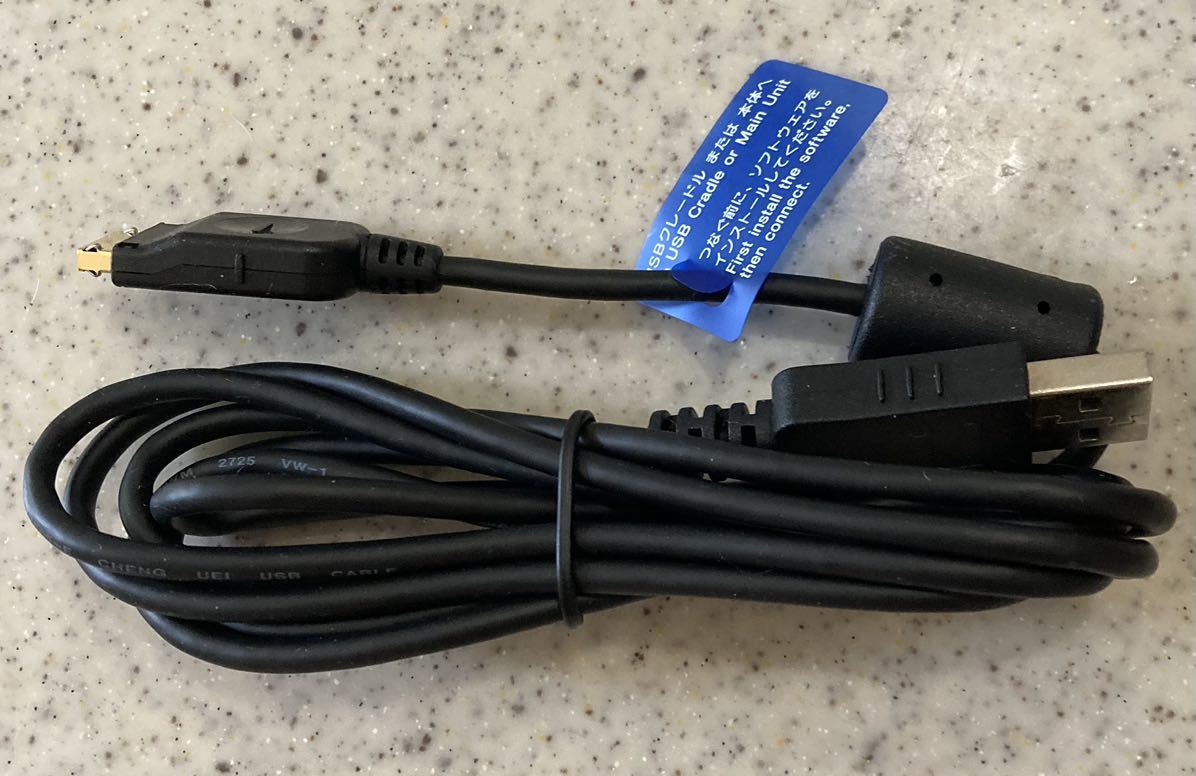

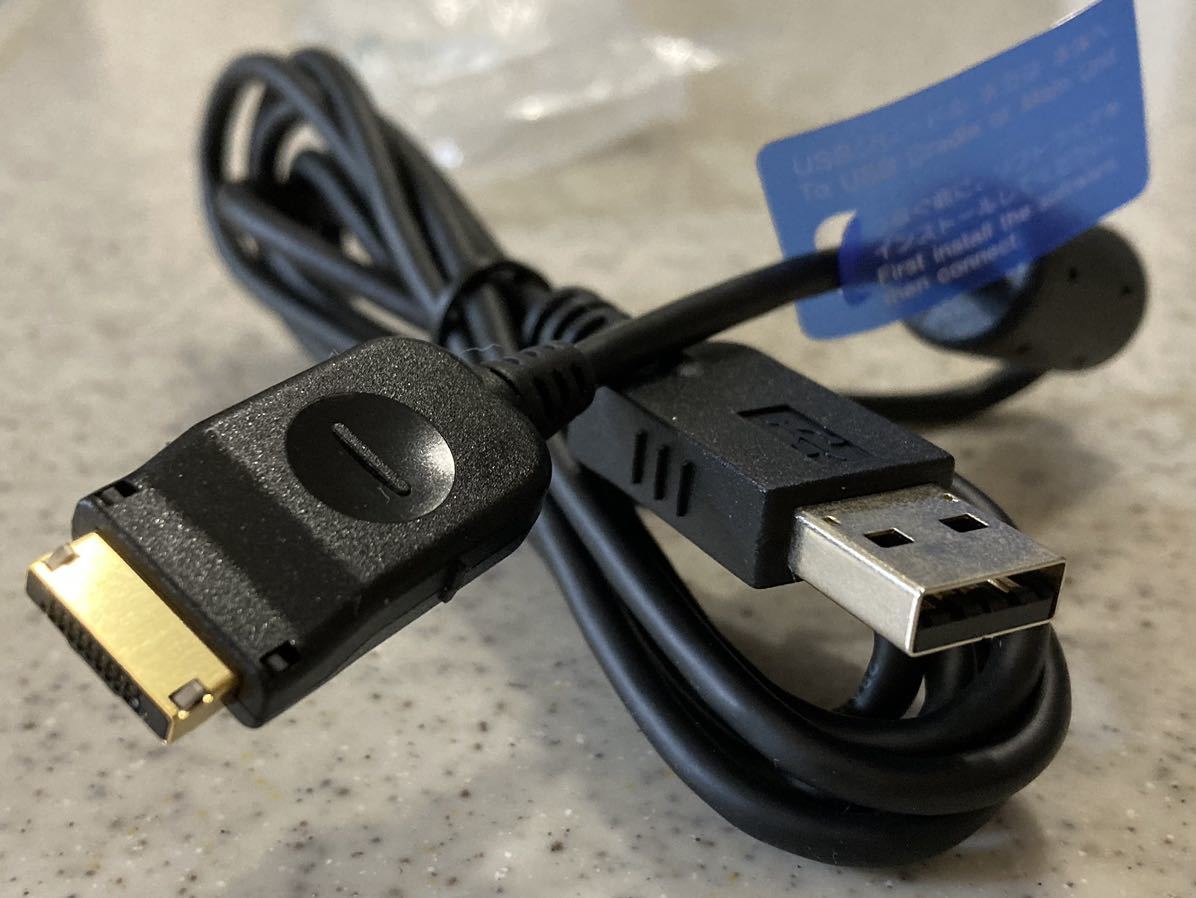

- A proprietary USB cable (Part# 1-824-647-21) is required to use NetMD, with or without the dock.
- The matching sidecar for this model supports power and charging via 6v (positive tip) DC-IN.
- This portable uses an internal li-ion battery that will most likely need to be replaced.
- Aftermarket drop-in replacement batteries are available that do not require any soldering, as well as an aftermarket USB Type-C adapter for the proprietary connector that will provide power/charge/NetMD functionality.
Find a MZ-N10 on eBay (Affiliate link)
The MiniDisc Wiki may receive a commission for this affiliate link.
Content adapted from: Sony Press Release av.watch MZ-N10 Minidisc.org Page
Manuals
Photos
Additional specifications and references
| Web Md | Supported (Type-S exploits) |
|---|---|
| Remote Page | |
| Atrac Ic | CXD2680 |
| Manual | User manual, Service manual |
| Region | Japan |
